Product Overview
Description
PRODUCT DESCRIPTION

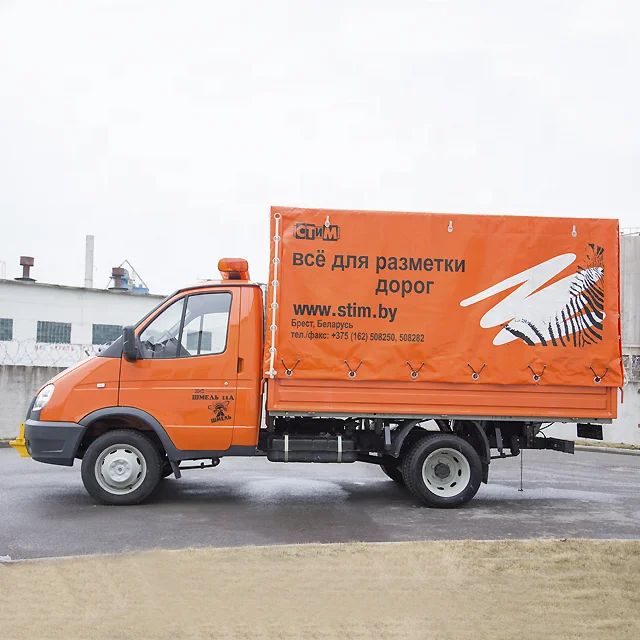

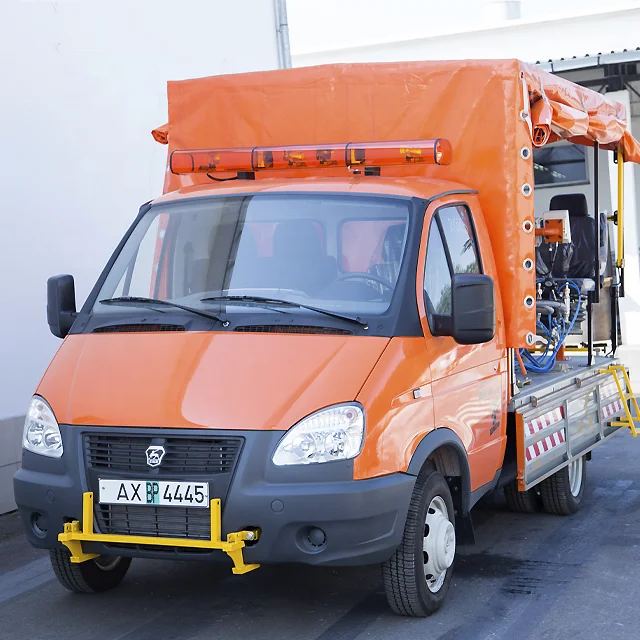

Shmel 11A is designed for airless horizontal road marking using quick-drying paints and retroreflective glass beads.
Shmel 11A is the most popular road marking machine in the CIS. Compact and agile, it makes a perfect solution for marking both highways and urban streets.
With the airless marking technology, you can use high viscosity paints, creating lines with clearly defined edges and making marking material penetrate the roadbed pores.
A wide use of the standard configuration, a well-developed service network, and affordable consumables ensure low ownership costs.
Good steerability and the Video Marker System allow easily following the desired trajectory when applying road markings. The marking unit design helps minimize the impact of road irregularities on the line geometry.
Coarse filters installed before the paint pump and fine filters installed before paint guns provide seamless marking experience and extend service life of paint nozzles and paint pump seals.
High-quality components ensure reliability and long service life of the equipment. In the machine we use components of leading companies like Graco, Danfoss, Festo, Fini, and Kamber.
Shmel 11A is the most popular road marking machine in the CIS. Compact and agile, it makes a perfect solution for marking both highways and urban streets.
With the airless marking technology, you can use high viscosity paints, creating lines with clearly defined edges and making marking material penetrate the roadbed pores.
A wide use of the standard configuration, a well-developed service network, and affordable consumables ensure low ownership costs.
Good steerability and the Video Marker System allow easily following the desired trajectory when applying road markings. The marking unit design helps minimize the impact of road irregularities on the line geometry.
Coarse filters installed before the paint pump and fine filters installed before paint guns provide seamless marking experience and extend service life of paint nozzles and paint pump seals.
High-quality components ensure reliability and long service life of the equipment. In the machine we use components of leading companies like Graco, Danfoss, Festo, Fini, and Kamber.
STANDARD CONFIGURATION

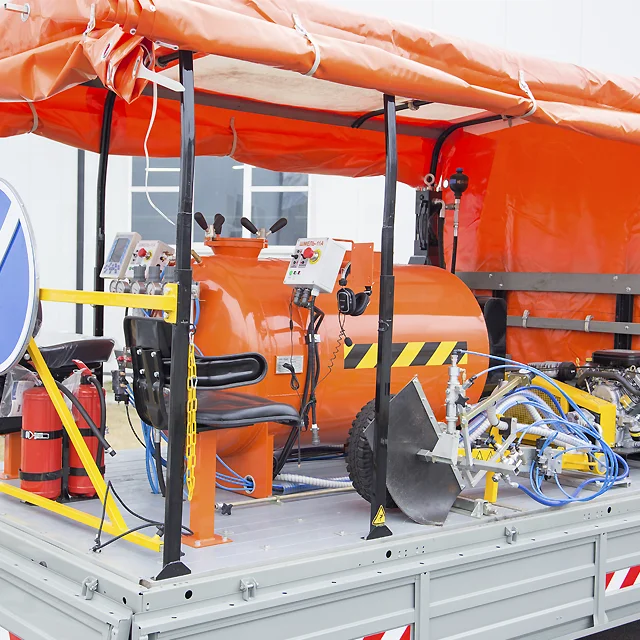

- Left marking unit with two pairs of paint and glass bead guns (Kamber);

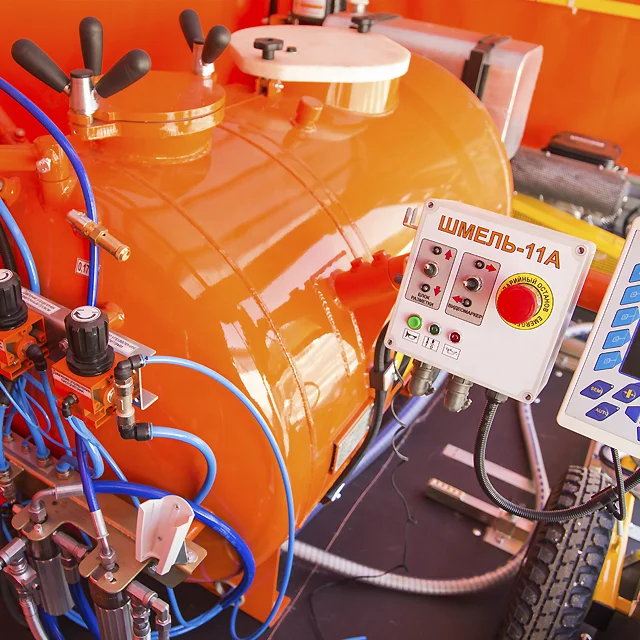

- Marking control panel M12 with a mini-panel and a remote START button;
- Paint flow meter;
- Digital speedometer in the cabin;
- Beam-type light on the cabin, spot light on the canvas top frame at the back of the machine, flash tube light on the marking unit;
- Glass bead flow sensors;
- Intercom;
- Video Marker System;

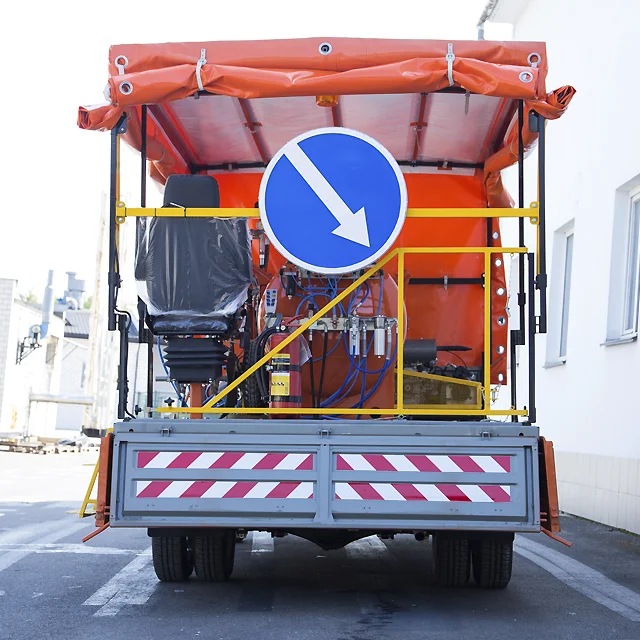

- Pass This Side sign (700 mm) on a swivel bracket;
- Handheld paint gun (50 cm extension, 10 m hose);
- Handheld jet air gun for cleaning of working equipment.
- Marking control panel M12 with a mini-panel and a remote START button;
- Paint flow meter;
- Digital speedometer in the cabin;
- Beam-type light on the cabin, spot light on the canvas top frame at the back of the machine, flash tube light on the marking unit;
- Glass bead flow sensors;
- Intercom;
- Video Marker System;
- Pass This Side sign (700 mm) on a swivel bracket;
- Handheld paint gun (50 cm extension, 10 m hose);
- Handheld jet air gun for cleaning of working equipment.
*The chassis of the machine can be changed at the request of the customer.
OPTIONS
- Operator workplace light and marking unit light for night work;
- Marking unit with one paint gun and glass bead gun pair and operator seat on the right side of the machine;
- Additional third paint gun and glass bead gun pair for the left marking unit;
- Additional second paint gun and glass bead gun pair for the right marking unit;
- Foot pedal duplicating START button on the marking control panel;
- Line beginning photo sensor (can be installed on any gun);
- Detour sign cluster (1,050x1,050 mm, cluster 200 mm) instead of Pass This Side sign (700 mm)
- Paint tank filling system;
- Equipment for two-color operation;
- Paint tank agitator;
- Set of spray plastic 98:2 equipment (one line);
- Set of spray plastic 98:2 equipment (two lines);
- Third set of guns for spray plastic 98:2;
- Handheld gun for spray plastic 98:2;
- Road Works and Speed Limit 40 km/h signs at the back of the machine;
- LIS System on the right side of the machine with one marking gun and glass bead gun pair.
- Marking unit with one paint gun and glass bead gun pair and operator seat on the right side of the machine;
- Additional third paint gun and glass bead gun pair for the left marking unit;
- Additional second paint gun and glass bead gun pair for the right marking unit;
- Foot pedal duplicating START button on the marking control panel;
- Line beginning photo sensor (can be installed on any gun);
- Detour sign cluster (1,050x1,050 mm, cluster 200 mm) instead of Pass This Side sign (700 mm)
- Paint tank filling system;
- Equipment for two-color operation;
- Paint tank agitator;
- Set of spray plastic 98:2 equipment (one line);
- Set of spray plastic 98:2 equipment (two lines);
- Third set of guns for spray plastic 98:2;
- Handheld gun for spray plastic 98:2;
- Road Works and Speed Limit 40 km/h signs at the back of the machine;
- LIS System on the right side of the machine with one marking gun and glass bead gun pair.
PRODUCT SPECIFICATIONS
Parameter | SHMEL 11A |
Standard configuration chassis | GAZ 3302 Gazelle |
Chassis engine approval | Euro 5 |
Chassis engine fuel | Gasoline, AI-92 |
Paint spray technology | Airless |
Marking speed with the following paint consumption: | |
- Single solid line (15 cm wide, 800 g/m2), km/h | 10.8 |
- Double solid line (15 cm wide, 800 g/m2), km/h | 5.5 |
Maximum marking speed, km/h | 12 |
Engine | Briggs&Stratton |
Power, hp | 23 |
Power, kW | 16.9 |
Engine fuel | Gasoline, AI-92 |
Compressor capacity (inlet), L/min | 540 |
Compressor capacity (inlet), L/min* | 890 |
High-pressure paint pump rated capacity, L/min | 26 |
High-pressure paint pumps | 1 |
Maximum operating paint pressure, bar | 130 |
Paint tank (nominal/design capacity), kg | 600/800 |
Glass bead tank, kg | 240 |
Hardener tank (if available), kg | 45 |
Lines applied simultaneously | 2 |
Paint guns on the left marking unit, max. | 3 |
Paint guns on the right marking unit, max. | 2 |
Working position, mm | 7900x2750x2900 |
Transport position, mm | 5500x2100x2800 |
Unladen weight, kg | 2660 |
Total weight, kg | 3500 |
Left marking unit | 2 |
Right marking unit | 1 |
* Gasoline version based on GAZ-A21R23 Gazelle Next - Shmel 11AN
