Pillow Bag For Automatic Spice Packaging Machine Spices Packing Machine Spice Powder Packing Machine
- Category: >>>
- Supplier: Durzerd Packaging Machinery Co. Ltd.
Share on (11000000447224):
Product Overview
Description
Model | ZD 420 | ZD 540 | ZD 730 | ZD 1100 | |||||
Bag type | Pillow type bag; Gusseted bag /Block bottom bag(Option) | ||||||||
Operation Mode | Intermittent | ||||||||
Speed | Up to70 bags/min | 20 to 55bags/min | 5 to 20bags/min | ||||||
Bag Length (single stroke) | 20 to 280mm (0.8 to 11’’) | 50 to 340mm (2.0 to 13.4’’) | 50 to 460mm (1.9’’ to 18’’) | 100 to 480mm (3.9’’ to 19’’) | |||||
Bag Width | 40 to 200mm (1.6 to 7.9’’) | 80 to 260mm (3.1 to 10.3’’) | 80 to 350mm (3.1’’ to 13.8’’) | 120 to 540mm (4.7’’ to 21.2’’) | |||||
Packing Weight | 10g to 1000g | 200g to 2000g | 500g to 3500g | 3000g to 10kg | |||||
Reel Film Width | ≤420mm (16.5’’) | ≤540mm (21.2’’) | ≤730mm (28.7’’) | ≤1100mm (43.3’’) | |||||
Reel Outer Dia. | 400mm (15.7’’) | 400mm (15.7’’) | 500mm (19.7’’) | 600mm (23.6’’) | |||||
Reel Inner Dia. | 75mm (2.9’’) | ||||||||
Film thickness | 0.04-0.12mm (40-120mic.) | ||||||||
Voltage | AC220V/50Hz, 1phase or Per customer specification | ||||||||
Power Consumption | 3KW | 4.5KW | |||||||
Compressed Air Requirement | 0.6 MPa0.36 M³/min | 0.6MPa0.45 M³/min | |||||||
Machine Weight | 600Kg | 800Kg | 1000Kg | 1200Kg | |||||
VFFS Chilli And Spices Powder Filling Machine:
This machine is suitable for seasoning, chilli and spices powder.

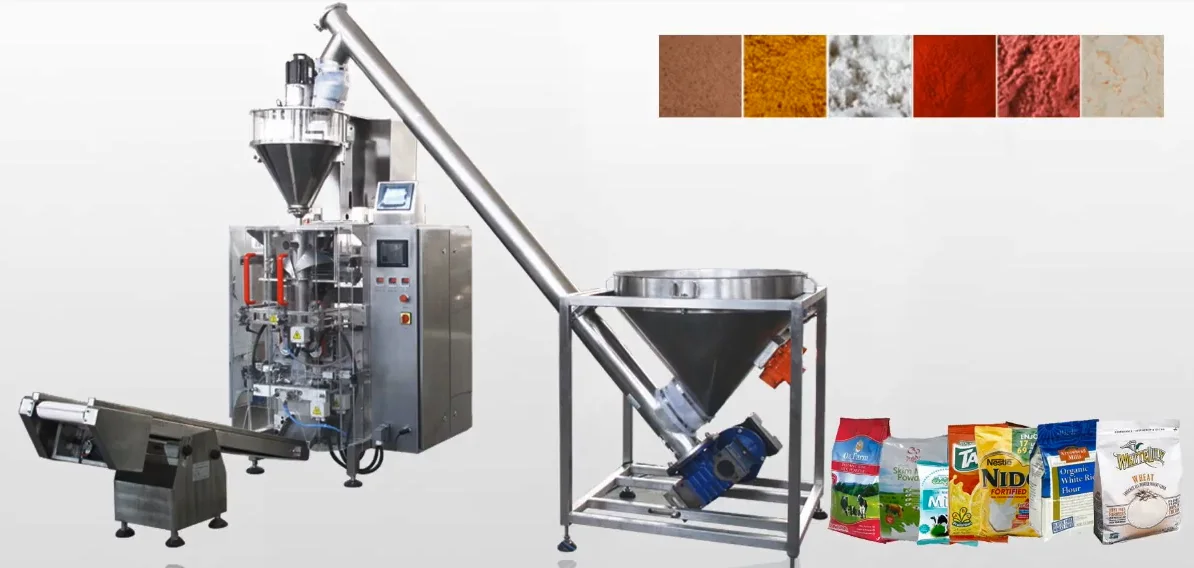

The whole curry packing line is consist of vertical filling packaging machine , auger filler or linear scale dosing system, screw elevator, take-off conveyor. It integrates the functions of feeding, metering, bag-making, packaging, sealing, printing, punching and countering, has automatic film position control function,both the horizontal sealing and film pull mechanisms adopt servo motor for transmission so as to guarantee high efficiency of the machine.It could be ideally combined with the other machines.
The whole curry packing line is consist of vertical filling packaging machine , auger filler or linear scale dosing system, screw elevator, take-off conveyor. It integrates the functions of feeding, metering, bag-making, packaging, sealing, printing, punching and countering, has automatic film position control function,both the horizontal sealing and film pull mechanisms adopt servo motor for transmission so as to guarantee high efficiency of the machine.It could be ideally combined with the other machines.

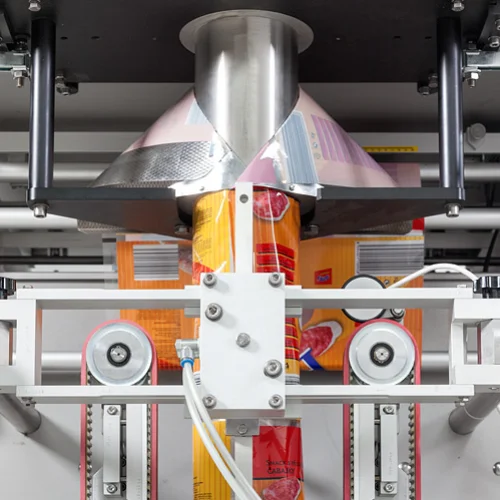

Vertical Packing machine

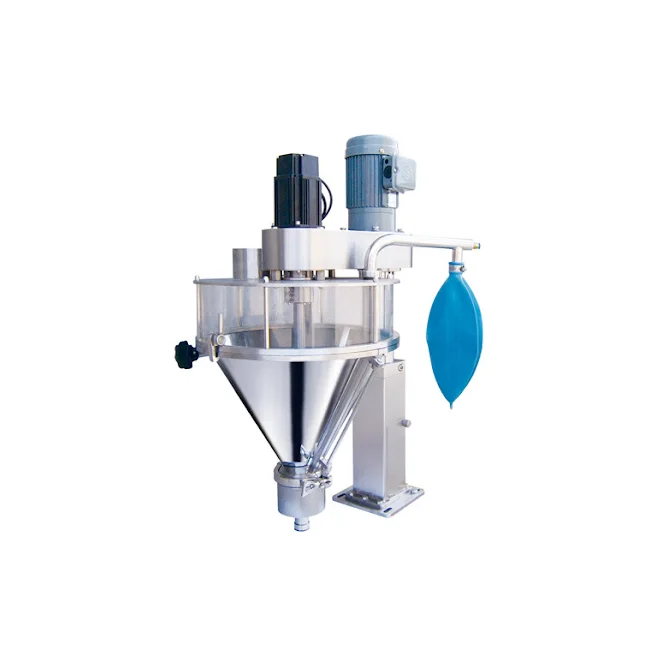

Auger Filler

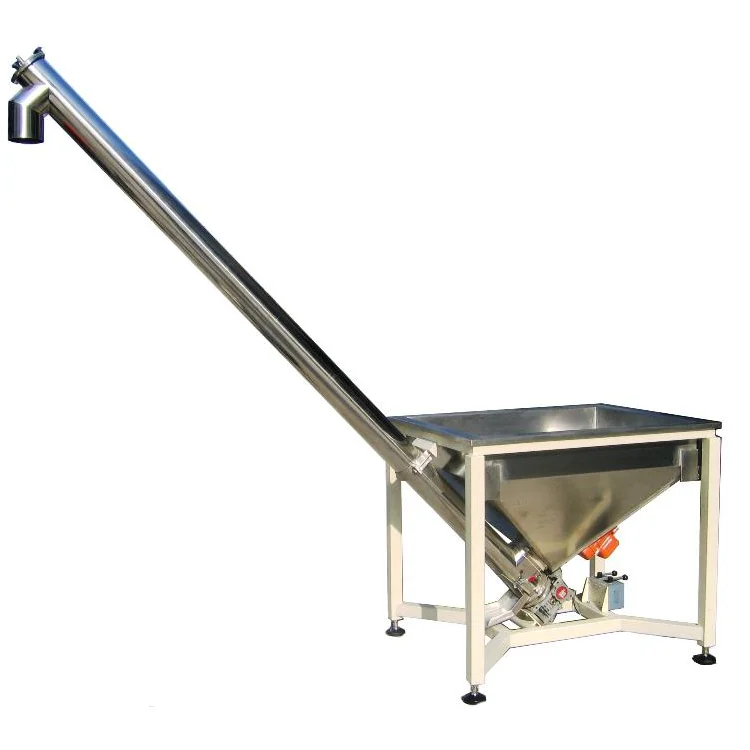

Screw elevator
Safety and Hygiene:
No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts Safety and Hygiene
No film, machine will alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts Safety and Hygiene
1. A wide range of pouches: Pillow bag ,gusset bag, quad seal bag
2. High speed: 5~70 bags/min
3. Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
4. Easy to adjust: only about 10 minutes to change different pouches.
5. Frequency control: speed can be adjusted by frequency conversion within the range.
6. High Automation: unmanned in weighing and packing process, machine alarm automatically when failure..
2. High speed: 5~70 bags/min
3. Easy to operate: PLC controller and color touch-screen, fault indication on the touch screen.
4. Easy to adjust: only about 10 minutes to change different pouches.
5. Frequency control: speed can be adjusted by frequency conversion within the range.
6. High Automation: unmanned in weighing and packing process, machine alarm automatically when failure..
It is suitable for the packaging of non-flowing powder materials,
such as: milk powder, soy milk powder, starch, sugar powder, salt powder, facial mask powder, enzyme preparation, glucose, seasoning, spicy powder, flavor and fragrance, coffee powder, flour powder, etc.
Auto Weighing → Film Pulling → Date Printing → Filling→ Bag Forming → Bag Sealing→ Finished Product output
Q1: Are you a factory or a trading company?
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
A1:We are the factory with manufacturing and self-supporting import and export rights for more than 25 years.
Q2: How to choose suitable packaging machine?
A2:Need to provide your material pictures and requirements, such as packaging speed, packaging weight, bag type and bag size.
Q3: How about the payment way?
A3:Payment can be T/T, L/C etc. we can provide FOB, CNF, CIF term by sea.
Q4: How to ensure the quality of the machine?
A4:We usually delivery the machine after successful inspection in our factory. We have our own quality control department,before the delivery we have to running the machine for three days without problem. You can send us your materials and we will make video as long as you want. Or you can arrange a third-party inspection agency.
Q5: How to install the equipment?
A5:We will provide manuals and detailed videos to help customer install machine. If necessary, we will send technicians to the customer's factory to assist, and the customer only needs to pay for round-trip air tickets, meals, room expenses and a daily subsidy of 150 US dollars.
