12V 250A Winch Relay Off road Vehicle Electric Winch Relay Integrated Waterproof Relay
- Category: >>>
- Supplier: Wenzhou Ningyue Electric Technology Co. Ltd.
Share on (11000000448744):
Product Overview
Description
Product Display
Main Features
250A switching capability
2A, 2C contact form
Sealed waterproof construction
Outline dimensions: 80.0X47.5X78.0mm
2A, 2C contact form
Sealed waterproof construction
Outline dimensions: 80.0X47.5X78.0mm
Typical Application
– Universal, Starter, Pre-heating, Off-road vehicle electric winch relay, Integrated waterproof relay, Winch relay
– BMW; Peugeot / Citroën: Boxer, Jumper.
Operation Condition | ||||||
Insulation | 100MΩ min(at 500VDC) | Item 7 of IEC 60255-5 | ||||
Dielectric strength | Between contacts | 50Hz 500V | Item 6 of IEC 60255-5 | |||
Between coil and contacts | 50Hz 500V | Item 6 of IEC 60255-5 | ||||
Shock resistance | 147m/s² | IEC 68-2-27 Test Ea | ||||
Vibration resistance | 10-40Hz double amplitude 1.5mm | IEC 68-2-6 Test Fc | ||||
Terminals strength | 20N | IEC 68-2-21 Test Ua1 | ||||
Solderability | 235℃±2℃ 3±0.5s | IEC 68-2-20 Test Ta method 1 | ||||
Ambient temperature | -40℃–85℃ | |||||
Relative humidity | 85%(at 40℃) | IEC 68-2-3 Test Ca | ||||
Weight | 500g | |||||
Contact Data | ||
Contact form | 2A; 1C | |
Contact material | AgSnO2 | |
Contact rating(resistance) | 250A/14VDC | |
120A/28VDC | ||
Max.Switching voltage | 40VDC | |
Max. switching current | 250A | |
Max. switching power | 1680 | |
Contact resistance | ≤30mΩ Item 4.12 of IEC 61810-7 | |
Electrical life | 1*105 Item 4.30 of TEC 61810-7 | |
Mechanical life | 1*107 Item 4.31 of TEC 61810-7 | |
Coil Ratings | ||||||||||||||||
Standard | Coil voltage（VDC） | Coil resistance (Q±10%) | Pickup voltage VDC（max.） | Release voltage VDC（min.） | Coil Power | Operate Time | Release Time | |||||||||
Rated | Max. | |||||||||||||||
12V | 12 | 15.6 | 60 | 7.8 | 1.2 | 30W | ≤10ms | ≤5ms | ||||||||
24V | 24 | 31.2 | 240 | 15.6 | 2.4 | 30W | ||||||||||

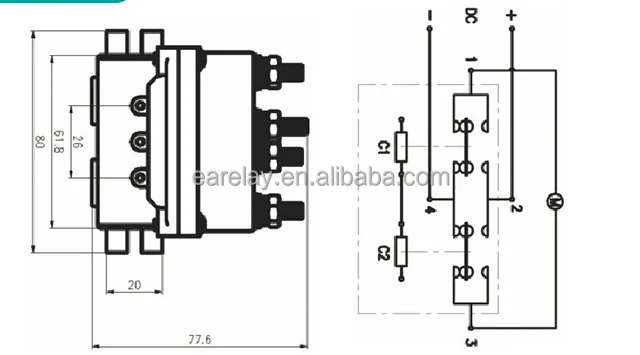

External Dimensions and Diagrams
