Robot arm cnc Kuka Kr10r1420 high speed robot video and spraypaint with robot mechanical arm claw
- Category: >>>
- Supplier: Ae Robotics Co. Ltd.
Share on (11000000450046):
Product Overview
Description
Products Description
Perfected for handing and assembly: Fast and incredibly agile with the utmost precision. Down to the very last detail,KR CBERTECH nano robots are designed as high-end handing robots.
Compact design.Reduced volume with greater payload capacity and longer reach. KR CYBERTECH nano robots work in confined spaces.
Minimized disruptive contour. A stareamlined arm/wrist design, a minimized disruptive contour of axis 2 and optimal integration of the welding equipment.
Maximum workspace. With their large working envelope to the rear and long downward reach ,KR CYBERTECH nano robots can work in areas inaccessible to cinventional robots.
Best-in-class repeatability. Besides many other innovative technical details, the KR CYBERTECH nano robots impress with a repeatability of 0.04 mm.
Flexibility in any position. Exceptional performance when installed on the floor,wall or ceiling ,or at any other angle.KR CYBERTECH nano robtos are suitable for every installation position in their standard versions-without requiring"extras"
Compact design.Reduced volume with greater payload capacity and longer reach. KR CYBERTECH nano robots work in confined spaces.
Minimized disruptive contour. A stareamlined arm/wrist design, a minimized disruptive contour of axis 2 and optimal integration of the welding equipment.
Maximum workspace. With their large working envelope to the rear and long downward reach ,KR CYBERTECH nano robots can work in areas inaccessible to cinventional robots.
Best-in-class repeatability. Besides many other innovative technical details, the KR CYBERTECH nano robots impress with a repeatability of 0.04 mm.
Flexibility in any position. Exceptional performance when installed on the floor,wall or ceiling ,or at any other angle.KR CYBERTECH nano robtos are suitable for every installation position in their standard versions-without requiring"extras"

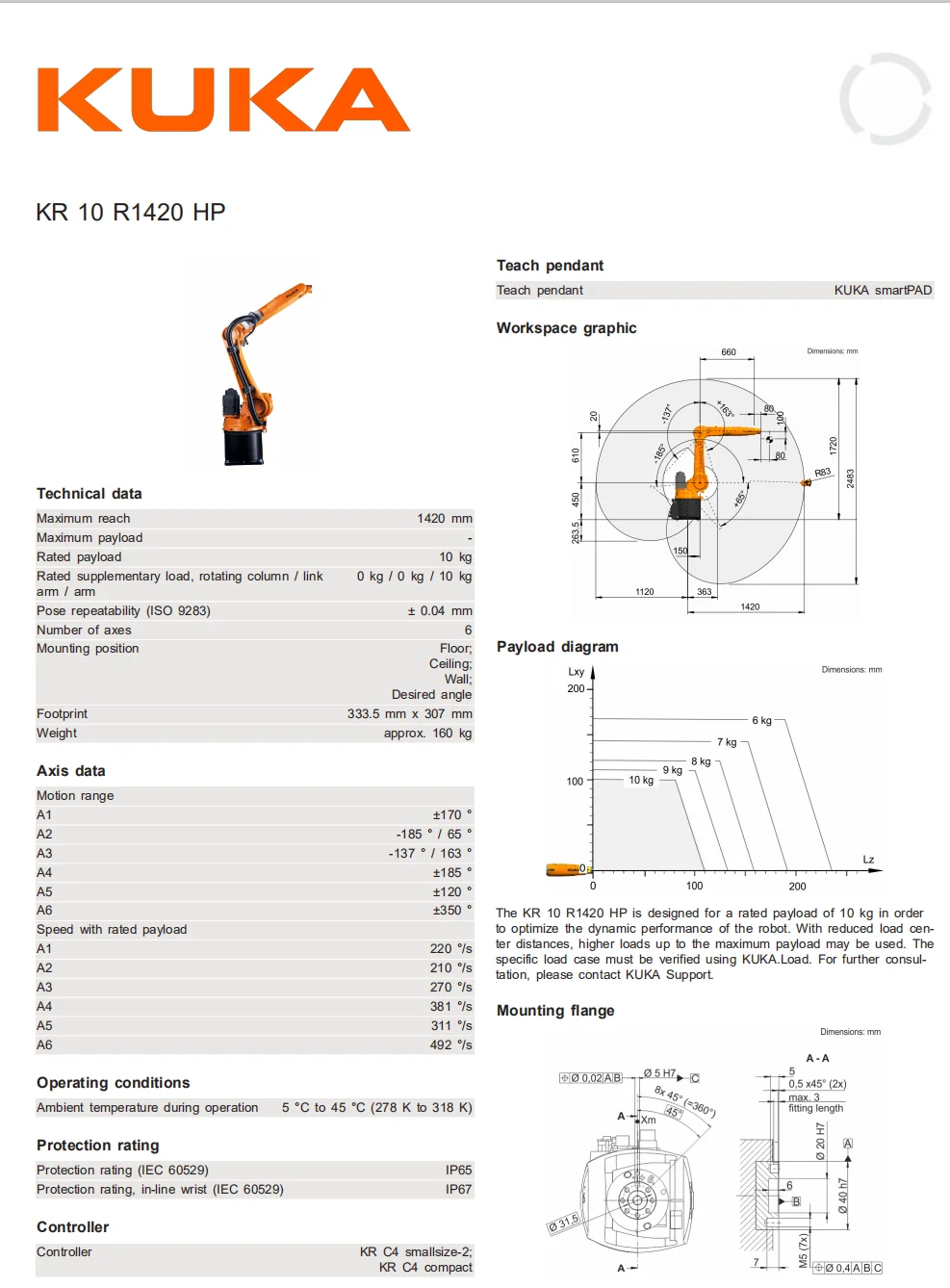

KUKA KR10R1420 Technical data | ||
Maximum reach | 1420 mm | |
Rated payload | 10 kg | |
Pose repeatability(ISO 9283) | ±0.04 mm | |
Number of axes | 6 | |
Mounting position | Floor, Ceiling, Wall, Desired angle | |
Footprint | 333.5 *307 mm | |
Weight | approx.160 kg | |
Ambient temperature during operation | 0°to 55℃（273K to 328K） | |
Protection (IEC 60529) | IP65 | |
Protection,robot Wrist(IEC 60529) | IP67 | |
Controller | KR C4 smallsize-2; KR C4 compact | |
Teach pendant | KUKA smartPAD | |
Axis data | Motion range | Speed with rated payload |
A1 | ±170° | 220°/s |
A2 | -185°/-65° | 210°/s |
A3 | -137°/163° | 270°/s |
A4 | ±185° | 381°/s |
A5 | ±120° | 311°/s |
A6 | ±350° | 492°/s |
Specification
Product packaging
Application
KUKA ROBOT FOR MACHINE TENDING
KUKA ROBOT FOR WELDING
KUKA ROBOT FOR PICK&PLACE
