PRODUCT DESCRIPTION
Kontur 1500 is the pioneer in the modular machine series consisting of standard self-propelled chassis with replaceable modules.
The module type determines marking materials to be used and the application method. The standard self-propelled chassis consists of a standardized operator workplace, a power unit, transmission and control units, module-mounting fasteners, and marking units. To apply glass beads onto the marking lines, the chassis is equipped with a glass bead tank allowing for vacuum loading.
The process module is a complete functional unit designed for operation with one or more similar marking materials. Replaceable modules provide for application of thick-layer and thin-layer road markings by various methods using specialized marking units.
Any module that is part of the machine can be replaced by another module directly by the user. Optionally, the machine can be equipped with any additional replaceable module.
The module type determines marking materials to be used and the application method. The standard self-propelled chassis consists of a standardized operator workplace, a power unit, transmission and control units, module-mounting fasteners, and marking units. To apply glass beads onto the marking lines, the chassis is equipped with a glass bead tank allowing for vacuum loading.
The process module is a complete functional unit designed for operation with one or more similar marking materials. Replaceable modules provide for application of thick-layer and thin-layer road markings by various methods using specialized marking units.
Any module that is part of the machine can be replaced by another module directly by the user. Optionally, the machine can be equipped with any additional replaceable module.
STANDARD CONFIGURATION
- Mobile operator workplace with two seats, a hard roof, rear-view mirrors, and controls;
- M12 marking control panel;
- Power unit control panel;
- Hydraulic steering;
- Standardized connections for hydraulic oil and compressed air loads;
- Glass bead tank;
- Lighting components and flashing lights;
- Marking unit light and operator workplace light for working during nighttime;
- Hydraulically lifted/lowered mechanical aiming device;
- Automation and control units;
- Piston compressor;
- Two fire extinguishers.
- M12 marking control panel;
- Power unit control panel;
- Hydraulic steering;
- Standardized connections for hydraulic oil and compressed air loads;
- Glass bead tank;
- Lighting components and flashing lights;
- Marking unit light and operator workplace light for working during nighttime;
- Hydraulically lifted/lowered mechanical aiming device;
- Automation and control units;
- Piston compressor;
- Two fire extinguishers.
OPTIONS
- Pass This Side sign (700 mm) on a swing arm or
- Detour sign cluster (1,050x1,050 mm, cluster 200 mm)
- Screw compressor;
- Rear platform for a support worker and road cones.
- Repositioned sweeper in front of the marking unit for roadway cleaning;
- Compressed air blowing system in front of the painting unit for roadway blowing (requires a screw compressor in the machine configuration);
- Glass bead guns with mechanical flow control;
- Set of pre-marking equipment;
- Any RAL color for the chassis.
- Detour sign cluster (1,050x1,050 mm, cluster 200 mm)
- Screw compressor;
- Rear platform for a support worker and road cones.
- Repositioned sweeper in front of the marking unit for roadway cleaning;
- Compressed air blowing system in front of the painting unit for roadway blowing (requires a screw compressor in the machine configuration);
- Glass bead guns with mechanical flow control;
- Set of pre-marking equipment;
- Any RAL color for the chassis.

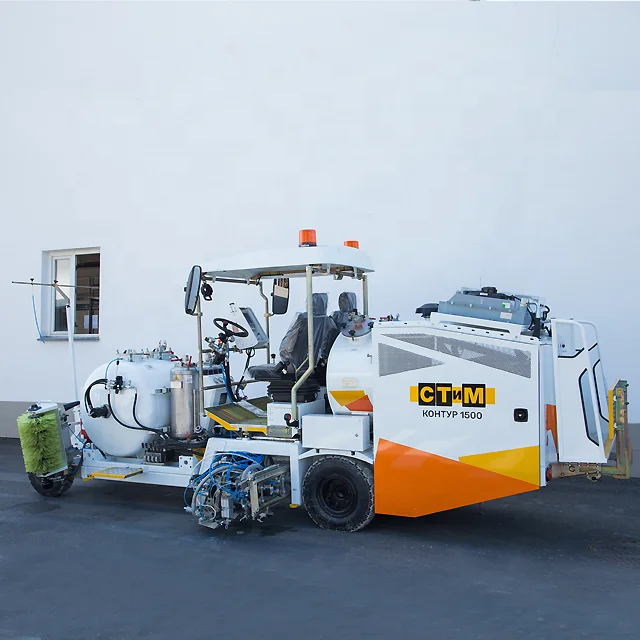

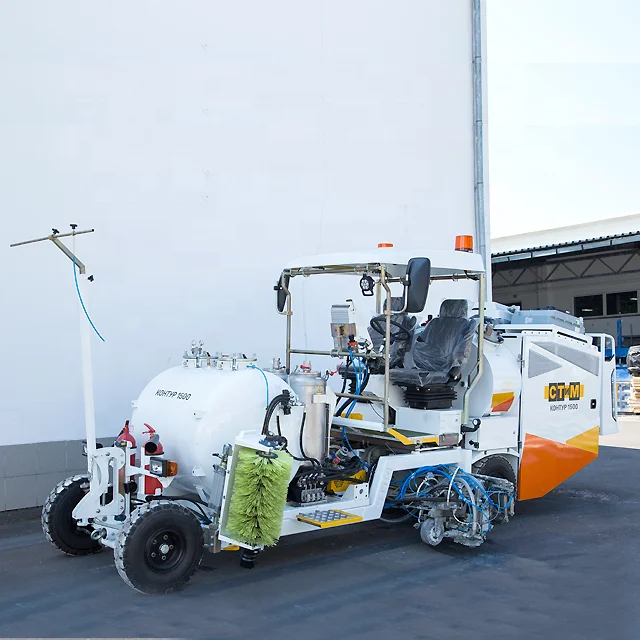

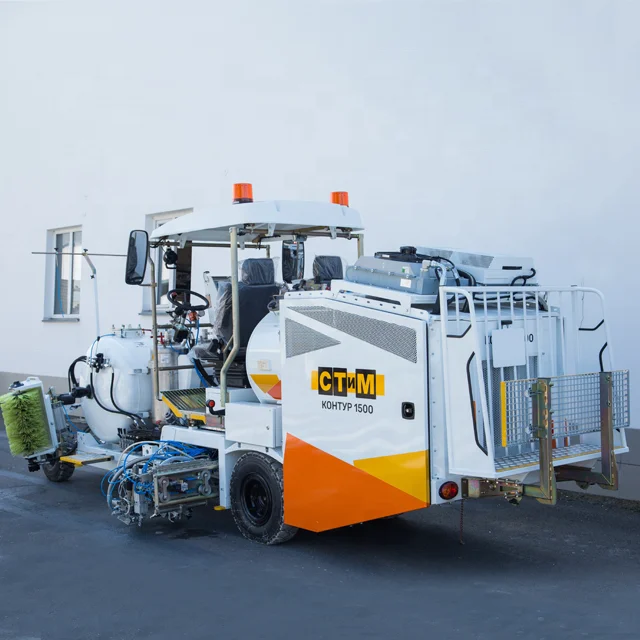

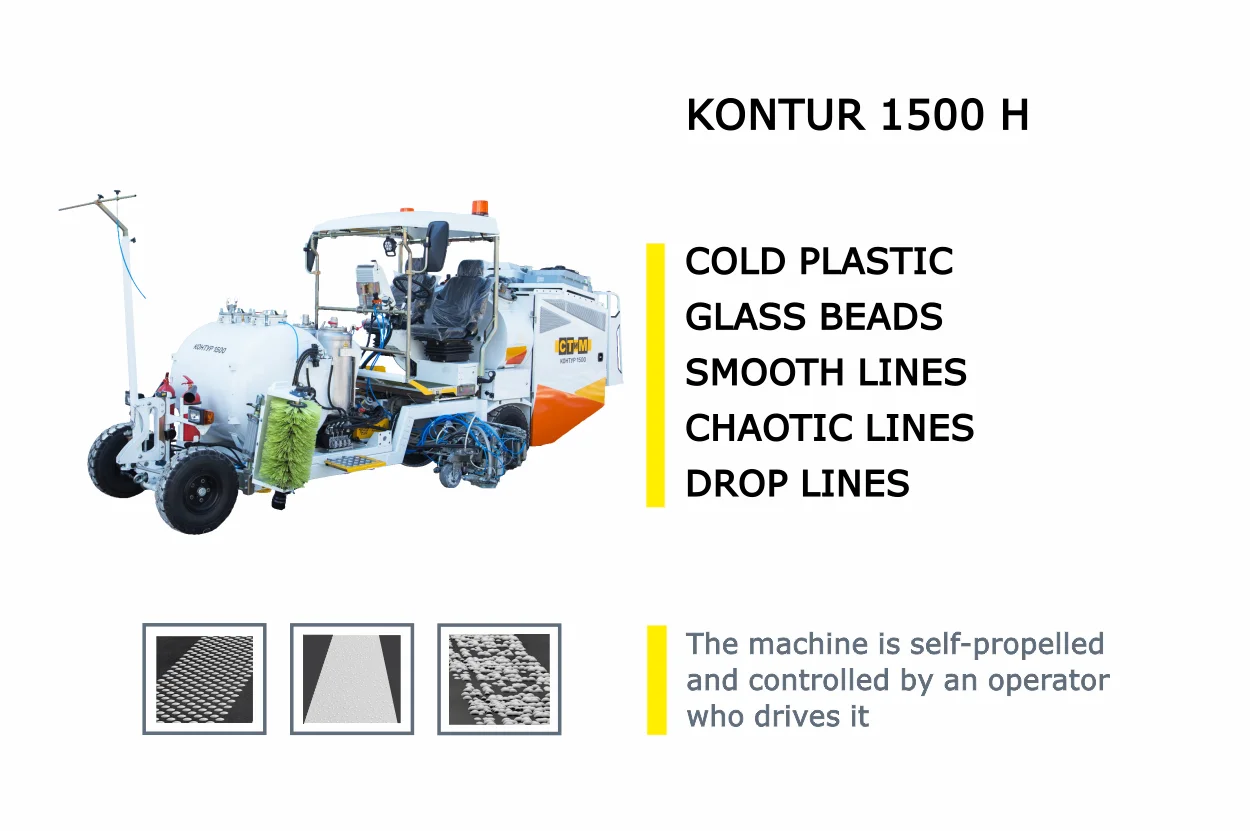

KONTUR 1500H
Designed for applying thick-layer markings with cold-applied plastics and consists of a standard Kontur 1500 chassis and a cold plastic module. The marking unit can apply smooth and structured lines (agglomerate or dots) 100, 120, 150, 200, 240, 250 or 300 mm wide. Applicator sizes should be specified when ordering.
MH1500 COLD PLASTIC MODULE
STANDARD MODULE CONFIGURATION:
- Cold plastic tank;
- Hardener tank;
- Flushing liquid tank;
- Cold plastic dispensing system;
- Hardener dispensing system;
- Removable two-line marking unit;
- Hydraulically operated cold plastic tank agitator;
- One set of smooth or structured line applicators (the size to be specified when ordering; additional applicators to be ordered separately).
OPTIONS FOR THE MODULE:
- Additional smooth and structured line applicators (width 100, 120, 150, 200, 240, 250, and 300 mm);
- Cold spray plastic 98:2 equipment, air-assisted spray technology, two lines (requires a screw compressor in the standard self-propelled chassis).
- Cold plastic tank;
- Hardener tank;
- Flushing liquid tank;
- Cold plastic dispensing system;
- Hardener dispensing system;
- Removable two-line marking unit;
- Hydraulically operated cold plastic tank agitator;
- One set of smooth or structured line applicators (the size to be specified when ordering; additional applicators to be ordered separately).
OPTIONS FOR THE MODULE:
- Additional smooth and structured line applicators (width 100, 120, 150, 200, 240, 250, and 300 mm);
- Cold spray plastic 98:2 equipment, air-assisted spray technology, two lines (requires a screw compressor in the standard self-propelled chassis).
PRODUCT SPECIFICATIONS
Parameter | KONTUR 1500H |
Engine type | Diesel |
Engine power, kW | 74 |
Engine power, hp | 100 |
Engine manufacturer | Kubota |
Cylinders | 4 |
Engine capacity, cm3 | 3800 |
Maximum engine speed, rpm | 2600 |
Approval | EU Stage IIIA (TIER 3) |
Generator, A | 140 |
Compressor | Piston |
Compressor capacity (inlet), L/min | 840 |
Optional compressor* | Screw* |
Optional compressor capacity, L/min* | Up to 3000 |
Maximum operating road gradient, % | 20 |
Maximum gradeability, % | 30 |
Driving speed, km/h | 12 |
Glass bead tank, L | 330 |
Glass bead tank, kg | 530 |
Control panel | M12 |
Display type | Color, TFT 480x640 |
Display image size, inches | 5.7 |
Preset programs | Up to 24 |
Quick program selection buttons | 8 |
Control panel modes (automatic/semi-automatic/manual) | Available |
Marking material (main/optional) | Cold plastic/Spray plastic 100:2 |
Maximum marking speed, km/h (with main/optional material) | 8/10 |
Maximum marking material amount, kg | 1200 |
Maximum hardener volume, L | 50+ |
Maximum flushing liquid volume, L | 50+ |
Fuel tank capacity, L | 150 |
Oil tank capacity, L | 100 |
Main material tank capacity, L | 850 |
Lines applied simultaneously | 2 |
Guns (applicators) | 2 |
Double line width, mm | 100, 120, 150 |
Single line width, mm | 100, 120, 150, 200, 240 |
Working position, mm | 8000x2100x2600 |
Transport position, mm | 5500x2100x2600 |
Unladen weight, kg | 5500 |
