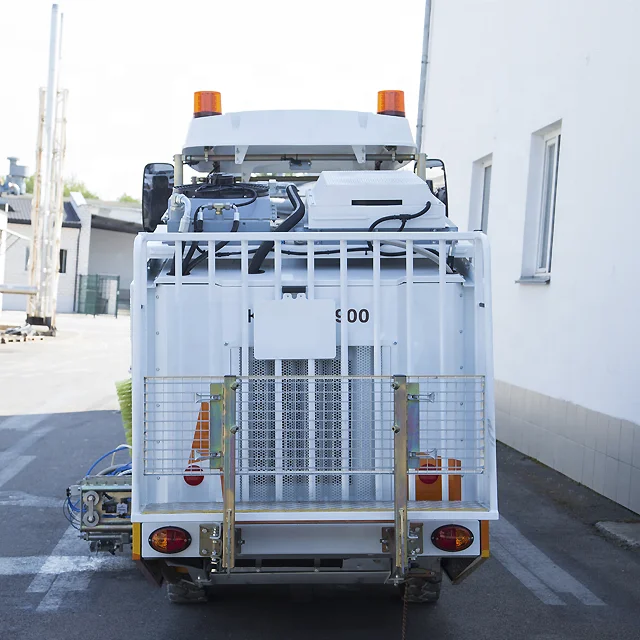

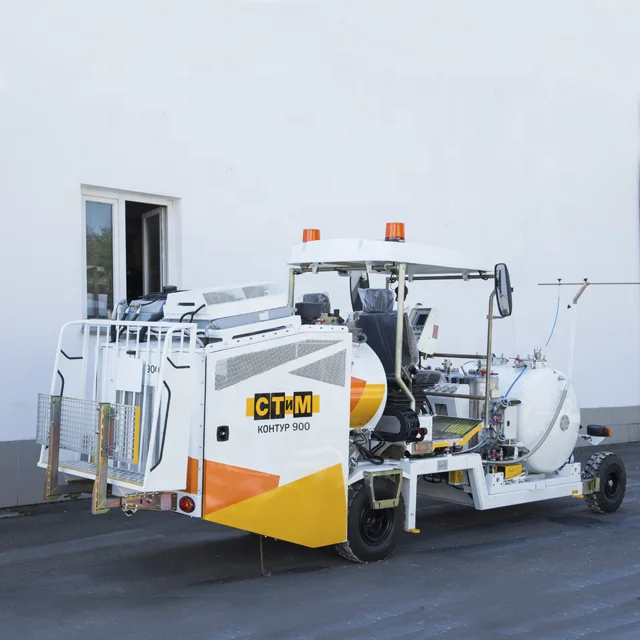

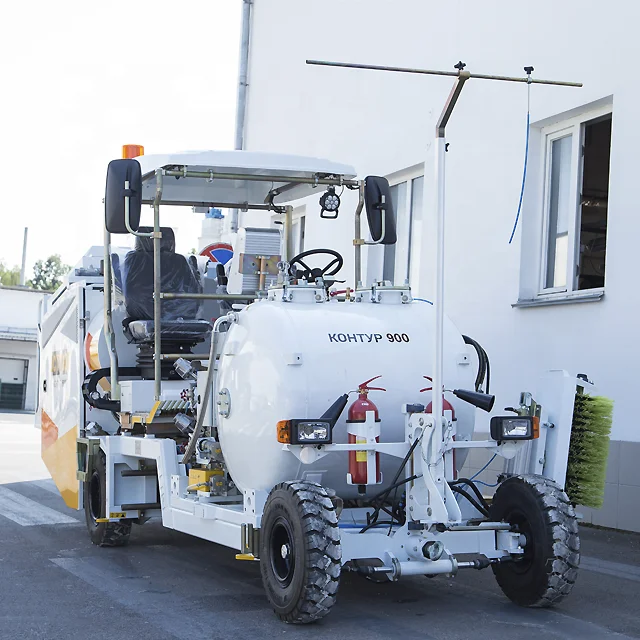

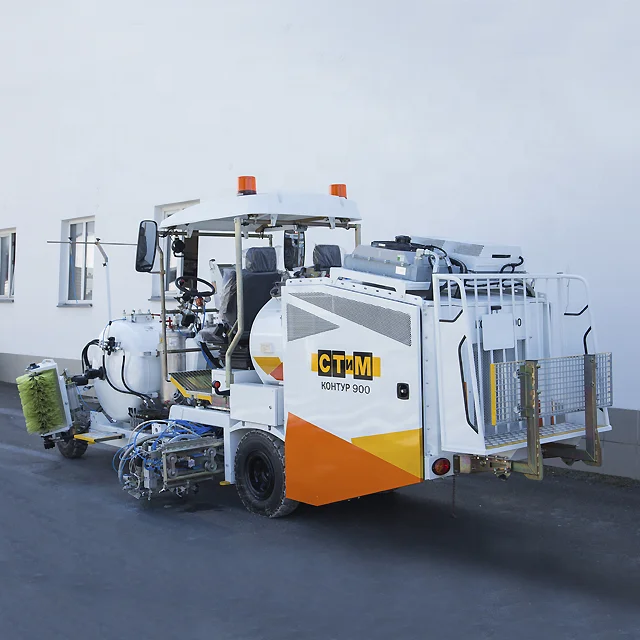

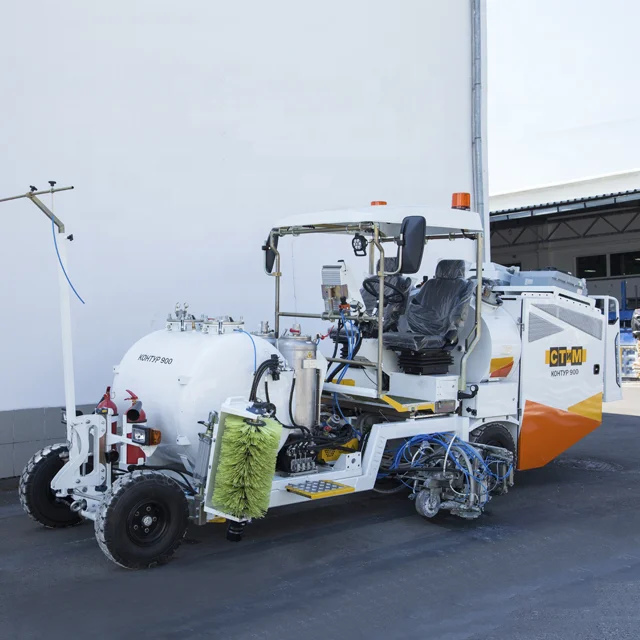

KONTUR 900 Paint Cold Plastic Thermoplastic Road Marking Machine
- Category: Road Marking Machines >>>
- Supplier: OOO STIM
Share on (11000000481188):
Product Overview
Description
PRODUCT DESCRIPTION

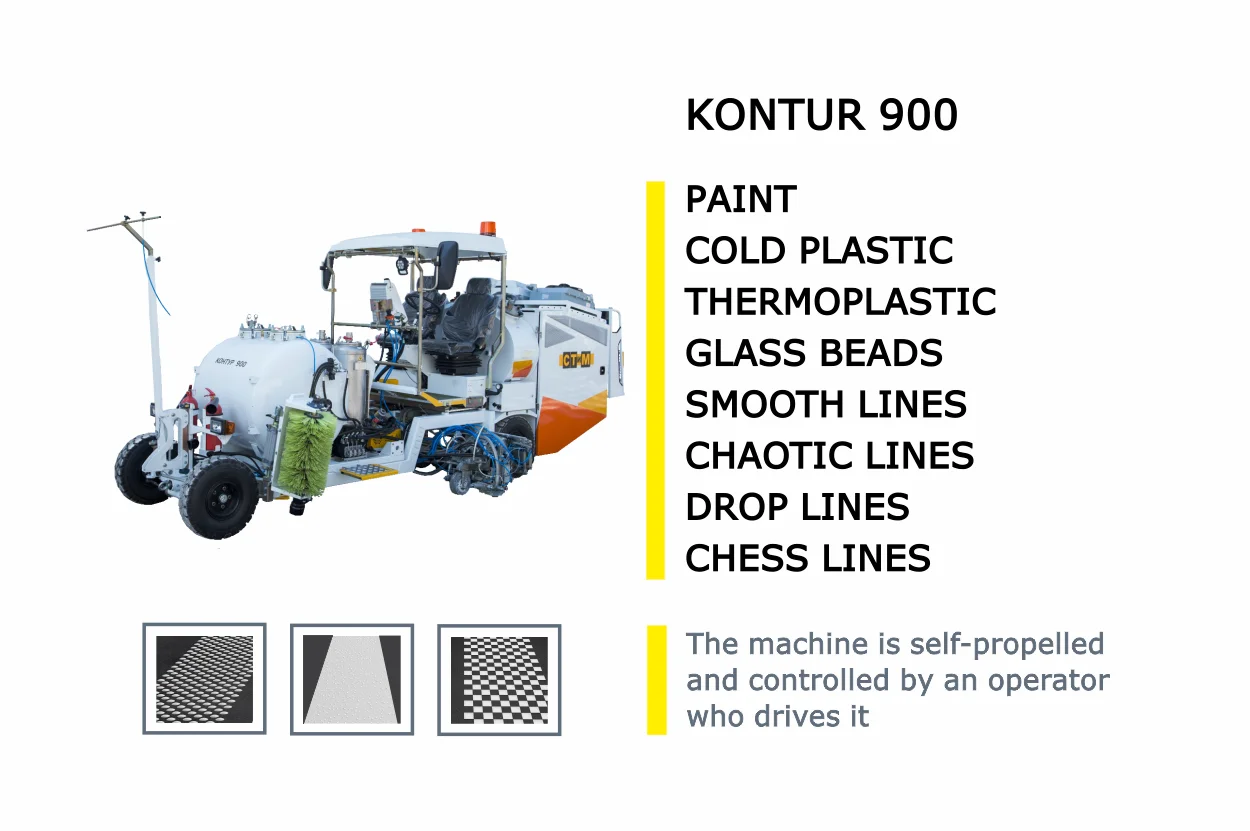

Kontur 900 is yet another modular machine consisting of a standard self-propelled chassis with replaceable modules. The module type determines marking materials to be used and the application method.
The standard self-propelled chassis consists of a mobile operator workplace, a power unit, transmission and control units, module-mounting fasteners, and marking units. To sprinkle glass beads onto the marking lines, the chassis is equipped with a glass bead tank.
The process module is a complete functional unit designed for operation with one or more similar marking materials. Replaceable allow for thick-layer and thin-layer road markings by various methods using specialized marking units. A module that is part of the machine can be replaced with another module directly by the user. Optionally, the machine can be equipped with any additional replaceable module.
The standard self-propelled chassis consists of a mobile operator workplace, a power unit, transmission and control units, module-mounting fasteners, and marking units. To sprinkle glass beads onto the marking lines, the chassis is equipped with a glass bead tank.
The process module is a complete functional unit designed for operation with one or more similar marking materials. Replaceable allow for thick-layer and thin-layer road markings by various methods using specialized marking units. A module that is part of the machine can be replaced with another module directly by the user. Optionally, the machine can be equipped with any additional replaceable module.
STANDARD CONFIGURATION
- Mobile operator workplace with two seats, a hard roof, rear-view mirrors, and controls;
- M12 marking control panel;
- Hydraulic steering;
- Standard connections for hydraulic oil and compressed air loads;
- Glass bead tank;
- Lighting components and flashing lights;
- Marking unit light and operator workplace light for working during nighttime;
- Mechanically lifted/lowered mechanical aiming device;
- Automation and control units;
- Piston compressor;
- Two fire extinguishers.
- M12 marking control panel;
- Hydraulic steering;
- Standard connections for hydraulic oil and compressed air loads;
- Glass bead tank;
- Lighting components and flashing lights;
- Marking unit light and operator workplace light for working during nighttime;
- Mechanically lifted/lowered mechanical aiming device;
- Automation and control units;
- Piston compressor;
- Two fire extinguishers.
OPTIONS
- Pass This Side sign (700 mm) on a swing arm or
- Detour sign cluster (1,050x1,050 mm, cluster 200 mm)
- Screw compressor;
- Repositionable broom for roadway cleaning in front of the marking unit;
- Rear platform for a support worker and road cones:
- Hydraulically lifted/lowered mechanical aiming device;
- Set of pre-marking equipment;
- Any RAL color for the chassis.
- Detour sign cluster (1,050x1,050 mm, cluster 200 mm)
- Screw compressor;
- Repositionable broom for roadway cleaning in front of the marking unit;
- Rear platform for a support worker and road cones:
- Hydraulically lifted/lowered mechanical aiming device;
- Set of pre-marking equipment;
- Any RAL color for the chassis.
KONTUR 900H
Designed for applying thick-layer markings with cold-applied plastics, this machine consists of a standard Kontur 900 chassis and a cold plastic module. The marking unit can apply smooth and structural lines (agglomerate or dots) 100, 120, 150, 200, 240, 250, or 300 mm wide. Applicator sizes should be specified when ordering.
MH900 COLD PLASTIC MODULE
STANDARD MODULE CONFIGURATION:
- Cold plastic tank;
- Hardener tank;
- Flushing liquid tank;
- Cold plastic dispensing system;
- Hardener dispensing system;
- Removable two-line marking unit;
- Hydraulically operated cold plastic tank agitator;
- One set of smooth or structured line applicators (the size to be specified when ordering; additional applicators to be ordered separately).
OPTIONS FOR THE MODULE:
- Additional smooth and structured line applicators (width 100, 120, 150, 200, 240, 250, and 300 mm);
- Compressed air blowing system in front of the marking unit for roadway blowing (requires a screw compressor in the basic self-propelled chassis);
- Cold spray plastic 98:2 equipment, air-assisted spray technology, two lines (requires a screw compressor in the standard self-propelled chassis).
- Cold plastic tank;
- Hardener tank;
- Flushing liquid tank;
- Cold plastic dispensing system;
- Hardener dispensing system;
- Removable two-line marking unit;
- Hydraulically operated cold plastic tank agitator;
- One set of smooth or structured line applicators (the size to be specified when ordering; additional applicators to be ordered separately).
OPTIONS FOR THE MODULE:
- Additional smooth and structured line applicators (width 100, 120, 150, 200, 240, 250, and 300 mm);
- Compressed air blowing system in front of the marking unit for roadway blowing (requires a screw compressor in the basic self-propelled chassis);
- Cold spray plastic 98:2 equipment, air-assisted spray technology, two lines (requires a screw compressor in the standard self-propelled chassis).
KONTUR 900K
The machine is designed for airless thin-layer marking application using solvent-borne paints with at least 70% solids content. The machine consists of a standard Kontur 900 chassis with a paint module.
PAINT MODULE MK900
STANDARD MODULE CONFIGURATION:
- Statistics storage and GSM transfer system with GSM/GLONASS connectivity;
- Removable marking unit with two pairs of paint and glass bead guns;
- Paint tank;
- Hydraulically operated agitator;
- High-pressure paint pump;
- Coarse filter on the pump paint supply line;
- Fine filter for paint on the high-pressure line;
- Handheld paint gun, 10 m hose;
- Paint flow meter.
OPTIONS FOR THE MODULE:
- Additional third pair of paint and glass bead guns;
- 50 cm handheld paint gun extension;
- Line beginning photo sensor (can be installed on any gun);
- Two-line cold spray plastic 98:2 equipment;
- Third set of guns for spray plastic 98:2;
- Handheld gun for spray plastic 98:2;
- Stainless steel tank for water-borne paint;
- Airport runway and taxiway marking equipment (parameters to be agreed with the customer);
- Compressed air blowing system for roadway blowing in front of the painting unit (requires a high-performance compressor).
- Statistics storage and GSM transfer system with GSM/GLONASS connectivity;
- Removable marking unit with two pairs of paint and glass bead guns;
- Paint tank;
- Hydraulically operated agitator;
- High-pressure paint pump;
- Coarse filter on the pump paint supply line;
- Fine filter for paint on the high-pressure line;
- Handheld paint gun, 10 m hose;
- Paint flow meter.
OPTIONS FOR THE MODULE:
- Additional third pair of paint and glass bead guns;
- 50 cm handheld paint gun extension;
- Line beginning photo sensor (can be installed on any gun);
- Two-line cold spray plastic 98:2 equipment;
- Third set of guns for spray plastic 98:2;
- Handheld gun for spray plastic 98:2;
- Stainless steel tank for water-borne paint;
- Airport runway and taxiway marking equipment (parameters to be agreed with the customer);
- Compressed air blowing system for roadway blowing in front of the painting unit (requires a high-performance compressor).
KONTUR 900T
Designed for applying thick-layer markings using thermoplastics, the machine consists of a standard Kontur 900 chassis and a thermoplastic module.
MT900 THERMOPLASTIC MODULE
STANDARD CONFIGURATION:
- Heat-insulated thermoplastic tank;
- Hydraulically operated agitator in the thermoplastic tank;
- Oil carrier circulation system;
- Set temperature maintaining system for oil carrier and thermoplastic;
- Oil burner;
- Coarse thermoplastic filter in the thermoplastic tank filling window;
- Marking unit for smooth lines up to 500 mm wide (10x50 mm);
- Two glass bead guns;
- Handheld gas burner;
- Touch-free temperature gauge.
- Heat-insulated thermoplastic tank;
- Hydraulically operated agitator in the thermoplastic tank;
- Oil carrier circulation system;
- Set temperature maintaining system for oil carrier and thermoplastic;
- Oil burner;
- Coarse thermoplastic filter in the thermoplastic tank filling window;
- Marking unit for smooth lines up to 500 mm wide (10x50 mm);
- Two glass bead guns;
- Handheld gas burner;
- Touch-free temperature gauge.
OPTIONS FOR THE MODULE:
- Draining chute for draining thermoplastic from the tank;
- Marking unit for smooth and structured lines up to 500 mm wide (10x50 mm);
- Spray thermoplastic equipment (requires a screw compressor in the basic self-propelled chassis);
- Compressed air blowing system for roadway blowing in front of the painting unit (requires a screw compressor in the basic
self-propelled chassis);
- Line beginning photo sensor (can be installed on any gun);
- Two-line cold spray plastic 98:2 equipment;
- Third set of guns for spray plastic 98:2;
- Handheld gun for spray plastic 98:2;
- Stainless steel tank for water-borne paint;
- Airport runway and taxiway marking equipment (parameters to be agreed with the customer);
- Compressed air blowing system for roadway blowing in front of the painting unit (requires a high-performance compressor).
- Draining chute for draining thermoplastic from the tank;
- Marking unit for smooth and structured lines up to 500 mm wide (10x50 mm);
- Spray thermoplastic equipment (requires a screw compressor in the basic self-propelled chassis);
- Compressed air blowing system for roadway blowing in front of the painting unit (requires a screw compressor in the basic
self-propelled chassis);
- Line beginning photo sensor (can be installed on any gun);
- Two-line cold spray plastic 98:2 equipment;
- Third set of guns for spray plastic 98:2;
- Handheld gun for spray plastic 98:2;
- Stainless steel tank for water-borne paint;
- Airport runway and taxiway marking equipment (parameters to be agreed with the customer);
- Compressed air blowing system for roadway blowing in front of the painting unit (requires a high-performance compressor).
PRODUCT SPECIFICATIONS
Parameter | KONTUR 900K | KONTUR 900H | KONTUR 900T |
Engine type | Diesel | Diesel | Diesel |
Engine power, kW | 63 | 63 | 63 |
Engine power, hp | 85 | 85 | 85 |
Engine manufacturer | Kubota | Kubota | Kubota |
Cylinders | 4 | 4 | 4 |
Engine capacity, cm3 | 3600 | 3600 | 3600 |
Maximum engine speed, rpm | 2600 | 2600 | 2600 |
Approval | EU Stage INA (TIER 3) | EU Stage INA (TIER 3) | EU Stage INA (TIER 3) |
Generator, A | 140 | 140 | 140 |
Compressor | Piston | Piston | Piston |
Compressor capacity (inlet), L/min | 840 | 840 | 840 |
Optional compressor* | Screw* | Screw* | Screw* |
Optional compressor capacity, L/min* | Up to 3000 | Up to 3000 | Up to 3000 |
Maximum operating road gradient, % | 20 | 20 | 20 |
Maximum gradeability, % | 30 | 30 | 30 |
Driving speed, km/h | 12 | 12 | 12 |
Glass bead tank, L | 330 | 330 | 330 |
Glass bead tank, kg | 530 | 530 | 530 |
Control panel | M12 | M12 | M12 |
Display type | Color, TFT 480x640 | Color, TFT 480x640 | Color, TFT 480x640 |
Display image size, inches | 5.7 | 5.7 | 5.7 |
Preset programs | Up to 24 | Up to 24 | Up to 24 |
Quick program selection buttons | 8 | 8 | 8 |
Control panel modes (automatic/semi-automatic/manual) | Available | Available | Available |
Marking material (main/optional) | Paint/Spray plastic 100:2 | Cold plastic | Thermoplastic/ Spray thermoplastic |
Maximum marking speed, km/h (with main/optional material) | 10/10 | 10 | 8/12 |
Maximum marking material amount, kg | 800 | 800 | 900 |
Maximum hardener volume, L | 45 | 45 | - |
Maximum flushing liquid volume, L | - | 45 | - |
Fuel tank capacity, L | 150 | 150 | 150 |
Oil tank capacity, L | 100 | 100 | 100 |
Main material tank capacity, L | 500 | 450 | 450 |
Second material volume, L | 100 | 100 | 100 |
Lines applied simultaneously | 2 | 2 | 2 |
Guns (applicators) | 2 | 2 | 2 |
Double line width, mm | Up to 200 | 100, 120, 150 | Up to 150 |
Single line width, mm | Up to 300 | 100, 120, 150, 200, 240 | Up to 500 |
Working position, mm | 8000x2100x2600 | 8000x2100x2600 | 8000x2400x2600 |
Transport position, mm | 5700x2100x2600 | 5700x2100x2600 | 5700x2400x2600 |
Dry weight, kg | 4200 | 4200 | 4950 |
Unladen weight, kg | 5200 | 5200 | 5950 |
Total weight, kg | 6200 | 6200 | 6600 |
