Price:$420.00 - $480.00

Quantity:


Product Overview

Description



Intended use:

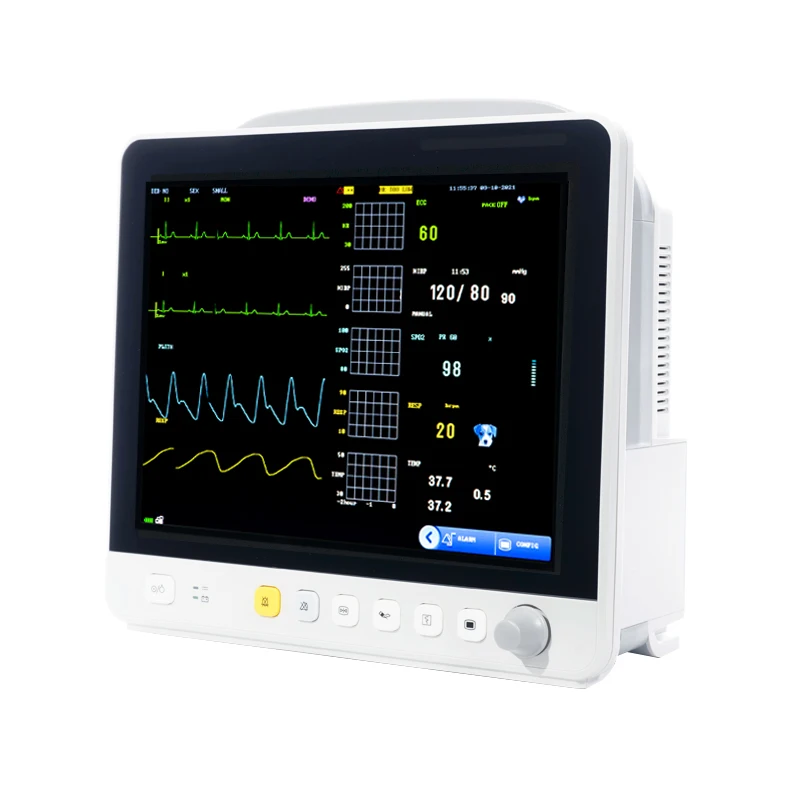

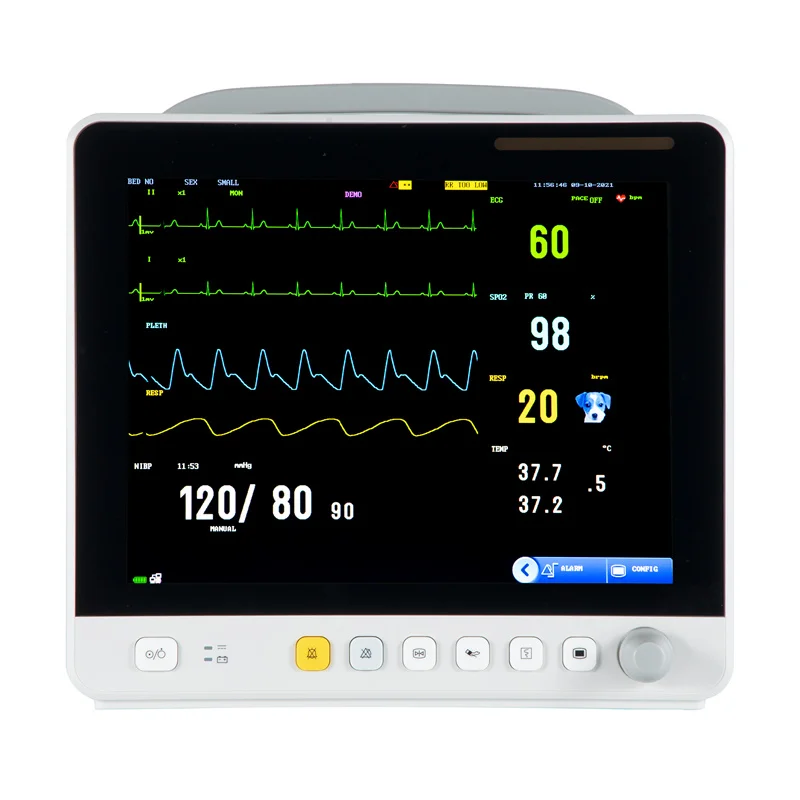

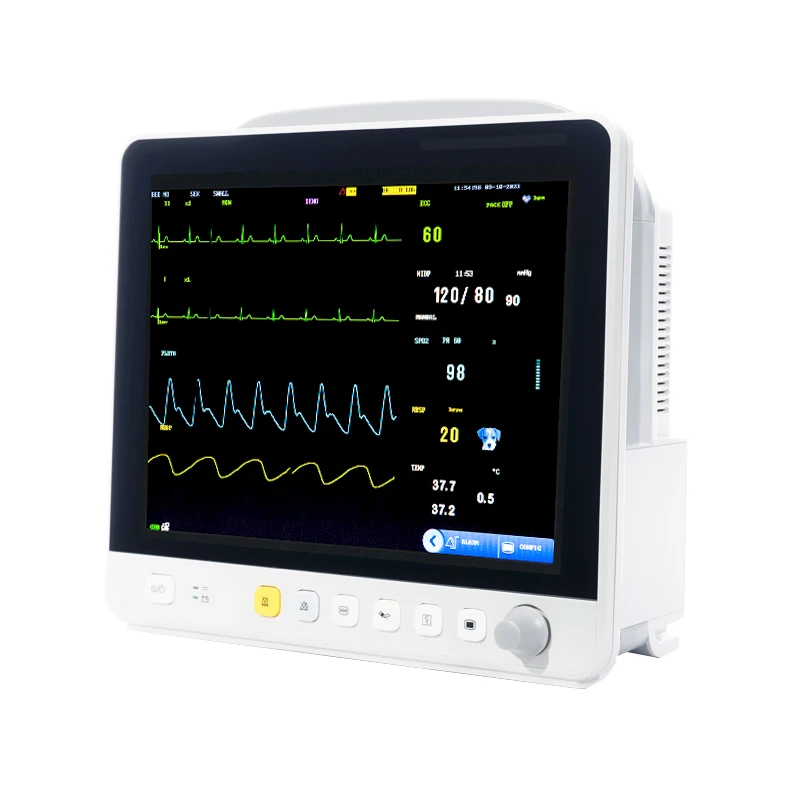

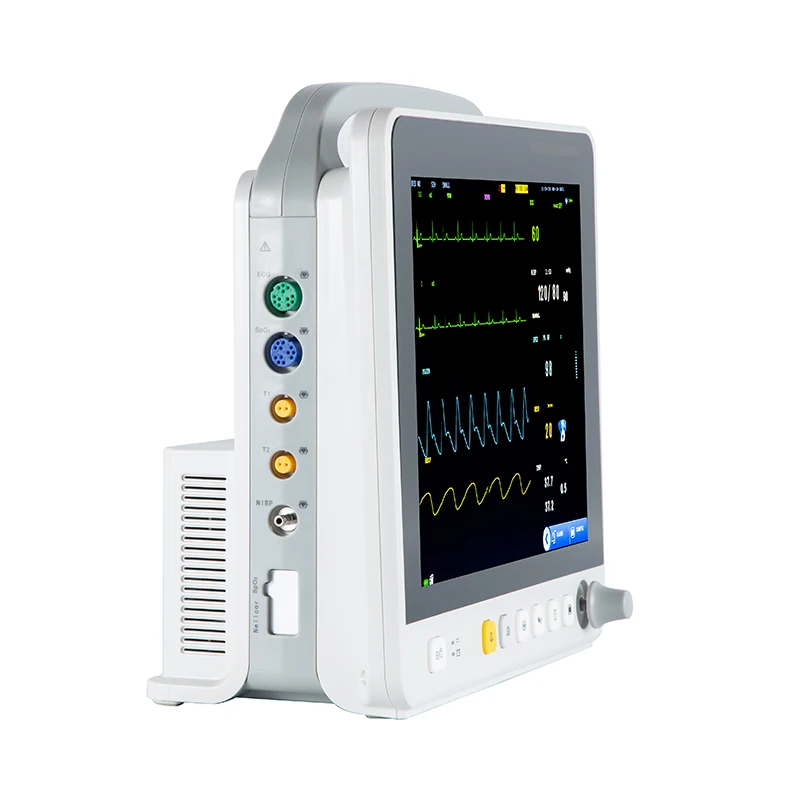

12.1-inch high-resolution color TET LCD display.
Thinner and lighter in design, convenient and portable for users.
Real-time S-T segment analysis, pacemaker detection.
Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen.
3-level audio/visual alarms.
Efficient resistance to interference of defibrillator and HF knife.
Up to 400 groups NIBP list, 6000seconds, ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage.
Built-in rechargeable lithium battery, 2-hour working capability.
Wireless central monitoring system applicable


Size: 12 * 11.4 * 6.4 inch
Weight: 5kg
Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA
Battery: 11.1V 2200mAh rechargeable lithium battery
Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP
Optional Configuration: Nellcor SpO2, 2-IBP, ETCO2, Touch screen, Built-in Thermal Printer

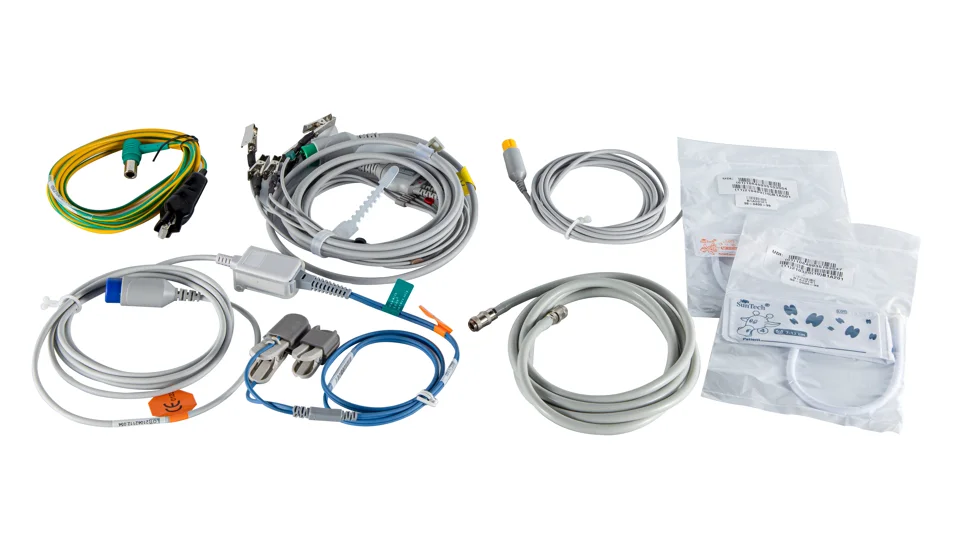

Package Include:
1 x device
1 x Li-Battery
1 x Power line
1 x Earth wire
1 x User’s Manual
1 x Blood oxygen probe (for SpO2, PR)
1 x Blood pressure cuff (for NIBP)
1 x ECG cable (for ECG, RESP)
1 x Temperature probe (for Temperature)




ECG

Input
3/5 wire ECG cable
Lead section
I II III aVR, aVL, aVF, V
Gain selection
*0.25, *0.5, *1, *2, Auto
Sweep speed
6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range
15-30bpm
Calibration
±1mv
Accuracy
±1bpm or ±1% (select the bigger data)
NIBP

Test method
Oscillometer
Measurement type
Systolic Diastolic Mean
Measurement parameter
Automatic, Continuous measurement
Measurement method Manual
mmHg or ±2%
SPO2

Display Type
Waveform, Data
Measurement range
0-100%
Accuracy
±2% (between 70%-100%)
Pulse rate range
20-300bpm
Accuracy
±1bpm or ±2% (select the bigger data)
Resolution
1bpm
2-Temperature (Rectal & Surface)

Number of channels
2 channels
Measurement range
0-50℃
Accuracy
±0.1℃
Display
T1, T2, ☒T
Unit
ºC/ºF selection
Refresh cycle
1s-2s
Respiration (Impedance & Nasal Tube)

Measurement type
0-150rpm
Accuracy
±1bm or ±5%, select the bigger data
Resolution
1rpm
Packing Information

Packing size
37*37*28cm
N.W.
6kg
G.W.
7kg
