Best price transform oil filtration machine manufacturer
US $15.00-$55.00

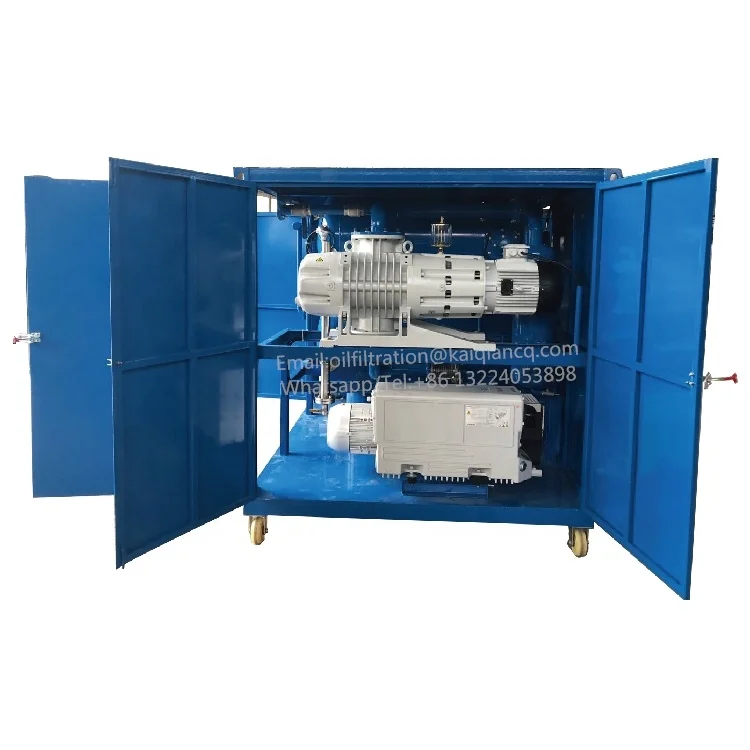

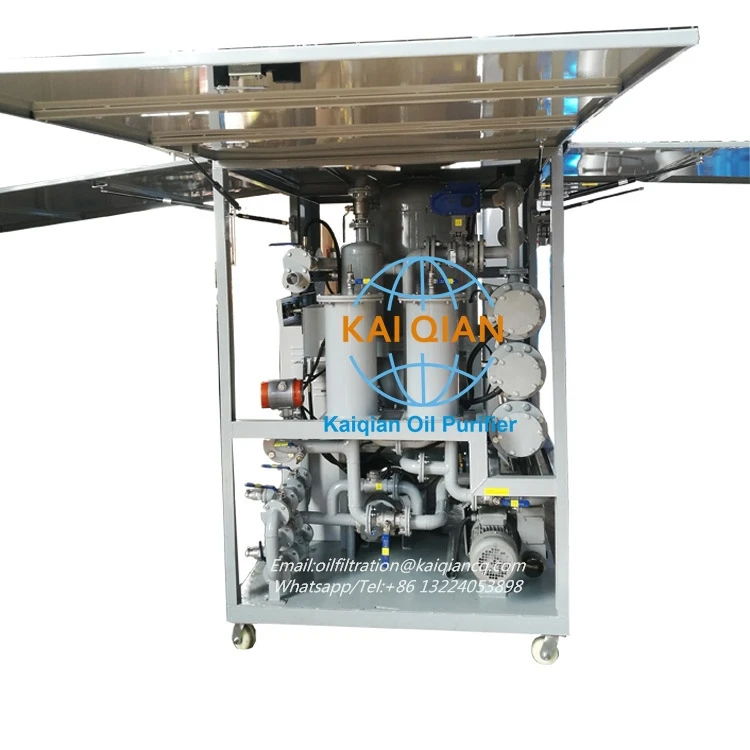

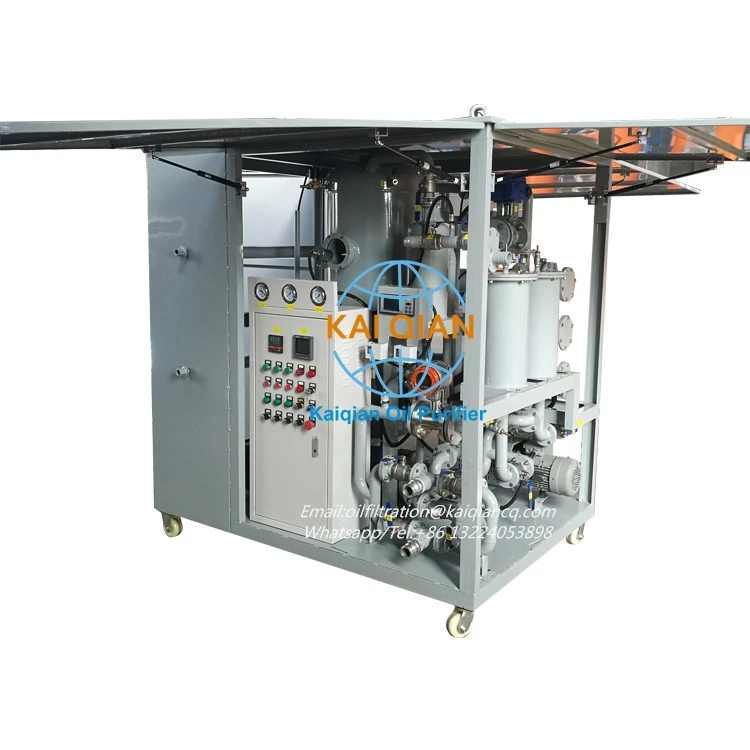

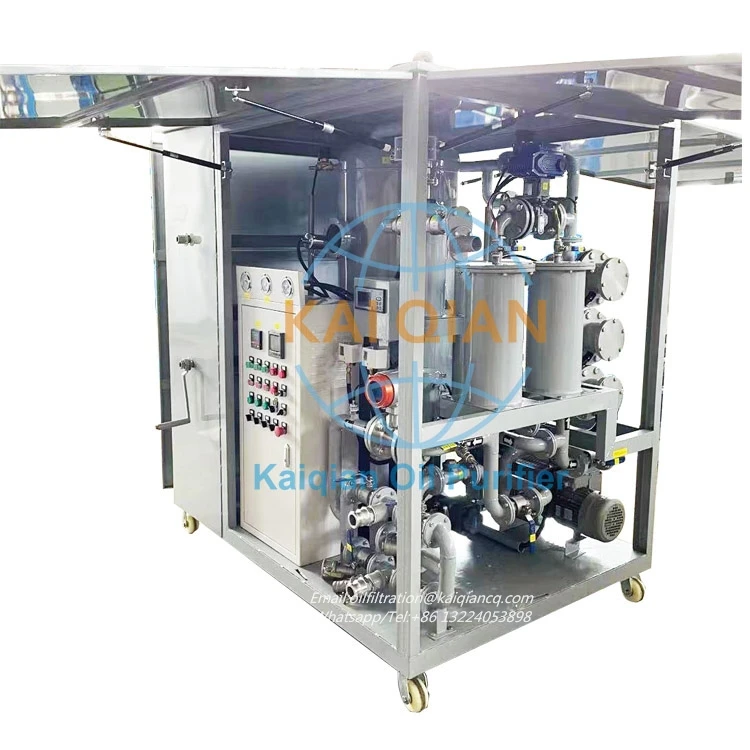

Oil Filtration machine Purifier Vacuum Transformer Oil Purifier Used Oil Filtering Machine With Trailer
- Category: Machine Oil Purifier >>>
- Supplier: Chongqing Kaiqian Oil Purifier Manufacture Co. Ltd.
Share on (11000000493892):
Product Overview
Description
Product Overview
Oil Filtration machine Purifier Vacuum Transfermor Oil Purifier Used Oil Filtering Machine With Trailer (2)
The oil purification equipment is widely used in various large transformer installation and maintenance for hot oil circulatio and vacuum drying. 110KV-500KV high voltage or more, EHV transformer insulating oil purification, also applies to high-grade new oil, the high depth of processing imported oil.Compared with the single-stage vacuum, the machine increases the Roots pump pressurization system,secondary high vacuum separation systems ,infrared progressive scan automation systems and three-dimensional flash emergency rapid evaporation system , it can degas, dewater, and remove the acid value and impurity quickly, The treated transformer oil have higher limit brake down voltage value,It ‘s not only used for oil purifier but also as a separate vacuum source which have the function of vacuum drying and oil injection for transformer equipment
2.Principles
The machine according to vacuum separation , precise filtration, molecular adsorption, vacuum drying principle.It is one separated machine without any auxiliary machinery. Based on the principle of vacuum saturation of oil and water saturated temperature,three dimensional, multi-layer fast and efficient oil water separation technology, as well as multi-stage deep level precision filtration technology.
2.Principles
The machine according to vacuum separation , precise filtration, molecular adsorption, vacuum drying principle.It is one separated machine without any auxiliary machinery. Based on the principle of vacuum saturation of oil and water saturated temperature,three dimensional, multi-layer fast and efficient oil water separation technology, as well as multi-stage deep level precision filtration technology.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
PLC CONTROLER
THREE STAGE FILTER SYSTEM
HIGH VACUUM
Vacuum Defoaming Technology
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Flow Rate | 10-300 LPH |
2 | Mechanical impurities | NO |
3 | Demulsibility number | ≤15 Min |
4 | Moisture | 50-80 ppm |
5 | Gas content | ≤0.1 % |
6 | Cleanness-degree | ≤6 |
7 | Filter precision | 5-10 um |

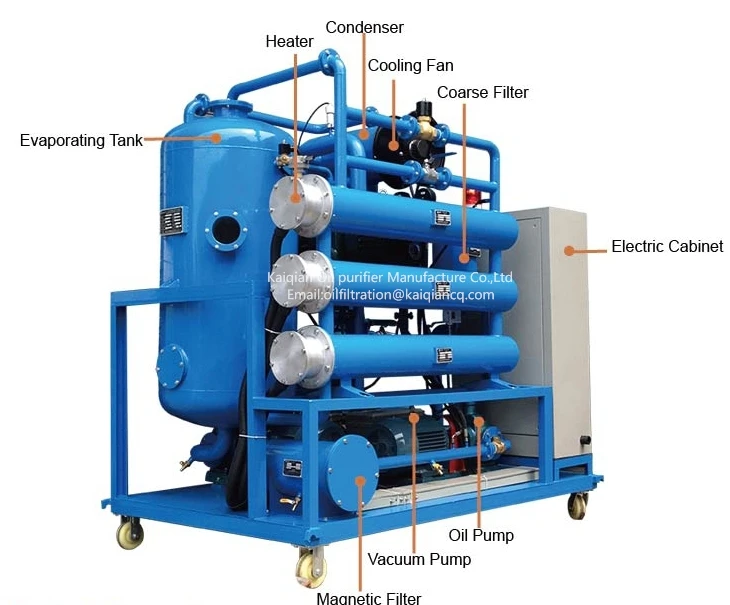

PRODUCT CONFIGURATION
Heater systems
control cabinet and filters
pumps
Features
Before & After
Before & After
Before & After
Successful Project
SIMILAR PRODUCTS
Hydraulic Oil Filter Cart
Efficient and continuous water removal from the hydraulic oil

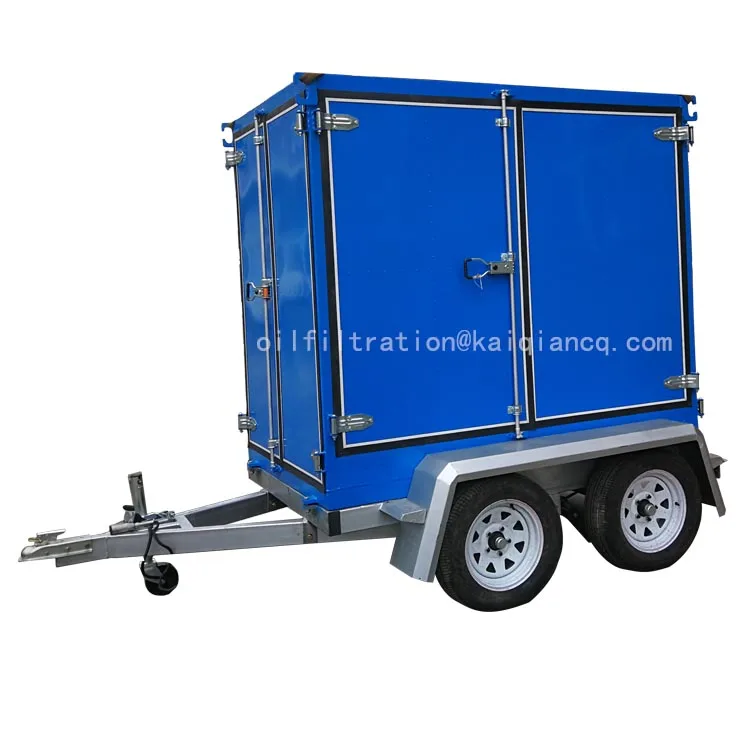

Trailer Type Oil Purifier Machine
It is advice to use in Outdoor Occasion ,Equip with trailer coupling,towing ball ,Road Trailer.
Enclosed Type Oil Purifier Machine
It is advice to use in Outdoor Occasion ,water proof enclosed type , preventing control panel from rusting.
FAQ
1.What is the usage of a vacuum oil purifier?
Dehydration, degassing, impurity removal of old oil, and extend oil life.
2.Does your process use chemicals or additives?
A: No, it is pure -physical technology.
3.What is consumable?
There is no consumable except filters.
4.How often do clients need to change filters?
The replacement time of the filter is determined by the pollution degree of the oil. The mechanical impurity is less than 3%. Generally, the oil filtered by the filter is replaced once within 100 tons
5.What is the material of your machine?
Carbon steel or Stainless steel(Standard type is SUS304, it can be customized according to your request)
6.Can any of the products be customized?
Yes, we can customize the color of the machine, industrial power, and your logo on the machine, the pumps, electrical elements, PLC, touch screen LCD controller, trailer design etc .
7.What is the flow rate you can provide?
10-300 LPH
Dehydration, degassing, impurity removal of old oil, and extend oil life.
2.Does your process use chemicals or additives?
A: No, it is pure -physical technology.
3.What is consumable?
There is no consumable except filters.
4.How often do clients need to change filters?
The replacement time of the filter is determined by the pollution degree of the oil. The mechanical impurity is less than 3%. Generally, the oil filtered by the filter is replaced once within 100 tons
5.What is the material of your machine?
Carbon steel or Stainless steel(Standard type is SUS304, it can be customized according to your request)
6.Can any of the products be customized?
Yes, we can customize the color of the machine, industrial power, and your logo on the machine, the pumps, electrical elements, PLC, touch screen LCD controller, trailer design etc .
7.What is the flow rate you can provide?
10-300 LPH
8.Who can i get contact for more infos？
Email:oilfiltration@kaiqiancq.com ; Whatsapp/Tel:+86 13224053898
Email:oilfiltration@kaiqiancq.com ; Whatsapp/Tel:+86 13224053898
