Product Overview

Description

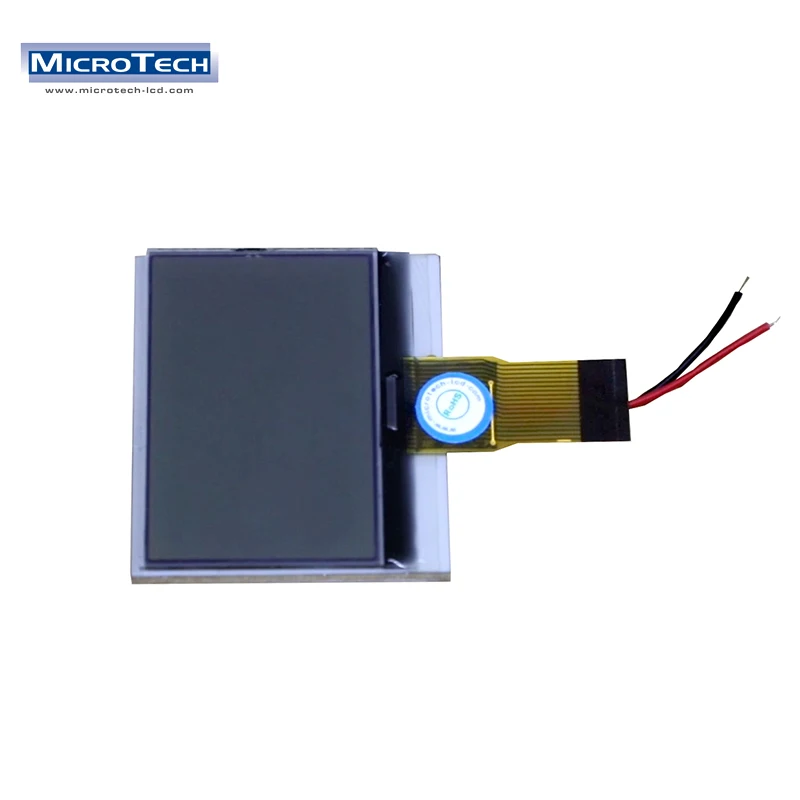

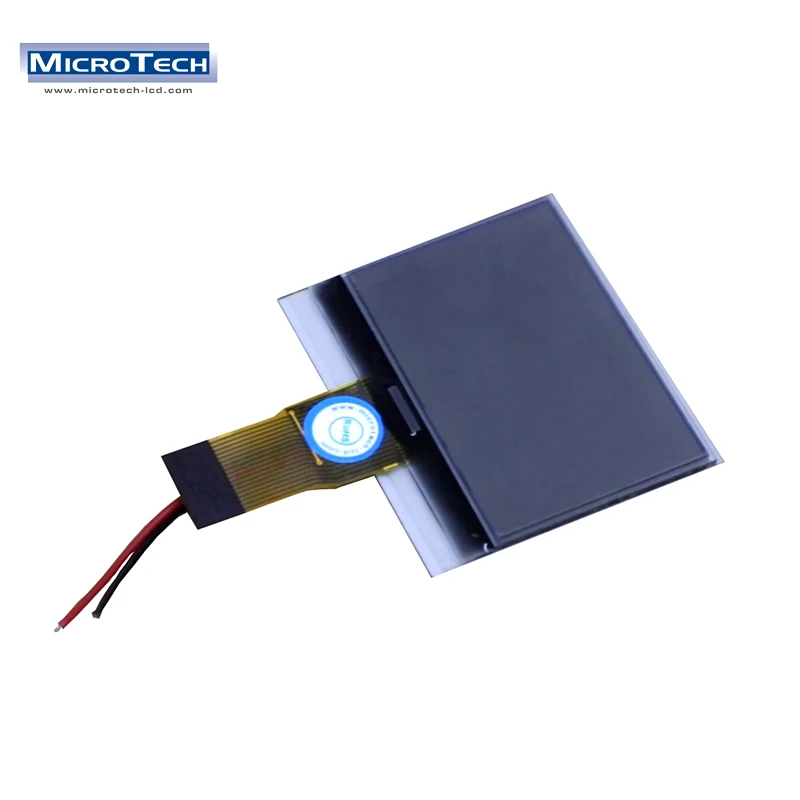

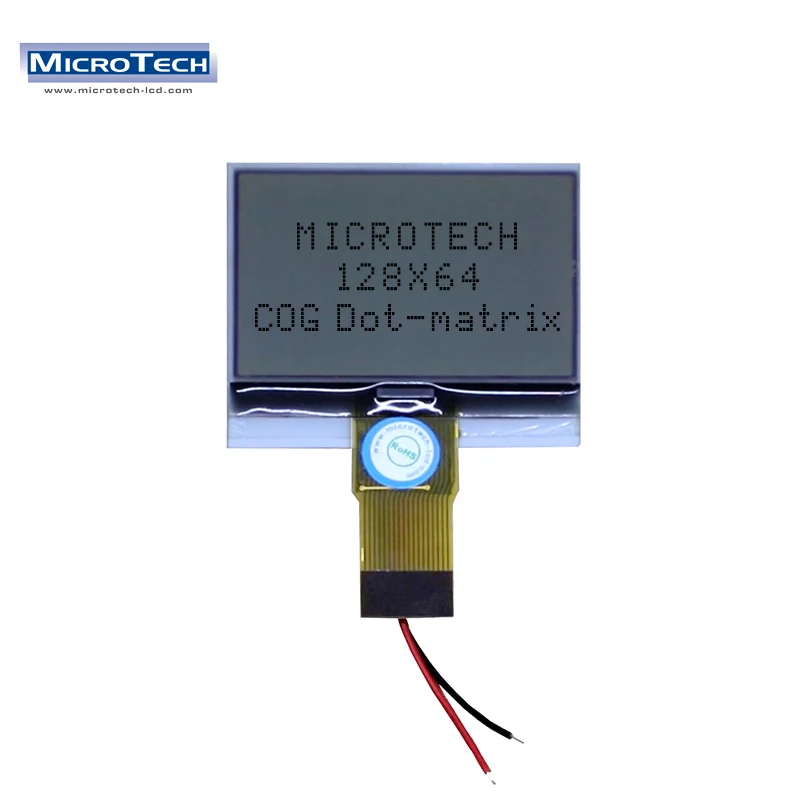

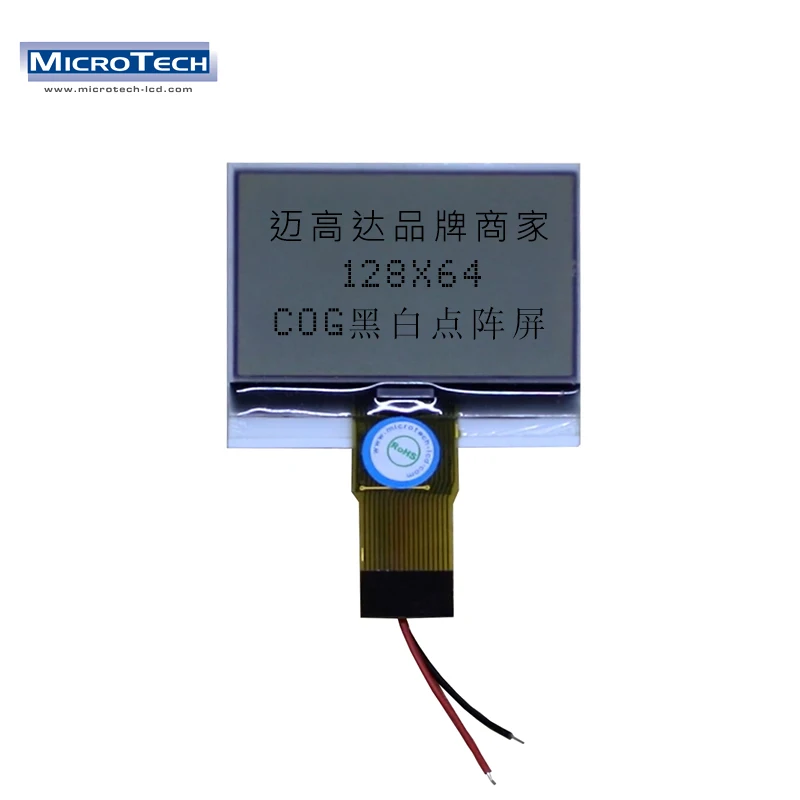

128X64 COG FSTN LCD Dot matrix Screen Transflective Monochrome Graphic LCD Module

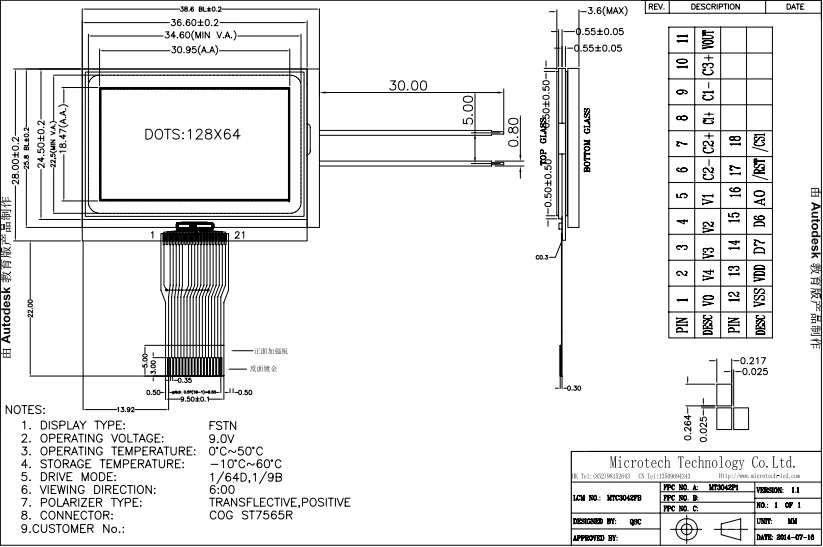

Specification


Item
Standard Value
Unit
Number of dots
128X64 dots
—
Module dimension
36.6(W) * 28.0(H) *1.7(T)
mm
Viewing area
34.6(W)* 22.5(H)
mm
Active area
30.95(W)* 18.47(H)
mm
Dot size
0.264(W) * 0.217(H)
mm
Dot pitch
0.242(W) * 0.289(H)
mm
Approx, weight
TBD
g

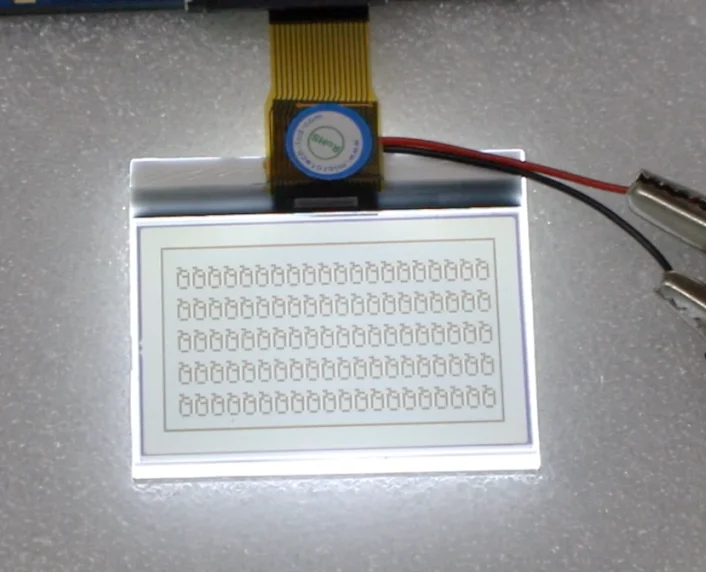

Backlight
TBD


Display Type
FSTN
Viewing Direction
6 o'clock
Connection Type
COG
Operation temperature
0*C 〜+50C
Storage temperature
-10℃ 〜+60℃
Driving IC
ST7565R
Driving Method
Duty
1/64
Bias
1/9
Vop
9.0V
Polarizer Mode
Transflective/positive
