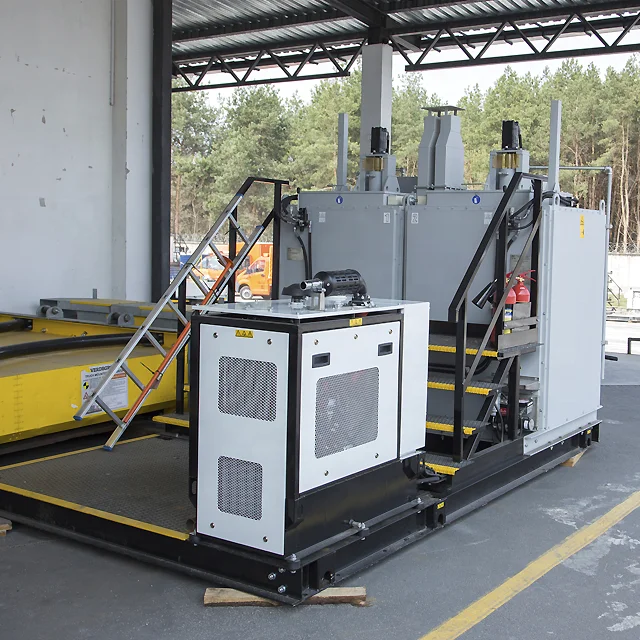

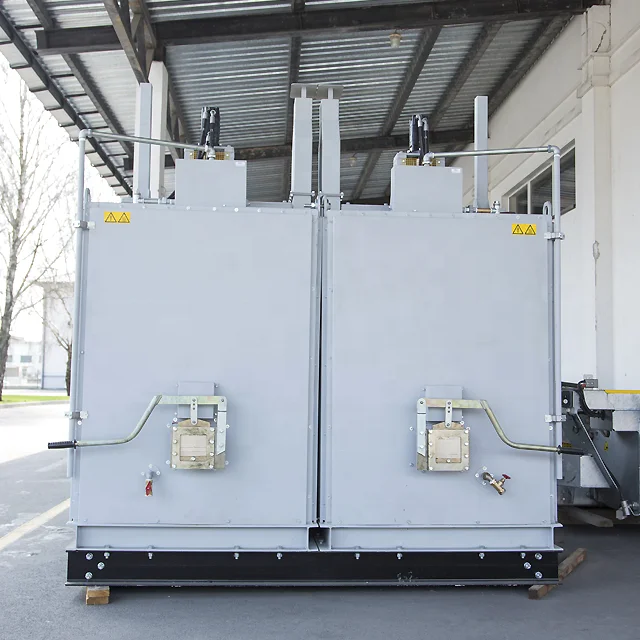

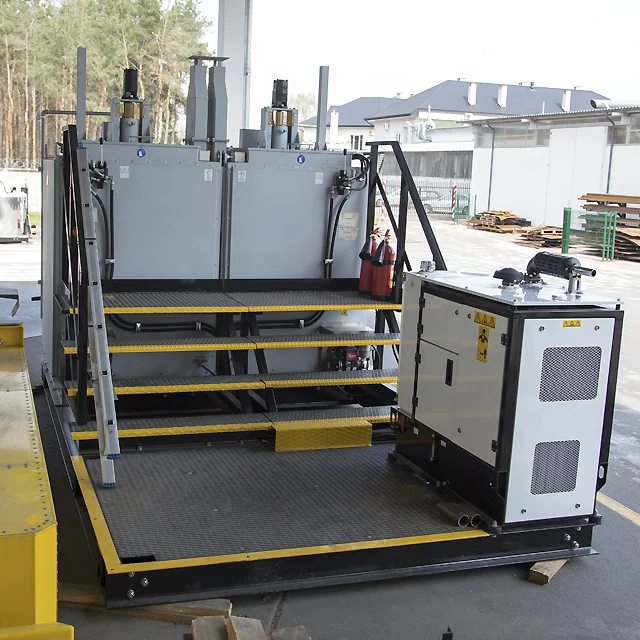

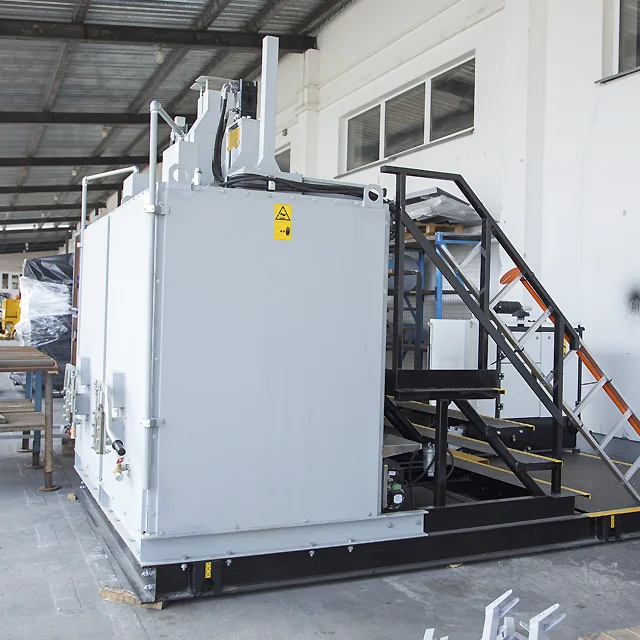

VULKAN 2x1600M Road Marking Thermoplastic Pre Heater
- Category: Road Marking Machines >>>
- Supplier: OOO STIM
Share on (11000000501423):
Product Overview
Description
PRODUCT DESCRIPTION
Vulkan 2X1600M Pre-Heater is designed to melt and mix the thermoplastic material immediately before filling the marking machine.
The set of equipment includes two thermo tanks and a power unit with a diesel motor. The thermo tanks are heated by the heat generated by an oil burner and transferred by heat carrier oil.
The automation system maintains the set thermoplastic temperature in the desired range. The heat carrier oil temperature control prevents overheating throughout the entire material preparation cycle.
The set of equipment includes two thermo tanks and a power unit with a diesel motor. The thermo tanks are heated by the heat generated by an oil burner and transferred by heat carrier oil.
The automation system maintains the set thermoplastic temperature in the desired range. The heat carrier oil temperature control prevents overheating throughout the entire material preparation cycle.
FEATURES
- Thermo tank material Steel 09G2S
- Material of the elements in contact with the flame Steel 20X23H18
- Hydraulic oil Shell Tellus S 46
- Material of the elements in contact with the flame Steel 20X23H18
- Hydraulic oil Shell Tellus S 46
THE DELIVERY PACKAGE INCLUDES:
- Temperature gauge with a laser pointer;
- Propane burner;
- Flashing light;
- Ladder, 2.1 m.
- Temperature gauge with a laser pointer;
- Propane burner;
- Flashing light;
- Ladder, 2.1 m.

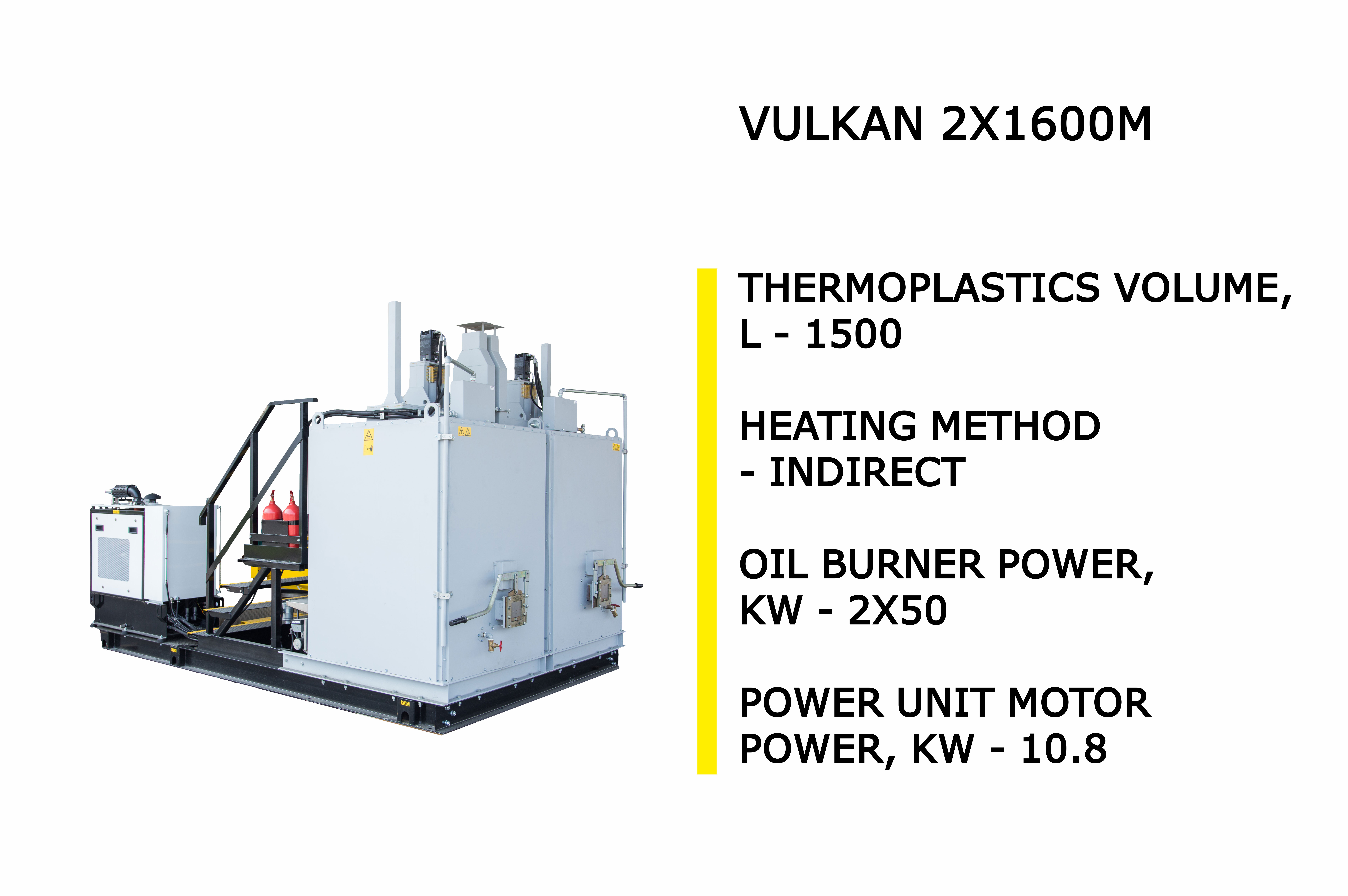

PRODUCT SPECIFICATIONS
Parameter | Vulkan 2x1600M | |
Thermo tanks, pcs | 2 | |
Heating method | Indirect | |
Maximum load of the material, kg | 3000 | |
Thermoplastics volume, L | 1500 | |
Oil burners, pcs | 2 | |
Oil burner power, kW | 2x50 | |
Maximum oil burner fuel consumption, kg/h | 9.5 | |
Oil burner supply voltage, V | 12 | |
Power unit motor power, kW | 10.8 | |
Power unit engine manufacturer | Kubota | |
Fuel type of the power unit engine | Diesel | |
Fuel tank capacity, L | 100 | |
Oil tank capacity, L | 60 | |
Thermal oil volume, L | 420 | |
Overall dimensions (platform-mounted), mm: | ||
Length | 4300 | |
Width | 2400 | |
Height | 2600 | |
Weight (without materials), kg | 3100 | |
Recommended truck (trailer) load capacity, kg | 12000-15000 | |
