Автоматический сварочный аппарат AWPD 560 сварочные машины для тяжелых плоских клеток сварочное оборудование проволочные машины
- Category: Welding Equipment >>>
- Supplier: Siberian Complex Center Automation Limited Liability Company
Share on (11000000519988):
Product Overview
Description
Products Description

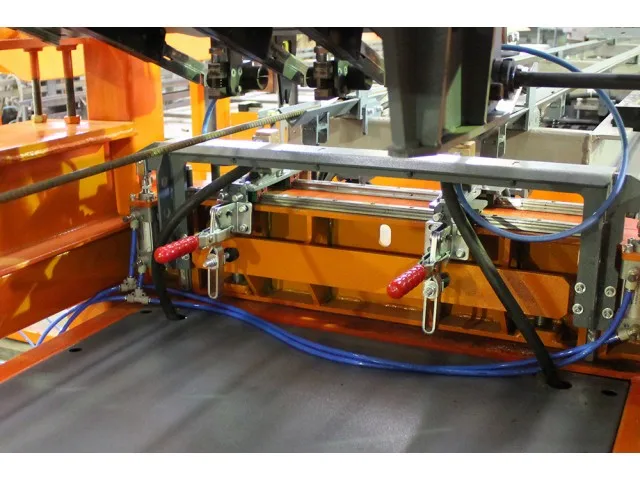

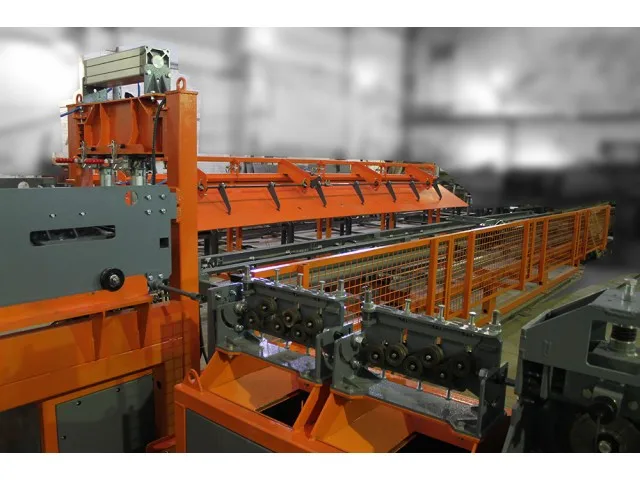

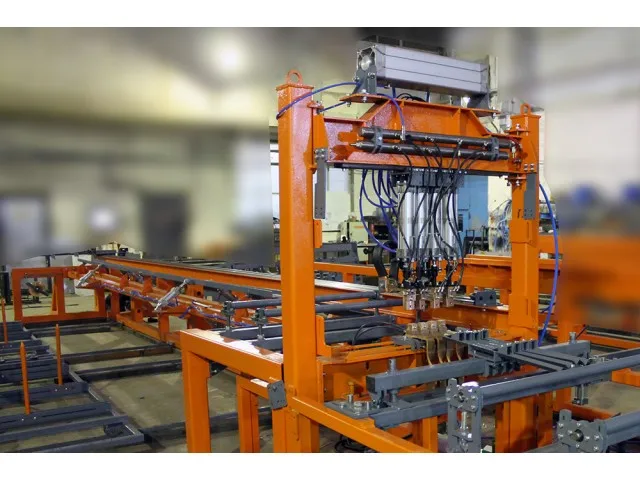

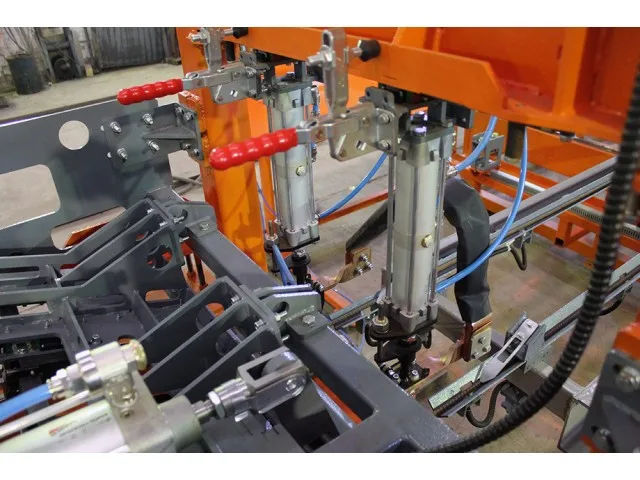

Semi-automatic welding machine AWPD - 560 | ||||||||
Step welding machine is designed for heavy flat cages production. Flat reinforcement cages used in various precast concrete products of the construction and concrete industry.
Reinforcement cages are irreplaceable in monolithic construction and various building projects which allows to cut expenses and minimize terms of delivery of objects in operation. In addition, step welding machine provides a high quality of welded frames satisfying contemporary building requirements.
Coils + Coils | |
Power supply, V | 380 |
Max. transformer power * Quantity, kW*pcs | 75х1 |
Wire diameter, mm | 3-5 cross, 3-5 line |
Indicated pressure, MPa | 0,6 |
Flat cage width, mm | up to 560 |
Flat cage lenght, mm | 1000-6000 |
Max. welding spots (heads), pcs | 2 |
Cross wire (bars) feeder | automatic (coils) |
Line wire (bars) feeder | automatic (coils) |
Welding speed (cross bars per min.) | up to 30 |
