Предварительный обогреватель из термопластика для дорожной маркировки VULKAN 5000
- Category: Road Marking Machines >>>
- Supplier: OOO,STIM
Share on:
Product Overview
Description
PRODUCT DESCRIPTION

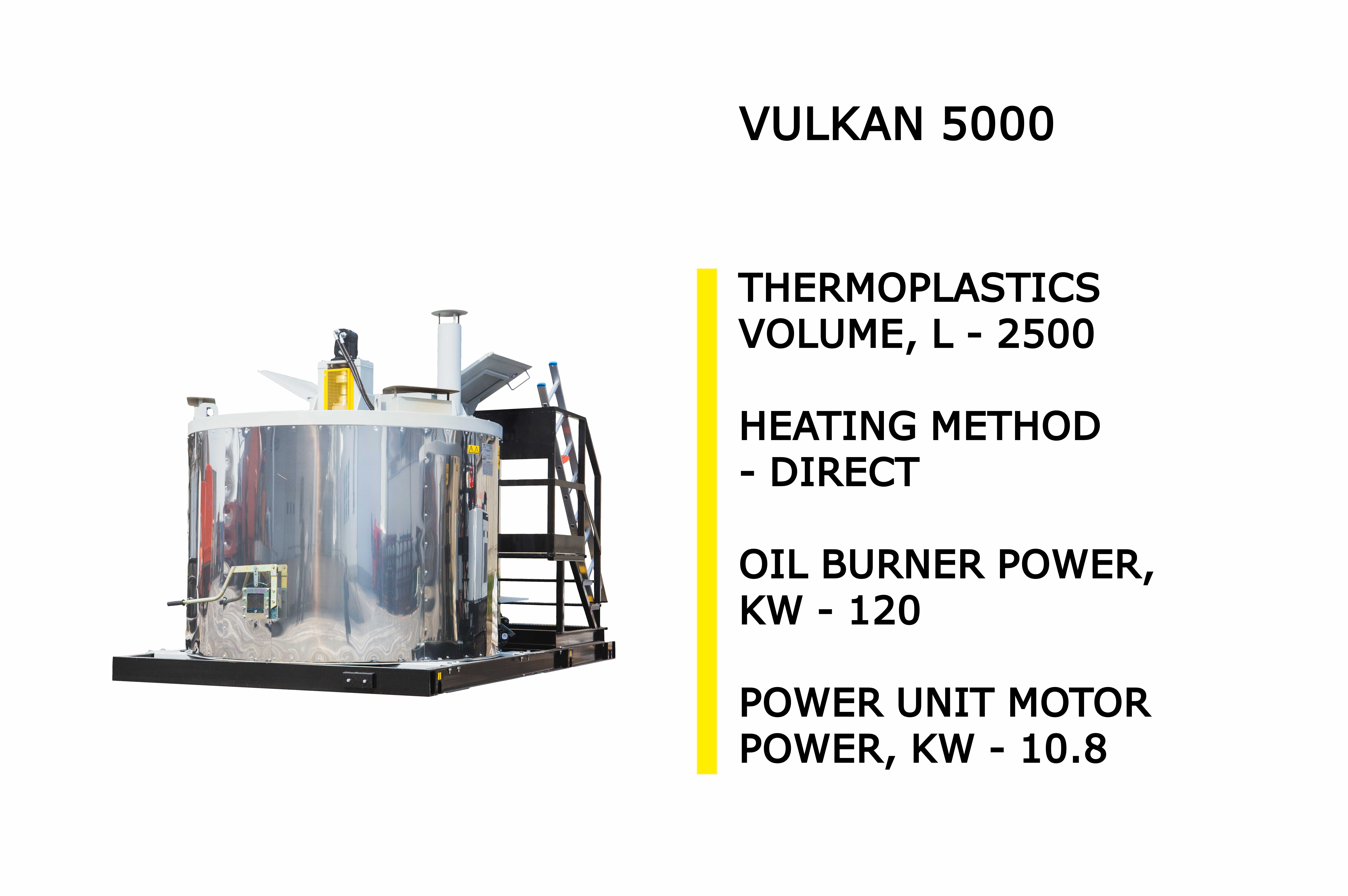

Vulkan 5000 Pre-Heater is intended for installation on a truck with a load capacity of 12-15 tons and used for melting thermoplastics for road marking.
The equipment is based on the direct thermoplastic heating technology without an intermediate heat carrier.
The plastic is melted and the set temperature is maintained automatically. The set of equipment includes a thermo tank equipped with a heating and temperature maintenance system, a power unit, an automation system, and a drain chute for the melted thermoplastic material.
The equipment is based on the direct thermoplastic heating technology without an intermediate heat carrier.
The plastic is melted and the set temperature is maintained automatically. The set of equipment includes a thermo tank equipped with a heating and temperature maintenance system, a power unit, an automation system, and a drain chute for the melted thermoplastic material.
STANDARD CONFIGURATION
- Ladder for easy access to the truck body;
- Flashing light on a bracket;
- Touch-free temperature gauge;
- Thermoplastics scraper;
- Left drain chute;
- Two CO2 extinguishers;
- Operation Manual.
- Flashing light on a bracket;
- Touch-free temperature gauge;
- Thermoplastics scraper;
- Left drain chute;
- Two CO2 extinguishers;
- Operation Manual.
OPTIONS
- Loading conveyor;
- Right drain chute.
- Right drain chute.
PRODUCT SPECIFICATIONS
Parameter | Vulkan 5000 | |
Thermo tanks, pcs | 1 | |
Heating method | Direct | |
Maximum load of the material, kg | 5000 | |
Thermoplastics volume, L | 2500 | |
Oil burners, pcs | 1 | |
Oil burner power, kW | 120 | |
Maximum oil burner fuel consumption, kg/h | 11.4 | |
Oil burner supply voltage, V | 12 | |
Power unit motor power, kW | 10.8 | |
Power unit engine manufacturer | Kubota | |
Fuel type of the power unit engine | Diesel | |
Fuel tank capacity, L | 60 | |
Oil burner fuel tank capacity (if separate tank is available), L | 140 | |
Oil tank capacity, L | 60 | |
Overall dimensions (platform-mounted), mm: | ||
Length | 4300 | |
Width | 2400 | |
Height | 2600 | |
Weight (without materials), kg | 4300 | |
Recommended truck (trailer) load capacity, kg | 12000-15000 | |
