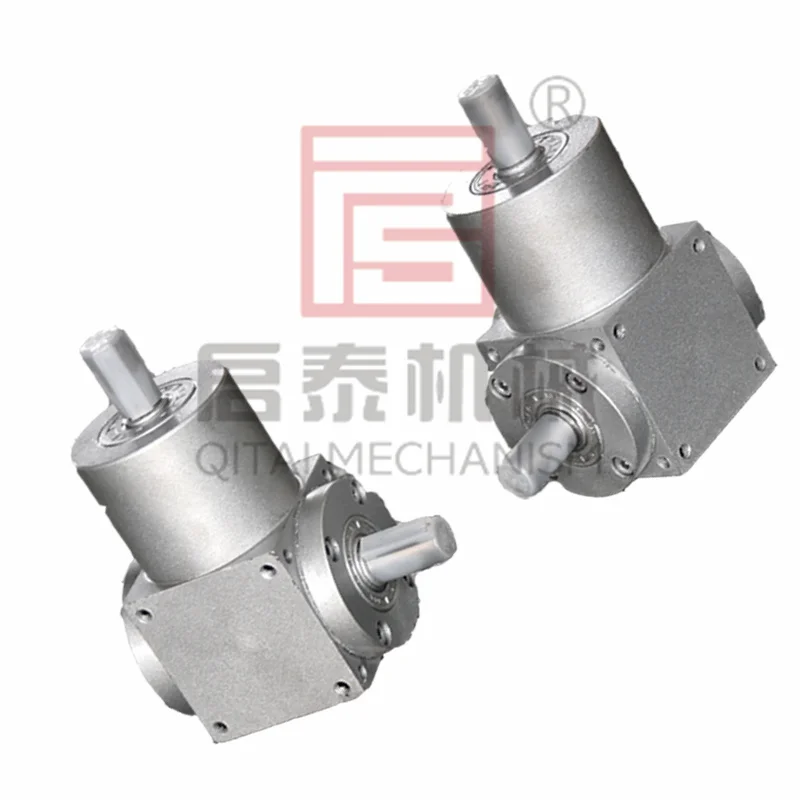

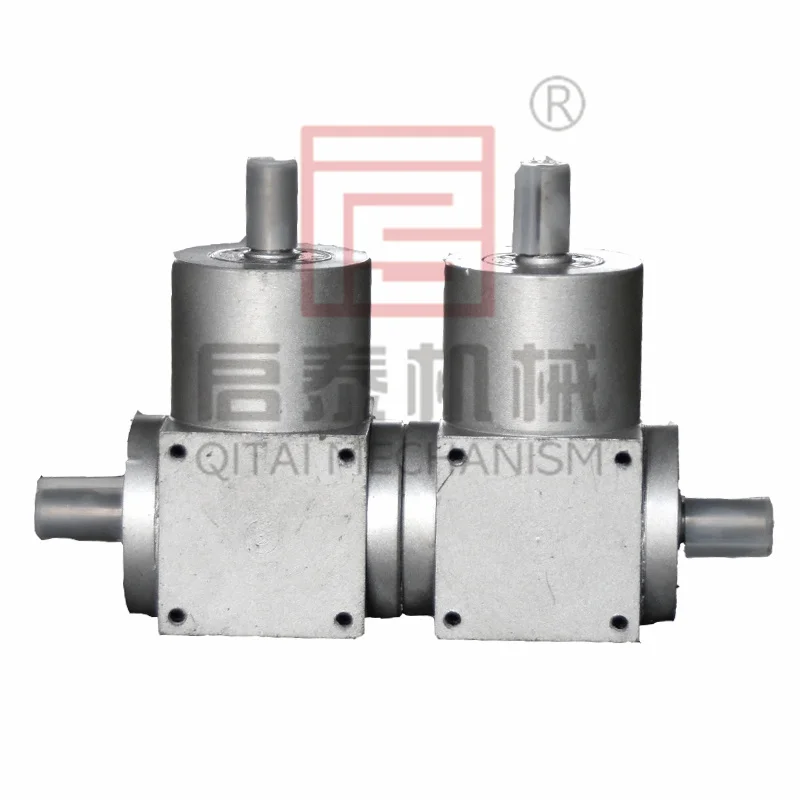

Durable And Quality Three way Right Angle Gearbox 1:1 For Transmission Satellite Dish Antennas
- Category: >>>
- Supplier: Dezhou Qitai Machinery Equipment Co. Ltd.
Share on (11000000528552):
Product Overview
Description
Product Description
High Accuracy Angular Gears Three Way 90 Degree Bevel Gear Drive For Lifting Platform Geared Motor

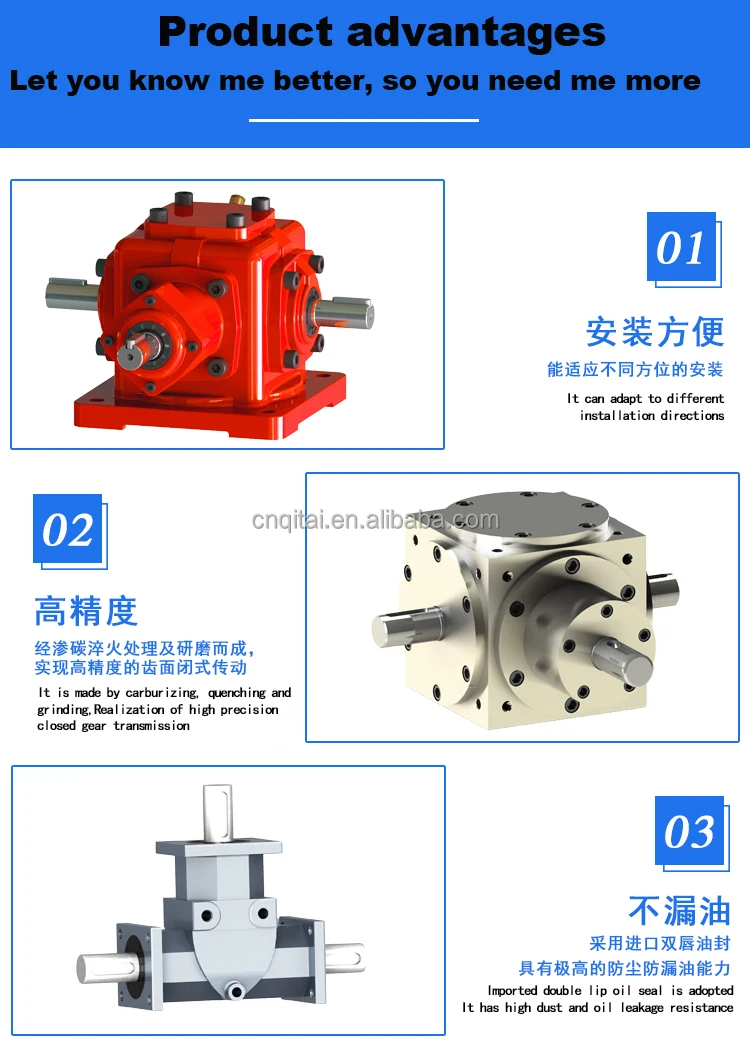

Product overview: 1. Cubic gearbox sizes 140x140x140mm, with all-round tapped holes for universal mounting, 6 possible universal mounting positions,can be easily mounted in any direction.
1. Casing: made of high steel fc-25 cast iron;
2. Gear: it is made of high purity alloy steel 50crmnt by quenching and tempering, carburizing, quenching and grinding;
3. Main shaft: high purity alloy steel 40Cr quenched and tempered,with high suspension load capacity. 4. Bearing: equipped with tapered roller bearing with heavy load capacity; 5. Oil seal:
imported double lip oil seal is adopted, which has the ability of dust prevention and oil leakage prevention.
imported double lip oil seal is adopted, which has the ability of dust prevention and oil leakage prevention.
Performance characteristics:
2. Solid shaft, Input shaft 32mm, Output shaft 32mm. Custom made hollow shaft or motor adapter to bolt an IEC motor flange.
3. Bevel gears ratios 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1.
4. Bevel gears with high efficiency95%-98%.
5. 2 way, 3 way and 4 way configurations.
6. Maximum allowable torque 150Nm.
7. Maximum allowable power 23.9kw.
8. Maximum allowable speed 1500rpm.
9. Low backlash, quiet low noise, low running temperature, lubricants prior to shipment, factory tested prior to shipment.

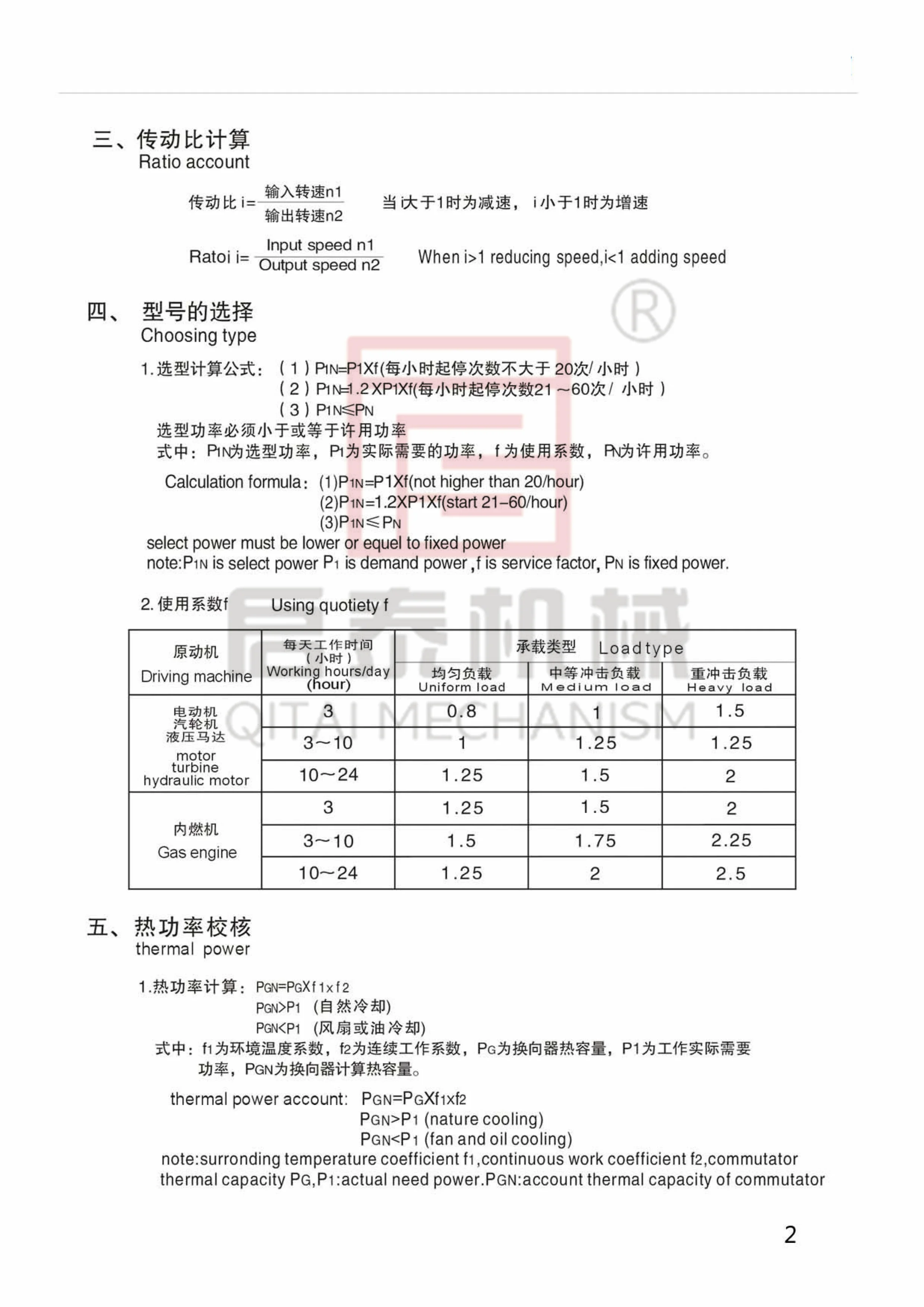

Specification
Other Products
* Manual Screw Jacks.
* Electric Screw Jacks.
* Worm Gear Screw Jacks Series.
* Bevel Gear Screw Jack Series.
* Electric Cylinders Series.
* Spiral Bevel Gearboxes Series.
* Lifting Systems and Accessories.
* Electric Linear Actuators Series.
* Geared Motor and Gear Reducers Series.
* Electric Screw Jacks.
* Worm Gear Screw Jacks Series.
* Bevel Gear Screw Jack Series.
* Electric Cylinders Series.
* Spiral Bevel Gearboxes Series.
* Lifting Systems and Accessories.
* Electric Linear Actuators Series.
* Geared Motor and Gear Reducers Series.
Packing & Delivery

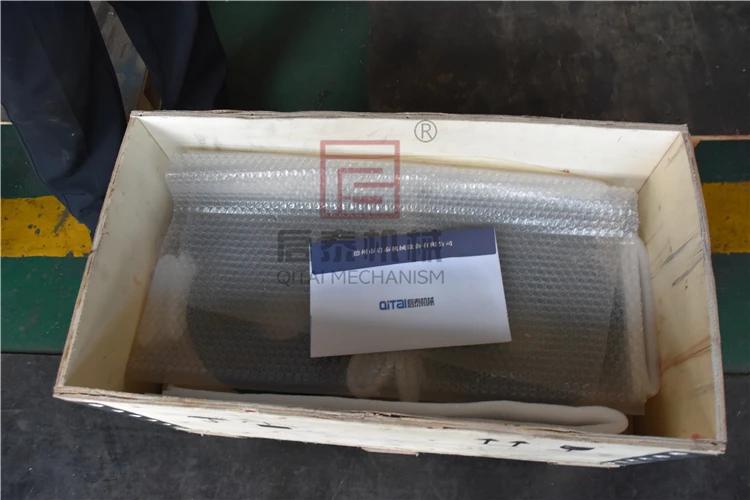

Polythene liner bag enclosing screw jack (which is moisture barrier, rust-proof).
Polyurethane foam around the screw jack (avoiding shock in delivery) in veneer case.
Polyurethane foam around the screw jack (avoiding shock in delivery) in veneer case.

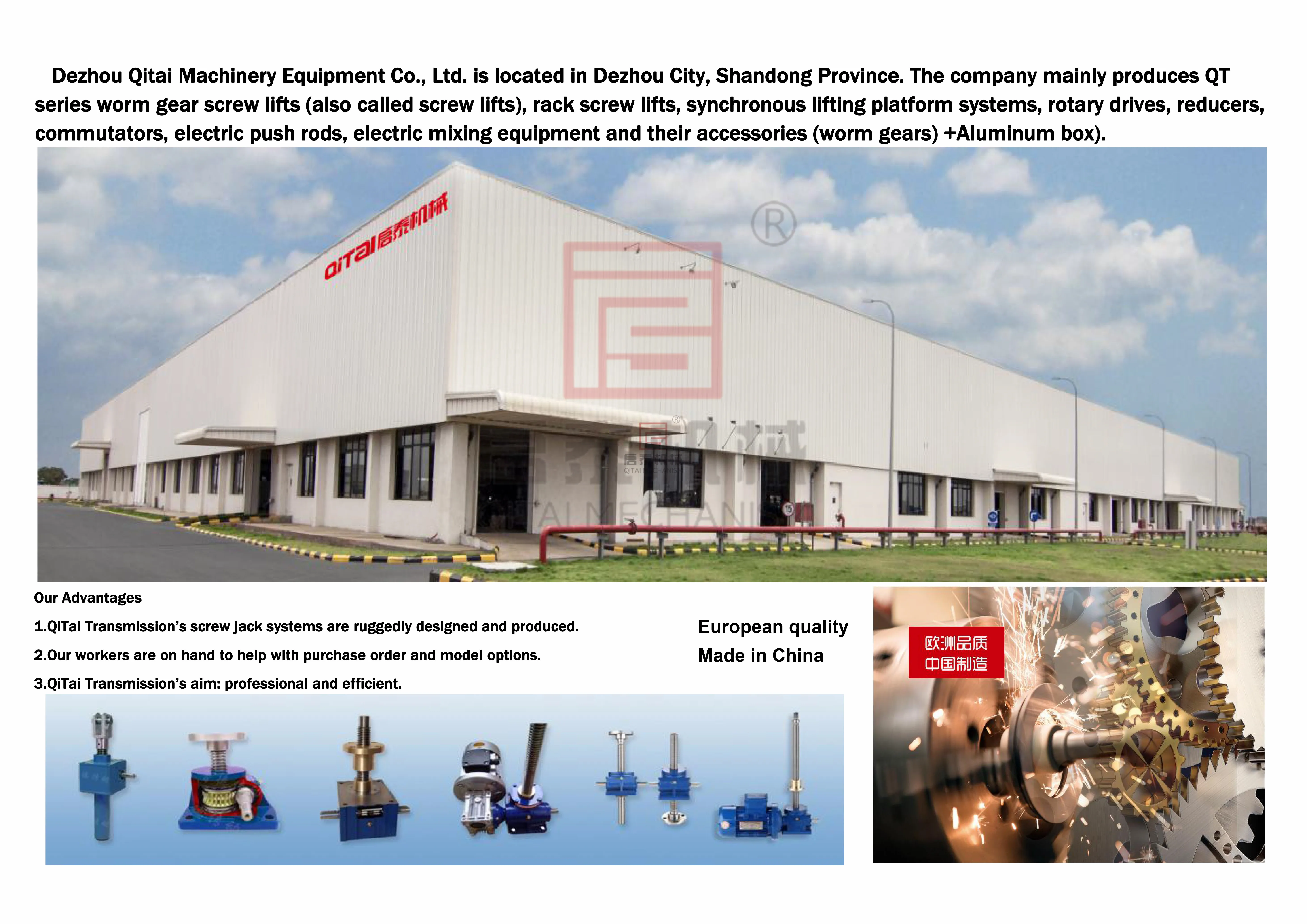

Company Profile
The products of Dezhou Qitai Machinery Equipment Co., Ltd. have been all over the country, and some products have been exported to Southeast Asia, South Africa, Middle East and other countries and regions. They are widely used in steel, metallurgy, rubber and plastic, food, beverage, construction, printing, packaging, lifting, textile, chemical industry, environmental protection, logistics, warehousing and other industries to a large extent, to meet the transmission needs of various industries Praise!
We always take the good faith as the foundation, establish the faith sincerely, put the quality in the first place, regard the product quality as the life of the enterprise, with the strong technical force and perfect service, sincerely provide satisfied products and services for the new and old customers.
"Adhere to integrity, quality first, sincere service" is our tenet of Qitai service!
"Customer satisfaction" is our eternal goal of Qitai people!
We will be the greatest enthusiasm to welcome friends at home and abroad to negotiate, purchase, and would like to become your business friends!
We always take the good faith as the foundation, establish the faith sincerely, put the quality in the first place, regard the product quality as the life of the enterprise, with the strong technical force and perfect service, sincerely provide satisfied products and services for the new and old customers.
"Adhere to integrity, quality first, sincere service" is our tenet of Qitai service!
"Customer satisfaction" is our eternal goal of Qitai people!
We will be the greatest enthusiasm to welcome friends at home and abroad to negotiate, purchase, and would like to become your business friends!
Appliaction
FAQ
1. who are we?
We are based in Shandong, China, start from 2012,sell to Eastern Asia(12.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),Oceania(10.00%),North America(10.00%),Africa(8.00%),Domestic Market(5.00%),South America(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Reducer,mechanical equipment,Lifting equipment,Screw Jack
4. why should you buy from us not from other suppliers?
The products of Dezhou Qitai Machinery Equipment Co., Ltd. have been all over the country, and some products have been exported to Southeast Asia, South Africa, Middle East and other countries and regions. They are widely used in steel, metallurgy, rubber
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2012,sell to Eastern Asia(12.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),Oceania(10.00%),North America(10.00%),Africa(8.00%),Domestic Market(5.00%),South America(5.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Reducer,mechanical equipment,Lifting equipment,Screw Jack
4. why should you buy from us not from other suppliers?
The products of Dezhou Qitai Machinery Equipment Co., Ltd. have been all over the country, and some products have been exported to Southeast Asia, South Africa, Middle East and other countries and regions. They are widely used in steel, metallurgy, rubber
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
