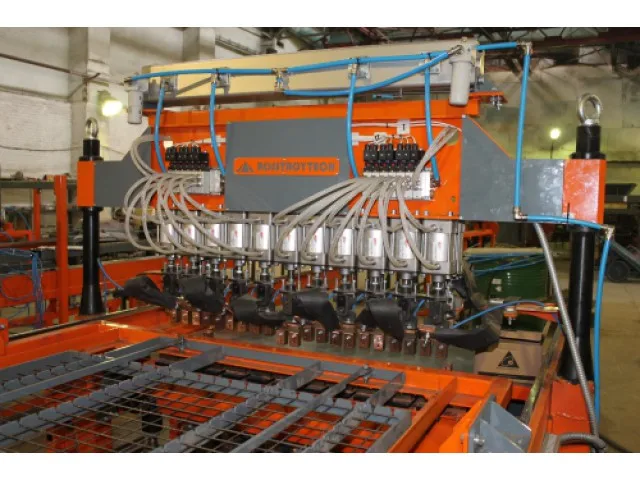

Semi-automatic welding machine WPK - 2000


"Rosstroytech" priority is a design and manufacture of non-standard custom welding equipment on the customer's requirements. Welding machines for consumer products, as, for example, baskets or trolleys for supermarkets, shelves and cages are made of a various diameters wire.

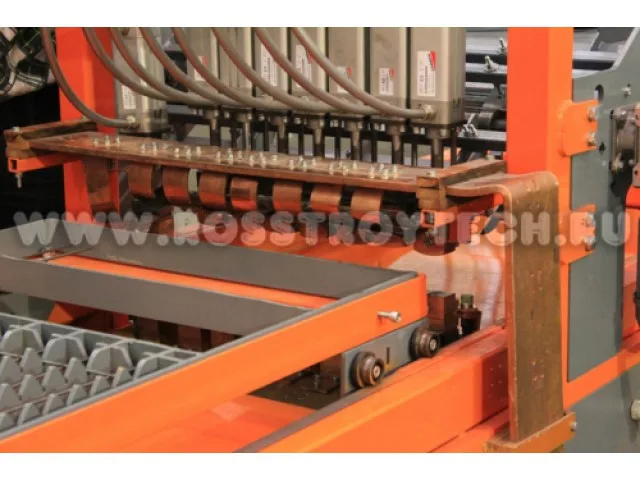

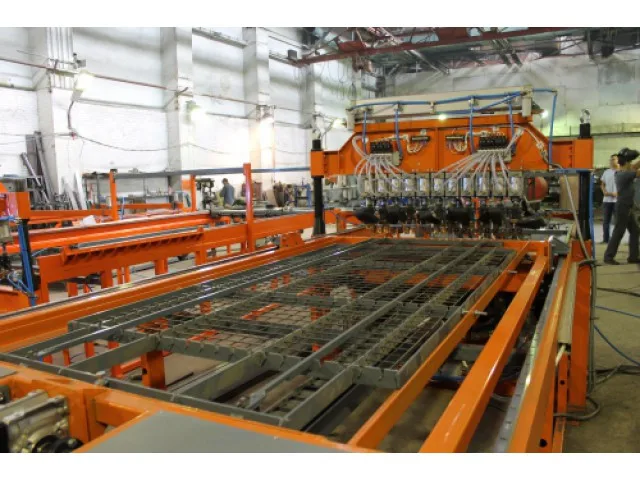

The production process of welded consumer products requires high precision geometry design. "Rosstroytech" offers a special welding machine with a jig. The bars are loaded in jig frame and fixed, then automatically fed into the welding unit. Such welding machines editions are limited or custom made. Anyway, welding machine with a jig based of semi-automatic ones.



Welding unit
WPK-2000
Wire diameter, mm
3-5
Mesh dimension (increments 50 mm), mm
from 50x50 to 200х200
Max. mesh width, mm
1000
Max. welding spots (heads), pcs
20
Cross wire (bars) feeder
manual
Line wire (bars) feeder
manual
Cooling water consumption, l/h
1500
Compressed air consumption, l/min
1200
Wire profile, sq.mm, copper
from 50
Welding mode
cascaded
Max. transformer power, kW
75х3 (75)
Welding speed (cross bars per min.)
40-60
