The polymeric powder line PPC-2500 | ||||||||

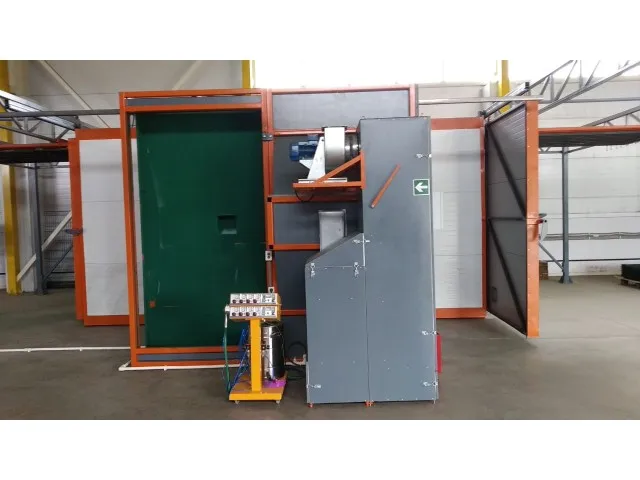

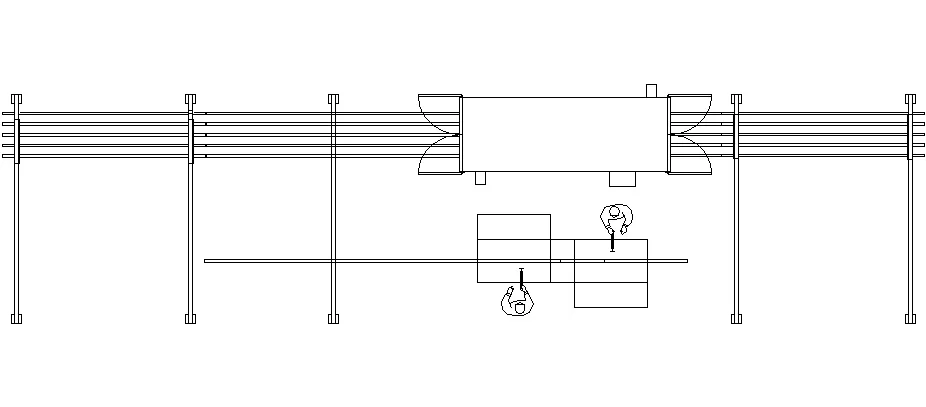

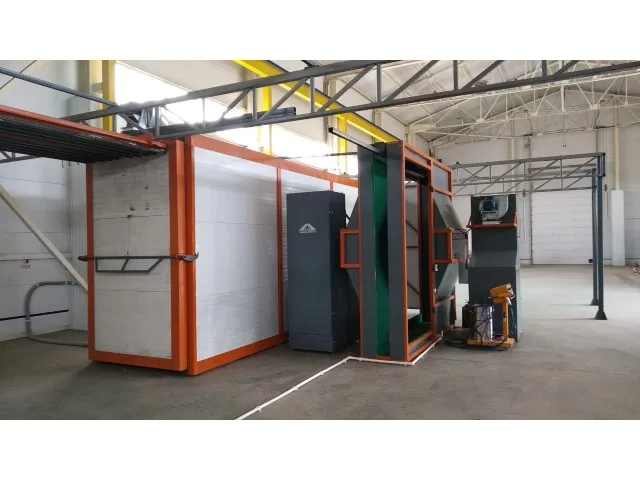

The polymeric powder line includes: curing oven, sputtering chamber, transport system, sputtering equipment.
Curing oven, dimensions 6200x2900x1600 mm, capacity 110 kW
Sputtering chamber, dimensions 3500x2700x900 mm, capacity 12 kW
Transport system, 10 guides.
Sputtering equipment.
Type | passing through |
Inside dimensions, mm | 6200*2900*1600 (LxHxW) |
Outside dimensions, mm (without guides) | 6500*3100*2400 (LxHxW) |
Capacity, kW | 80 |
Action mode | continuous |
Temperature available, ˚C | 0…230 |
Temperature discretization adjustment, ˚C | 1 |
Max. temperature, ˚C | 230 |
Time range adjustment, min | 1 min – 40 hours |
Time discretization adjustment, min | 1 |
Heating time to 180 °C | 30 min |
Temperature excursion, °C | +/- 5 |
Exhaust ventilation | yes |
Sound notification | yes |
