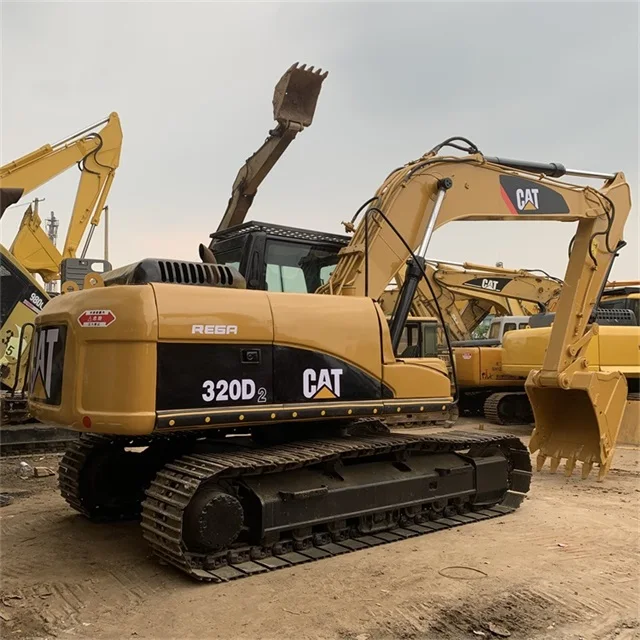

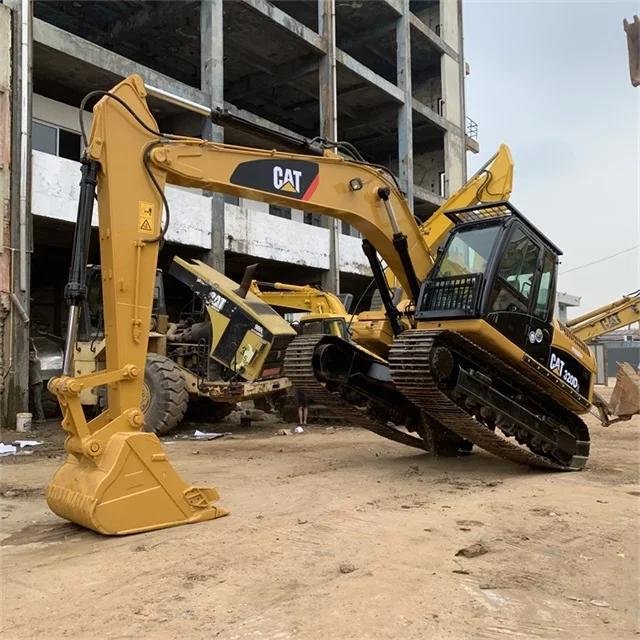

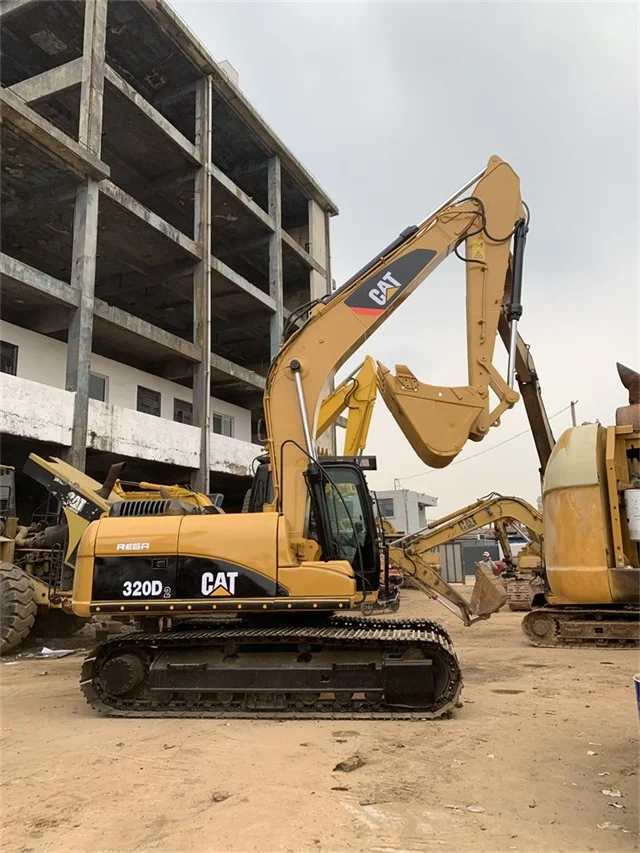

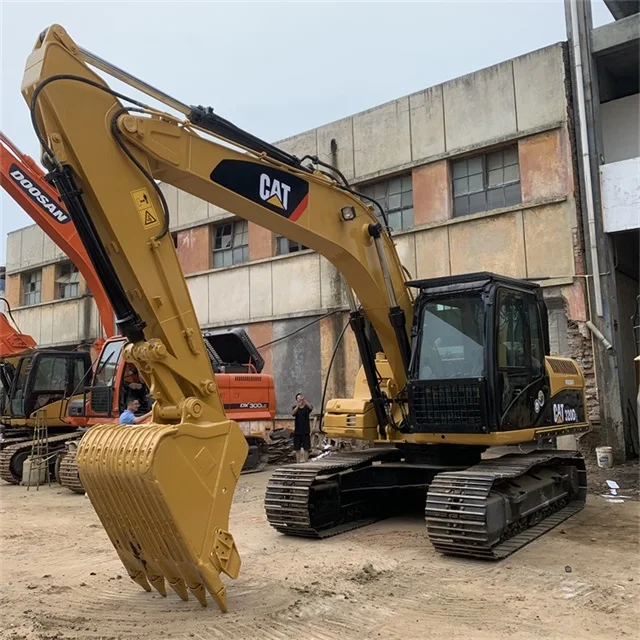

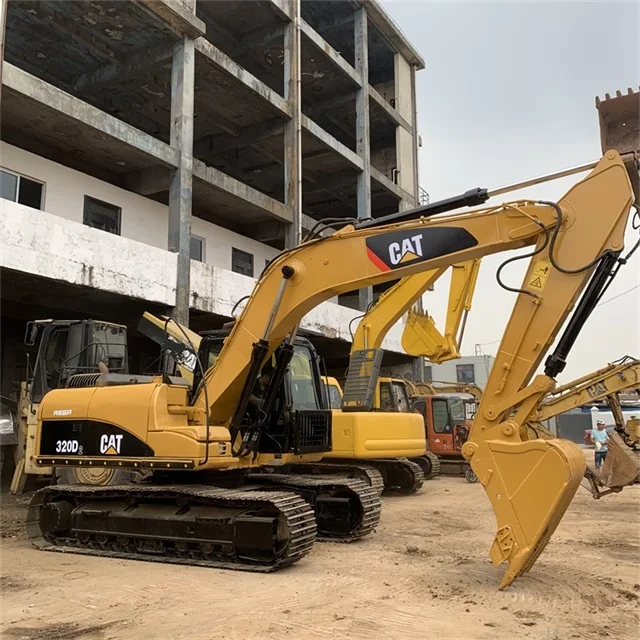

Cheapest Price 20 ton excavator, Caterpillar 320D Used Crawler Excavator with Hammer Line For Sale
- Category: Used Engineering & Construction Machiner >>>
- Supplier: BAI YING TRADING SDN. BHD.
Share on (11000000542507):
Product Overview
Description
Details Images
Products Description
Caterpillar 320D hydraulic excavator parameter configuration | ||
Specification | ||
Machine working weight (kg) | 20930 | |
Bucket capacity (m³) | 1.0 | |
Boom length (mm) | 5700 | |
Stick length (mm) | 2900 | |
Origin | Japan | |
Tonnage (tons) | 20 | |
Manufacturer | caterpillar 320D excavator Japan original | |
performance | ||
Rotation speed (rpm) | 11.5 | |
Walking speed (km/h) | 3.5/5.7 | |
Gradeability (%) | 70/35° | |
Ground pressure (Kpa) | 6 | |
Bucket digging force (kN) | 140.1 | |
Stick digging force (kN) | 106.4 | |
power system | ||
Engine model Caterpillar | C6.4ACERT | |
Rated power (kw/rpm) | 103/2000 | |
Displacement (L) | 6.37 | |
Number of cylinders (pcs) | 6 | |
Bore×Stroke (mm) | 102×130 | |
Cooling method | water cooling | |
Hydraulic system | ||
Track shoe width (mm) | 600 | |
Total transport length (mm) | 9460 | |
Total transport width (mm) | 2800 | |
Total transport height (mm) | 3050 | |
Working hydraulic circuit (Mpa) 35
Walking hydraulic circuit (Mpa) 35
Rotary hydraulic circuit (Mpa) 25
Pilot oil circuit (MPa) 3.9
Boom cylinder-number × cylinder diameter × stroke (mm) 2-120 × 1260
Stick cylinder-number × cylinder diameter × stroke (mm) 1-140 × 1504
Bucket cylinder-number × cylinder diameter × stroke (mm) 1-120 × 1104
Is the hydraulic crushing pipeline standard equipped?
Oil capacity
Fuel tank (L) 410
Hydraulic oil tank (L) 120
Hydraulic system (L) 260 (including fuel tank)
Engine oil replacement amount (L) 30
Coolant (L) 25
Overall height of cab (mm) 2950
Counterweight ground clearance (mm) 1020
Track ground length (mm) 3265
Total track length (mm) 4075
Total track width (mm) 2800
Track gauge (mm) 2200
Minimum ground clearance (mm) 450
Back end radius of gyration (mm) 2750
Scope of work
Maximum digging radius of stop surface (mm) 9850
Maximum digging depth (mm) 6710
Maximum digging height (mm) 9840
Maximum unloading height (mm) 6500
Maximum vertical digging depth (mm) 6180
Maximum effective digging depth (mm) 6540
Bulldozing blade width×height (mm) without bulldozing blade
Dozer blade lift or push depth (mm) without dozer blade
Walking hydraulic circuit (Mpa) 35
Rotary hydraulic circuit (Mpa) 25
Pilot oil circuit (MPa) 3.9
Boom cylinder-number × cylinder diameter × stroke (mm) 2-120 × 1260
Stick cylinder-number × cylinder diameter × stroke (mm) 1-140 × 1504
Bucket cylinder-number × cylinder diameter × stroke (mm) 1-120 × 1104
Is the hydraulic crushing pipeline standard equipped?
Oil capacity
Fuel tank (L) 410
Hydraulic oil tank (L) 120
Hydraulic system (L) 260 (including fuel tank)
Engine oil replacement amount (L) 30
Coolant (L) 25
Overall height of cab (mm) 2950
Counterweight ground clearance (mm) 1020
Track ground length (mm) 3265
Total track length (mm) 4075
Total track width (mm) 2800
Track gauge (mm) 2200
Minimum ground clearance (mm) 450
Back end radius of gyration (mm) 2750
Scope of work
Maximum digging radius of stop surface (mm) 9850
Maximum digging depth (mm) 6710
Maximum digging height (mm) 9840
Maximum unloading height (mm) 6500
Maximum vertical digging depth (mm) 6180
Maximum effective digging depth (mm) 6540
Bulldozing blade width×height (mm) without bulldozing blade
Dozer blade lift or push depth (mm) without dozer blade
FAQ
1.Q:How is the quality of the machine exported from your country?
A:All of the machines we export are in excellent condition and ready to work.
2.Q:What is your warranty?
A:Maintenance of 2 years.
3.Q:What is your payment?
A:Usually T/T(30% deposit+70% balance),other payment can negotiate.
4.Q:What is your delivery time?
A:2 working days after receiving deposit
A:All of the machines we export are in excellent condition and ready to work.
2.Q:What is your warranty?
A:Maintenance of 2 years.
3.Q:What is your payment?
A:Usually T/T(30% deposit+70% balance),other payment can negotiate.
4.Q:What is your delivery time?
A:2 working days after receiving deposit
Product packaging
Packaging & Shipping
We will arrange the shipping within 7 days after the deposit,and there are different shipping ways for your reference:
1:Container:It is cheapest and fast
2:Bulk ship:It is suitable for big machines
3:Flatrack:It is better for big machines and the machines can be shipped as it is,no need to dismantle
4:Ro-Ro:It is the best way for shipping,safe and fast
We will arrange the shipping within 7 days after the deposit,and there are different shipping ways for your reference:
1:Container:It is cheapest and fast
2:Bulk ship:It is suitable for big machines
3:Flatrack:It is better for big machines and the machines can be shipped as it is,no need to dismantle
4:Ro-Ro:It is the best way for shipping,safe and fast
