Rotating, contactless, Linearity error <= 0.05 % F.S.,Flange connection with DIN hole pattern

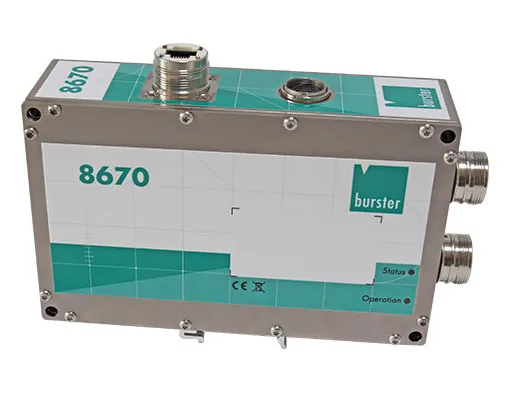

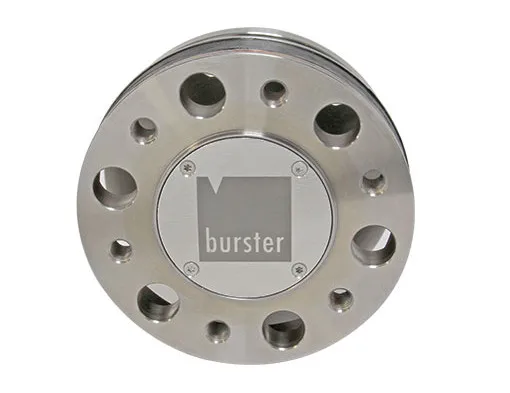

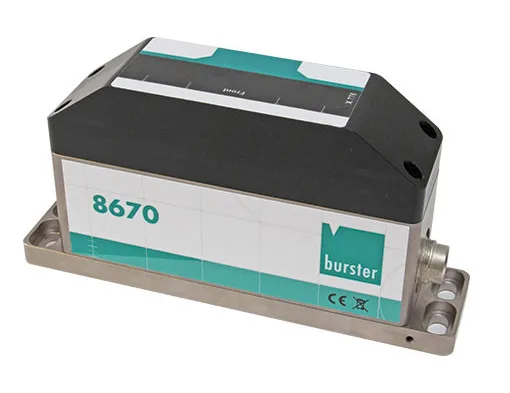

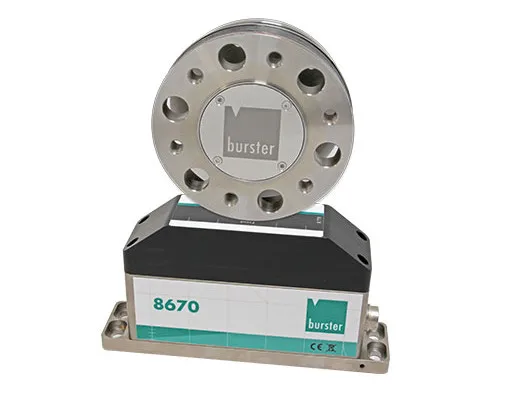

The rotating flange torque sensor model 8670 consists of the sensor (rotor), the receiver (stator) and the evaluation electronics.

The torque is detected by the torsion of the rotor with the strain gage principle and transmitted completely contactless by radio technology. By omitting a bearing, the sensor is maintenance-free, the signals are digitized directly on the shaft and made available by the evaluation electronics as a voltage signal, as a frequency or as CAN signals. The direction of rotation can be seen by the potential of the output voltage, clockwise corresponds to positive output voltage, anticlockwise the voltage level is negative.

The hole pattern corresponds to the DIN standard and is compatible with already existing systems.

FEATURES:
- Measuring ranges from 0 ... 100 Nxm up to 0 ... 5000 Nxm
- Linearity error <= 0.05 % F.S.
- Flange connection with DIN hole pattern
- Output signal 0 ... +/-10 V

Characteristics:

Pictures:

We offer various payment options. Please contact us for futher details.

1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.


2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.


3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.
