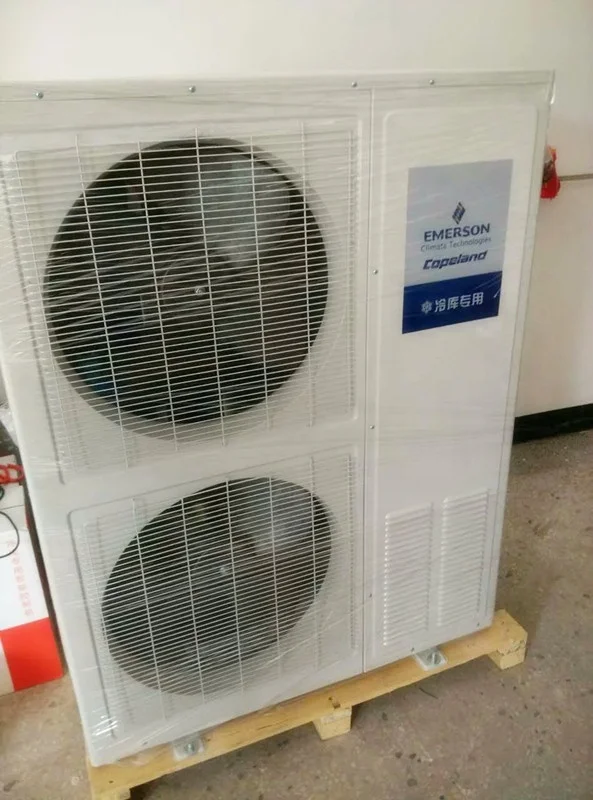

380V/3Ph/50Hz Low Temperature Refrigeration freezer Condensing Unit cood room cooling unit
- Category: >>>
- Supplier: Hangzhou Xuantong Machinery Co. Ltd.
Share on (11000000631249):
Product Overview
Description
Product Description
380V/3Ph/50Hz Low Temperature Refrigeration Condensing Unit cood room cooling unit
Parameter data sheet
H:high temperature 5-10C S:side wind blow C:ZB series compresor R22
| Model | XT | |||||
| 02HSC | 03HSC | 04HSC | 05HSC | |||
| Compressor model | ZB15KQ | ZB21KQ | ZB29KQ | ZB38KQ | ||
| Cooling capacity and power | Evaporating temperature -5C | Cooling capacity W | 6150 | 8870 | 12000 | 14700 |
| Cooling capacity and power | Power W | 1480 | 2570 | 3300 | 4050 | |
| Evaporating temperature -7C | Cooling capacity W | 5730 | 8260 | 11050 | 13700 | |
| Power W | 1550 | 2560 | 3300 | 4010 | ||
| Evaporating temperature -10C | Cooling capacity W | 4770 | 3940 | 5150 | 5910 | |
| Power w | 1690 | 2530 | 3290 | 3940 | ||
| Applicable temperature | 5-10C | |||||
| Refrigerant | R22 | |||||
| Power supply | 380v/3ph/50hz | |||||
| condenser | fan quantity | 1 | 1 | 2 | 2 | |
| fan volatge V | 220 | 220 | 220 | 220 | ||
| fan power W | 60 | 60 | 60*2 | 60*2 | ||
| Coupling | suction coupling mm | 19 | 19 | 19 | 19 | |
| tube coupling mm | 10 | 10 | 12 | 12 | ||
| overall size | 1020*420*840 | 1020*420*840 | 1020*420*1240 | 1020*420*1240 | ||
| dimension size | 580*380 | 580*380 | 580*380 | 580*380 | ||
XT-MTC Series
| Model | XT | ||||||
| 02MTC | 03MTC | 04MTC | 05MTC | 06MTC | |||
| Compressor model | ZB15KQ | ZB21KQ | ZB29KQ | ZB38KQ | ZB45KQ | ||
| Cooling capacity and power | Evaporating temperature -5C | Cooling capacity W | 3920 | 5700 | 7000 | 9100 | 11550 |
| Power W | 1790 | 2500 | 3290 | 3990 | 4780 | ||
| Evaporating temperature -7C | Cooling capacity W | 3620 | 5270 | 6320 | 8300 | 10650 | |
| Power W | 1820 | 2490 | 3290 | 3900 | 4790 | ||
| Evaporating temperature -10C | Cooling capacity W | 3190 | 4660 | 5390 | 7200 | 9390 | |
| Power W | 1850 | 2480 | 3280 | 3890 | 4800 | ||
| Applicable temperature | -5-5C | ||||||
| Refrigerant | R22 | ||||||
| Power supply | 380V/3PH/50HZ | ||||||
| Condenser | Fan quantity | 1 | 1 | 1 | 1 | 2 | |
| Fan voltage V | 380 | 380 | 380 | 380 | 380 | ||
| Fan Power w | 200 | 200 | 250 | 250 | 200*2 | ||
| Coupling | Suction coupling mm | 19 | 19 | 22 | 22 | 22 | |
| Tube coupling mm | 10 | 10 | 10 | 12 | 12 | ||
| Overall size | 788*756*657 | 938*756*867 | |||||
| dimension size | 472*726 | 582*826 | |||||
| Model | XT | |||||||
| 08MTC | 09MTC | 10MTC | 12MTC | 13MTC | 15MTC | |||
| Compressor model | ZB58KQ | ZB66KQ | ZB76KQ | ZB88KQ | ZB95KQ | ZB114KQ | ||
| Cooling capacity and power | Evaporating temperature-5C | Cooling capacity W | 14700 | 17200 | 20300 | 21400 | 23700 | 28900 |
| Power W | 6120 | 6740 | 8000 | 9040 | 9770 | 11750 | ||
| Evaporating temperature -7C | Cooling capacity W | 13400 | 15900 | 18700 | 19750 | 22000 | 26800 | |
| Power W | 6120 | 6730 | 7990 | 9010 | 9630 | 11600 | ||
| Evaporating temperature -10C | Cooling capacity W | 11550 | 14000 | 16500 | 17400 | 19600 | 23800 | |
| Power W | 6140 | 6720 | 7950 | 8960 | 9420 | 11350 | ||
| Applicable temperature | -5-5C | |||||||
| Refrigerant | R22 | |||||||
| Power supply | 380V/3PH/50HZ | |||||||
| Condenser | Fan quantity | 1 | 2 | 2 | 2 | 2 | 2 | |
| Fan Voltage V | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Fan power W | 600 | 250*2 | 450*2 | 450*2 | 450*2 | 600*2 | ||
| Coupling | Suction coupling mm | 28 | 28 | 28 | 28 | 28 | 28 | |
| Tube coupling mm | 16 | 16 | 16 | 16 | 16 | 16 | ||
| overall size | 1488*856*867 | 1388*856*967 | 1488*856*967 | 1536*856*892 | ||||
| dimension size | 832*826 | 832*856 | 932*826 | 982*826 | ||||
zx
