Custom Size Heat Isolated Fiberglass Vacuum Insulating Panels for Ice Bag Refrigerators Freezers and Wine Cellar
- Category: >>>
- Supplier: Fujian Super Tech Advanced Material Co. Ltd.
Share on (11000000669580):
Product Overview
Description
Product Description
What is VIP ?
Vacuum Insulation Pannel(VIP) is a kind of high-efficiency insulation material based on the principle of vacuum insulation. It combines the advantages of vacuum insulation and microporous insulation, so it achieves the ultimate effect of insulation, which is widely applicated in home held refrigerators, freezers, ULT freezers, refrigerated transportation & storage solutions.
Specification
Product Name | Vacuum Insulation Panel /VIP |
Thermal Conductivity | 1.5mW-2.5mW/(㎡*K） （tolerance +/-0.5mW） |
Core Material | Glassfiber at diameter 6-11 microns |
Barrier Film | Long Service Life Hybrid or Metalised Films |
Absorbents | Self-developed Getters and Desiccants |
Length | 80-2000mm |
Width | 80-800mm |
Thickness | 8-30mm |
Working Temperature | -70-100℃ |
Density | 300-340kgs/m3 |
Standards | REACH,RoHS,MSDS,ASTM ,ISO9001,ISO14001 |
Service Life | 15 Years |

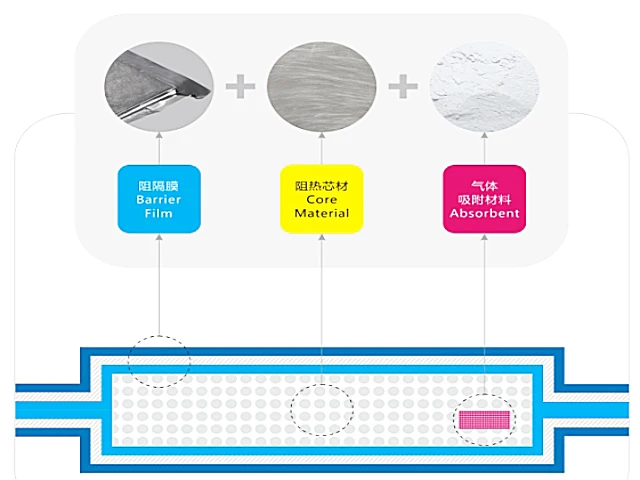

Product Configurations
-Core Material: Glassfibre at Diameter 6-11 Micron, which is REACH & RoHs Compliant;
-Barrier Film: The barrier film is gas & water vapour impermeable. It's at a low thermal conductivity that can maximally preventthe thermal bridge effect. It's used to envelope the core material for further evacuation and sealing to prevent outside gases
from entering the panel.
-Absorbents: Getters and desiccants are both implanted inside to absorb ridual gas and water vapour. This helps maintain steady
vacuum conditions and extend service life.
vacuum conditions and extend service life.

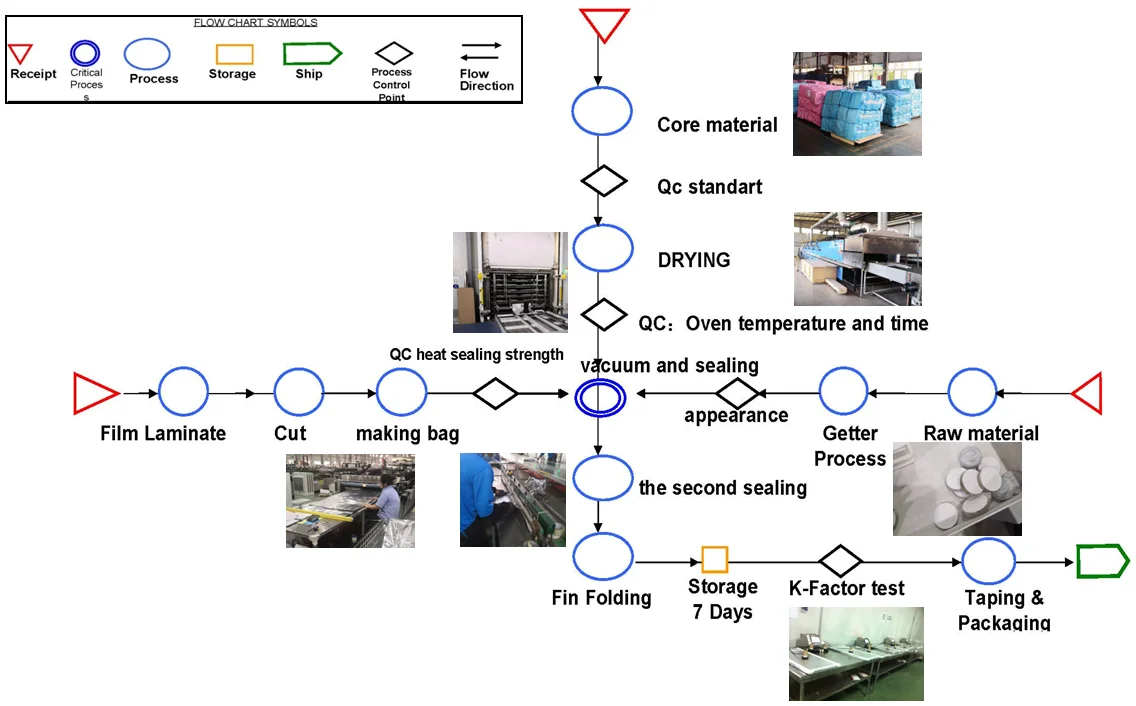

Production Process
We conduct whole process of VIP from core material, barrier film, getter production to K-factor detector, from development to production all in our own factory and maintain strict quality control through raw material, first sample check before mass production, randam check during production and full inspection before shippment, which aims to provide the best price-ratio and no defect products to our customers.

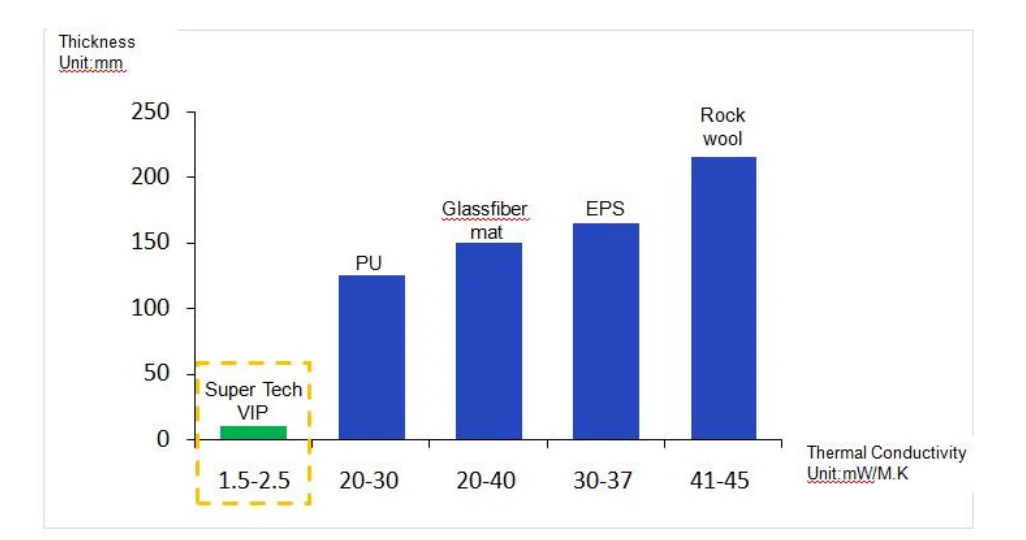

Material Comparisons
Conclusion: VIP is the best energy efficient material on market. Its energy efficiency is 10- 20 times better than other
materials.It's the only material that can help in building Class-A or Class B refrigerators according to European's new labellingregulations.

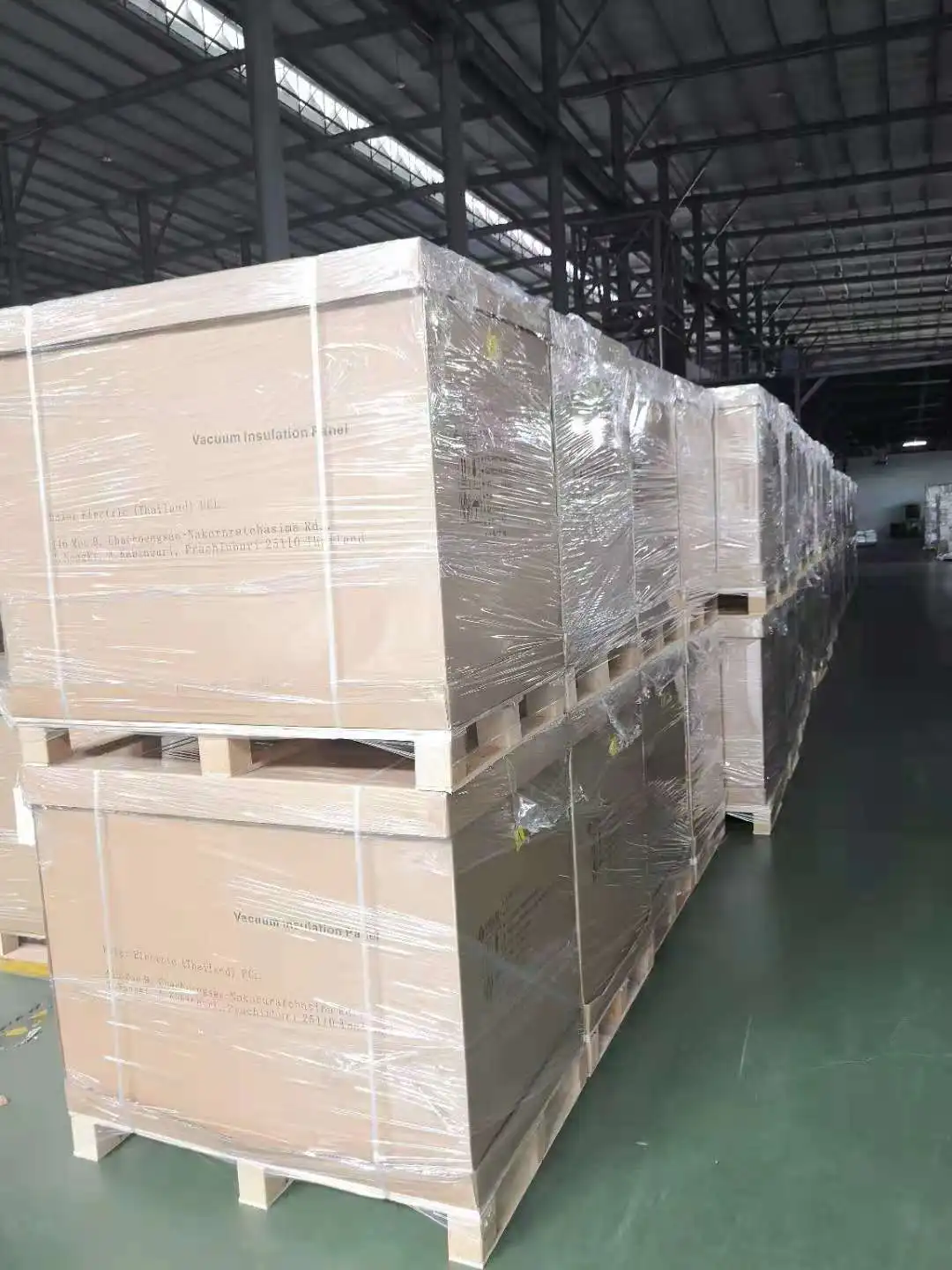

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Why choose us?
◎Clients benefit from our VIP:
Comparing with traditional insulation materials, VIPs may seem a little more costy. Howerver, with significant benefits it brings,it is actually of the best cost performace to choose.
◎Clients benefit from our VIP:
Comparing with traditional insulation materials, VIPs may seem a little more costy. Howerver, with significant benefits it brings,it is actually of the best cost performace to choose.
By mainly using VIPs, a refrigertor will have >40% better thermal insulation (energy saving), >20% bigger storage space, and 50% higher selling prices. It brings much more margins for refrigerator manufacturers.
In addition, any ODS or HCFS super green house gases will not be produced in the production and application of VIP, and the core material of VIP can be recycled, which is a kind of environmental friendly material.
◎We lead the market of VIP with high quality and large capacity
Each product in our company will pass the stringent tests before it leaves the factory. Main deletion instrument: Germany NETZSCH, Japan EKO and self-developed ST*Q detection instruments.
As founded in 2007 and the first company starting mass production of VIP in China, with two wholly-owned subsidiaries including Fujian Super Tech Cold Chain Technology Co., Ltd. and Fujian Film Technology Co., Ltd., we specialize in manufacturing VIPs of ultra-low thermal conductivity.
Super Tech Cold Chain Technology Co. provides the personalized and effective products for external wall insulation and the cold chain transportation of medicine, fresh food, refrigerated trucks and insulated shipping container.
Film Technology Co. focuses on the development and large-scale production of new functional barrier films such as foil barrier film, hybrid barrier film and non-foil barrier film.
◎We lead the market of VIP with high quality and large capacity
Each product in our company will pass the stringent tests before it leaves the factory. Main deletion instrument: Germany NETZSCH, Japan EKO and self-developed ST*Q detection instruments.
As founded in 2007 and the first company starting mass production of VIP in China, with two wholly-owned subsidiaries including Fujian Super Tech Cold Chain Technology Co., Ltd. and Fujian Film Technology Co., Ltd., we specialize in manufacturing VIPs of ultra-low thermal conductivity.
Super Tech Cold Chain Technology Co. provides the personalized and effective products for external wall insulation and the cold chain transportation of medicine, fresh food, refrigerated trucks and insulated shipping container.
Film Technology Co. focuses on the development and large-scale production of new functional barrier films such as foil barrier film, hybrid barrier film and non-foil barrier film.
Core material production line
12 lines=3,000Tons monthly capacity

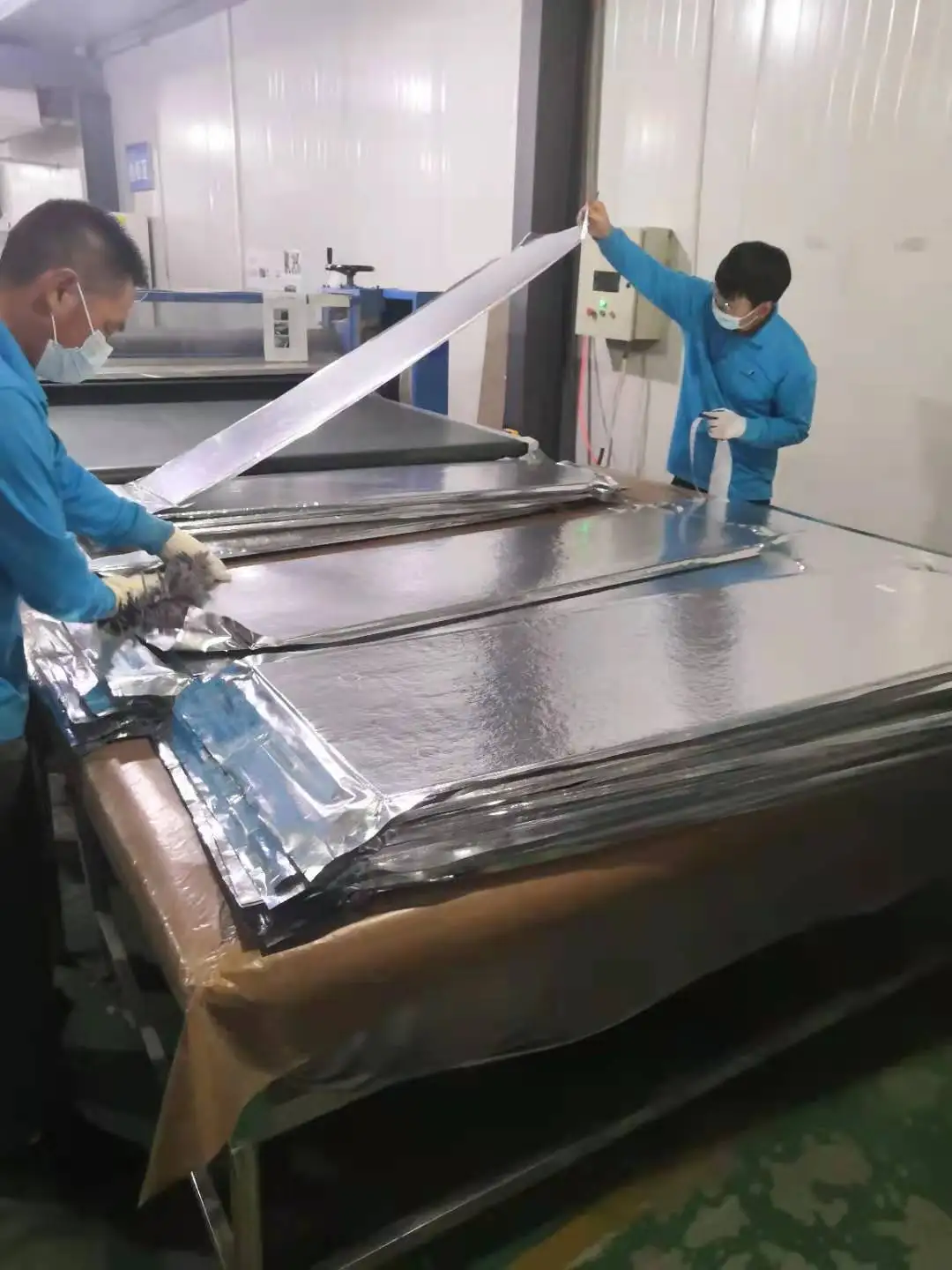

Vacuum packaging machines
52 sets = 3,000Tons monthly capacity
ST*Q detection instruments
40 sets=100,000Sqm mothly capacity
ISO9001 Certification
ISO14001 Certification
RoSH Report
REACH Report
222
With around 15years experience, we are now the main supplier for SAMSUNG, LG, TOSHIBA, HITACHI, Whirlpool, Haier, Midea and etc.
