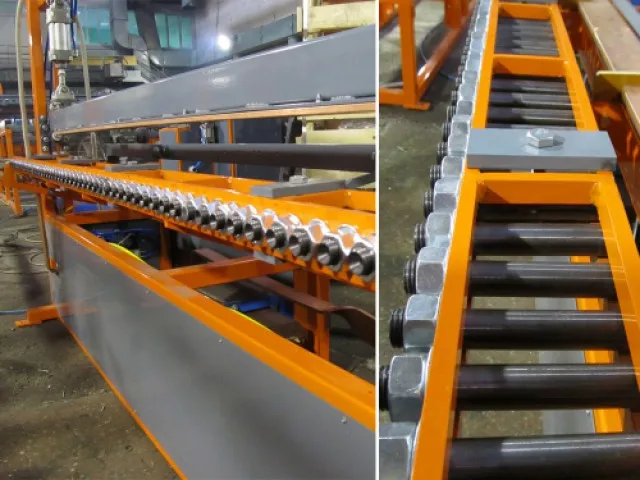

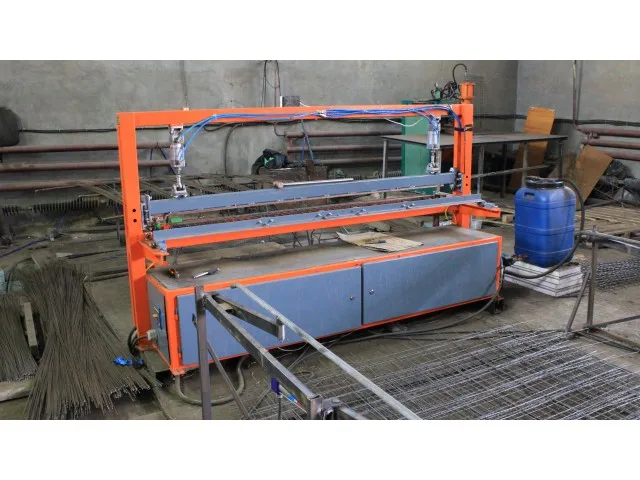

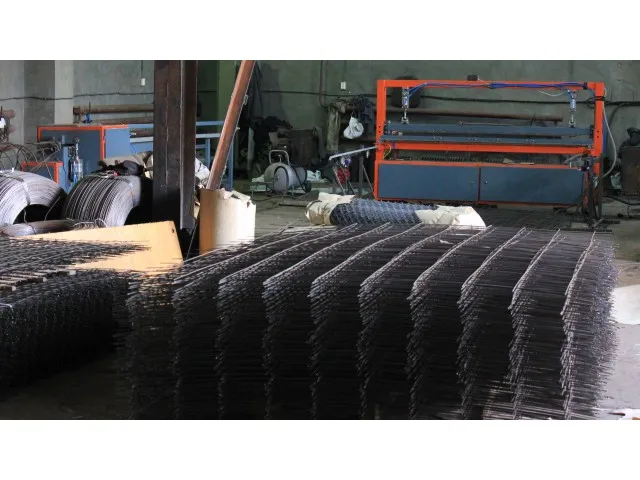

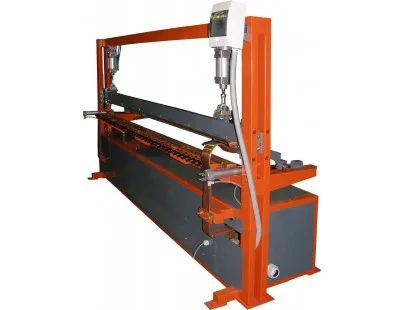

Manual Welding Mesh Machine RL 2000 Mesh Welding Machines FOR COIL MESH Welding Equipment Wire Machines

Manual welding machine RL series is designed for welded mesh production. RL series machine is low-cost and simple operating, compared to the automatic multi spot welding machines. Using the manual welding line allows you quickly and efficiently to start the welded wire mesh production.

Rosstroytech offers the machine welding the wire (bars) with diameter from 3 to 6 mm (and 3-12 mm). Efficient start up of welded mesh production is the main business idea.

Simple and intuitive design of the machine allows to control it on the fly! The original configuration provides less price compared to the automatic welding multi spot machines.

Rosstroytech manual welding machine enables quick and efficient welded mesh production. Technical characteristics of the equipment provides welding of flat cages with open spaces, custom welded meshes manufacture, and custom dimensions mesh. The steps are smoothly adjustment only in cross direction in standard configuration (line wire adjustment available optionally).

How it works

Operator controls the welding machine. Operator use line and cross pre-cutted in size bars. The copper hammer is used to perform the welding spot at the intersection of the bars. Using the foot pedal the operator activates the top beam pressing mechanism to complete the electrical circuit.

RL machine for fence 3D panels

The special edition of RL series is designed for fence panels production. RL fence edition is equipped with servo pull mechanism for weld mesh which allows variable pitch between the cross bars and smooth diagonals.

Original cooling system

"Rosstroytech” offers simple & effective cooling system for welding machines. The cooling system consists of frame, pump, cooler, control system, receiver.
