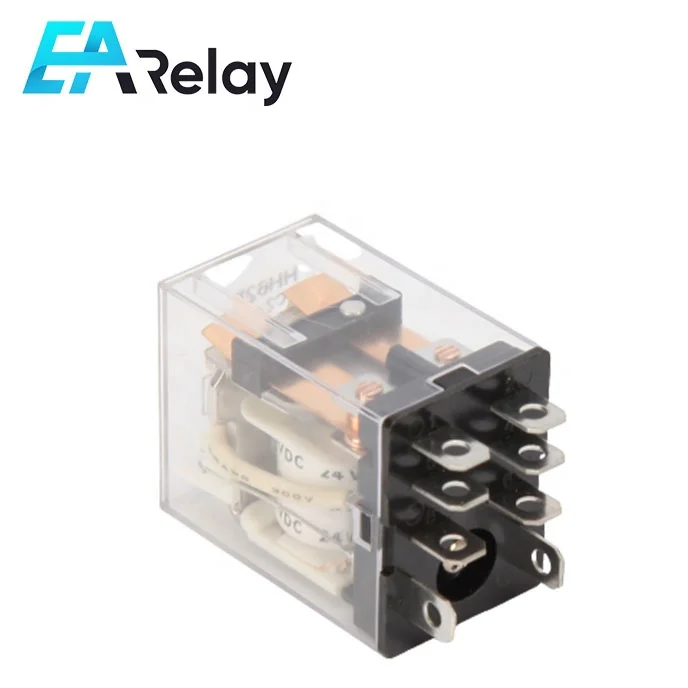

HH62P 2Z LY2N J JQX 13F DC 12V Electromagnetic Relay
- Category: >>>
- Supplier: Wenzhou Ningyue Electric Technology Co. Ltd.
Share on (11000000678996):
Product Overview
Description
Product Display
Main Features
5A switching capability
2 form A、2 form C、contact form
Sealed IP65 and dust cover types
Outline dimensions: 25X15X30mm
2 form A、2 form C、contact form
Sealed IP65 and dust cover types
Outline dimensions: 25X15X30mm
Typical Application
* Universal, general-purpose
* – Projects and assemblies of electronic circuits on printed circuit boards ( PCB )
* – Projects and assemblies of electronic circuits on printed circuit boards ( PCB )
Specifications | ||
Contact Form | 2A, 2C | |
Contact Material | AgSnO2 | |
Max Operating Current | 5A | |
Max Operating Voltage | 250VAC/28VDC | |
Rated Load（Resistive load） | 5A 14VDC / 30A 28VDC 5A 125VAC / 3A 250VAC | |
Insulation Resistance | 100MΩ | |
Dielectric Strength（Coil and Contact） | 500VAC/M | |
Ambient Temperature | -40°C~+85°C | |
Operate/Release Time | 10ms/10ms | |
Mechanical Life | 1 X107 | |
Electrical Life | 1 X105 | |
Terminal Type | PC Board | |
Coil Ratings | ||||||||||||||
Standard | Normal voltage (VDC) | Pick-up voltage (VDC) | Drop-out voltage (VDC) | Coil resistance (Q±10%) | Parallel resistance (Q±5%) | Equivalent resistance (Q±10%) | Coil Power (W) | |||||||
12 | 8.4 | 1.2 | 90 | - | - | 1.6 | ||||||||
12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | ||||||||
24 | 16.8 | 2.4 | 360 | - | - | 1.6 | ||||||||
24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | ||||||||
