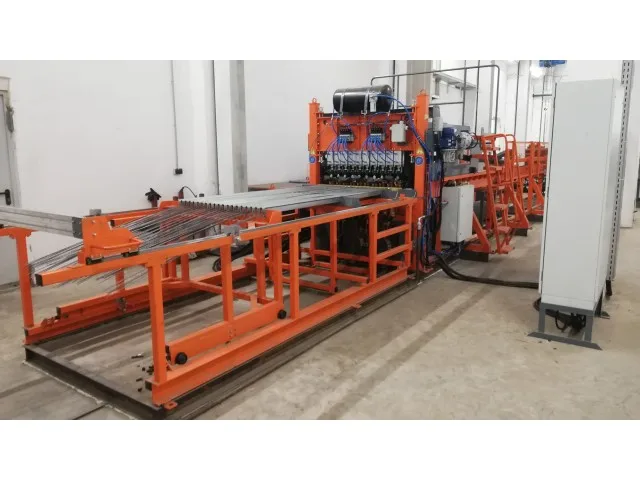

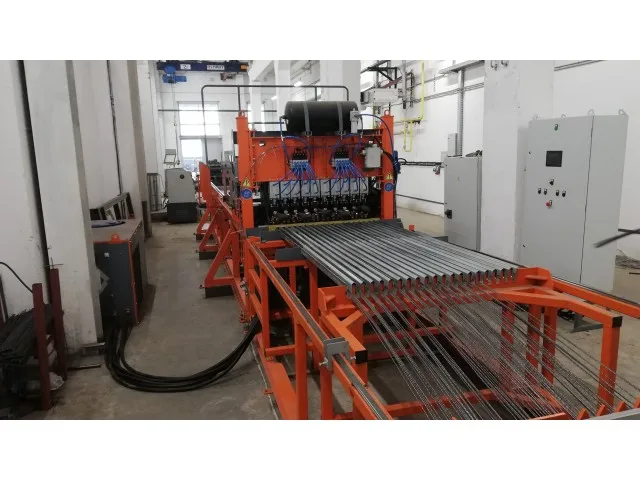

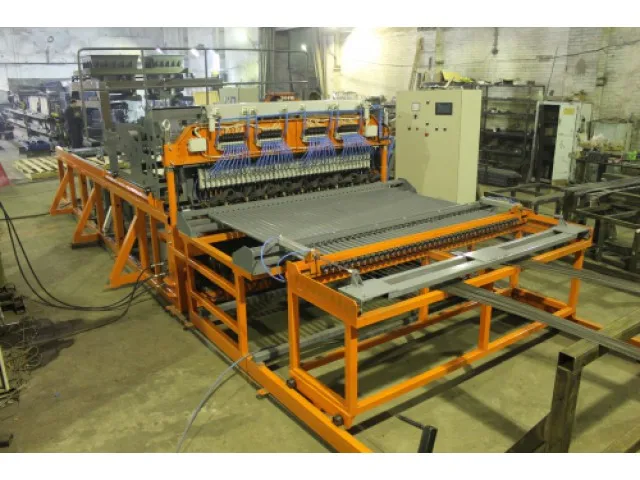

Semi-automatic multi spot welding machine WP series has a great performance, about 5 tons output per shift, and inspired competitive characteristics. WP series machines provide average production volumes of various diameters wire mesh, intended for own use and sale.

How it works

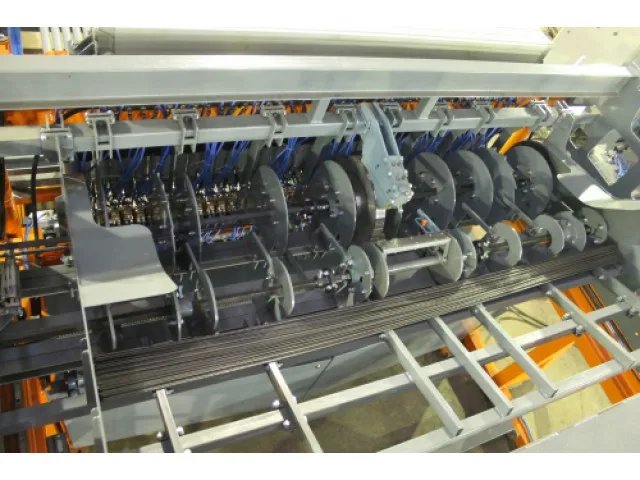

Operator sets up the desired technical parameters via control panel, and makes general adjustments of the machine before welding. Semi-automatic machine requires line and cross pre-cutted wire. Using straightening and cutting unit the operator prepare appropriate size bars in advance. The line bars are loaded manually through line feed unit. The cross bars are loaded to bunker. Feeder throws off the cross bars one-by-one from the bunker into welding zone automatically. Welding in place of intersections is performed cascaded.

Basic features

The standard version of WP series is equipped with the cross bars feeder bunker. To improve performance additional modules such as feeder of line bars, hydraulic mesh scissors, and packaging unit are available.

Line feeder unit

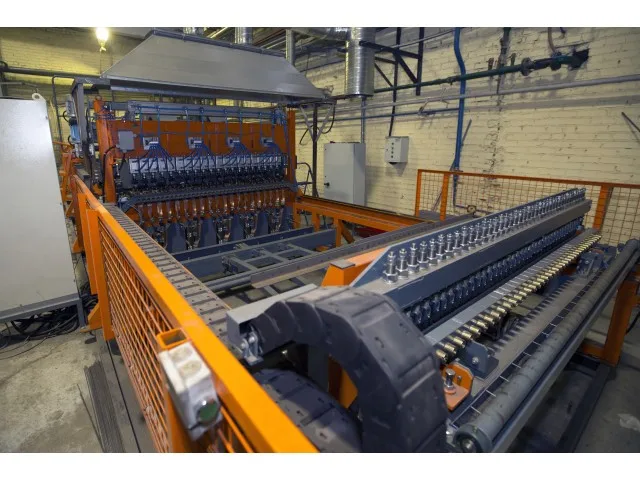

The unit allows loading new bars during the actual process of welding mesh, reducing downtime and increasing the productivity 1.5-2 times average. Operator loads the line bars manually into the individual guide bushing. The frame moves the line bars to the welding zone. The sensors totally exclude the possibility of defective mesh manufacturing.

Line transfer unit

Line transfer module within the welding zone allows making a mesh with variable pitch. Moving the mesh strictly forward by rack provides an ideal rectangular shape dimensions.

Stacking unit

Stacking unit removes the welded mesh from the welding machine. The ready panels drop off in a stack when the welding is complete. If necessary, the unit can be equipped with manipulator, and turn over every second mesh.
