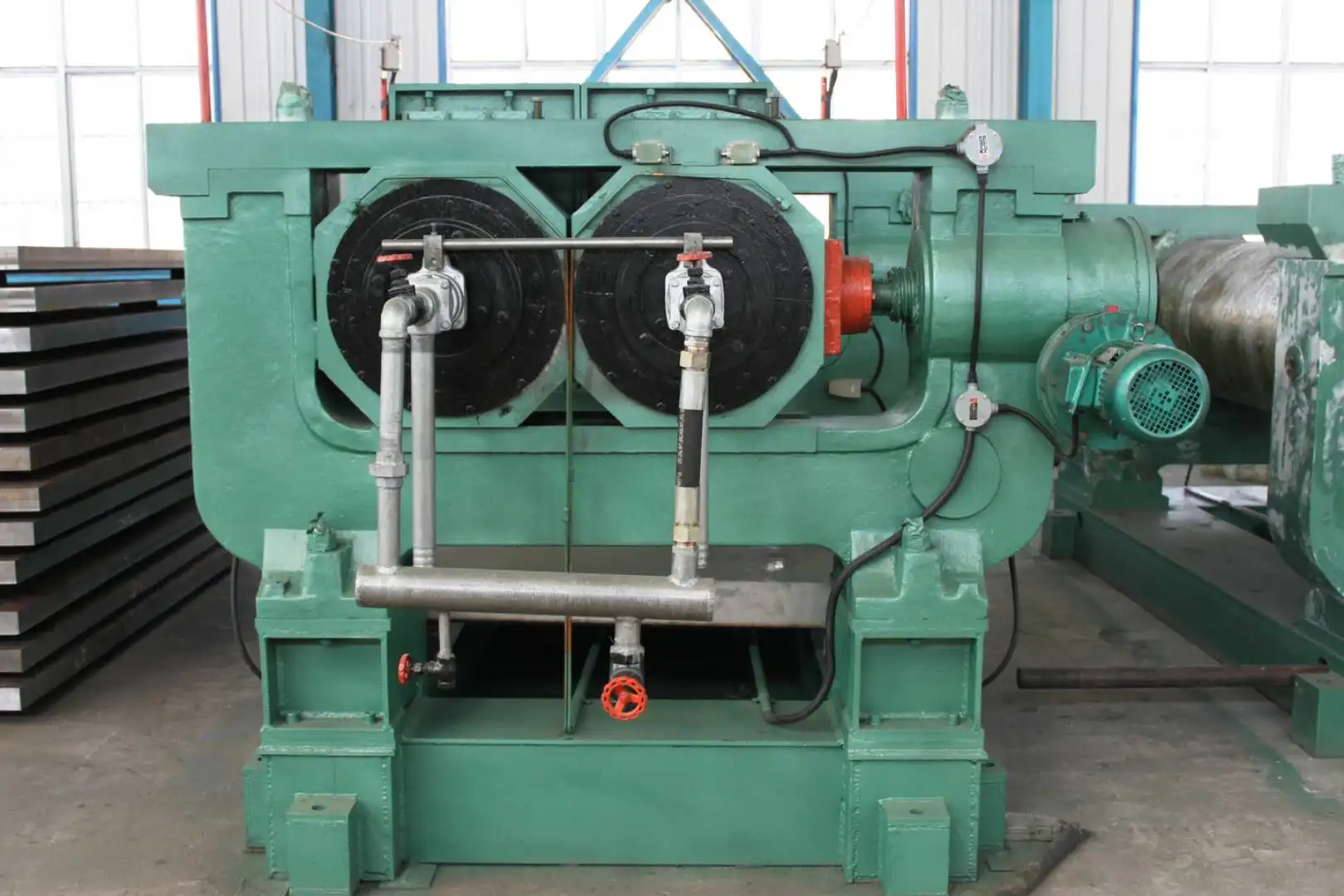

rubber reclaim sheet line rubber reclaim sheet making machine rubber reclaim making line EPDM making line tuby1 making machine
- Category: >>>
- Supplier: Qingdao Hangsen Industry And Trade Co. Ltd.
Share on (11000000686752):
Product Overview
Description
Reclaimed Rubber Production Line

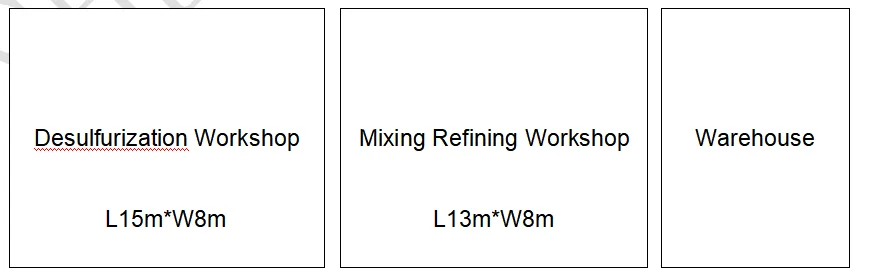

1. Workshop Floor Plan

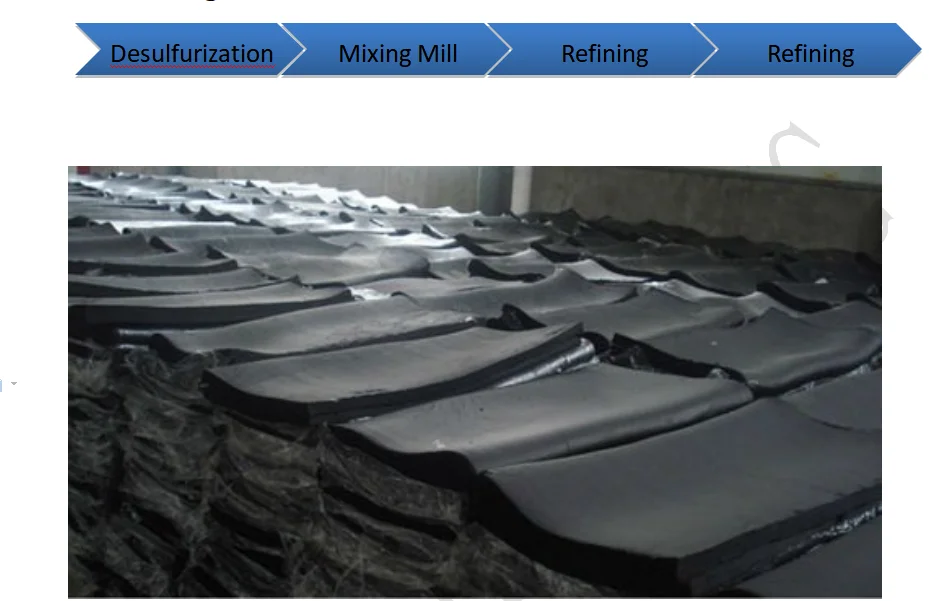

2. Technological Process
3. Equipment Investment
NO. | NAME | TYPE |
1 | Devulcanizer | DTG-1400×3400A |
2 | Rubber strainer machine | XJL-200 |
3 | Rubber mixing mill machine | XK-560 |
3 | Rubber Refining Machine | XKJ-480( 3 sets) |

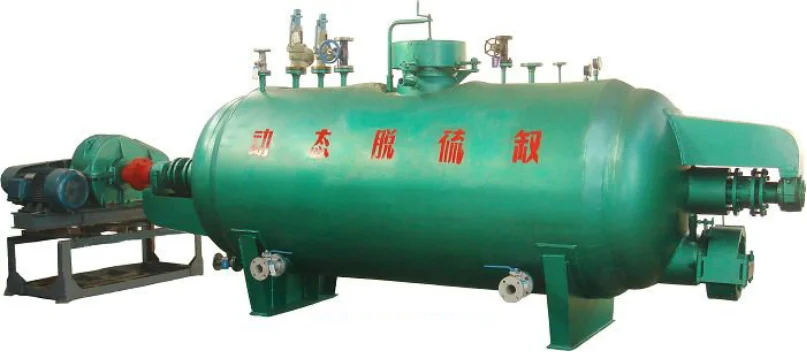

1.Devulcanizer
Model & Specifications | DTG-1400×3400A | |
Interior Diameter of Container(mm) | 1400 | |
Working Length of C0ntainer(mm) | 3400 | |
Working Pressure 0f Container (Mpa) | 4 | |
Working Temperature (Cº) | 230 | |
Heating Medium | Steam-gas | |
Major Pressurized Material | 16MnR | |
Container Classification | MRII | |
Rotating Speed of Mixing Shaft(r/min) | 11 | |
Main Motor Power(KW) | 18.5 | |
Heating Method | Electrical Heating | |
Feeding & Discharging Mode | Automatic | |
Total Cubage (m³) | 6 | |
Overall Dimension(mm) | Length | 5500 |
Height | 2200 | |
width | 2260 | |

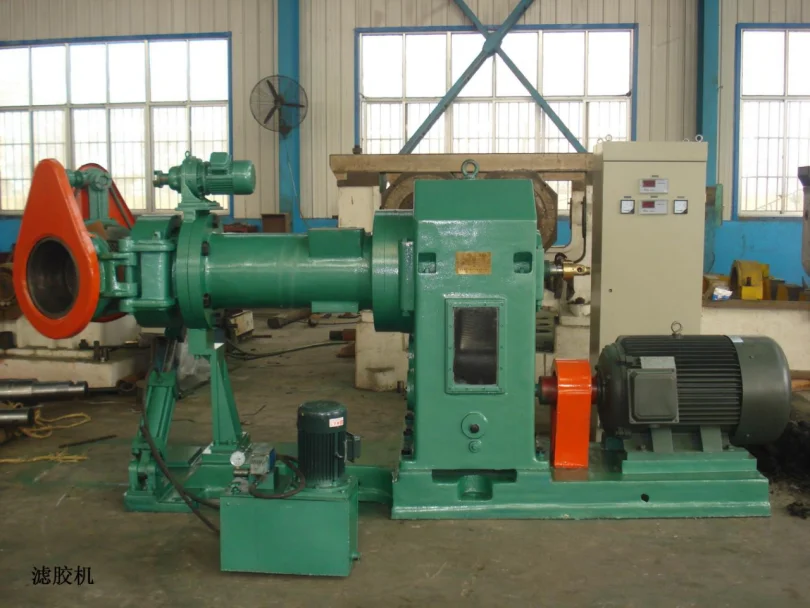

2.Rubber strainer machine
XJL-200 rubber strainer machine
Type | XJL-200 |
Screw diameter | 250mm |
Screw ratio | 45r/min |
Screw form | Double-head equal-depth and isometry |
Length-diameter ratio of screw | 4.5:1 |
KW Motor power | 55kw |
Production capacity | 900kg(hour) |
Cooling water pressure | 0.2Mpa |
Size:Length×Width×Height | 3900×990×1650 |

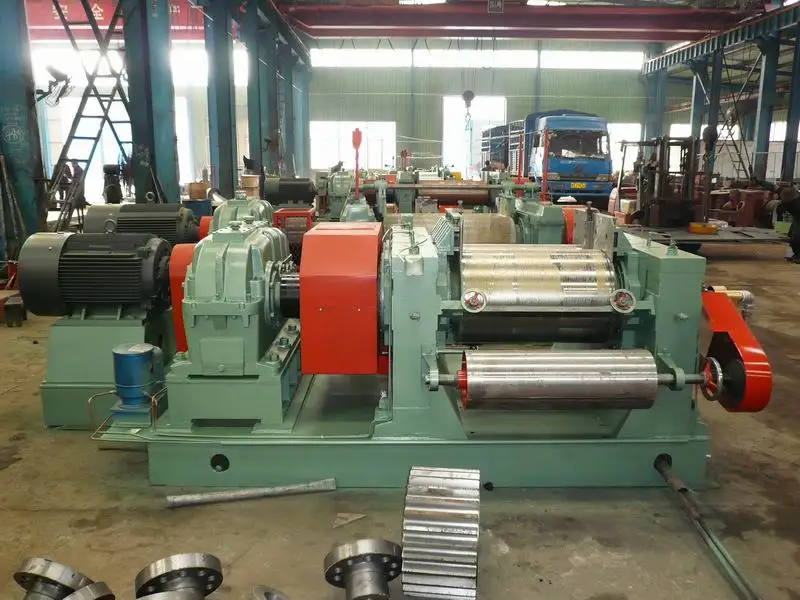

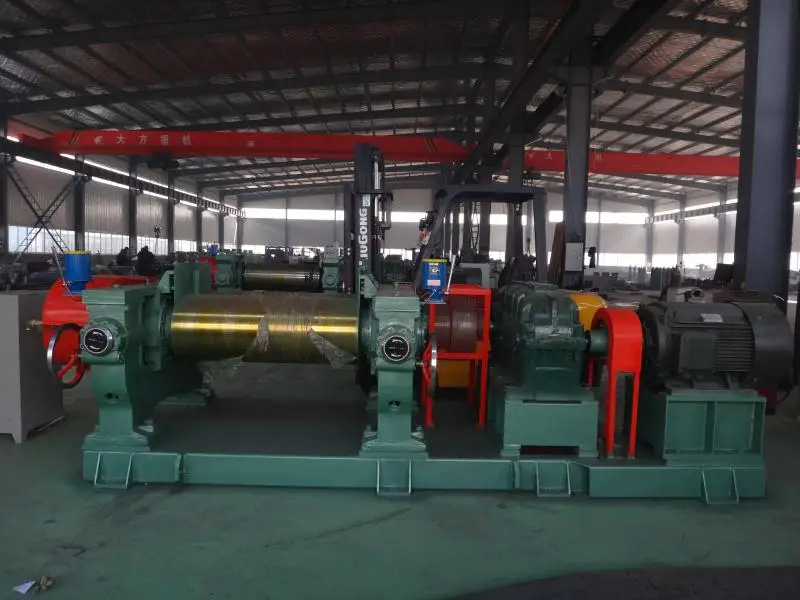

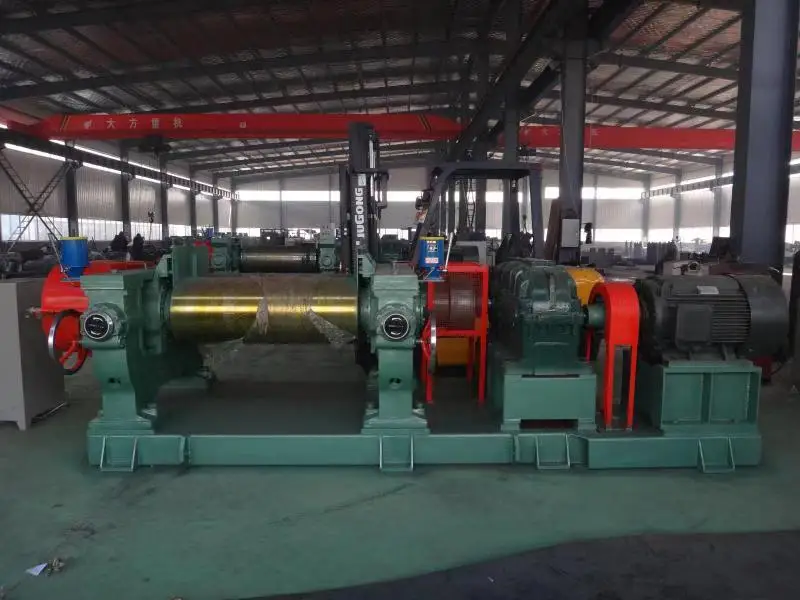

XK-450rubber mixing mill
Type | XK-450 |
Working diameter of rolls(mm) | φ450 |
Working length of rolls(mm) | 1200 |
Working linear speed of front roll(m/min) | 24.5 |
Friction ratio of front and real roll | 1:1.27 |
Capacity per batch(mm) | 10 |
Each feeding amount(kg) | 25-50 |
Driving motor power(kw) | 55 |
Overall size(mm) | 5200x2380x1770 |

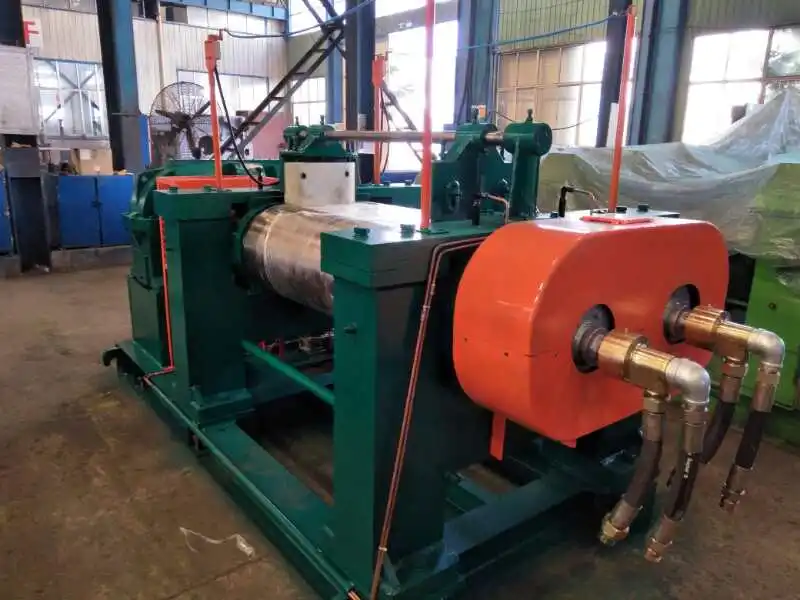

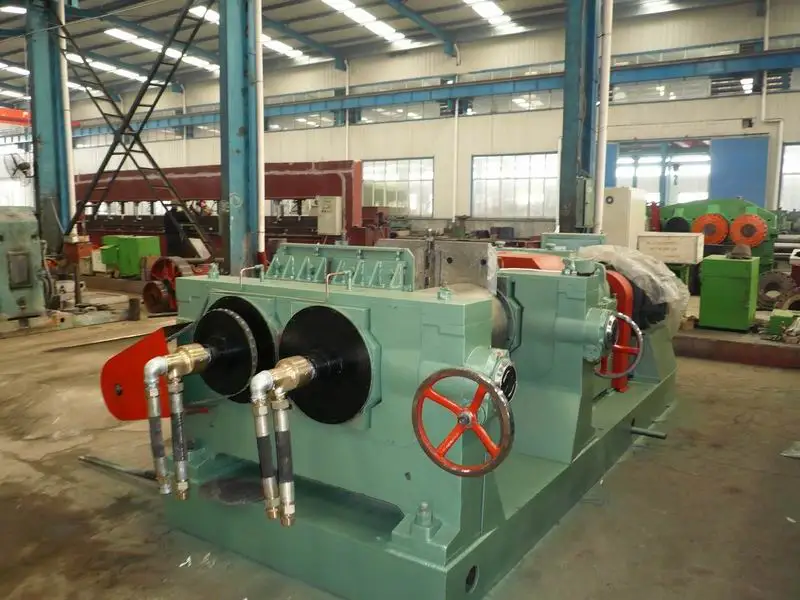

2.Rubber Refining Machine
XKJ-480 rubber refining machine
Type Technical parameter | XKJ-480 |
Front roll diameter(mm) | 480(Waist-drum) |
Rear roll diameter(mm) | 612(Waist-drum) |
Working length of rolls(mm) | 1016 |
Front roll surface speed(m/min) | 36.92 |
Friction ratio | 1:1.82 |
Max. nip(mm) | 15 |
Motor power(KW) | 90 |
Overall dimension: L×W×H | 6200×2800×2000 |
