2G 4G GPS Tracker TWith TTL Uart Data transparent transmission
- Category: >>>
- Supplier: Shenzhen Jingwei Xingyun Technology Co. Ltd.
Share on (11000000694934):
Product Overview
Description
Product Description
GPS Chip | MTK6261D |
Antenna | Built-in High accurate GPS antenna; GSM antenna |
GPS Positioning Accuracy | 5m-10m (Depending on GPS Signal) |
LBS Positioning Accuracy | ~200m (Depending on density of base stations) |
GPS Frequency | L1, 1575.42MHz C/A code |
WCDMA | B1/B2/B5/B8 |
Frequency bands | LTD-FDD: B1/B2/B3/B4/B5/B7/B8/B28 |
LTD-TDD:B34/B38/B39/B40/B41 | |
GSM | 850/900/1800/1900Mhz |
GPRS | Class 12, TCP/IP |
LED Indicator | GPS-Blue; GSM-Yellow Power-Red |
Memory | 4MB for application and data storage |
Hot/Warm/Cold Start | <3x, <26s, <45s |
Built-in Battery | Embedded 120mAh battery for emergency alarm when removing main power |
Standby | 4 Hours |
Work Current | <30 mA |
Standby Current | <15 uA |
IP Waterproof Level | IP67 |
Dimensions (mm) | 89mm x 37mm x 12mm |
Operating Voltage | 9-100V DC |
Environment Temperature | -20○C – 85○C |
Environment Humidity | 20% ~ 95% RH |
Net Weight | 50g |

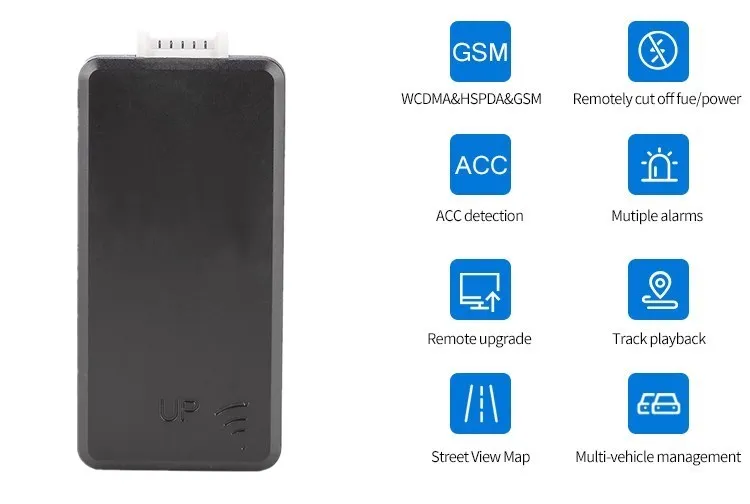

Product Function

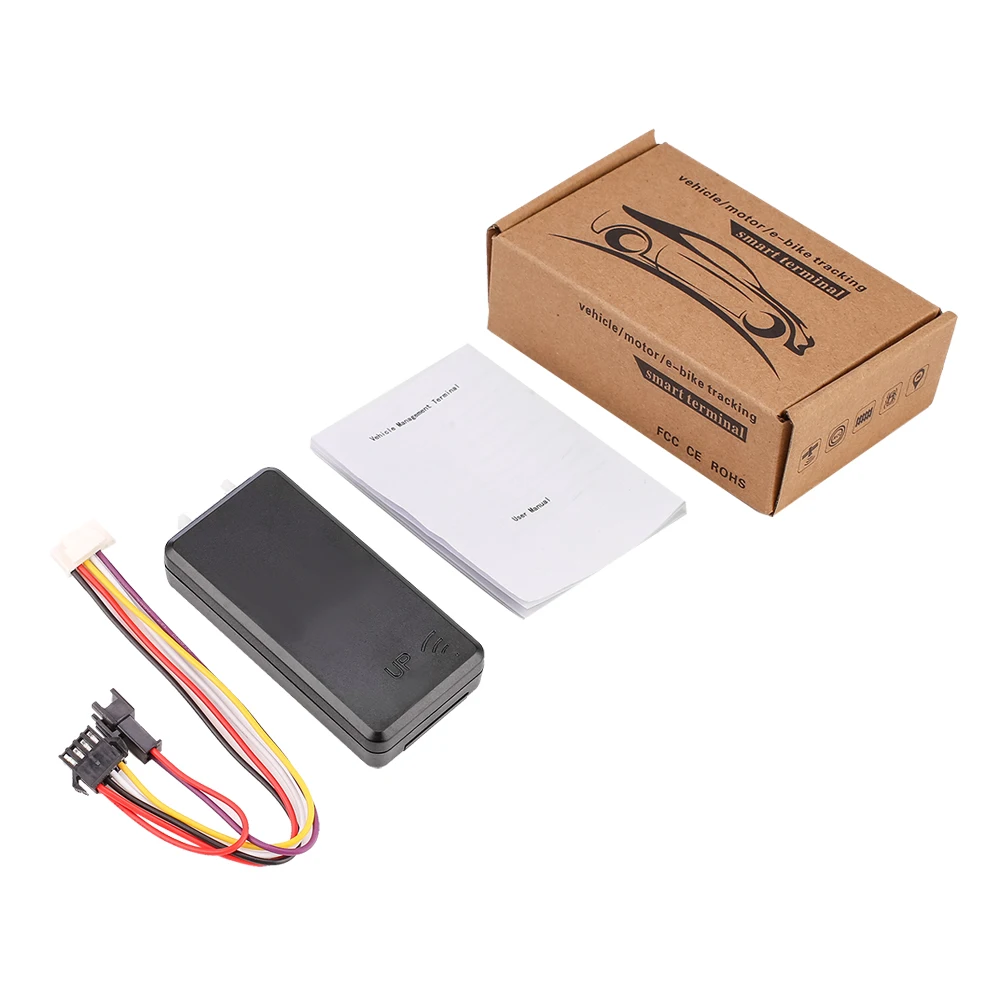

Package

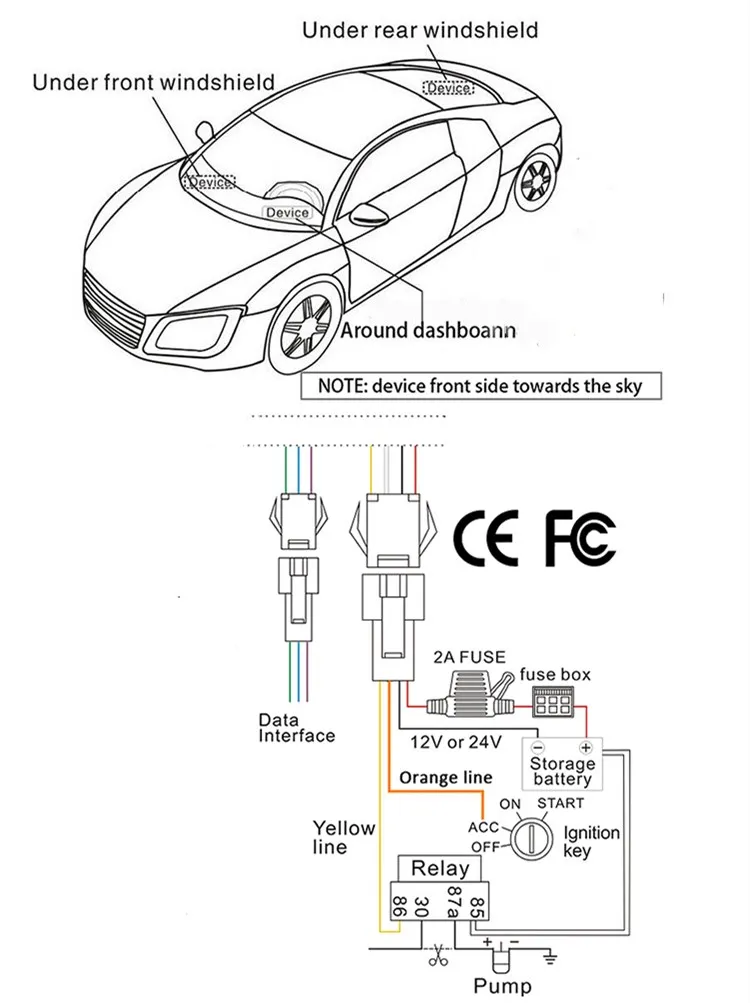

Installation

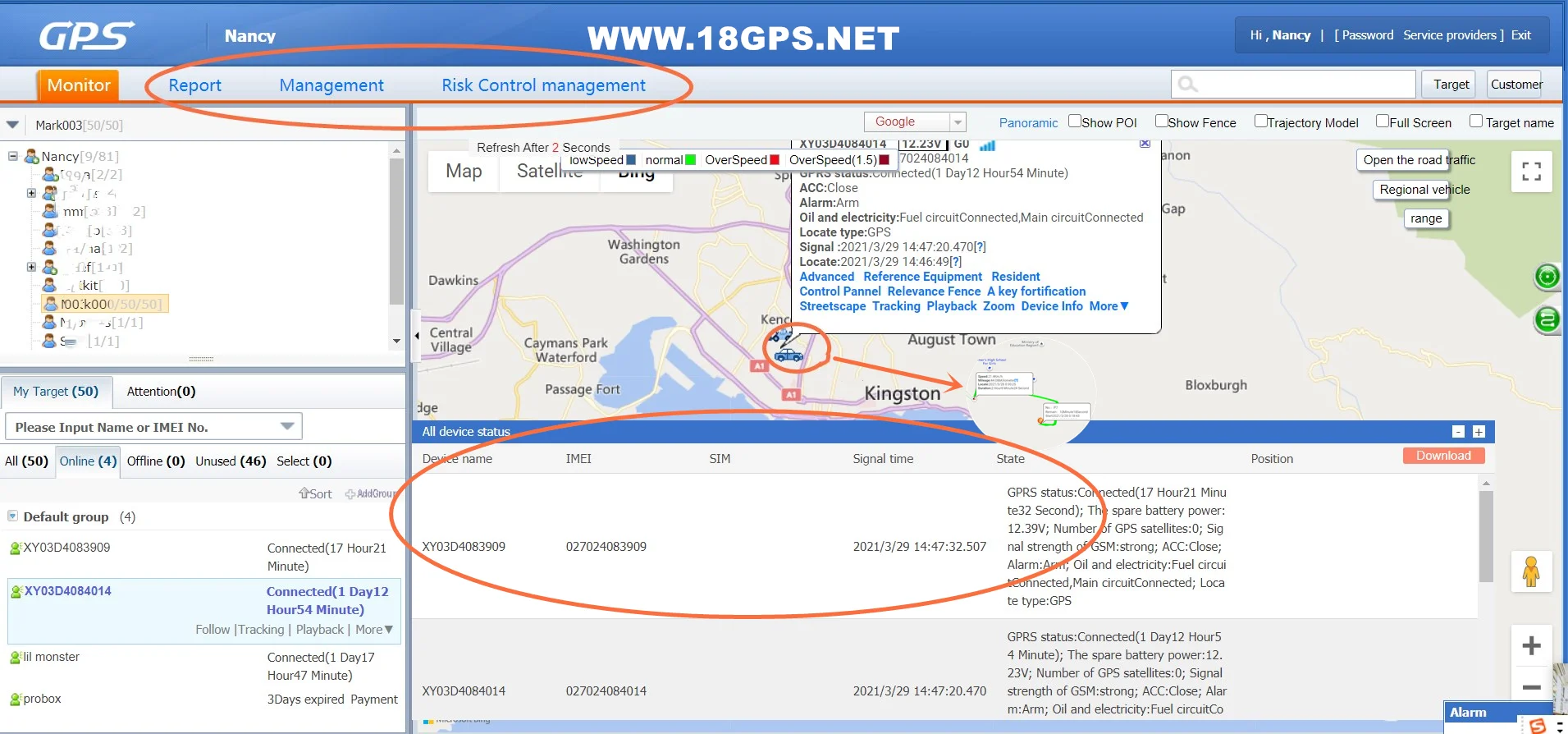

Tracking platform
The item support GT06 protocol) XY(hongyuan protocol and JT808 can be supported on gpsgate platform and tracksource platform.
platform: //www.18gps.net
Company Profit
FAQ
1,Q: Are you manufacturer?
A:Yes, we are manufacturer for GPS Tracker ,with more than 12 years experience.and we have our own professional hardware and software engineer team here
2,Q:How about the quality guarantee time?
A:12Month
3,Q:Whetherthe device with my own Logo?
A: Yes ,It have the logo
4,Q: What is your Payment method?Q: What is your Payment method?
A: 1.We accept T/T bank, Western Union, Paypal and Alibaba online transaction.
2.100% payment before shipping.
2.100% payment before shipping.
