Product Overview
Description
Products Description
From small rolls to large rolls, we meet the needs of steel manufacturers with our wide variety of products.
Our urethane rolls for steel, which have accumulated many years of experience and achievements are regularly used by most steel manufacturers. We can manufacture not only products with small diameter, but also rolls with diameter up to 1.8-m and length up to 10-m. A wide range of variations are available, from wringer rolls which require chemical resistance to applicator rolls which require solvent resistance. All materials are "abrasion resistant", which is a property of urethane rubber and are resistant to edge wear. Urethane rubber is also used in the main roll of multi-wire saw machines that slice ingots such as silicon, quartz, crystal, etc. for solar and semiconductor related products. We can provide also rolls for papermaking and printing.
Urethane product samples:
Our urethane rolls for steel, which have accumulated many years of experience and achievements are regularly used by most steel manufacturers. We can manufacture not only products with small diameter, but also rolls with diameter up to 1.8-m and length up to 10-m. A wide range of variations are available, from wringer rolls which require chemical resistance to applicator rolls which require solvent resistance. All materials are "abrasion resistant", which is a property of urethane rubber and are resistant to edge wear. Urethane rubber is also used in the main roll of multi-wire saw machines that slice ingots such as silicon, quartz, crystal, etc. for solar and semiconductor related products. We can provide also rolls for papermaking and printing.
Urethane product samples:

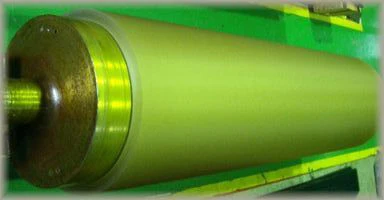

Roll for ironwork
Ø 450 x 1600 L (mm) applicator roll
Wringer roll
Roll | Mighty-Prene Material Code | Hardness (JIS-A) | Properties | ||
・Carrier roll ・Roll for paper mill ・Roll for printing ・Straightening roll ・Roll for steel ・Coating roll ・Support roll ・Table roll ・Bridle roll ・Deflector roll ・Turning roll ・Pinch roll ・Cradle roll ・Guide roll ・Pass line roll ・Snubber roll ・Hoist roll ・Contact roll ・Tension roll ・Breaker roll | LM1070 | 70 | ・Economical | ||
LM1080 | 80 | ||||
LM1090 | 90 | ||||
LM2070 | 70 | ・Low temperature resistant ・Water resistant ・Alkali resistant ・Abrasion resistant | |||
LM2080 | 80 | ||||
LM2090 | 90 | ||||
LM2095 | 95 | ||||
LM2098 | 98 | ・Low temperature resistant ・Abrasion resistant ・High load bearing resistant | |||
LM2099 | 99 | ||||
LM3060 | 60 | ・Low and high temperature resistant ・Oil resistant | |||
LM3080 | 80 | ||||
LM3090 | 90 | ・Low and high temperature resistant ・Oil resistant ・High load bearing resistant | |||
LM3095 | 95 | ||||
LM3570 | 70 | ・Abrasion resistant ・Oil resistant | |||
LM3590 | 90 | ||||
LM4030 | 30 | ・Flexible ・Compression set resistant | |||
LM4040 | 40 | ||||
LM4050 | 50 | ||||
LM4060 | 60 | ・Oil resistant ・Compression set resistant | |||
LM4070 | 70 | ・Oil resistant ・Abrasion resistant | |||
LM4080 | 80 | ||||
LM4090 | 90 | ・Oil resistant ・Abrasion resistant ・High strength ・High load bearing resistant | |||
LM4095 | 95 | ||||
・Acid resistant roll ・Abrasion resistant roll ・Hydrochloric acid resistant roll ・Alkali resistant roll ・Applicator roll ・Wringer roll | LMX-85 | 85 | ・Sulfuric acid resistant ・Abrasion resistant | ||
LMY-70 | 70 | ・Hydrochloric acid resistant ・Alkali resistant | |||
LMY-80 | 80 | ||||
LMY-90 | 90 | ・Hydrochloric acid resistant ・Alkali resistant ・Heat resistant | |||
LMA-50 | 50 | ・Stable properties ・Solvent resistant | |||
LMB-55 | 55 | ・High tear strength ・Solvent resistant | |||
LMC-50 | 50 | ・Ultra solvent resistant | |||
LMC-60 | 60 | ||||
LMD-65 | 99 (D65) | ・Low temperature resistant ・Water resistant ・High load bearing resistant ・Abrasion resistant | |||
・Food safe roll | LMF-70 | 70 | ・Heat resistant ・Water resistant | ||
LMF-80 | 80 | ||||
LMF-90 | 90 | ||||
Company Profile
A pioneer of urethane rubber technology and quality
Ohtsu Chemical Challenging Towards the Next Generation
Since the establishment in 1971, Ohtsu Chemical has supported the development of society by precisely responding to the needs of all industrial fields as a “pioneer of technology and quality” in the field of urethane resin casting. As we develop new materials, products and production technologies through technological development centered on urethane rubber, we are also expanding into other fields of liquid resin and liquid rubber by utilizing urethane casting production technology. As a leading company in the industry, we contribute to people’s safe and successful lives, and continue to challenge the bright future ahead.
Mighty-Prene is the trademark of urethane rubber by Ohtsu Chemical.
LM (Liquid Mighty-Prene) is a liquid thermosetting urethane rubber.
Since the establishment in 1971, Ohtsu Chemical has supported the development of society by precisely responding to the needs of all industrial fields as a “pioneer of technology and quality” in the field of urethane resin casting. As we develop new materials, products and production technologies through technological development centered on urethane rubber, we are also expanding into other fields of liquid resin and liquid rubber by utilizing urethane casting production technology. As a leading company in the industry, we contribute to people’s safe and successful lives, and continue to challenge the bright future ahead.
Mighty-Prene is the trademark of urethane rubber by Ohtsu Chemical.
LM (Liquid Mighty-Prene) is a liquid thermosetting urethane rubber.
Contributing to the Development of Society through R&D
We manufacture products according to your needs.
