Factory Price One Head Aluminium Copy Router Milling Machine for Hardware Holes Processing
Factory Price One Head Aluminium Copy Router Milling Machine for Hardware Holes Processing
Factory Price One Head Aluminium Copy Router Milling Machine for Hardware Holes Processing
Factory Price One Head Aluminium Copy Router Milling Machine for Hardware Holes Processing
Factory Price One Head Aluminium Copy Router Milling Machine for Hardware Holes Processing
Factory Price One Head Aluminium Copy Router Milling Machine for Hardware Holes Processing
Factory Price One Head Aluminium Copy Router Milling Machine for Hardware Holes Processing

Factory Price One Head Aluminium Copy Router Milling Machine for Hardware Holes Processing

Share on (11000000747047):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


Item
Value
Power Supply
380V 50Hz or customized
Total Power for Motor
1.1KW
Motor Rotary Speed
2800 r/min
Air Working Pressure
0.5-0.8 MPa
Spindle Rotary Speed
0-12000 r/min
Copy Routing Range
Horizontal: 100x300mm; Vertical: 290x90mm
Diameter of the Milling Cutters
Φ5mm, Φ8mm
Straightness Processing Deviation
± 0.1mm
Processing Roughness
Ra 12.5 μm
Coutour Dimension
2000x950x1500mm
Weight
230kg


Features

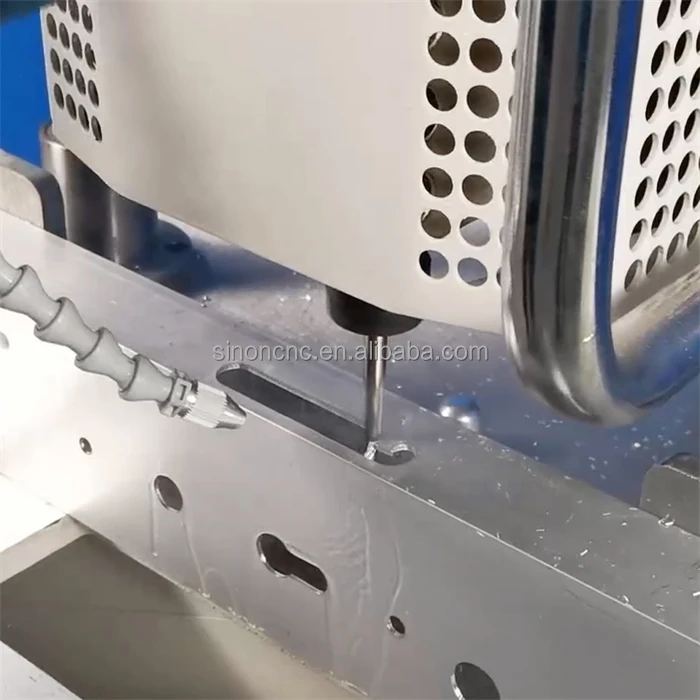

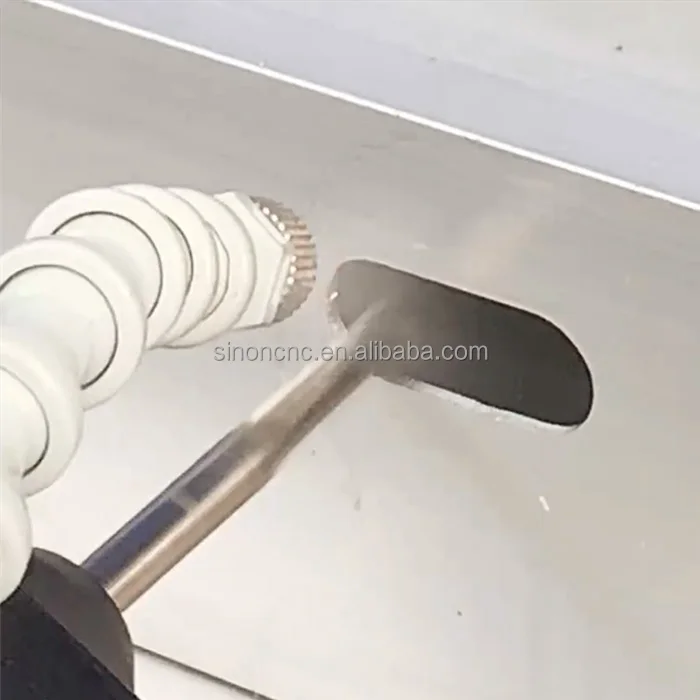

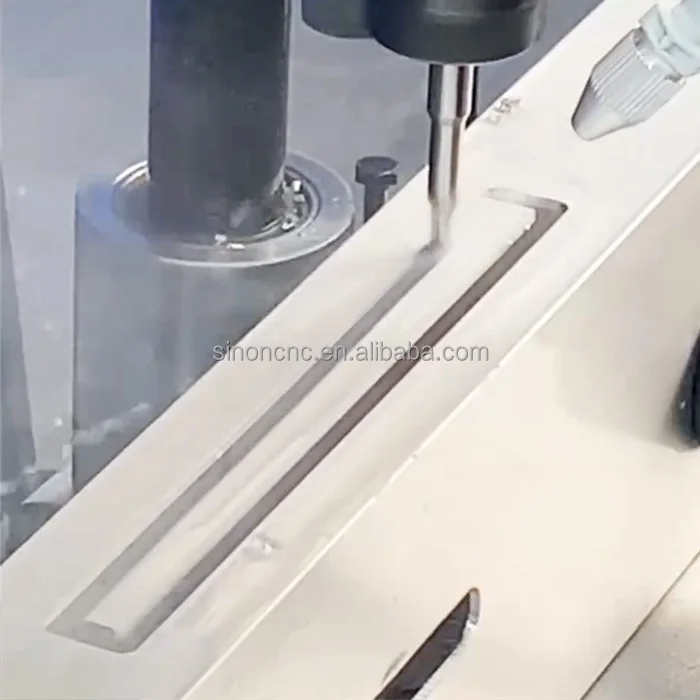

1. This machine is used for processing lock hole, water slot and hardware hole of aluminum profiles.

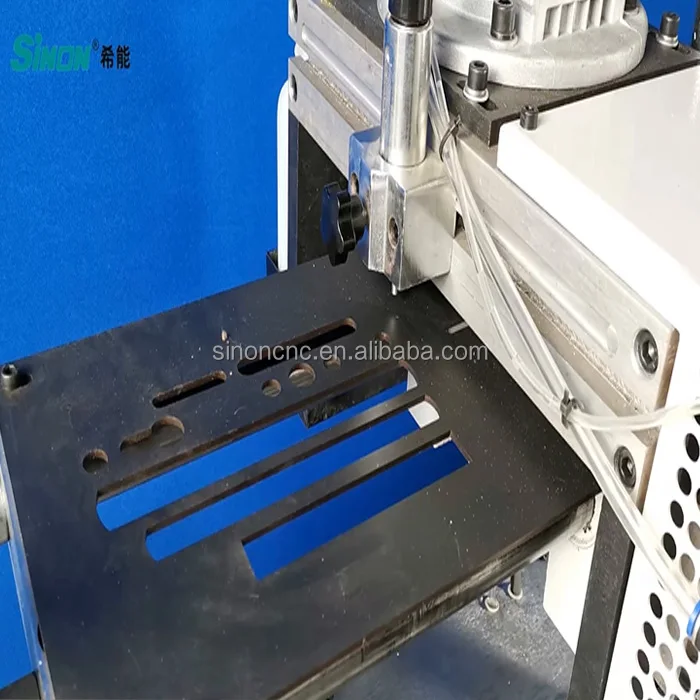

2. The standard model board accurately controls the size of hole shapes. The milling scale ratio is 1:1.

3. The mold board can be adjusted and changed easily, high productivity and widely used.

4. The double step copy-routing needle design is suitable for different size of the holes.

5. It features compact structure, nice outer figure, and small volume.

6. It can process grooves with different positions controlled by the ruler.


Details Images









Core Components from:




Packing & Delivery



Sinon also pay attention to package. Plastic film coating, steel pallet and wood case are provided to package the machinery with high insurance and safety.


Feedback






Company Profile


Jinan Sinon CNC Machine Co.,Ltd(China door and window expert maker)
One of the leading companies that engages in the production of machines for Aluminum and uPVC windows and doors over 15 years in China.




Standard and Modernization
Sinon always persue high standard industrial plant and modern management mode. We have unique advantage in production sales, technology inquiry, program design, installation and maintenance.


What We pursue


1. High Quality
- strictly control the making process to give the best quality to customer
2. Innovation
- Quality and innovation are the supporting pillars of our company.
3. Good Service
- Reply within 24 hours
- Free contact for the most machine
- Free professional design for each customer
- Free design drawings for factory
- Free layout Plan for complete sets of equipment
4. Installation Guide
- Our senior engineer is available to travel aboard to help installation machines and training staff
5. Shipping
- plastic film and wood case are provided to make sure the safety of machines during transportation.
6. After Sales
- Provide the machine operation and maintainace guide



Our machineries has exported to more than 40 countries and areas, such as UK, the USA, South Korea, India, Pakistan, Egypt and so on.


Exhibition and Team
Sinon participates in many exhibitions to communicate with other companies and potential consumers and keep its competitiveness.






Certifications






FAQ


1. who are we?
We are based in Shandong, China, start from 2005,sell to South Asia(13.00%),Southeast Asia(13.00%),Africa(12.00%),Northern Europe(8.00%),Southern Europe(7.00%),Domestic Market(7.00%),South America(7.00%),Eastern Europe(7.00%),Mid East(6.00%),North America(5.00%),Central America(5.00%),Eastern Asia(4.00%),Western Europe(3.00%),Oceania(3.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
UPVC window making machine,aluminum window machine,aluminum cutting machine,aluminium profile cutting machine,cnc milling machine

4. why should you buy from us not from other suppliers?
Jinan Sinon is one of most professional upvc aluminum window door equipment manufacturer in china, and has more than 15 years' experience in window door equipment manufacturing. Main product pvc window machine,aluminum window machine,upvc welding machine

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
