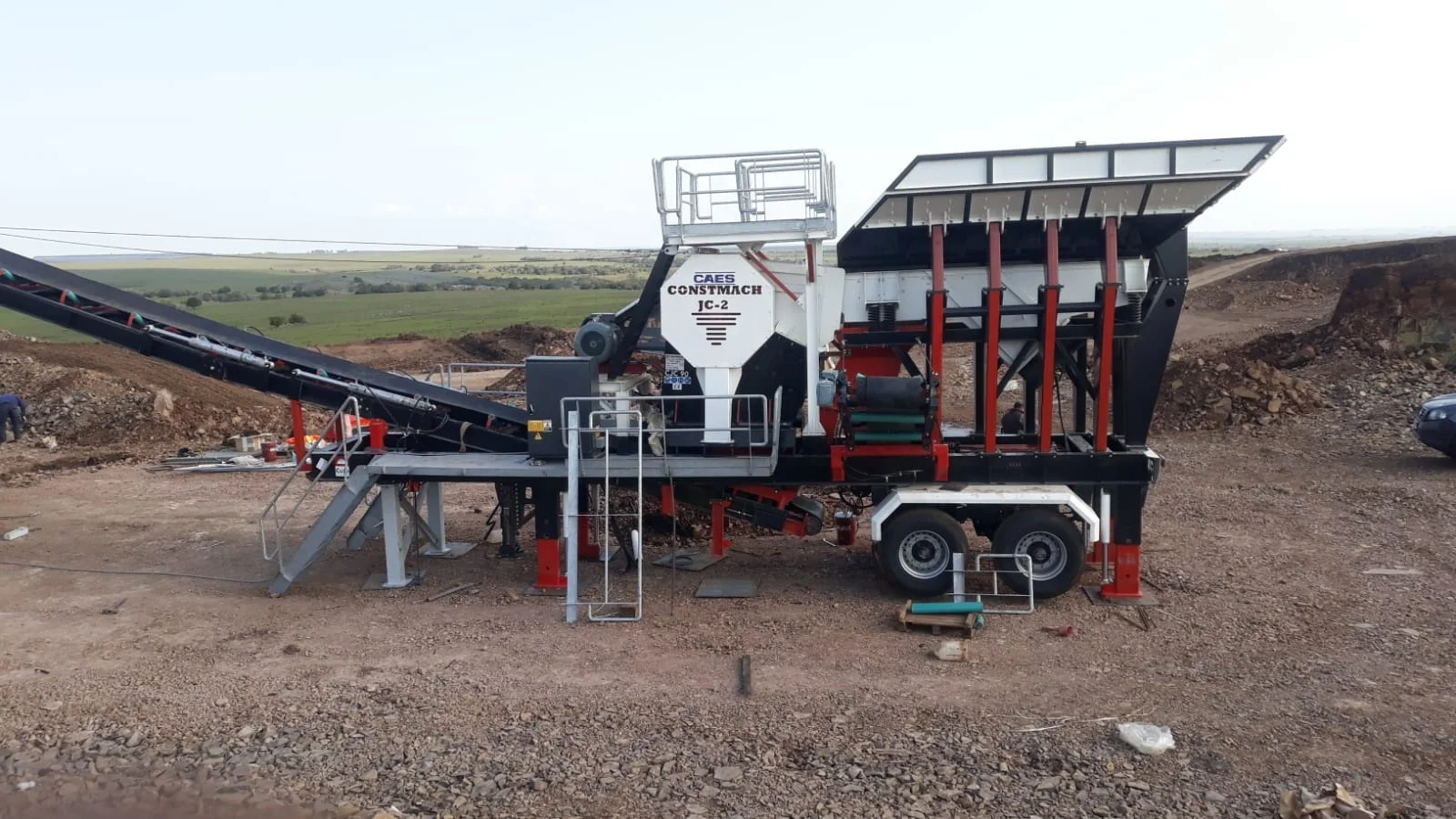

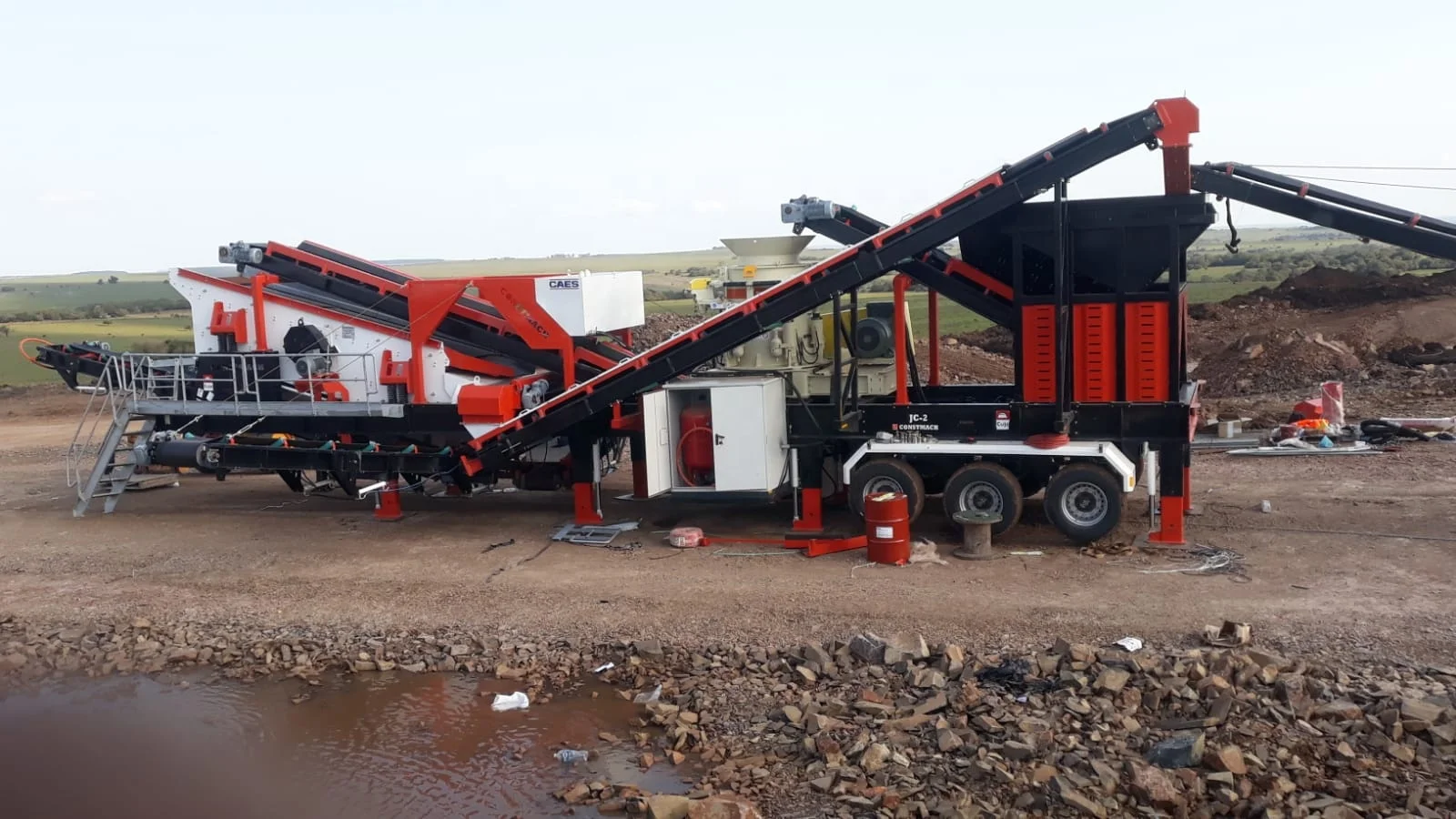

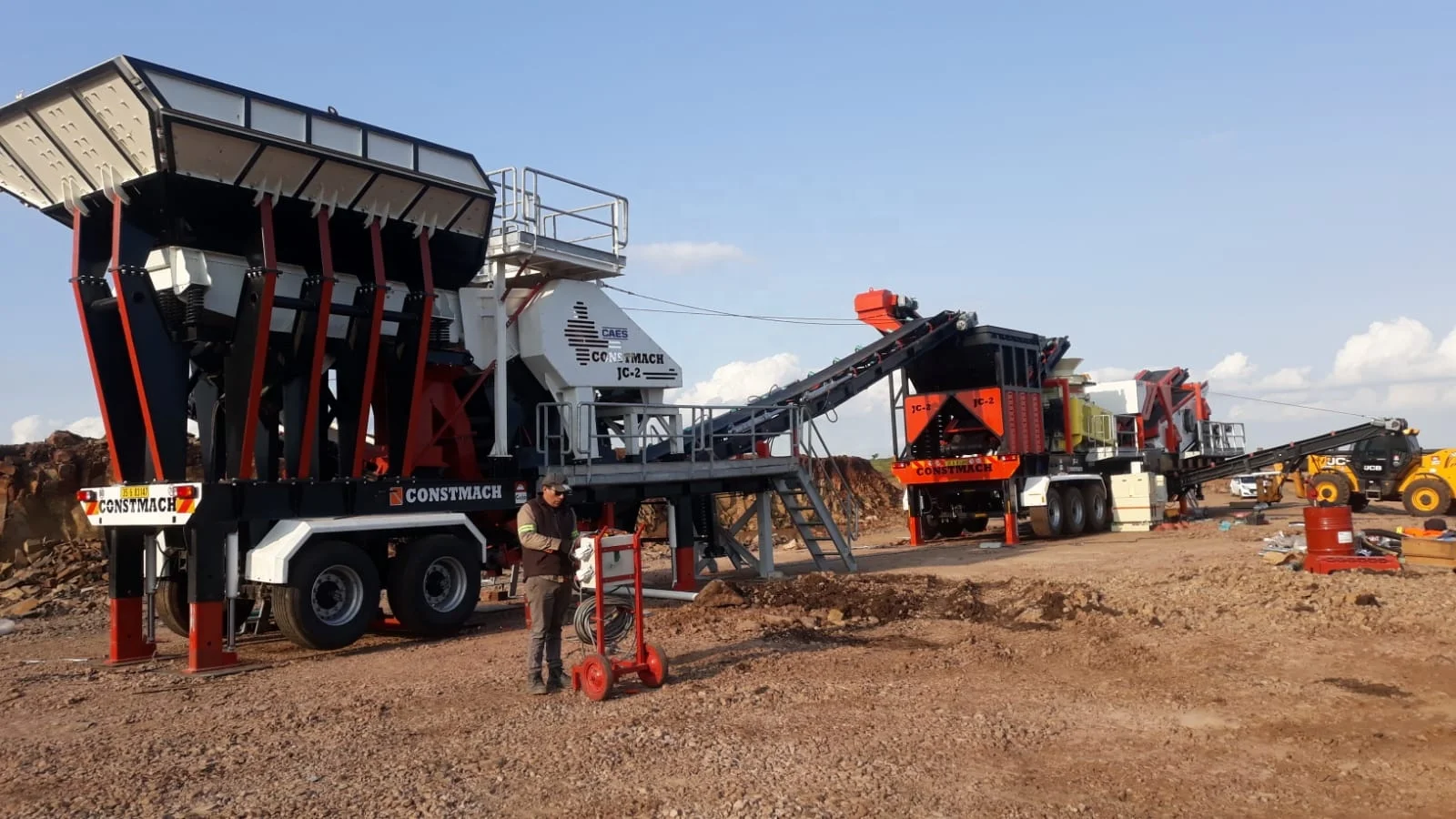

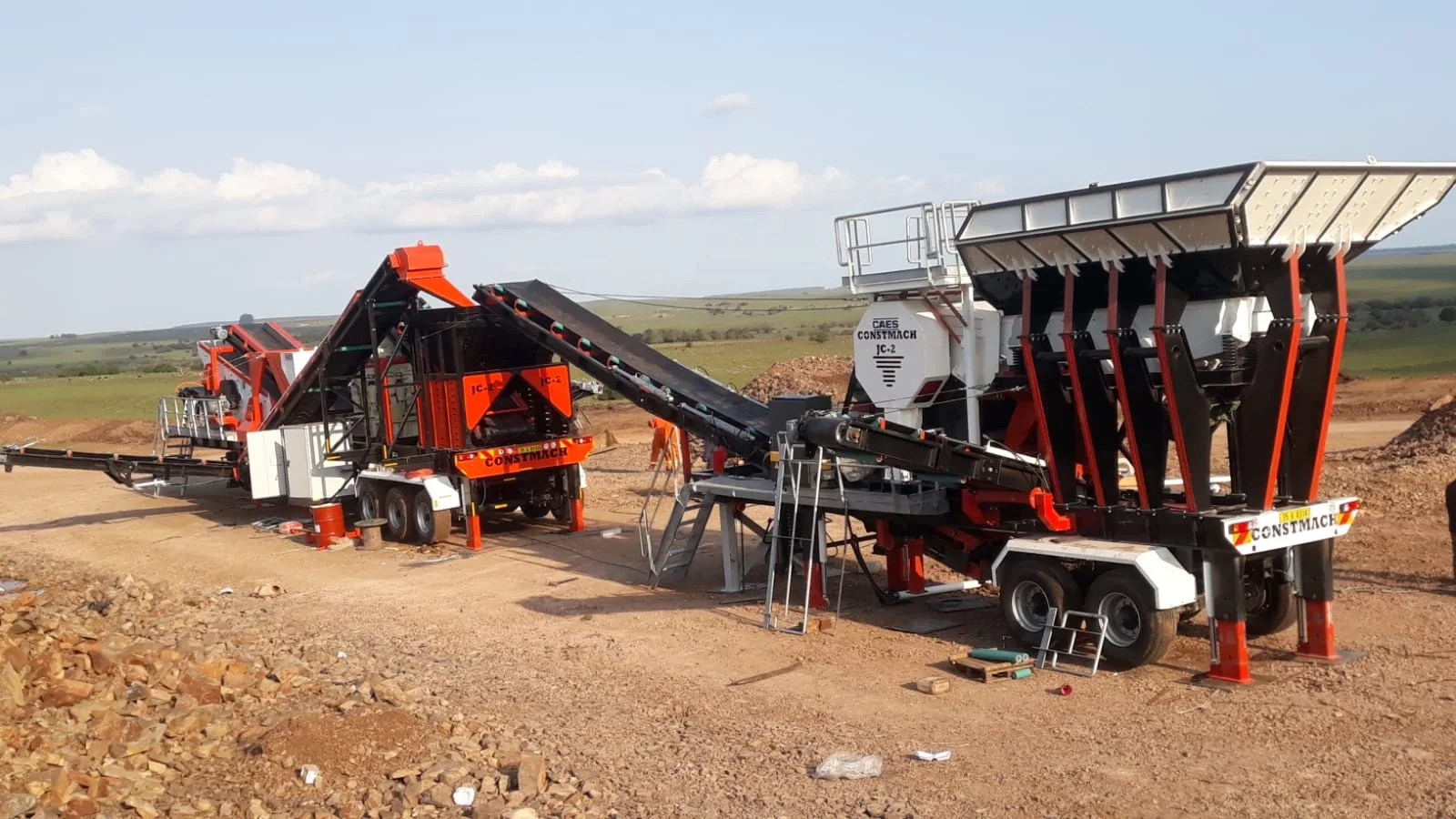

120 150 tph JC 2 MOBILE HARD STONE CRUSHING PLANT, BEST PRICE !
- Category: >>>
- Supplier: CONSTMACH MAKINA ITHALAT IHRACAT LIMITED SIRKETI
Share on (11000000748187):
Product Overview
Description
Product Description
150 tph JC-2 MOBILE HARD STONE CRUSHING PLANT, READY AT STOCK!
All of our products are CE certificated and covered with 2 years’ warranty
Mobile Hard Stone Crusher - JC-2 Technical specifications:
Production Capacity: 120-150 tph
Maximum Feeding Size: 850 x 600 mm
Feeding Height: 4.2 meters

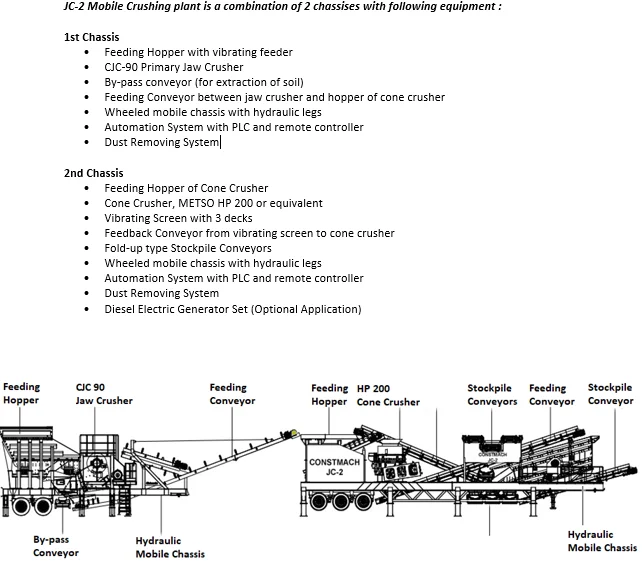

Main Configuration: Primary Jaw + Secondary Cone + 3 Decks Screen
Total Motor Power: 350 kW
Electric Generator Requirement:550 kVA
Weight of the plant: 56 Tonnes
Sizes of the plant: 18(L) x 3.2(W) x 4.2(H) meters

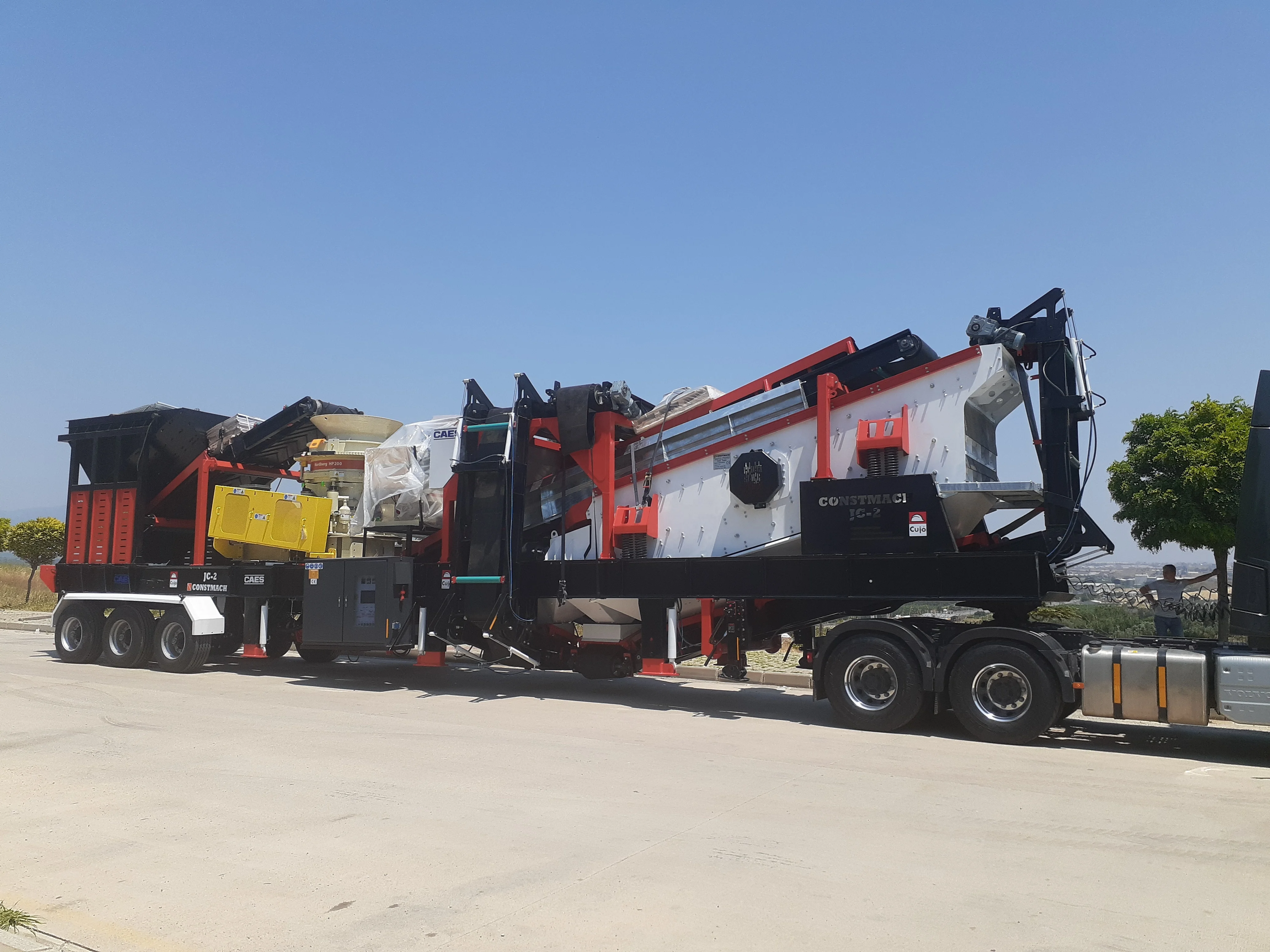

Chassis Type: Single chassis on wheels, equipped with hydraulic opening legs.
FREE OF CHARGE ASSEMBLY & TRAINING IS INCLUDED IN THE PRICE.
Please contact us for more information.
www.constmach.com – info@constmach.com
WhatsApp / e-mail / Skype / Viber :
+90 542 766 13 15 ( English) info@constmach.com
+90 546 616 32 82 (Arabic-French) sales2@constmach.com
Certifications
DETAILS

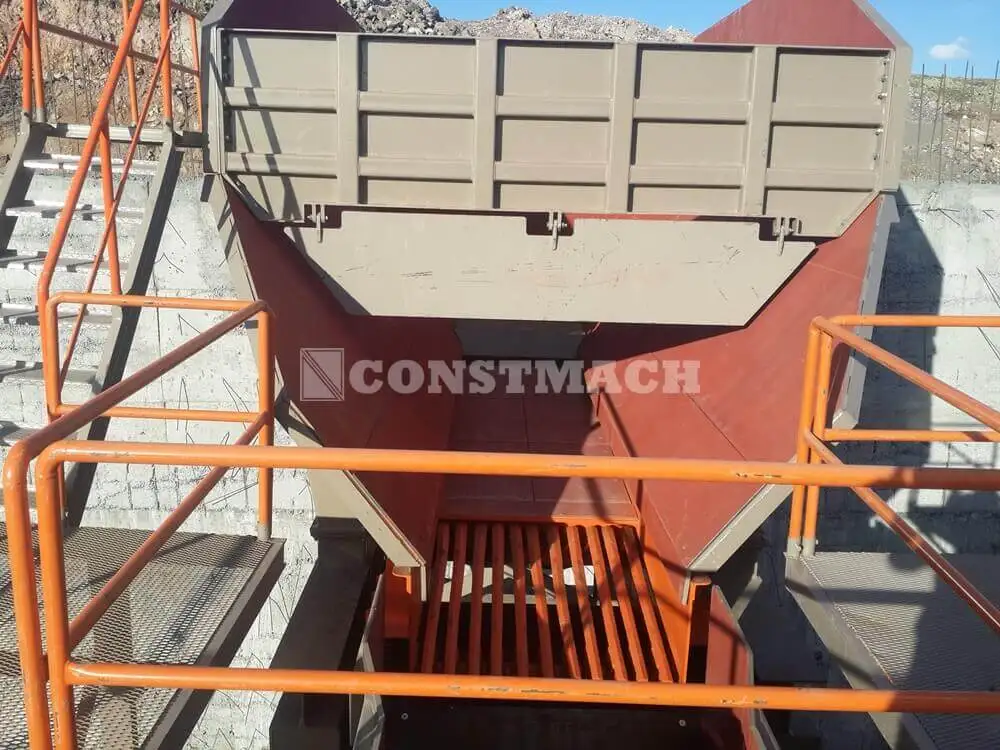

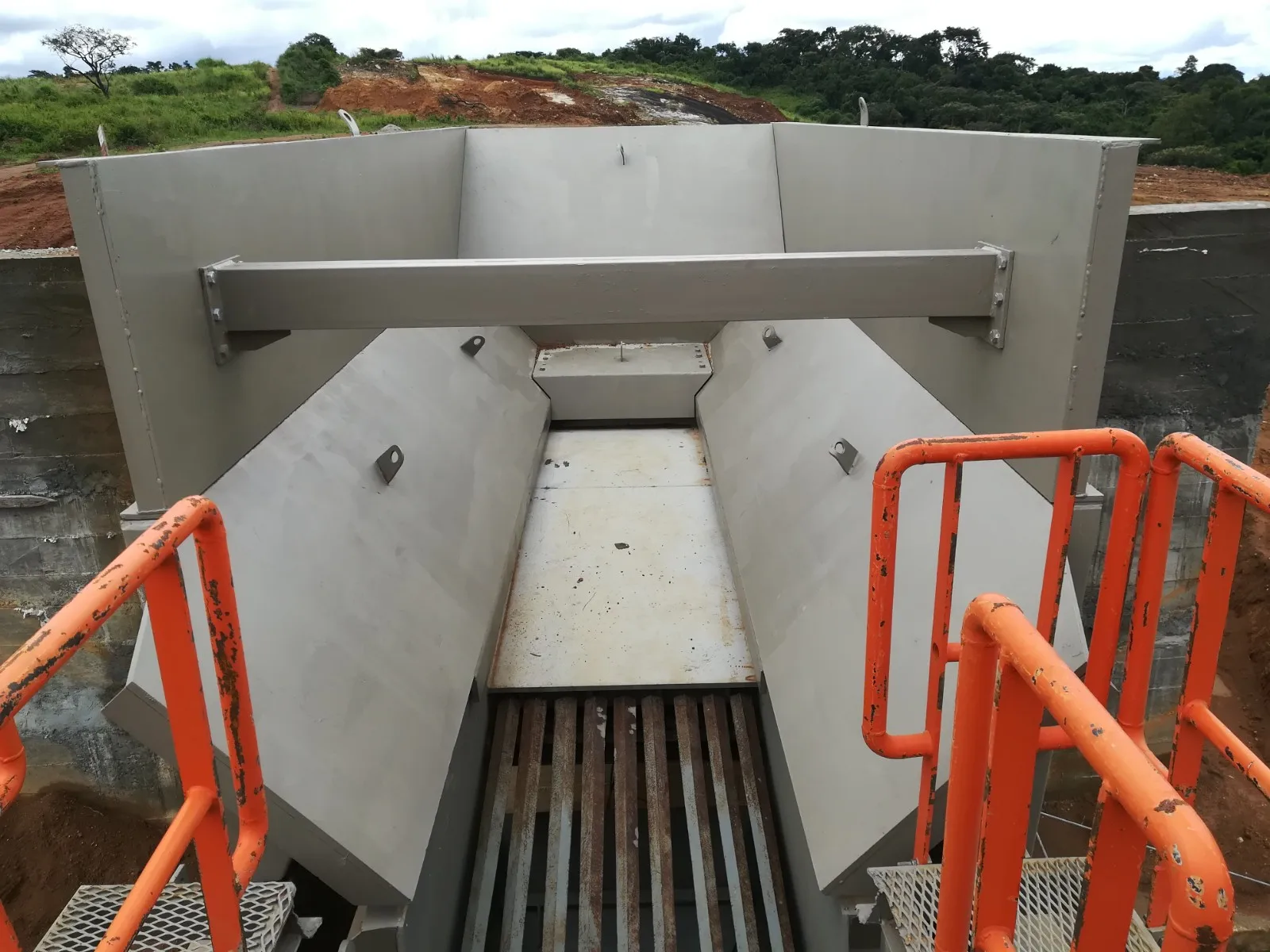

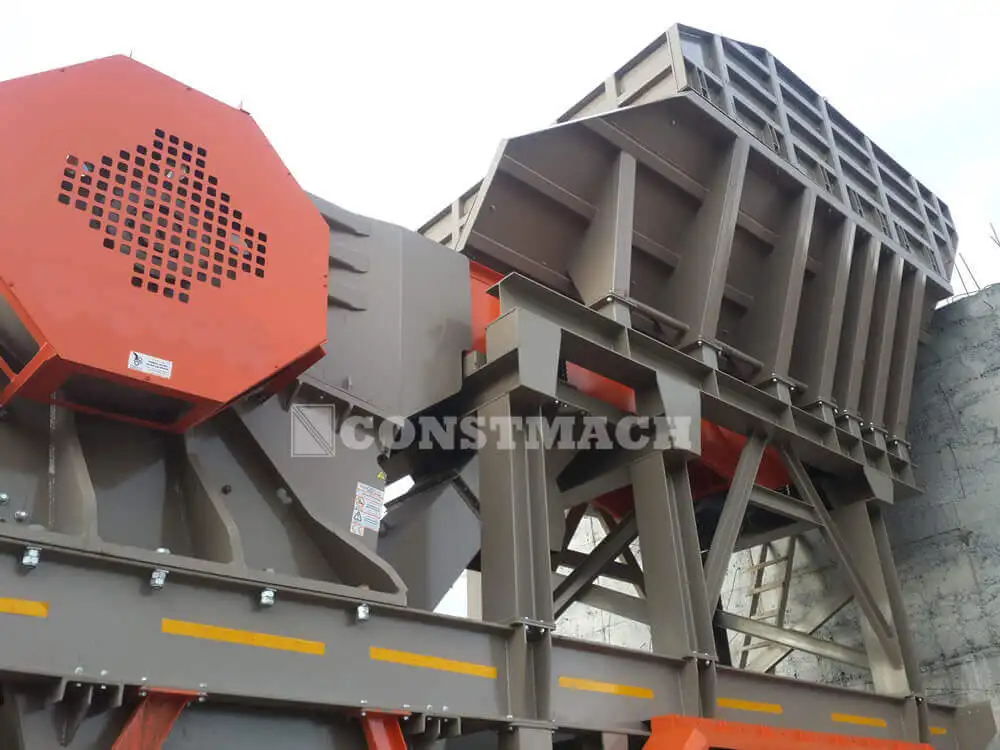

VIBRATING FEEDER & HOPPER
Feeder Grizzly System
Feeder Size: 1.100 x 4.500 mm
Volume: 15 m3
Body: St-37, 10 mm
Feeder Liner: HARDOX 400 – 10 mm
Equipped with 2 nos. Vibrators, Brand : 2 x 2.2 kW, Oli or Emtaş Brand

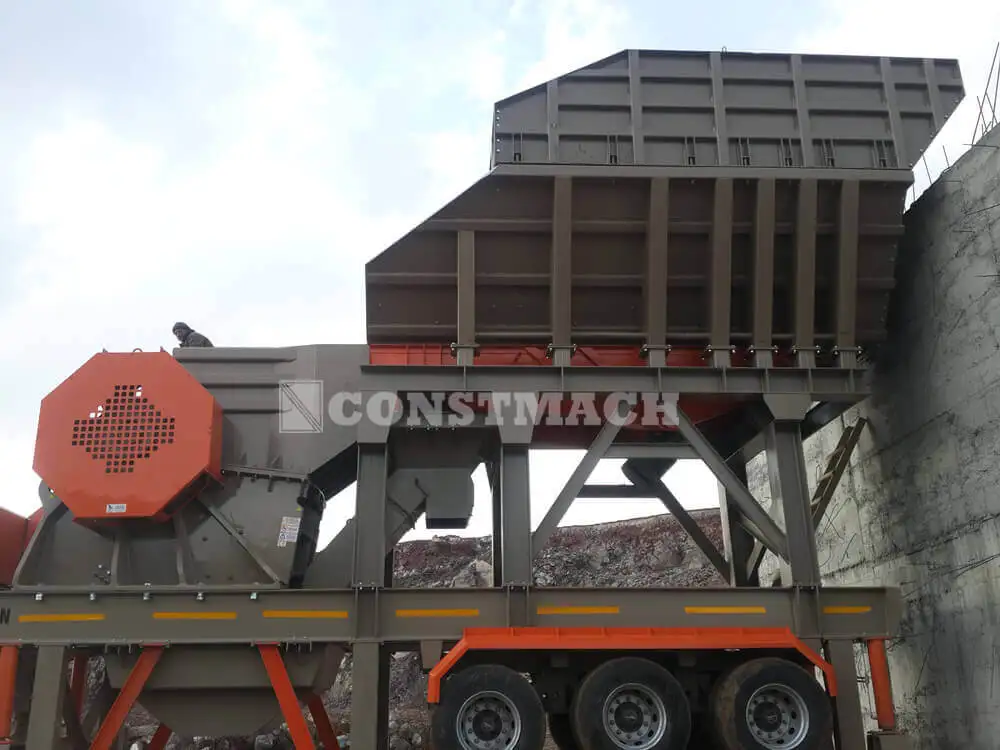

JAW CRUSHER
Feeding size: 900 x 650 mm.
Capacity: 120-150 tph
Power: Heavy duty AC motor, 75 Kw.1450 rpm
Jaws & abrasion parts: Special treated abrasion steel
Abrasion steel treatment: Austenitic
Abrasion – austenitic steel content: %16-18 Mn + % 2,2 Cr
Abrasion – austenitic steel hardness > 450 HB
Pitman : GS 45 casting steel
Rotating (eccentric) mile/shaft : Cr - Ni - Mo forging steel
Bearings : Heavy duty,
Jaw adjustment mechanism : Hydraulic
Coating : Double lay epoxy coated after anticorrosion paint.

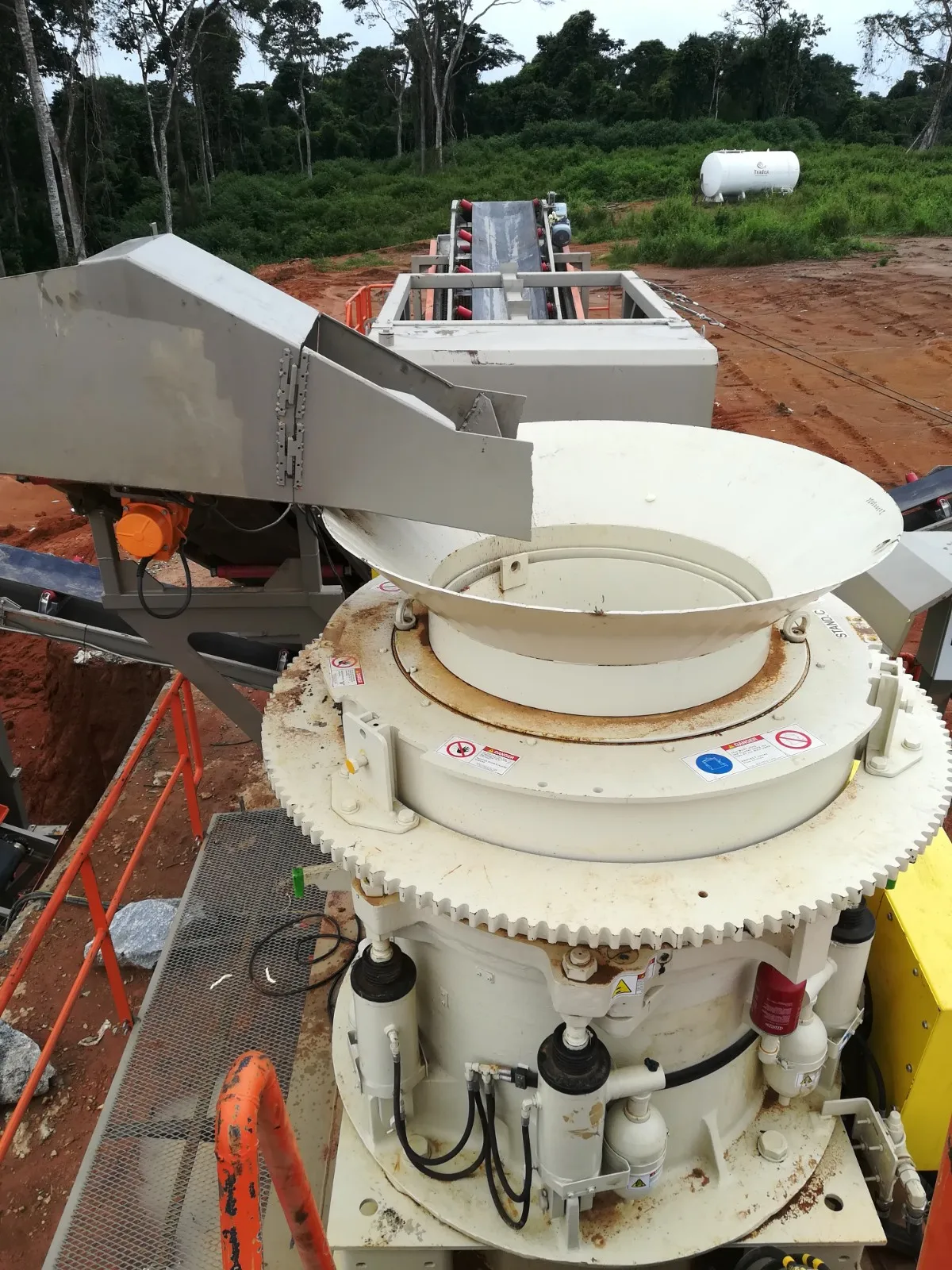

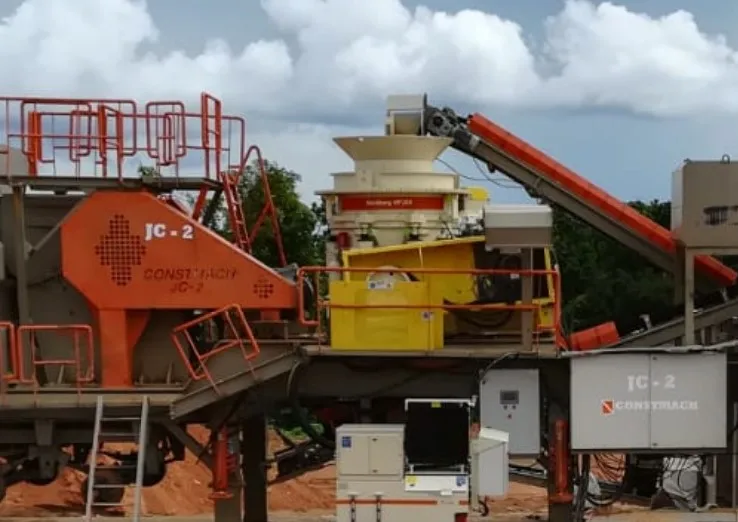

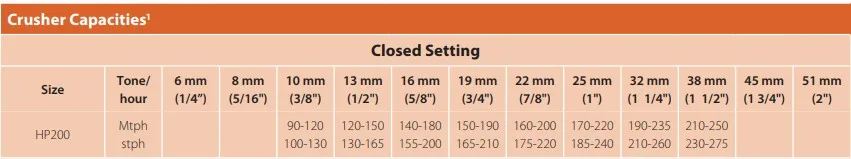

CONE CRUSHER
* Brand : METSO, Model: HP 200
* Origin: EUROPE
* Motor Power : 132 kW
VIBRATING SCREEN:
Model : CVS-1850/3
Dimension : 1.800 x 5.000 mm
Screen Decks : 3 pcs
Screening Surface : 9 m²
Driving Power : 18.5 kW
Screen Pitch : 18º
Strok : 6 - 8 mm
Flow Speed : 0.45 m/s
Main Body Thickness : 12 mm
Beearings: SKF or FAG, Made in Germany
Discharging shoots are coated with HARDOX 450 – 10 mm sheets

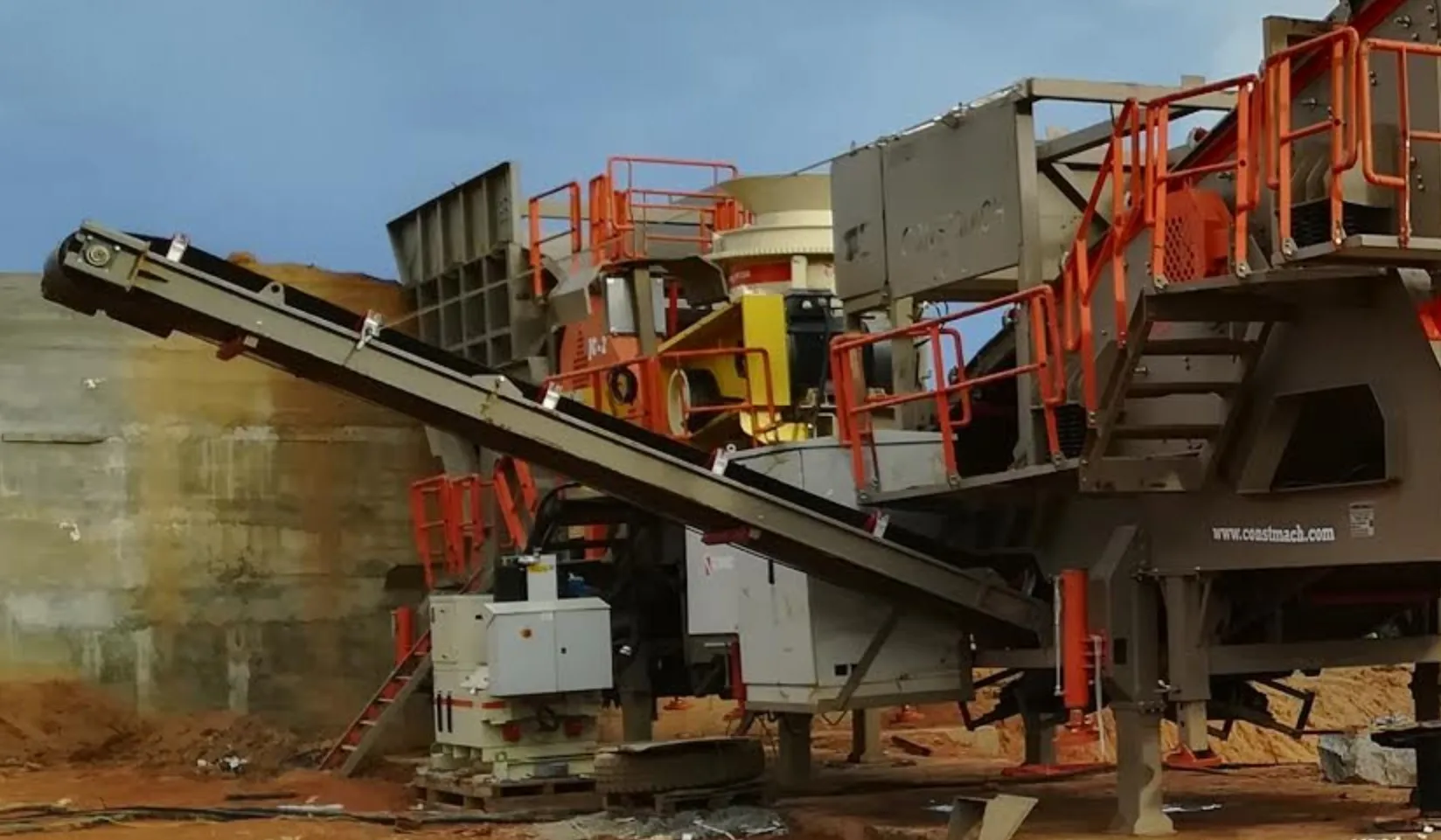

CONVEYORS:
* BY PASS CONVEYOR : 600 mm, 5.5 Kw motor power
* STOCK CONVEYORS : 3 pcs, 600 mm, 5.5 kW motor power
* FEEDING CONVEYOR : 600 x 10.000 mm, 5.5 kW motor power
* FEEDBACK CONVEYOR : 750 x 8.000 mm, 5.5 kW motor power
All conveyors are folded type and fixed by steel ropes to plant body.
Belt : EP125 : 10 mm
Driving Drum : Ø219x12 mm
Tail Drum : Ø219x12 mm
Bearings : FAG or SKF Brand
Bushing : SNH-513

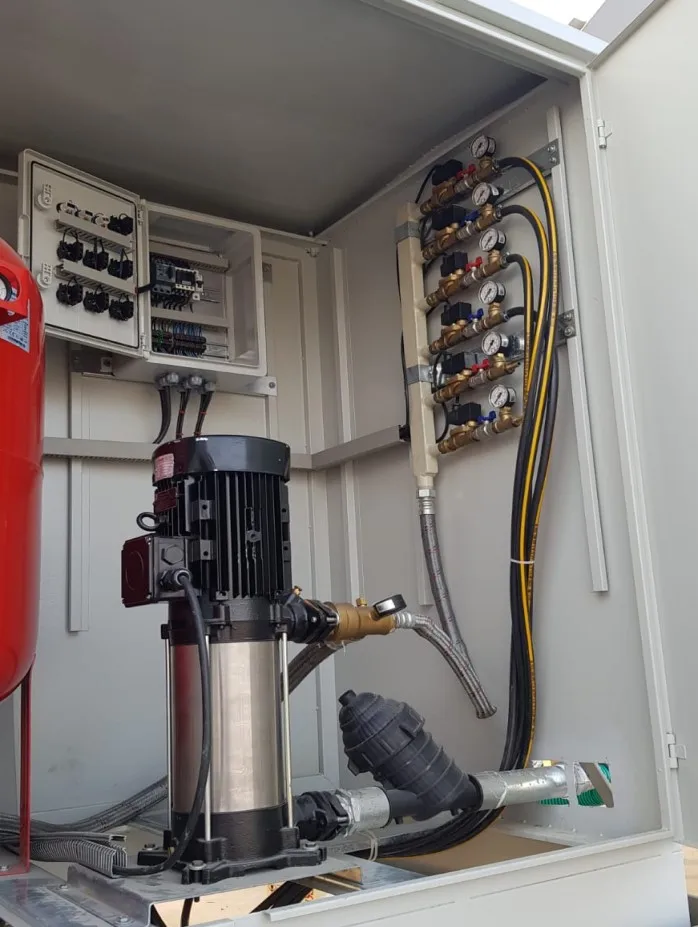

DUST REMOVING SYSTEM AND COVERING:

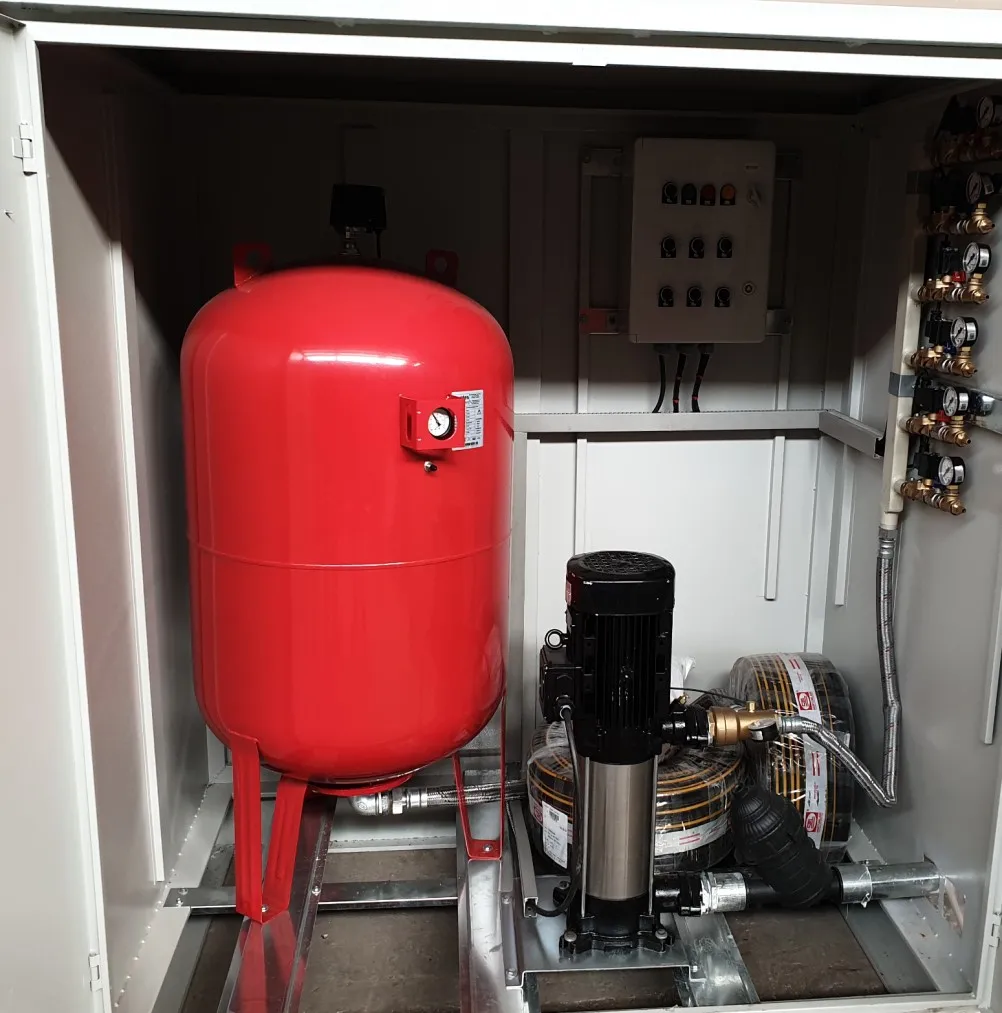

Dust removing system including water pump and piping installation in whole plant.
All conveyors are covered.
All conveyors are covered.

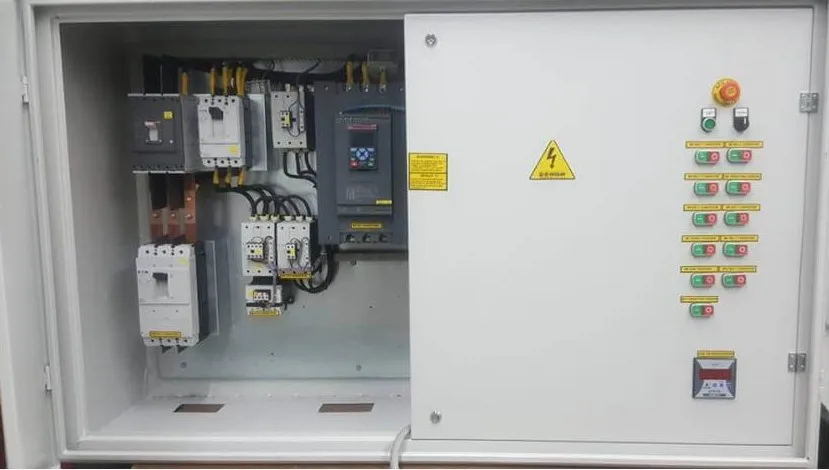

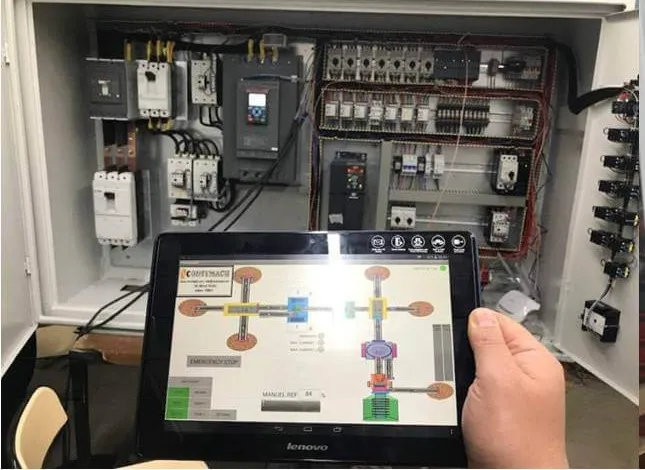

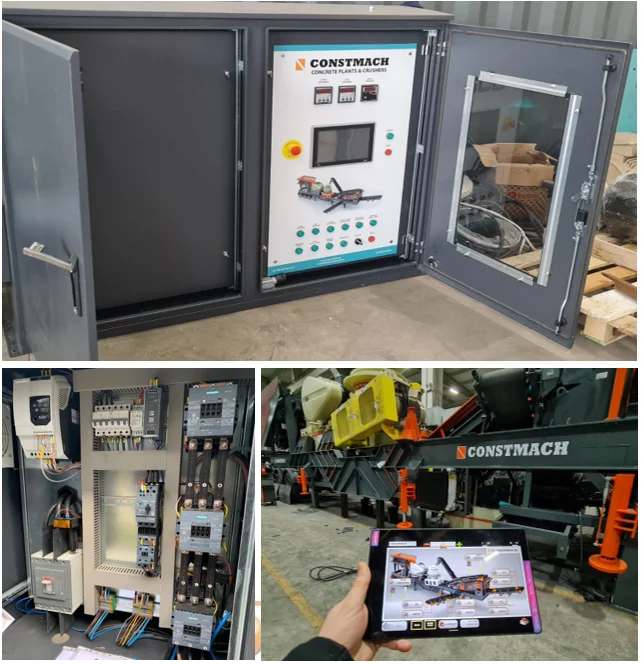

CONTROL CABINET AND AUTOMATION SYSTEM
Control of the plant is FULL AUTOMATIC and all the system is used via TABLET CONTROLLER automatically.
Control panel includes the PLC, thermic relays, fuses, contactor, timing relays and buttons for the electric motors in the system.
Electrical and electronic components brands :EATON - GERMANY
Wiring between control panel and equipment are included.
Control system are covered by double layer of control panel against dust and rain. (panel in panel)
OUR SERVICE
Assembly & Training
- Assembly
- Commissioning of the plant
- 7 days free training & test production.
After-Sales Service
* 2 YEARS WARRANTY
* Engineers available to service machinery overseas.
* 10 YEARS SPARE PARTS WARRANTY
PACKING & DELIVERY
Packaging | ||
Size | SPECIFIC SIZE | |
Weight | 188 TONNES | |
Packaging Details | All equipment are packaged to avoid any damage during the transport. All critical components are located in wooden boxes. 9 pcs 40' OT container is required for the transport. | |
