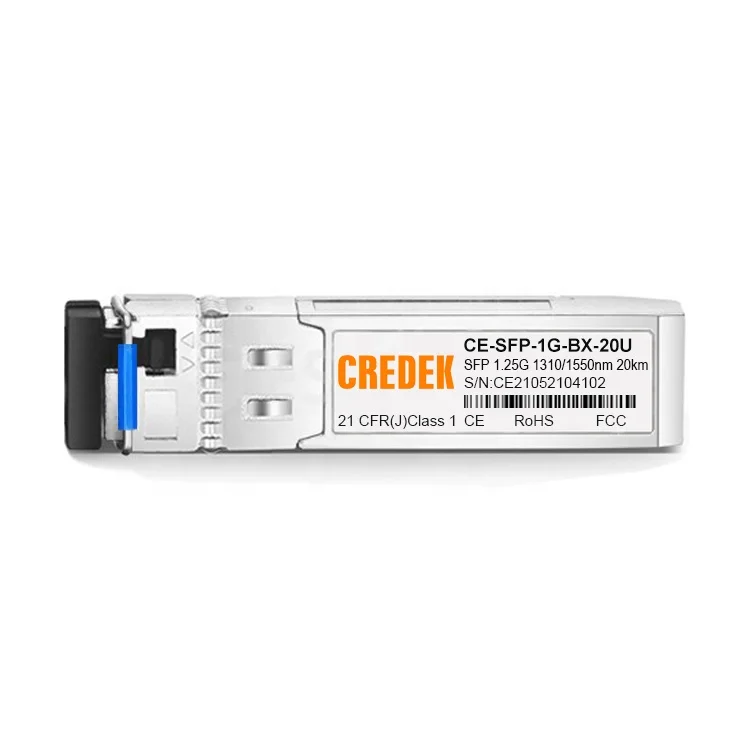

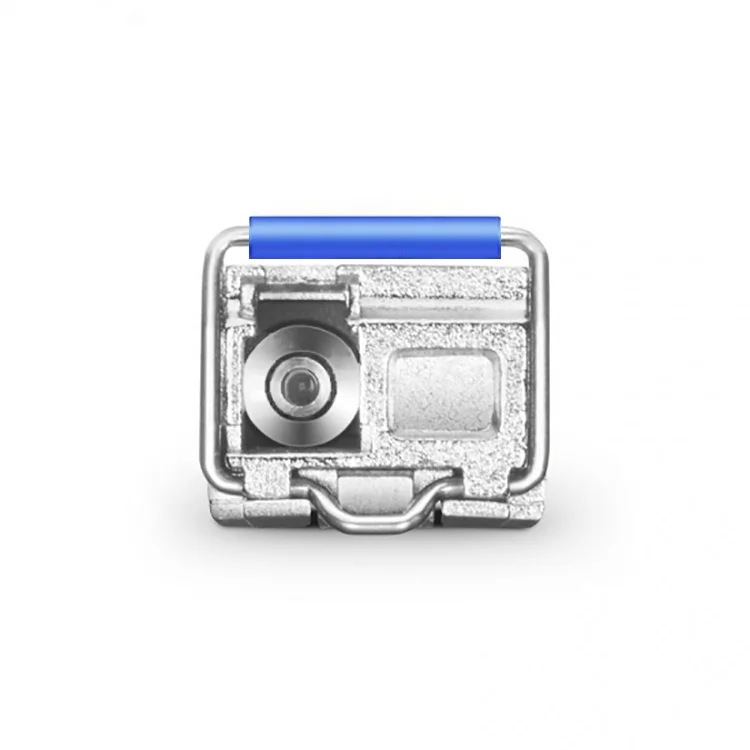

Used for Cisco SFP Module GLC BX 20U BiDi SFP 1310nm TX/1550nm RX 20km DOM DDM LC SMF SFP Transceiver Module
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (11000000752410):
Product Overview
Description
1.25G BiDi 20KM SFP WDM 1310/1550nm Single Mode Simplex DDM/DOM
CE-SFP-1G-BX-20U SFP transceiver provides up to 20km of 1000Base-BX throughput over single-mode fiber (SMF) using
1310nm-TX/1550nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
1310nm-TX/1550nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
Products Description
Product Paramenters
Form Factor | SFP |
10Data Rate | 1.25Gbps |
Connector Type | LC Simplex |
Wavelength | 1310/1550nm |
20Transmission Distance | 20km |
Cable Type | Single Mode Fiber |
Operating temperature | -5~70°C(Commercial) |
DDM/DOM | Support |
Certification | CE/FCC/RoHS/ISO9001 |
BER | 1E-12 |
Protocol | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+MSA, CPRI, eCPRI |
MTBF | >1,000,000hours |
Warranty | 4YEARS |
