Optical Transmitter CATV SAT RF IF 1310 nm
- Category: >>>
- Supplier: TEKNOLINE TEKNOLOJIK SISTEMLERI ANONIM SIRKETI
Share on (11000000753595):
Product Overview
Description
Product Description

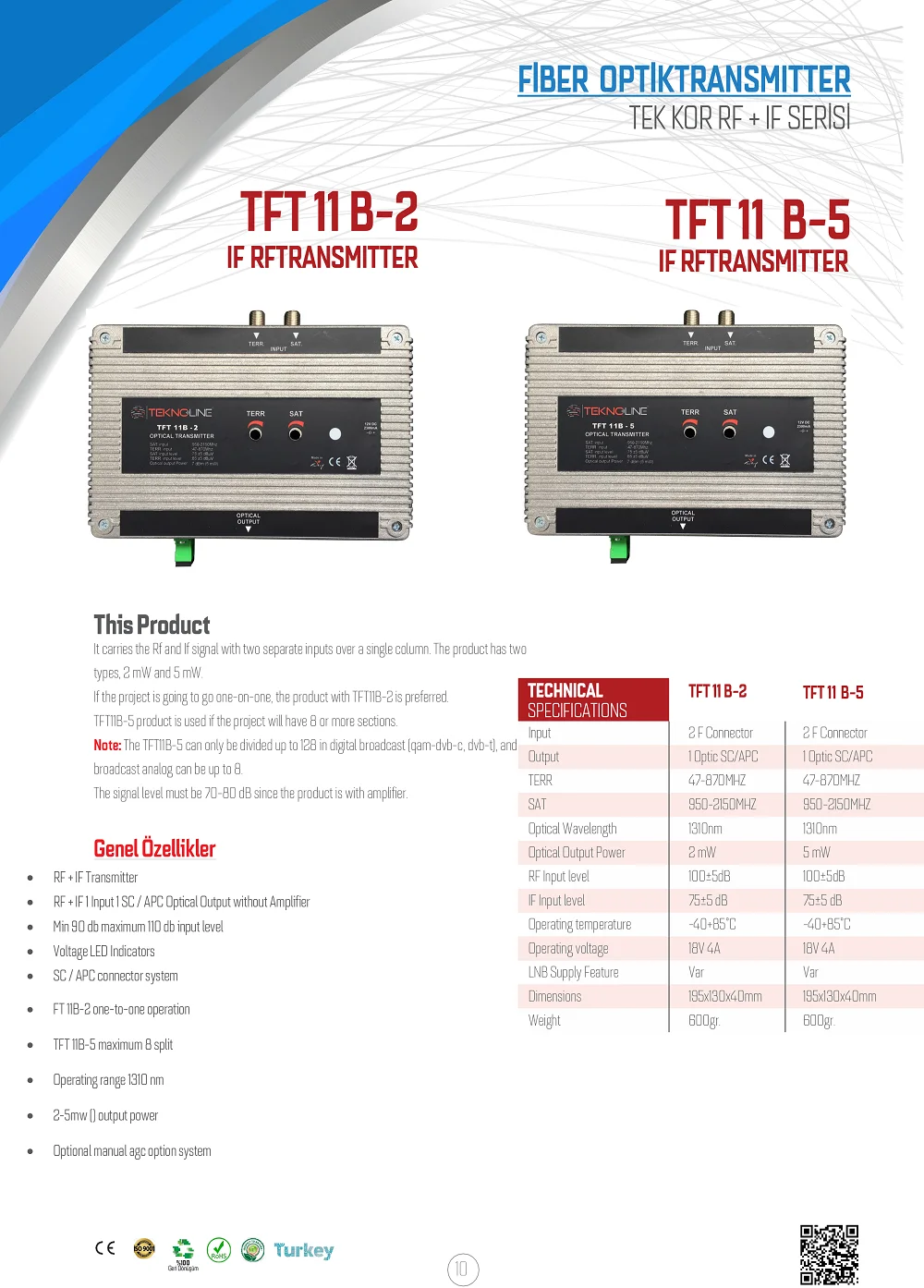

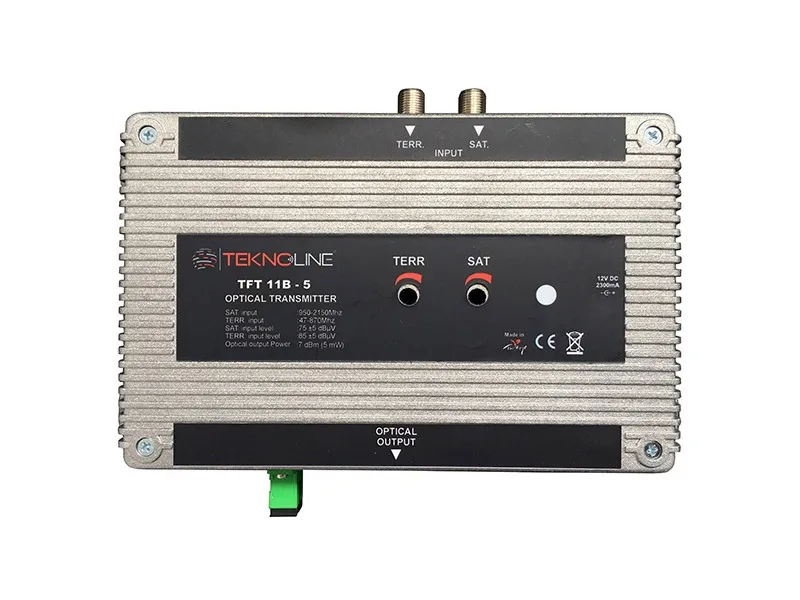

[TFT 11 B-5] Optical Transmitter (RF+IF)
Output 1 Optical SC / APC
TERR 47-870MHZ
SAT 950-2150MHZ
Optical Wavelength 1310nm
Optical Output Power 5 mW
RF Input level 100 ± 5dB
IF Input level 90 ± 5 dB
Working temperature -15 + 40 ° C
Working voltage 12V 2.3A
No LNB Power
Dimensions 195x130x40mm
Weight 600gr.
Input 2F Connector
Output 1 Optical SC / APC
TERR 47-870MHZ
SAT 950-2150MHZ
Optical Wavelength 1310nm
Optical Output Power 5 mW
RF Input level 100 ± 5dB
IF Input level 90 ± 5 dB
Working temperature -15 + 40 ° C
Working voltage 12V 2.3A
No LNB Power
Dimensions 195x130x40mm
Weight 600gr.
