HMEMC ferrite tile for anechoic chamber EMC Chamber 6.7mm
- Category: >>>
- Supplier: Changzhou Huaming Electronic Equipment Co. Ltd.
Share on (11000000794118):
Product Overview
Description
Product Description

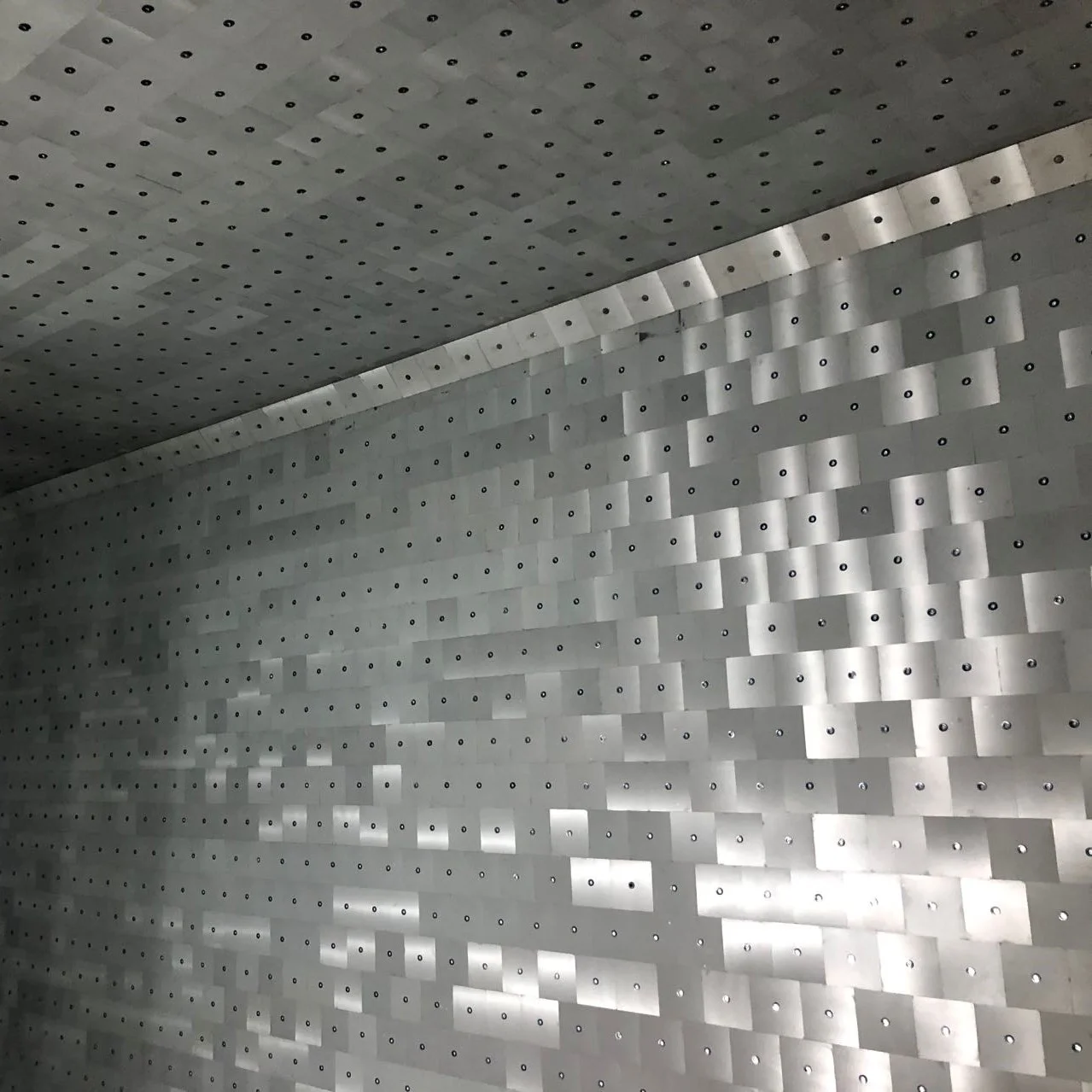

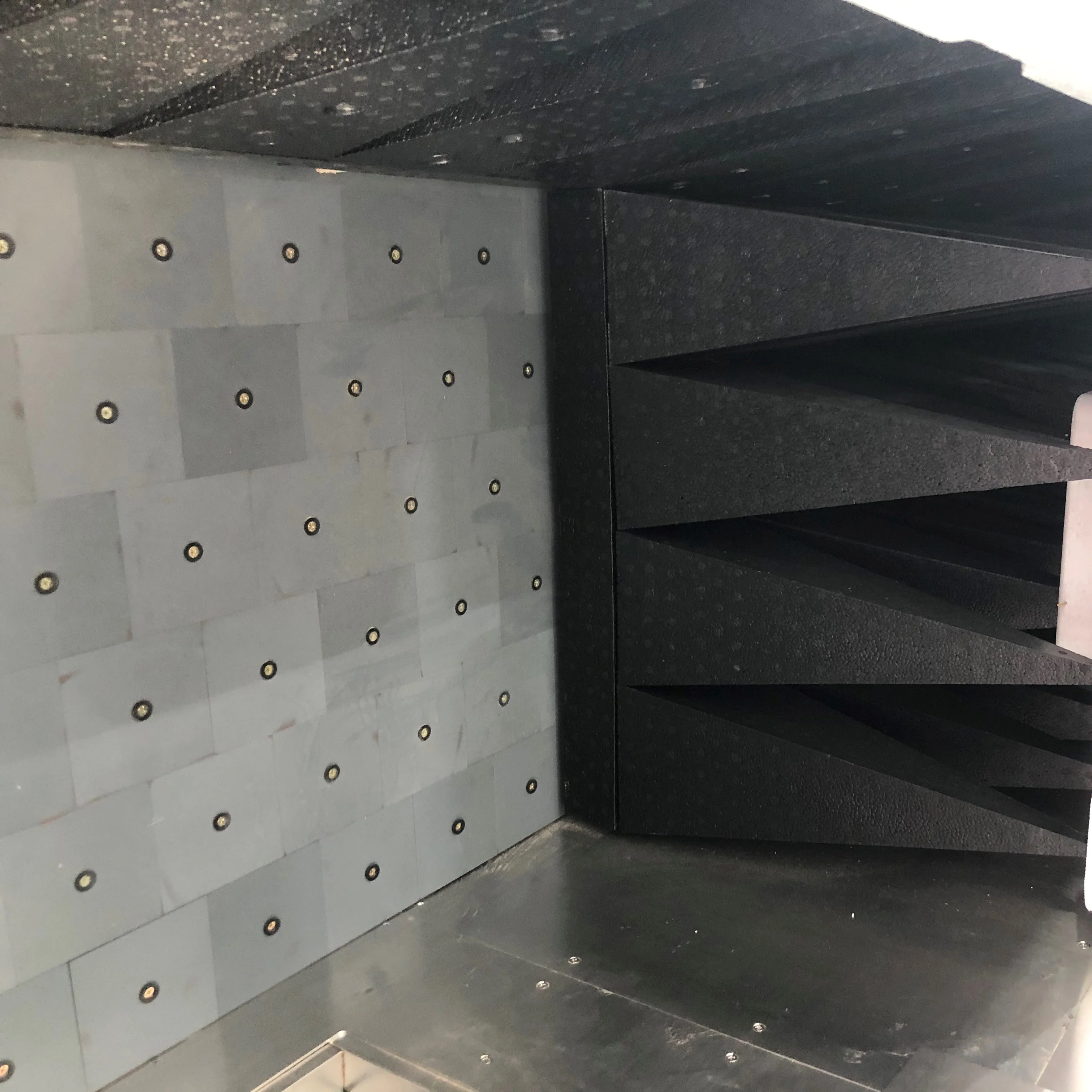

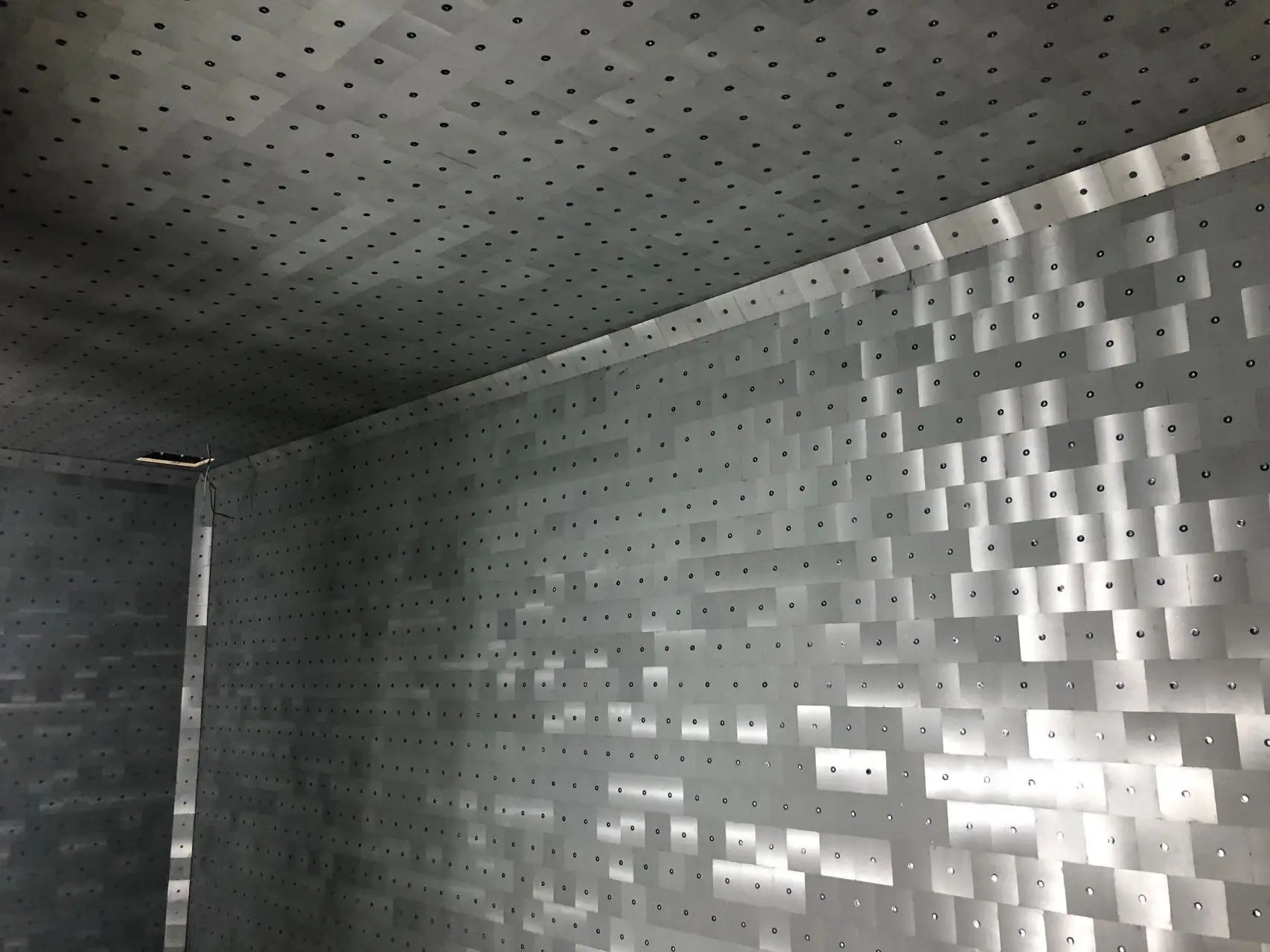

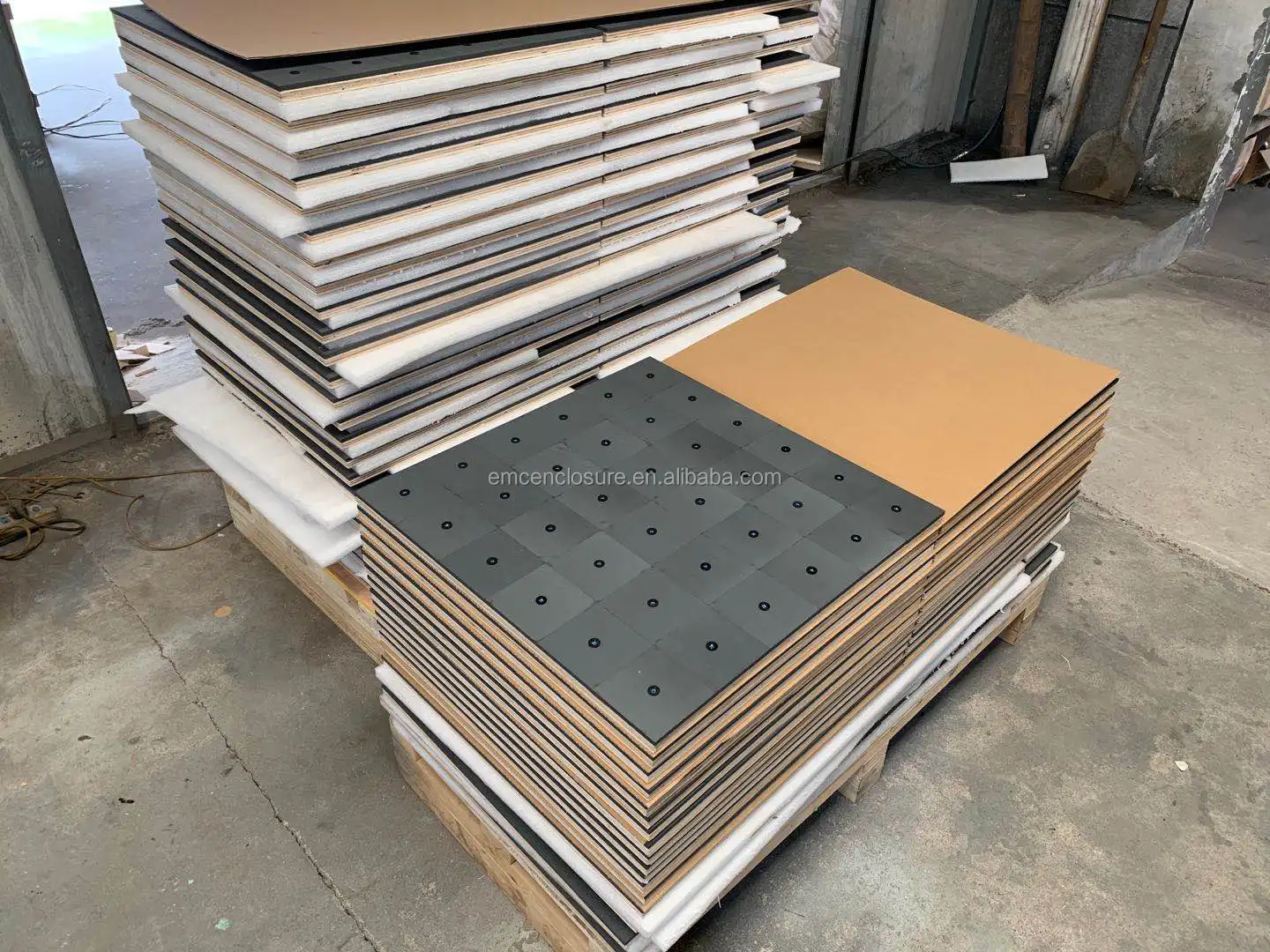

HUAMING EMC’s high performance HM-FT Ferrite tiles are widely used in all types of anechoic chambers for EMC testing. The Ferrite tiles are designed to be a thin, broad frequency range, electromagnetic absorber. The HM-FT tiles are designed to provide optimised performance between 30 MHz and 1 GHz and can be used individually or combined with HUAMING EMC’s HM-HPA series pyramidal absorber.
HUAMING EMC Ferrite tile HM-FT are used around the world in the most demanding performance applications where the required performance includes frequencies below 100 MHz (mostly EMC where the test spectrum starts at 30 MHz) to ~1 GHz. Most resistive structure absorbers work on progressive impedance where the absorbers strive to mimic free space via the shape &resistivity this leaves these absorbers weak when the wave becomes very long at low frequency. Ferrite tiles do not work on progressive impedance but instead use magnetic permeability. The structural domains in the material have a polarized bias that is affected by rotating against the oscillating wave and thus absorbing the radiated energy.

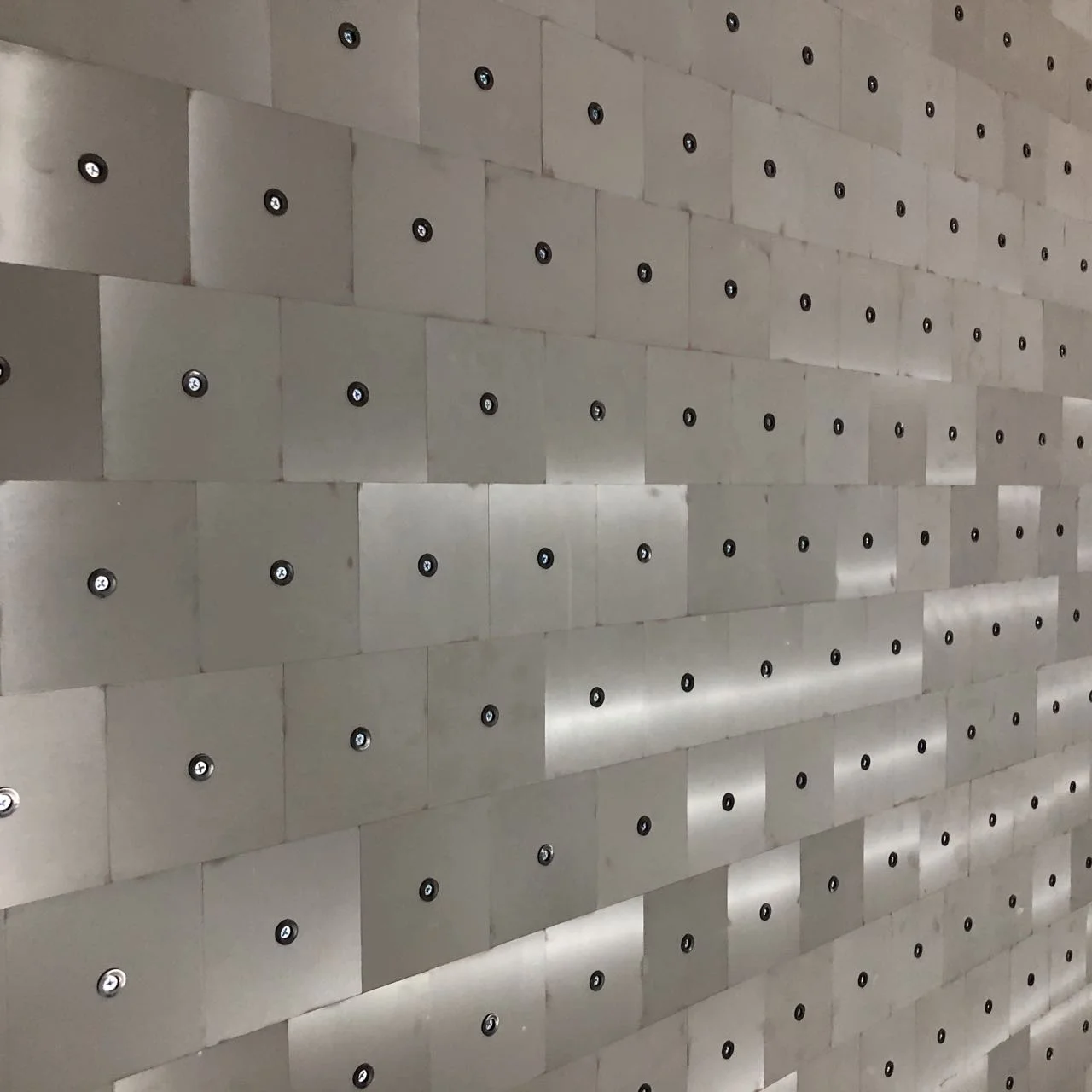

The HM-FT tiles have the optimum low and high-frequency return loss performance and compliment the pyramidal hybrid absorbers. Our Ferrite tiles are manufactured to the highest standard, ensuring a precise edge and a minimal gap between adjacent tiles.
The HM-FT tiles have the optimum low and high-frequency return loss performance and compliment the pyramidal hybrid absorbers. Our Ferrite tiles are manufactured to the highest standard, ensuring a precise edge and a minimal gap between adjacent tiles.
Typical graph of Reflection Loss(dB) and Specification of Performance
Frequency | Typical | Specification |
30MHz | -25.5dB | -24.0dB max. |
100MHz | -38.0dB | |
300MHz | -19.5dB | |
500MHz | -16.0dB | |
700MHz | -12.0dB | |
1000MHz | -12.0dB | -9.0dB max. |
Dimention
Part | Dimentions in mm |
A | 99.95 +/-0.10 |
B | 99.95 +/-0.10 |
C | 6.70 +/-0.10 |
D | 10.00 +/-0.20 |
Weight | 330g |
Material Characteristics of HM-FT
Properties | Symbol | Unit | Value |
Initial permeability | μiac | 5500 ±20% | |
Relative loss factor | tanδ/μiac | ×10-6 | 15 (0.1MHz) |
Saturation flux density | Bs | mT | 280 (1194A/m) |
Remanence | Br | mT | 180 |
Coercivity | Hc | A/m | 3 |
Relative temp. factor (20℃∼60℃) | αμr | ×10-6/℃ | 3 |
Curie Temperature | Tc | ℃ | >90 |
Density | δ | ㎏/㎥ | 4.85×103 |
Resistivity | ρ | Ω·m | >100 |
SOLUTION FOR
• Hybrid solution with HUAMING HBA-series absorber
• EMC/EMI Chambers
• Mixed-use test facilities
• Low frequency testing
• Pre-compliance & full compliance testing
• EMC/EMI Chambers
• Mixed-use test facilities
• Low frequency testing
• Pre-compliance & full compliance testing
Main features
* Excellent broadband performance
* Impedance match with MVG UH-series absorbers

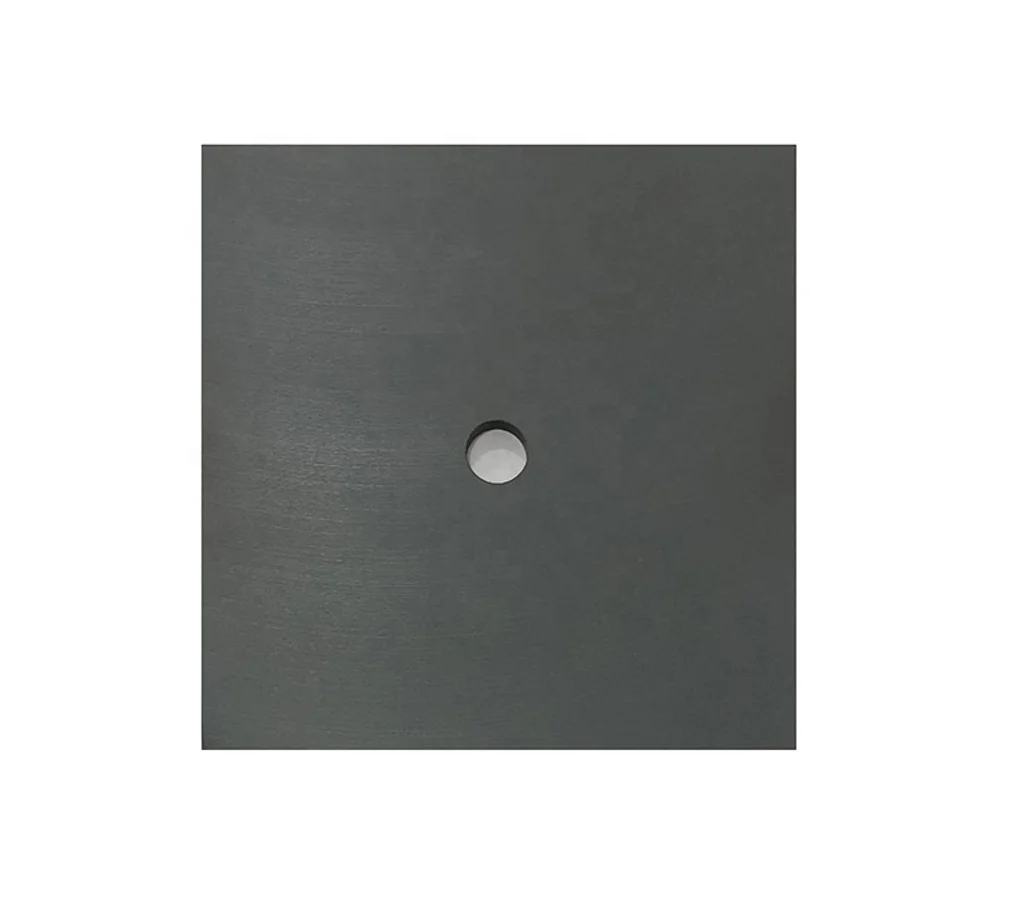

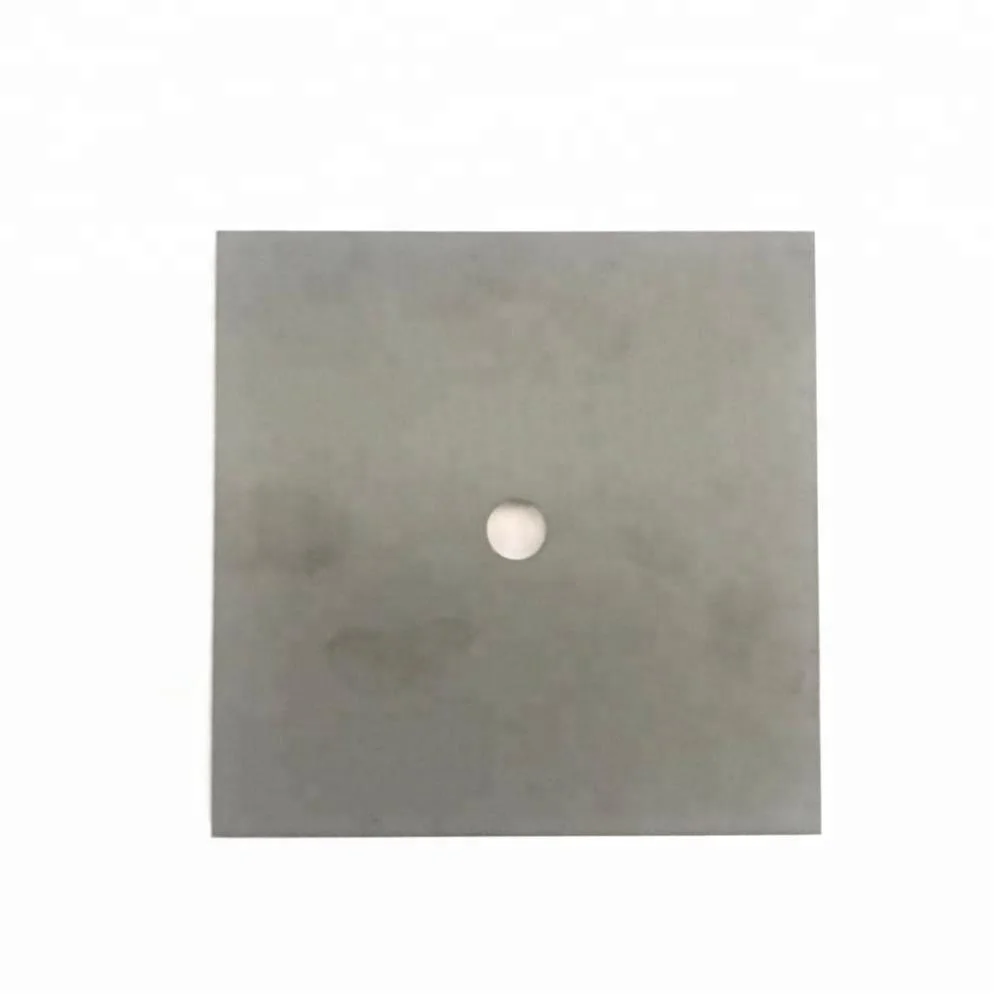

* 100 mm x 100 mm x 6.7 mm
* Includes center hole
* Impedance match with MVG UH-series absorbers
* 100 mm x 100 mm x 6.7 mm
* Includes center hole
