Product Description




HM-HPA series polypropylene-based hybrid electromagnetic absorbers are the latest technology for EMC/RF test applications. It is the unique production technology that is the critical factor in achieving the highest electromagnetic reflectivity performance in an HUAMING EMC test chamber. HPA series absorbers are accurately produced by using precise molding techniques that ensure all products have the same shape and size, which is a very important feature for fast installation and, a high quality finish to the chamber interior. When used with ferrite tile, the HPA series has a broadband operating frequency range starting from 30 MHz and up to 40 GHz. HPA series ensures extremely high uniformity of carbon powder density throughout the absorber, thanks to our unique carbon powder synthesis technique. This cutting edge technology offers the following advantages: repeatable and predictable test results, almost zero carbon dust, clean test sites and low maintenance cost. HPA series is optimized to be used in the EMC chamber. The model of the HPA absorber used depends on the size of the chamber. HUAMING EMC offers the following models : HPA-30, HPA-50, HPA-75. Each of the test ranges to achieve full compliance as per CISPR 16, ANSI C63.4, IEC61000-4-3 and other international standards.


Product configuration


item
value
Place of Origin
China
Jiangsu
Brand Name
HUAMING
Model Number
HM-HPA
Shape
Hybrid Pyramid Absorber
Material
Polypropylene
Frequency bands
From 30 MHz to 40 GHz

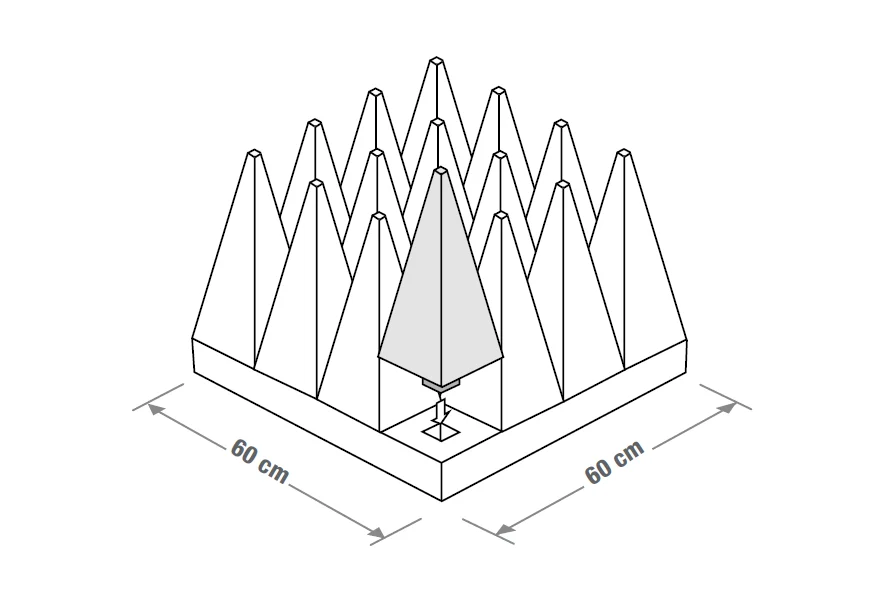

Standard base size
1.97' x 1.97' (60 x 60 cm)
Height
30 cm, 50 cm & 75 cm
Operating conditions
Temperature: up to 90° C
Indoor/outdoor
Indoor/Outdoor


Specifications





HPA30
HPA50
HPA75
Height

cm
30
50
75
@30MHz
dB
18
19
21
@100MHz
dB
23
23
22
@300MHz
dB
21
21
22
Normal Performance
@500MHz
dB
17
19
21
@700MHz
dB
16
19
22
@1GHz
dB
15
20
24
@3GHz
dB
18
25
29
@6GHz
dB
23
30
35
@10GHz
dB
27
36
40
@13GHz
dB
29
39
43
@18GHz
dB
32
43
47
RF Power handling
1.5 kW/m² or 750 W/m
Weight
kg
1.9
4.1
5.3
No. of Pyramid points
36
16
9
Fire retardancy
DIN4102 Class B2, UL94HBF
Clean room standard
ISO14644 Class 4
UV certification
ISO 4892-2:2013
*Measured reflectivity combined together with Ferrite Tile
*HPAXX, where XX designates absorber height in cm.


The benefits of ULTRA BPA Polypropylene Absorbers
* Excellent broadband performance (used with ferrite tiles)
* High uniformity and isotropy
* Repeatable and accurate results
* Clean-room compatible
* Lightweight and Strong (maintains shape)
* Superior Product Lifetime (over 35 years)
* Optimum Impedance Match with Ferrite Tiles
* Impervious to Changes in Humidity (non-hydroscopic)
* Modular and Easy to Install
* Extremely Low Maintenance
* Eco-friendly Green Products


SOLUTION FOR


* EMC/EMI chambers
* Mixed-use test facilities
* Pre-compliance & full compliance testing


Company Profile


Build in 1996 as CHANGZHOU HUAMING ELECTRONIC EQUIPMENT FACTORY, regroup at 2011 as CHANGZHOU HUAMING ELECTRONIC EQUIPMENT CO.,LTD.
More than 20 years experience for EMC field. Build more than 1000 sets RF shielding room and EMC chamber all around the world. Pass the supplier ceritificated by Ericsson, Cisco, HUAWEI, QUALCOMM, Broadcom and other famous company.
As the original manufacturer, we have the full line fittings for EMC chamber, our factory manufactory RF shielding door, Beryllium copper finger, honeycomb vent, power filter, signal filter, MRI door, RF shielding cabinet, RF shielding windows, wavetube, waveguide and almost all fittings.
Our company location is 260KM from SHANGHAI PUDONG Internation air port, welcome all customer to visit our factory.
If you need any small size sample, we are willing to offer the free sample to you for testing.
