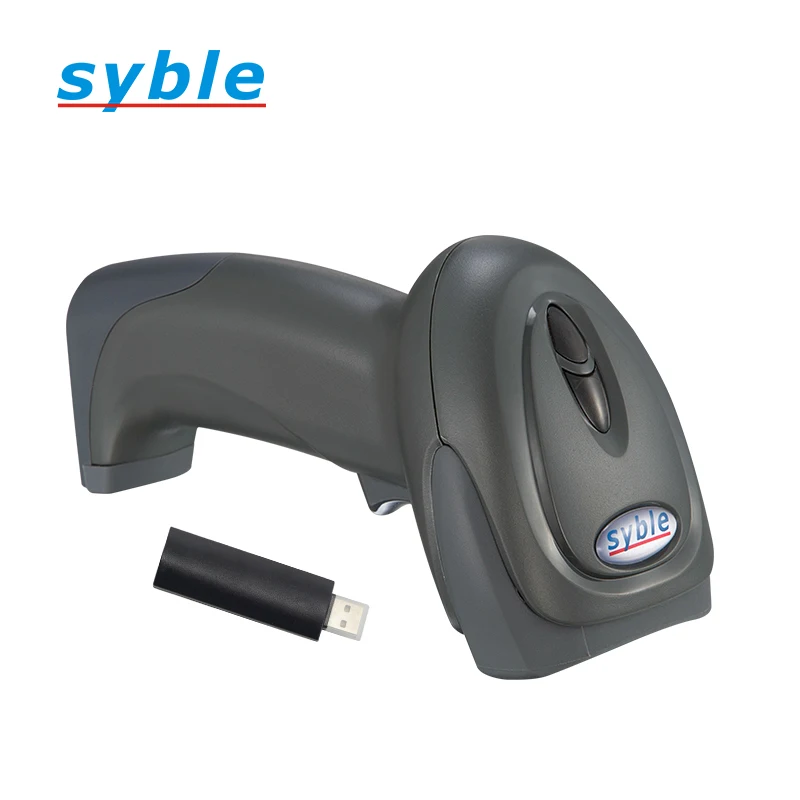

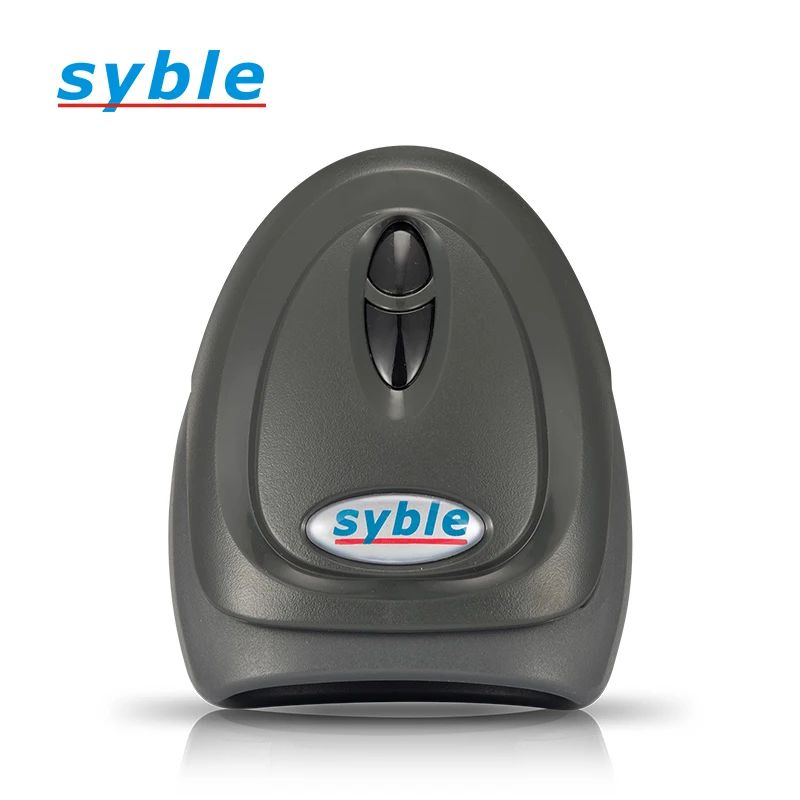

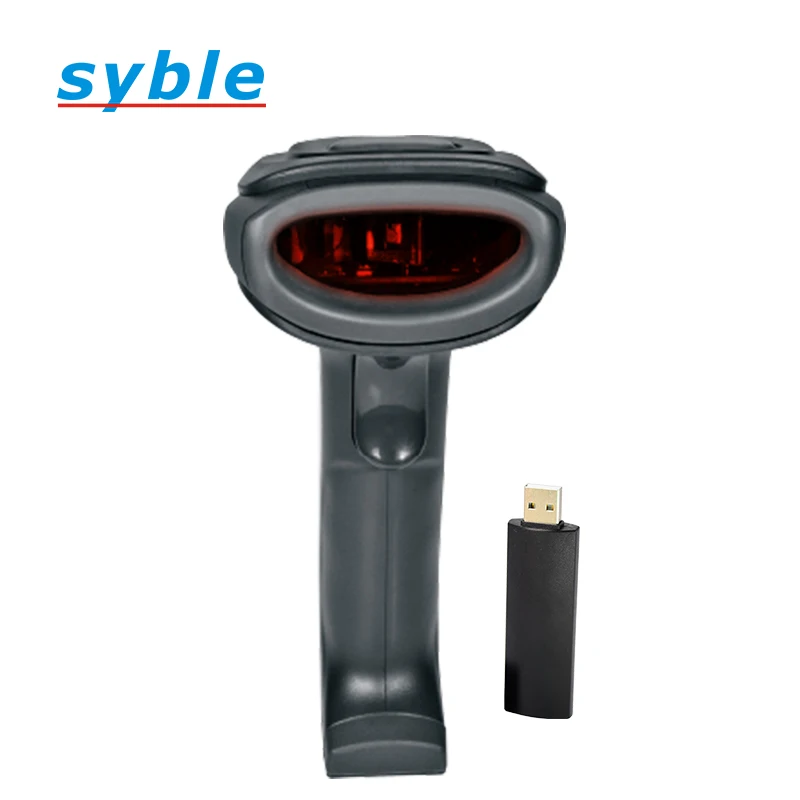

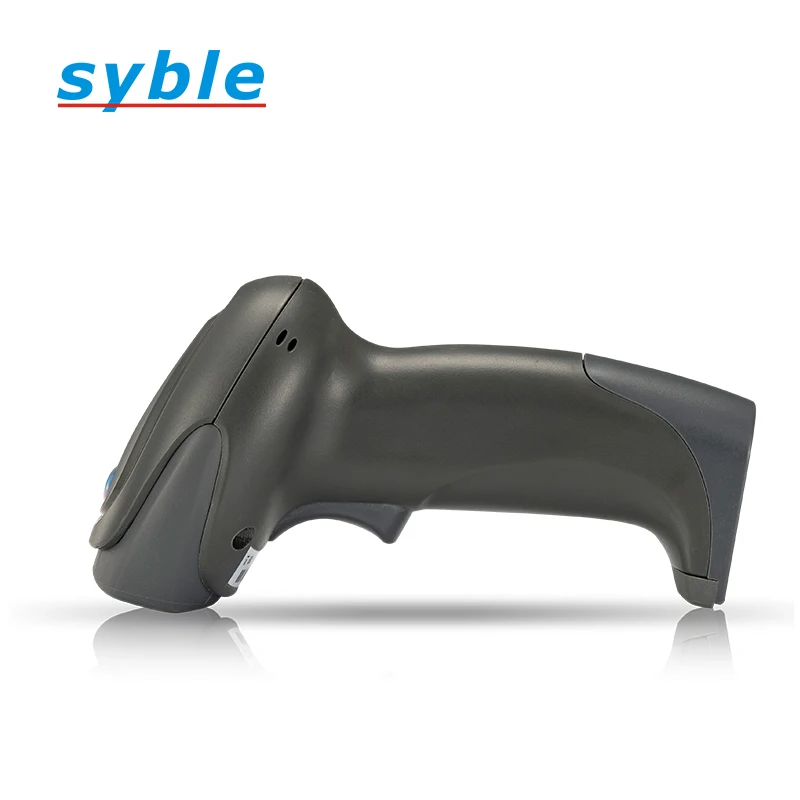

Syble Portable Wireless usb 1D barcode reader laser barcode scanner XB 5066R
- Category: >>>
- Supplier: GUANGZHOU SYBLE CO. LTD
Share on (11000000887581):
Product Overview
Description
Most Popular Portable Wireless Usb 1D Bar Code Reader laser Barcode Scanner
Model:XB-5066R
Product Description
Feature

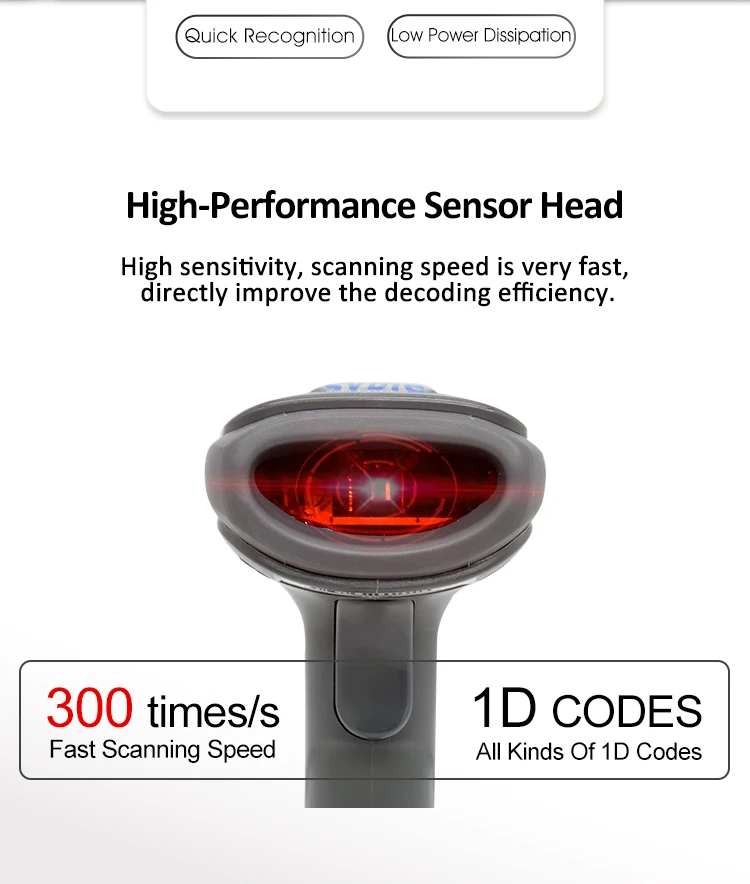

• Use high-resolution laser scanning engine to interpret various 1D codes

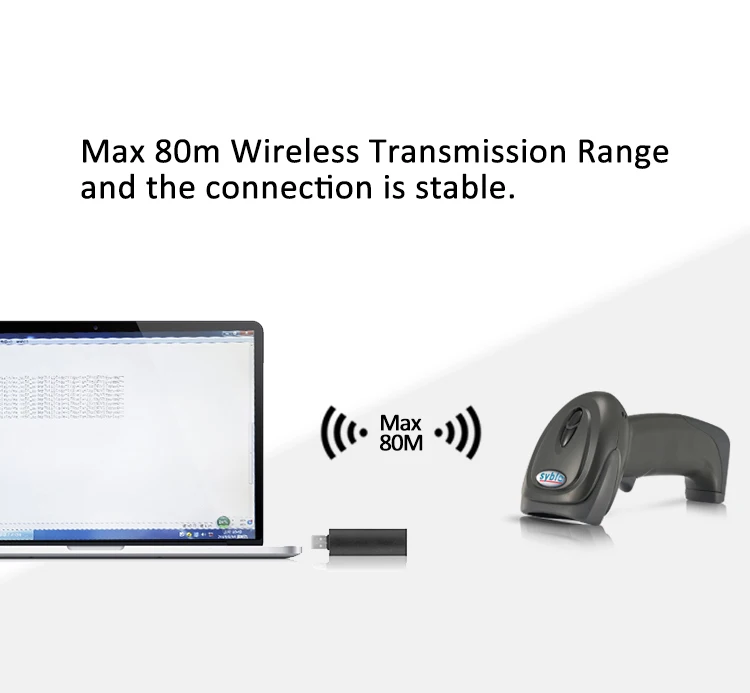

• Empty transmission distance of 50-80 meters
• Automatic storage beyong distance
• Can store 512,000 bytes

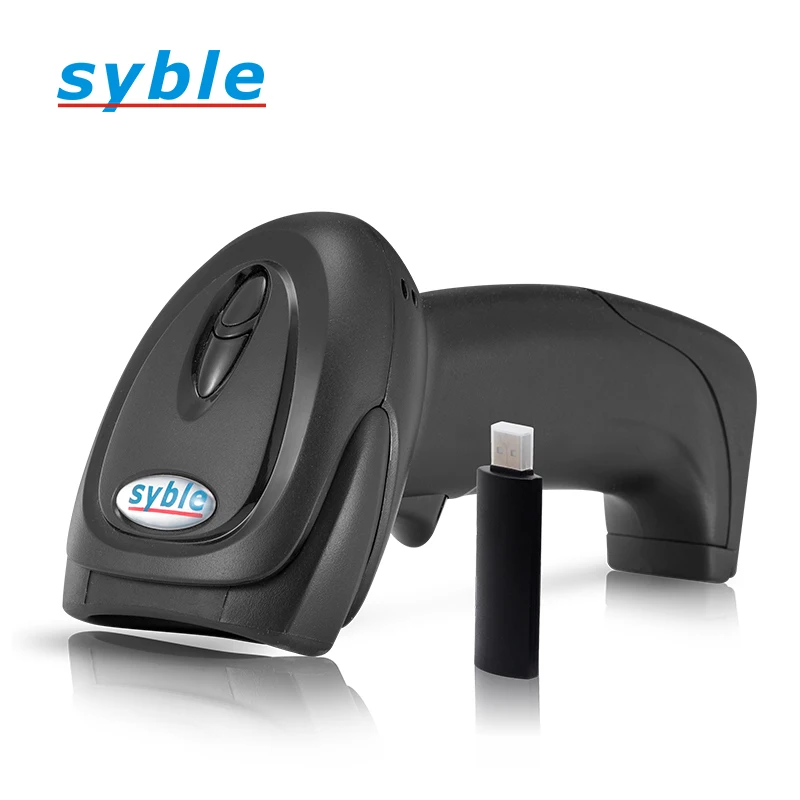

• USB receiver,plug and play,simple set up

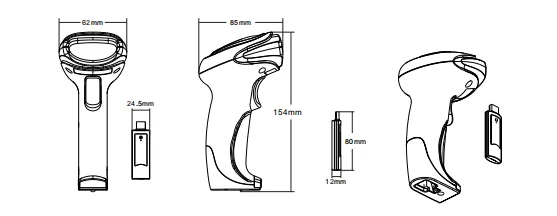

Size
85mm*62mm*154mm
Specification
Specification | |
Performance Parameters | |
Light Sources | 650nm laser (Safe visible laser diode) |
Supported Symbologies | UPC- A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN, Code 32(Italian pharm code), Code 39 extended, ITF-14, RSS 14, etc. |
Scan Type | Single Laser |
Scan Speed | ≥300 times/s |
Scan Method | Manual/Contuinous/Automatic Scanning (Optional) |
Scan Angle | Yaw 55°,Rotation 30°,Pitch 65° |
Precision | 4mil(0.1mm) |
Depth of scan field | 10-250mm(0.33mm, PCS90%) |
Error Rate | Less than 1/5million |
Interface | USB-HID |
Operating Frequency | 2.4G |
Transmission Distance | 50-80M (Open Yard) |
Storage Ability | 512000 Bytes |
Pairing Model | One to one |
Physical Parameters | |
Dimensions | 85mm*62mm*154mm |
Weight | 195.4g |
Material | ABS+PC |
Cable Length | 1m |
Environmental Parameters | |
Operating Temperature | -20℃~40℃ |
Storage Temperature | -40℃~70℃ |
Relative Humidity | 0%~85% RH (Non-condensing) |

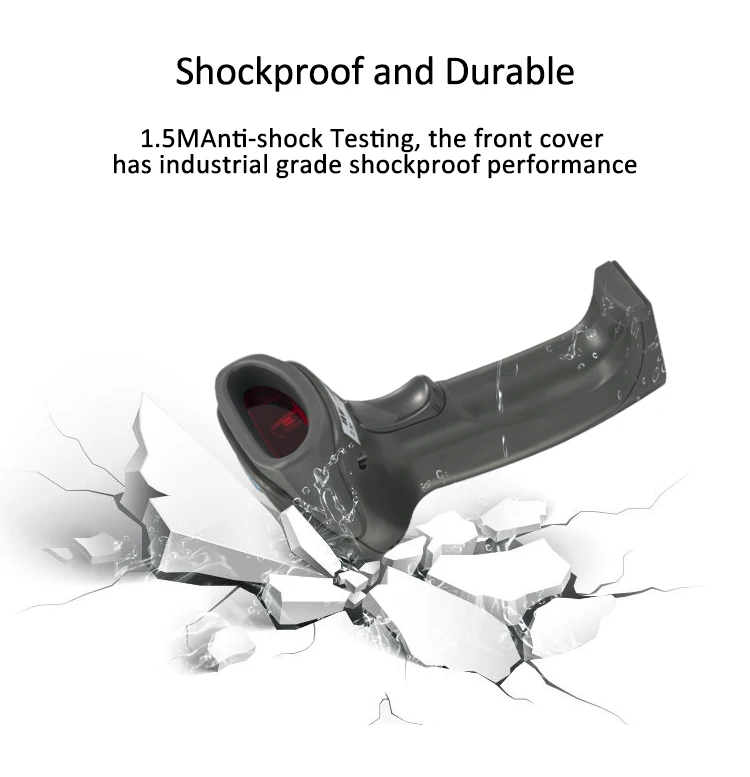

Drop/Shock Resistance:Withstands multiple times 3meters drops to concrete | |
Electrical Parameters | |
Voltage | DC5V±10% |
Current | 85mA (Operating); 150uA (Quiescent Current) |
Lithium battery | 2200mA |
Application
Packaging & Shipping
- Fast Shipping from Guangzhou Xunbao barcode scanners Factory
- Item shipped in 3-10working days after payment is received depends on the quantity of the order.
- Item shipped by UPS,FEDEX,DHL,TNT and others,depending onf size and weight of total order
- Deliver time:24hours from stock order,production order within 3-5days.
- Tracking number will be sent to you as soon as when shipped the goods
Company Information
We are barcode scanner manfacturer in Guangzhou, which qualified by ISO9001:2008,all products passed CE,RoHS,and FCC etc.
The Reason You Choose XUNBAO
Product Performance: Owns Core technology of laser barcode scanner, Performance has reached international level after continuous optimization for promotion ;
Technical Available: Any kinds of communication interfaces available & Customized, Command control Available, Provide secondary development.
Quality: Strict quality management system, Return rate control in 0. 65% & it was a decreasing trend.
Market Share: Our own brand and OEM, ODM brand in the Chinese marketsimilar products, market share as high as21%.
Price: Compare with American & Europe products of the same grade, The Price is 52% only of them.
Parket Protection: Strict regional exclusive agent system, To ensure the long-term interests of dealers.
| Safety Standards | |
| EMC | CE EN55022 B, FCC Part 15 Class B, SGS,IP54 Waterproof Test. |
| Laser safety | IEC 60825-1 Class 1 |
Our Services
Technical support
- Provide the necessary professional traning online or offline
- Comprehensive technical support provide pre-sales&after-sales
- Presentation&promotion of the new inonvative products
Spare parts policy
- Provide certain spare parts in every order shipment as required
- Provide free maintenance or replacement spare parts within the given warranty period
- Provide free maintenance technology and spare parts chargeable under out of warranty
Products service
- Provide the pre-sales,in-sales and after-sales services
- Provide all technical documents as required
- 2 years warranty for all of our products
Value-added services
- Provide long time maintenance services
- Provide extended warranty as required
- Provide the regular routine maintenance services
FAQ
1:Do your company is a trading agent or manufacturer?
We are professional manufacturer of all kinds of Barcode Scanner with own factory
2.What about the warranty of this Corded Barcode Scanner?
2 years warranty on the Barcode Reader, 6 month on the cable
3.What is the minimum order of this Barcode Reader?
The MOQ is 1pc with our logo
4.Do you have stock products to sell?
Yes,and we also work on OEM/ODM orders,like printing with your brand&label design
5.What's your products range?
--Laser barcode scanner
--Wireless barcode scanner
--Omni-directional barcode scanner
--CCD barcode scanner
--2D barcode scanner
