Multi cutters Paper Tube Making Machine from Chuangfeng 2021
- Category: >>>
- Supplier: Wenzhou Chuangfneg Machinery Co. Ltd.
Share on (11000000889664):
Product Overview
Description
Product Description

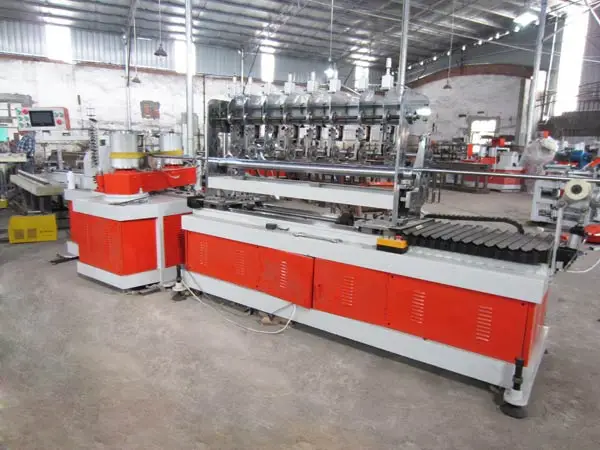

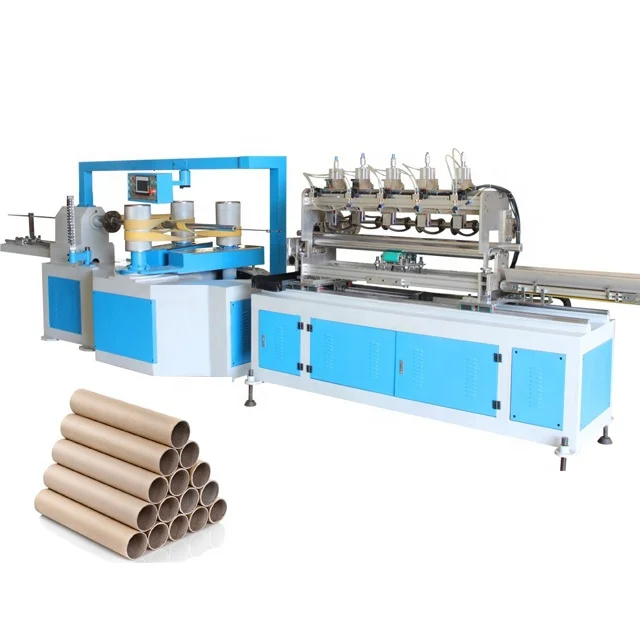

CFJG-20 Multi-cutter tube & core making machine equipped with Numerical and Multi-blades Cutting System. Suitable for toilet paper core; preservative film etc.
--Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision.
-- Adopt with MULTI CUTTERS and inline cutting length reaches to 70-1400mm. Paper tubes can be finished in one time.
--Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision.
-- Adopt with MULTI CUTTERS and inline cutting length reaches to 70-1400mm. Paper tubes can be finished in one time.
Detail
* Multi-knives Online Cutting System (cutting length 100-1200mm; controlled by servo motor)
Detail

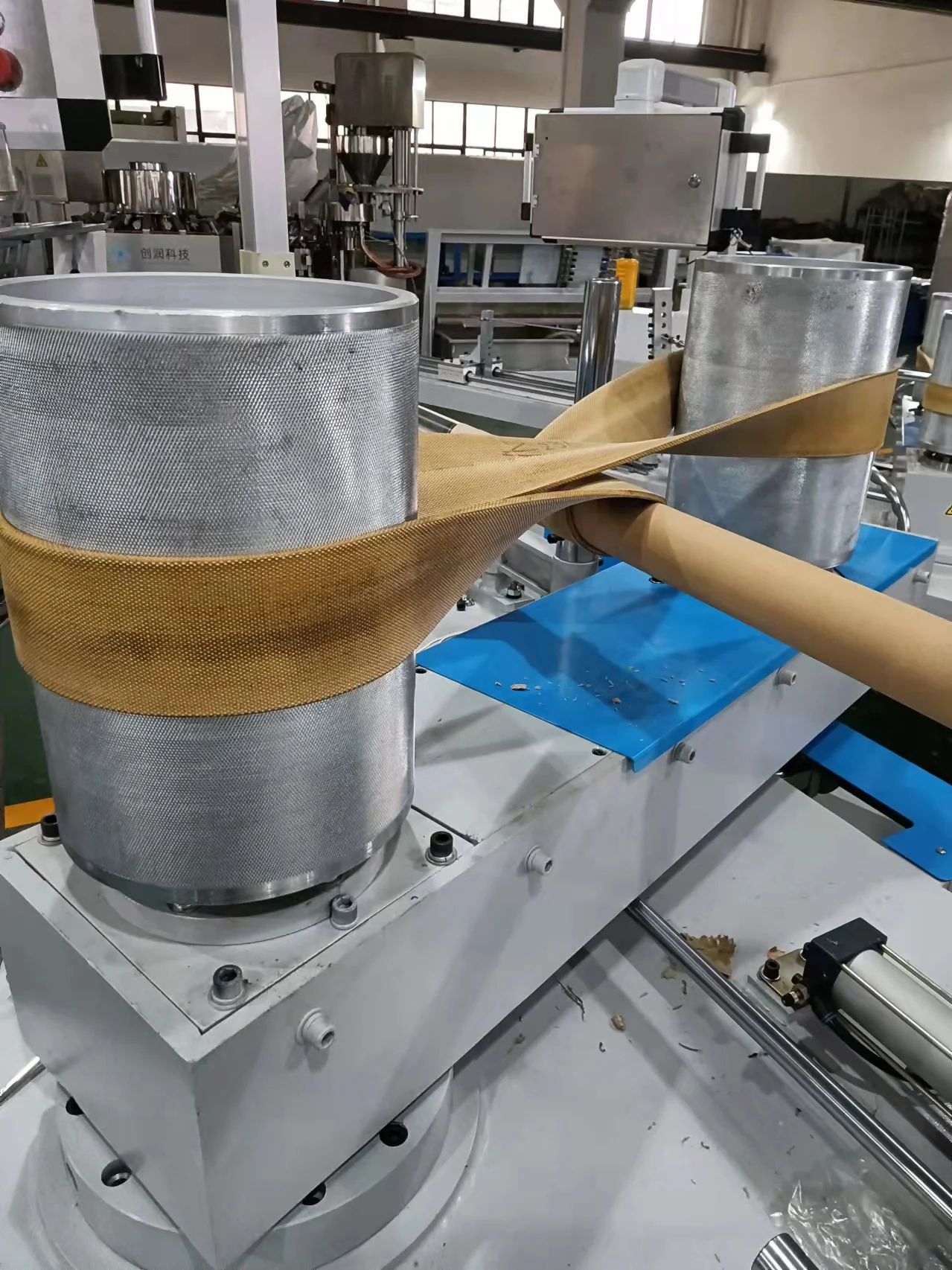

* Double Heads / Single Belt Spiral Winding
Detail

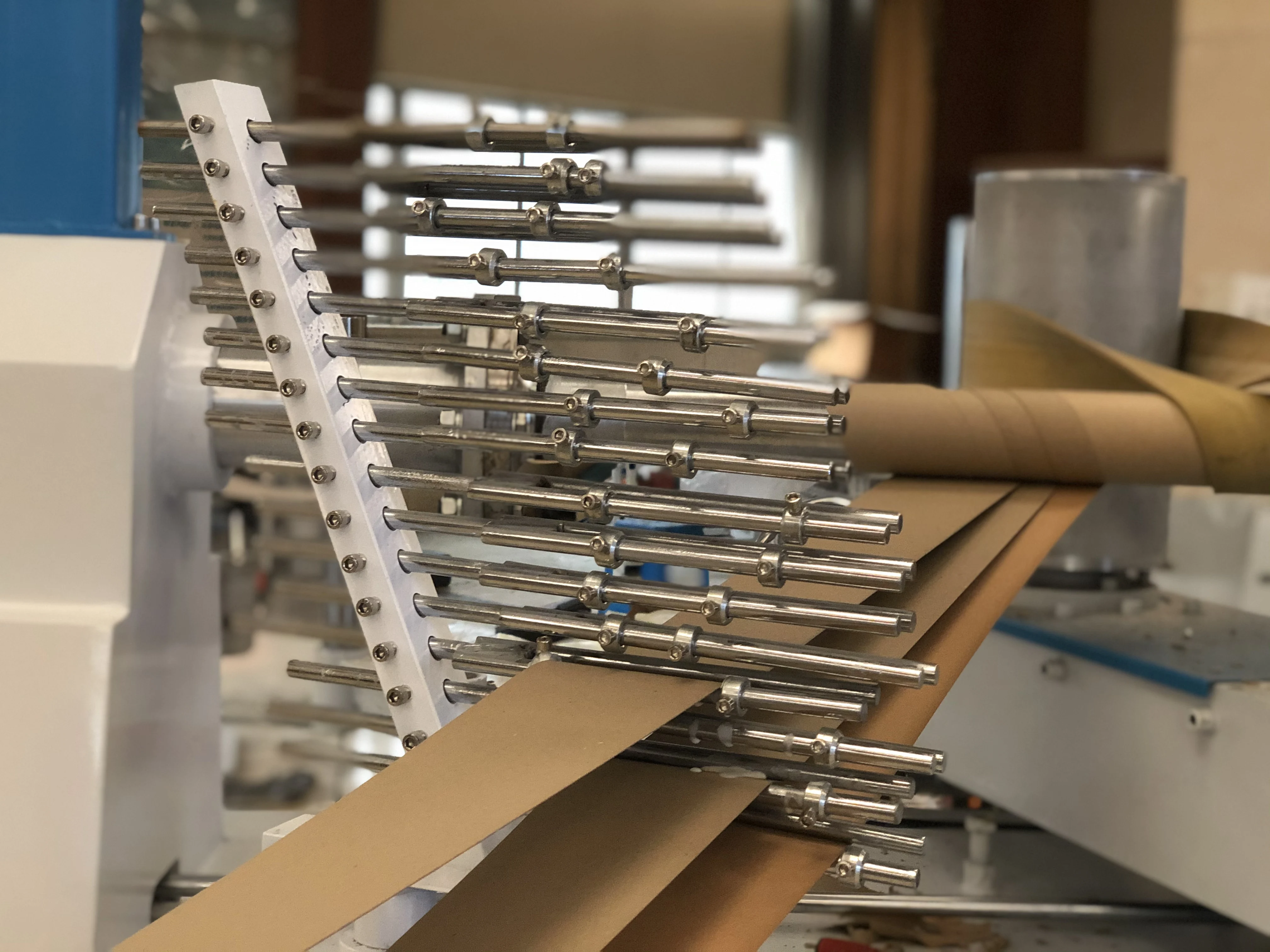

* Equipped with 10 Layers Soaking Type of Glue Stand
Technical Parameter
Model No. | CFJG-20 | ||
Paper Layer | 3-10 layers | ||
Inner Diameter | 20-120 mm | ||
Wall Thickness | 1-5 mm | ||
Online Cutting Length | 100 - 1200 mm | ||
Winding Nose | Two heads single belts | ||
Working Speed | 1-30 meters /min | ||
Speed Regulation | By Inverter | ||
Cutting System | Multi - cutters (standard 5 pcs ) | ||
Gluing Way | Double sides | ||
Length Fixing | By Encoder | ||
Power Supply | 380 V/3 phase /50 Hz | ||
Paper Reel Stand | 10 layers | ||
Glue Unit | 3-10 layers | ||
Inner Paper Stand | 1 set | ||
Surface Paper Stand | 1 set | ||
Mandrel Shaft | 2 pieces | ||
Belt | 2 pieces | ||
Extra Blades | 5 pieces | ||
Measurement | 4500*1950*1900 mm | ||
Weight | 3200 kgs | ||
Operator | 1-2 persons | ||

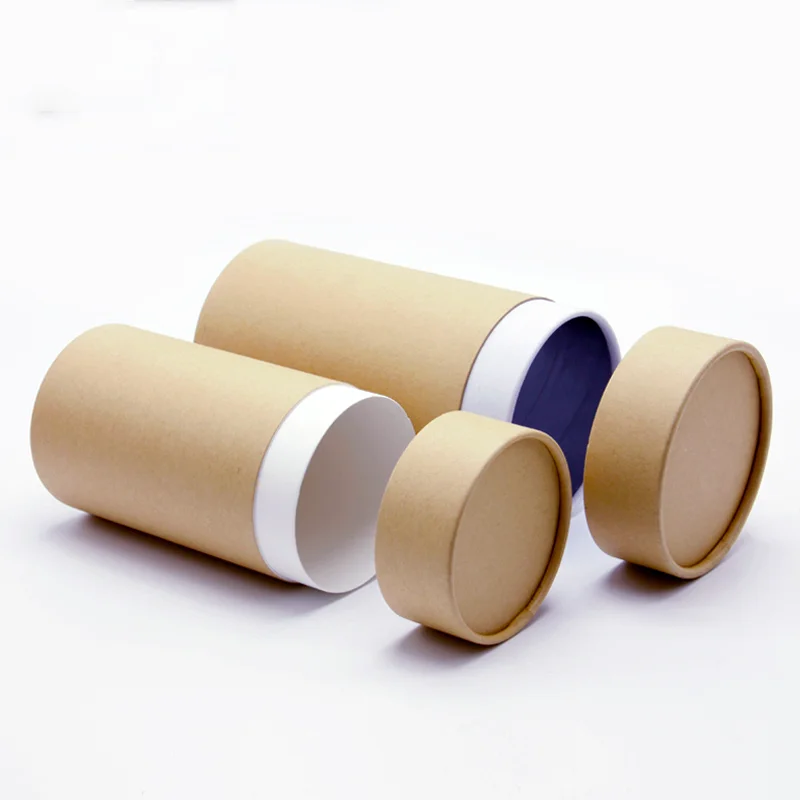

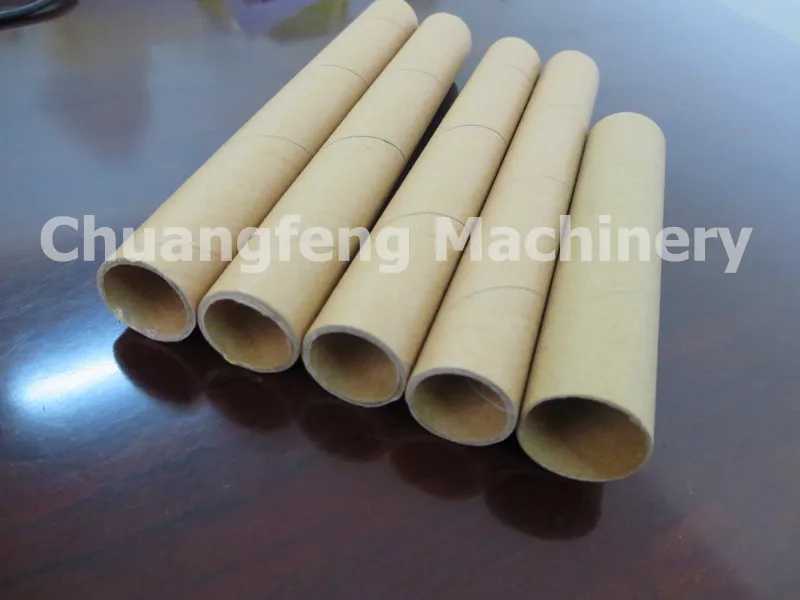

Finished Products

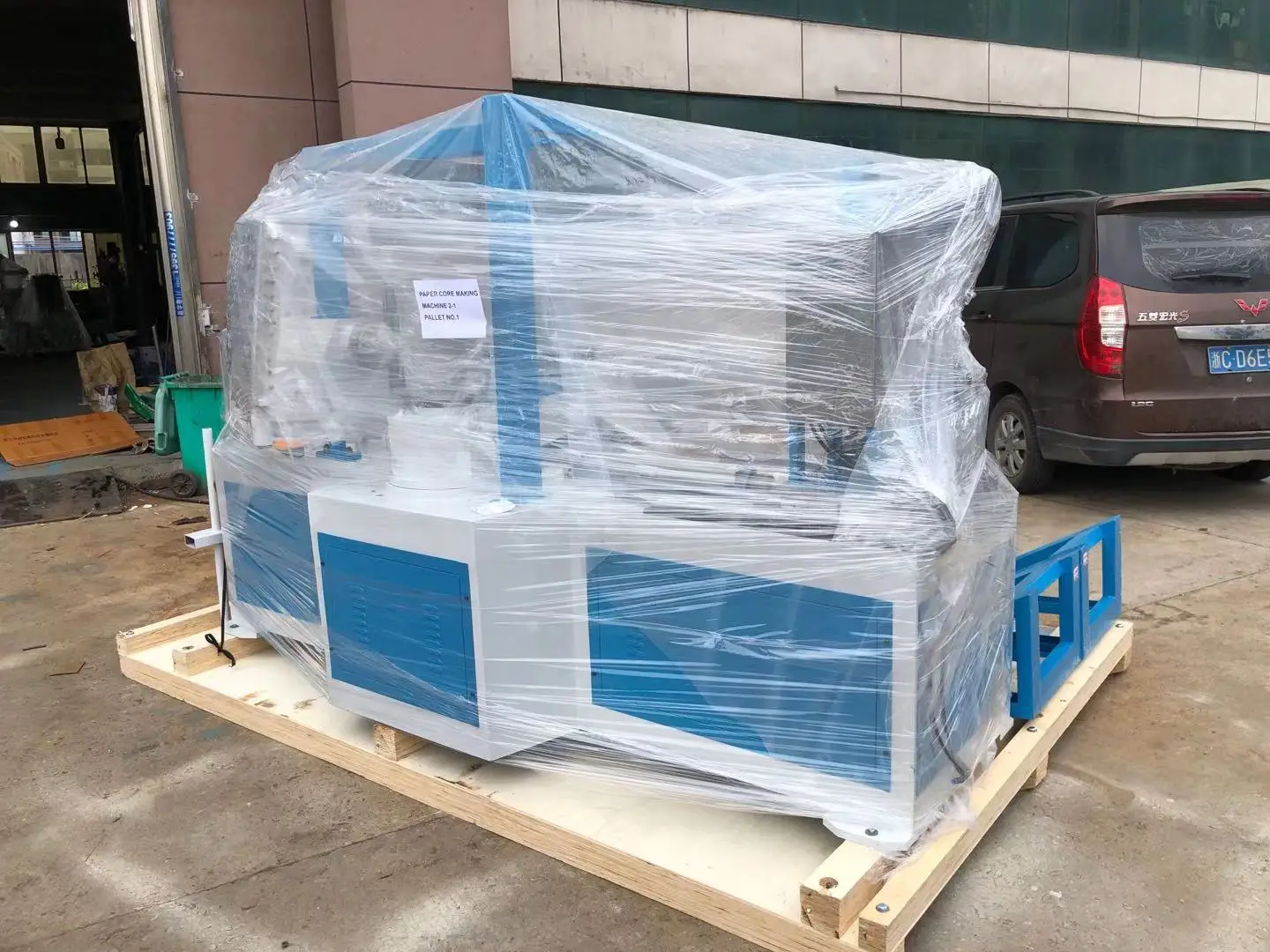

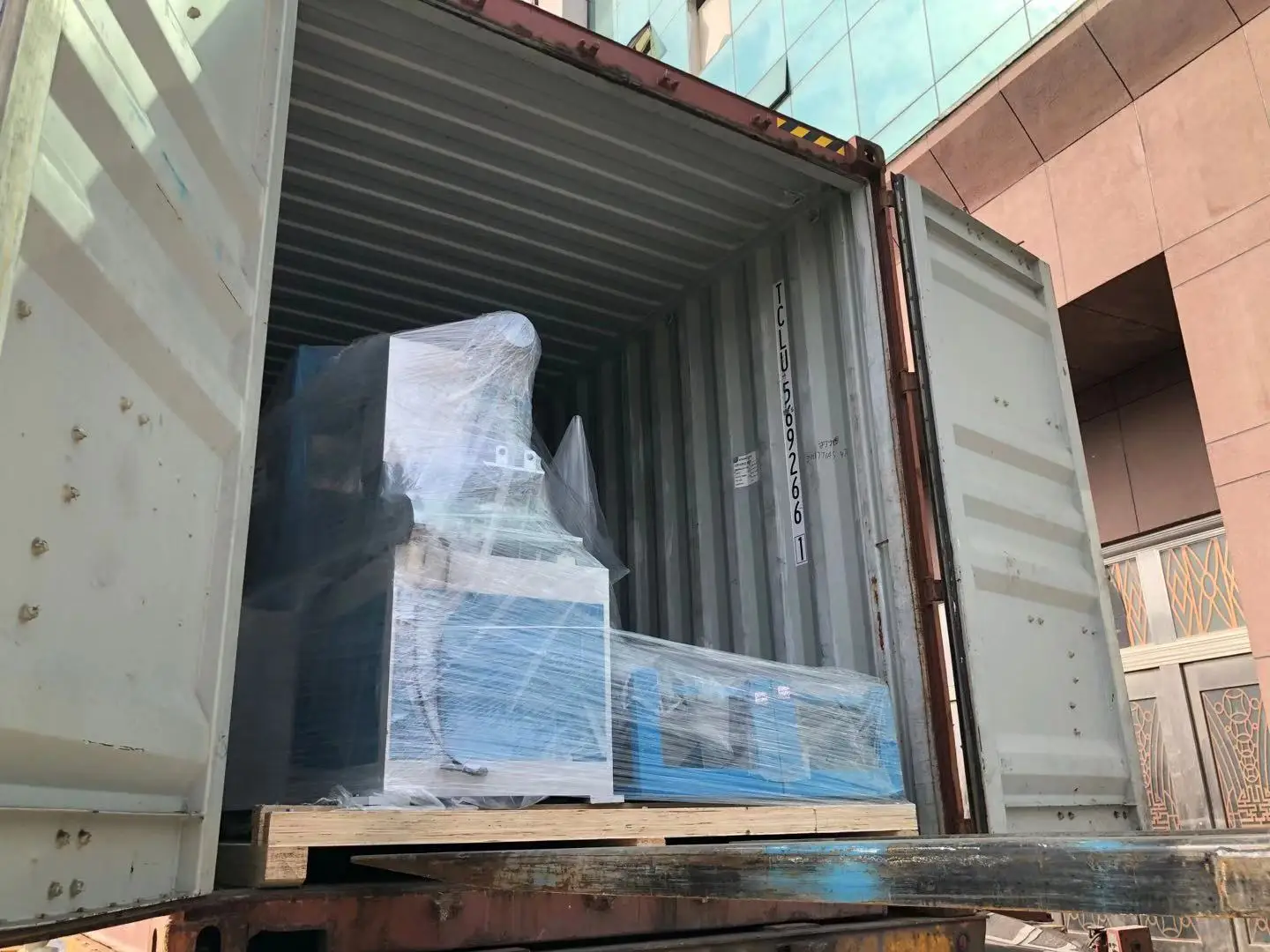

PACKAGING & DELIVERY

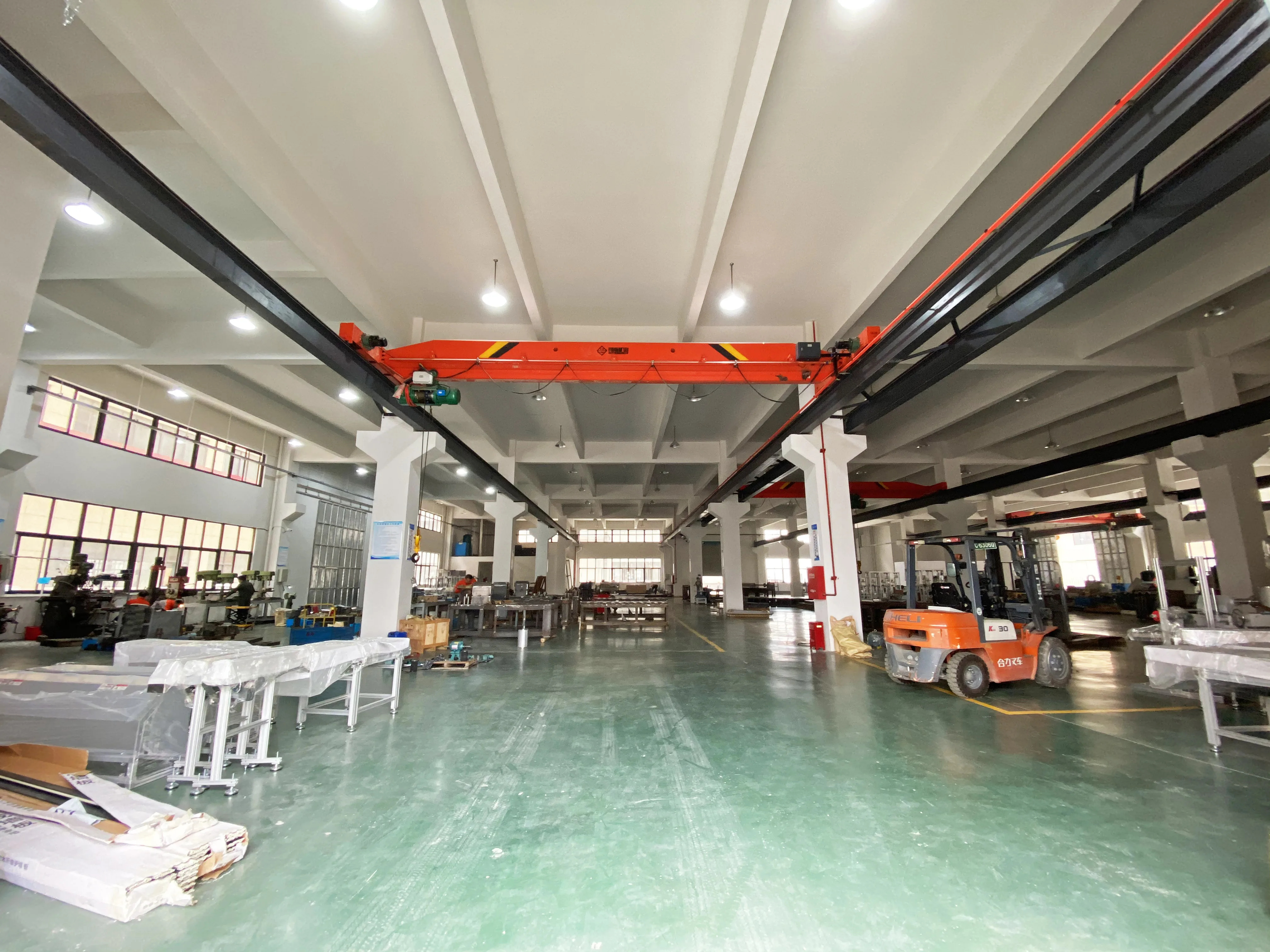

COMPANY PROFILE
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has more than 15 years’ experience on paper tube & core machine manufacturing.
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan,Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan, USA, etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide
customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan,Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan, USA, etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide
customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!

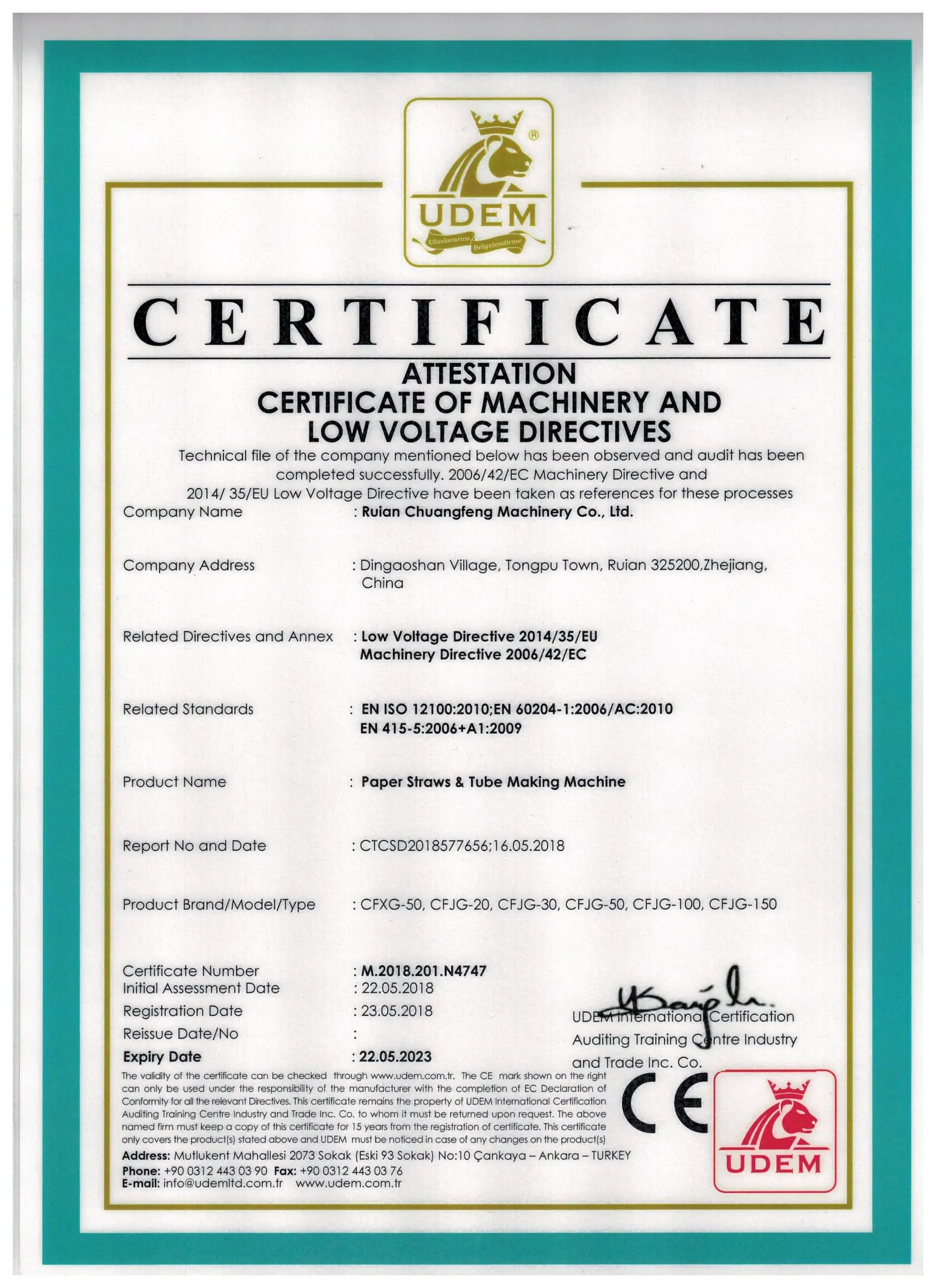

Certifications
