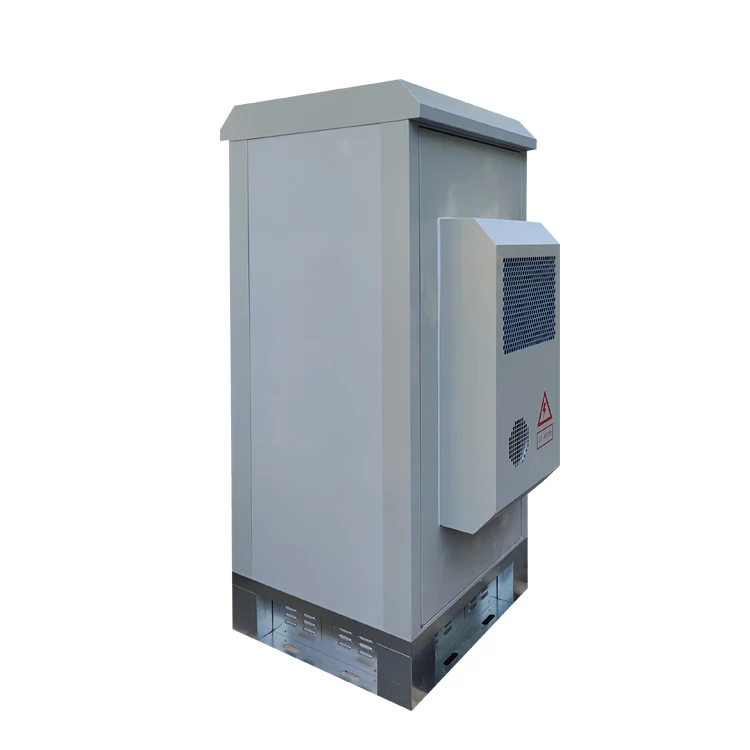

IP55 IP65 30U outdoor telecom equipment cabinet 19 inch rack Enclosure
- Category: Low Voltage Products >>>
- Supplier: Suzhou Langji Technology Co. Ltd.
Share on (11000000896385):
Product Overview
Description
Product Description

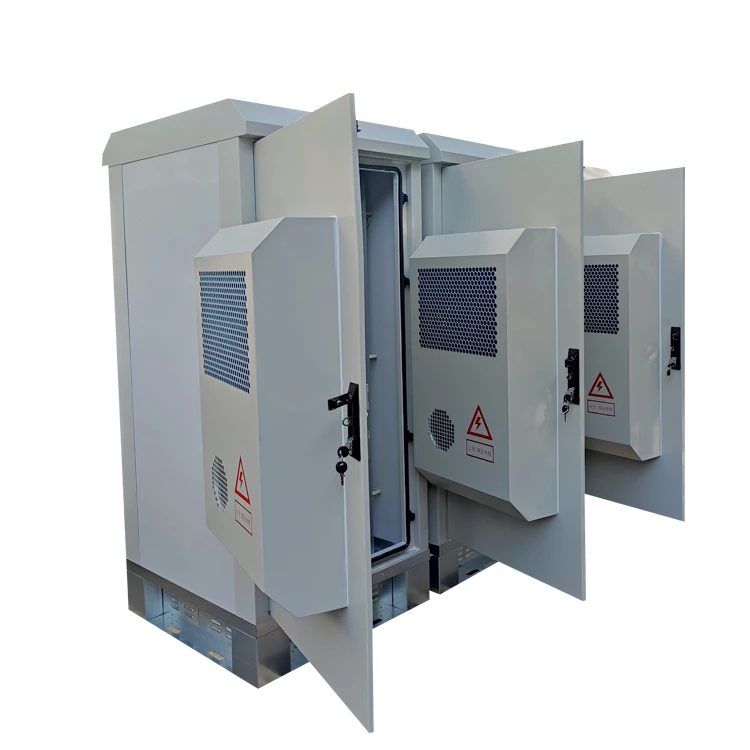

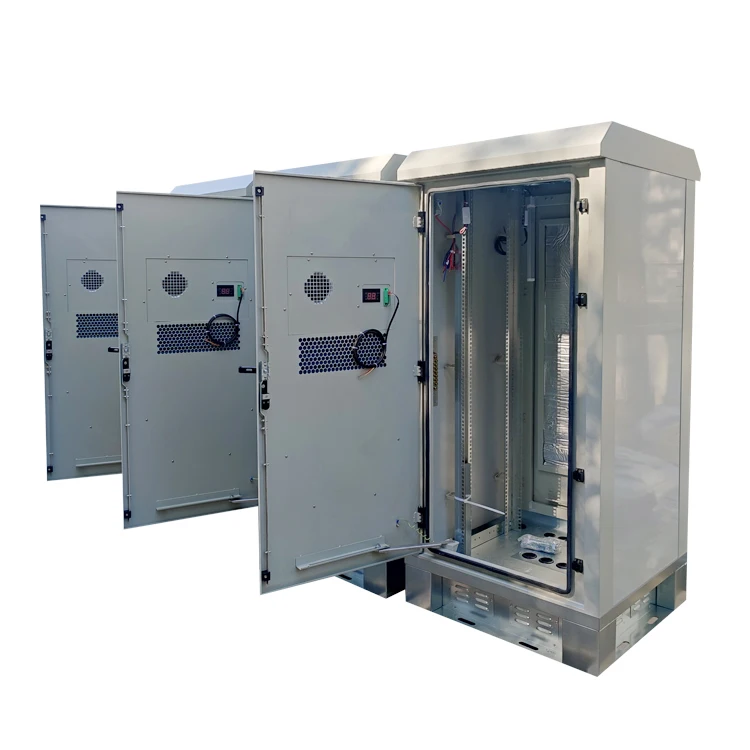

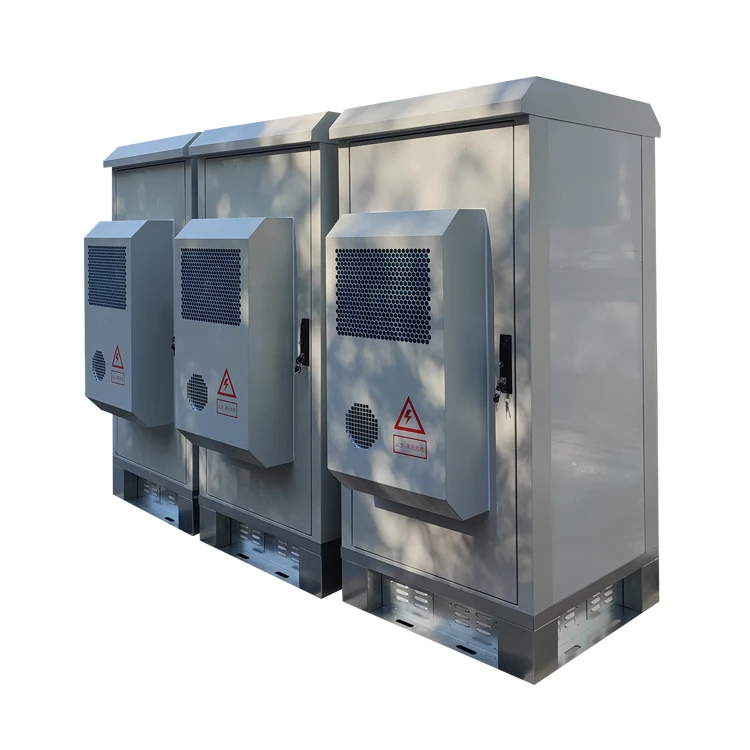

IP55 IP65 30U outdoor telecom equipment cabinet 19 inch rack Enclosure
Product Features
· Sandwich panel construction
· Attractive powder coat finish
· 19’’ usable space 30U
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· IP55 cabinet, walls and roof in double steel with high quality insulation
· Anti-theft four-point outdoor cabinet lock, excellent keyhole pr otection device
· High performance Air-conditioning unit for heat removal
· Door stopper to hold door open at service
· Pass earthquake intensity 8 anti-seismic performance test
· Support custom-made
· Attractive powder coat finish
· 19’’ usable space 30U
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· IP55 cabinet, walls and roof in double steel with high quality insulation
· Anti-theft four-point outdoor cabinet lock, excellent keyhole pr otection device
· High performance Air-conditioning unit for heat removal
· Door stopper to hold door open at service
· Pass earthquake intensity 8 anti-seismic performance test
· Support custom-made
Technical Data Sheet
Model | LAE1400 | LAE1800 | Customize | ||
Internal Dimension(H*W*D) | 1400*650*650MM | 1800*800*800mm | 7U~42U support customize /OEM/ODM | ||
External Dimension(H*W*D) | 1700*750*750MM | 2100*900*900mm | / | ||
Internal use space | 30U | 40U | / | ||
Brand Name | Langji | ||||
Certification | ISO9001/ISO14001/CE/IP55 | ||||
Material | Galvanized steel/Aluminum/stainless steel/Color coated steel | ||||
Color | RAL7035 GREY/Pantone428C/Custom | ||||
Door | one front door/ two doors | ||||
Structure | Welded/Frame/Assembly | ||||
Hinge | Embedded | ||||
Lighting | 48V LED Lamp | ||||
Lock | 4 point security lock | ||||
Equipment installation method | 19’’ rack | ||||
Cable enter method | Bottom of the cabinet | ||||
Cooling | AC DC Cabinet air conditioner/Emergency Fans/Heat plate exchanger | ||||
Working temperature | -40～55℃ | ||||
IP Grade | IP55/IP65/NEMA | ||||
Grounding protection | Cooper bar | ||||
MOQ | 1 Unit | ||||
Package | Wooden case/ export pallet | ||||
Payment | T/T,L/C,Western Union | ||||
Warrenty | 1 Year | ||||
Delivery time | 15~20 working days | ||||
Accessory List(options) | ||||
No. | Item | Specification | ||
1 | Fan | DC48V Fan,work at 35℃ | ||

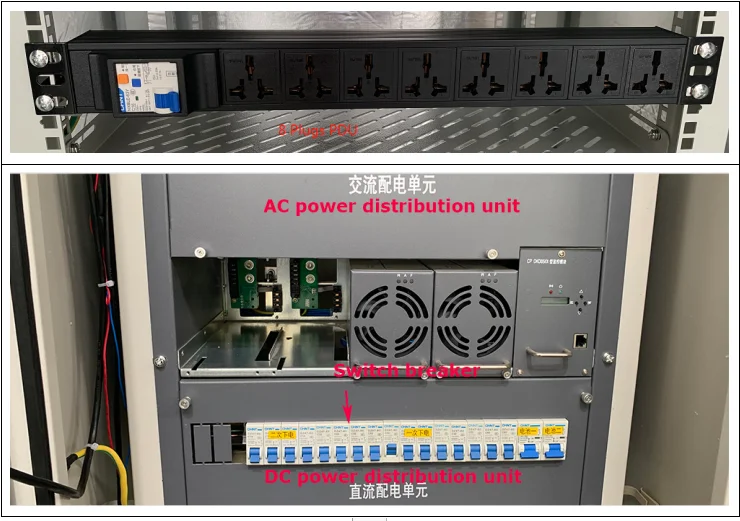

2 | PDU | Garde B lightning proof AC INPUT:63A/2P *1 AC OUTPUT:16A/1P *4 DC OUTPUT:16A/1P *4 or customer requirement | ||
3 | Heat Insulation | Heat insulation between inner wall and outer wall. The insulation material is 20~45mm EPS or PVC/NBR. | ||

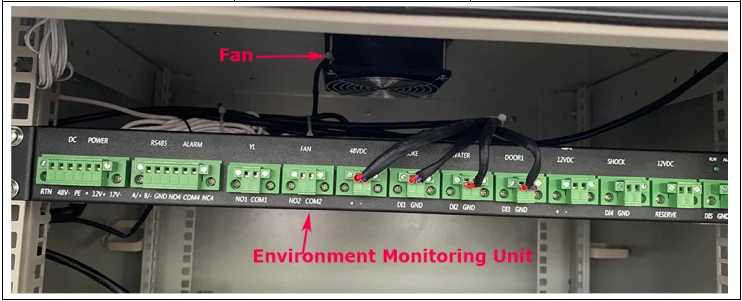

4 | Environment Monitoring Unit | 48VDC Communication port:RS485,TCP/IP,SNMP optional | ||
5 | Door Sensor | Monitor door open status inside cabinet and provide real time alarm | ||
6 | Water Sensor | Monitor water status inside cabinet and provide real time alarm | ||
7 | Tilt & shock sensor | Monitor shock status inside cabinet and provide real time alarm | ||
8 | Temperature & Humidity sensor | Monitor temperature and humidity inside cabinet and provide real time alarm | ||
9 | Smoke sensor | Monitor smoke status inside cabinet and provide real time alarm | ||
10 | Built-in power supply | 150A/200A/300A | ||
Cooling System(Options) | ||||
1 | Air conditioner | AC220V/DC48V, 300W,400W,500W,600W,800W,1000W,1500W,2000W,2500W,3000W,3500W,4000W;AC380V 5000W | ||
2 | Heat exchanger | AC220V/48V, 80W/K,100W/K,120W/K,150W/K,200W/K | ||
3 | Fan | DC48V | ||
Product details
Product Application

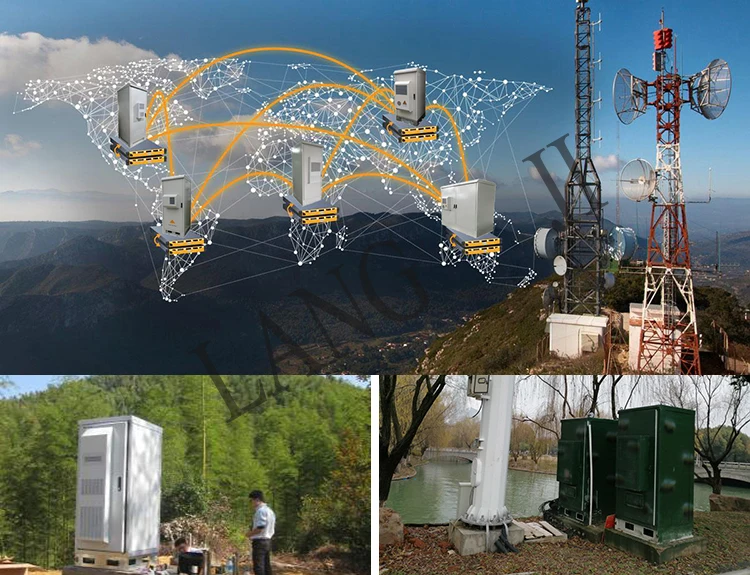

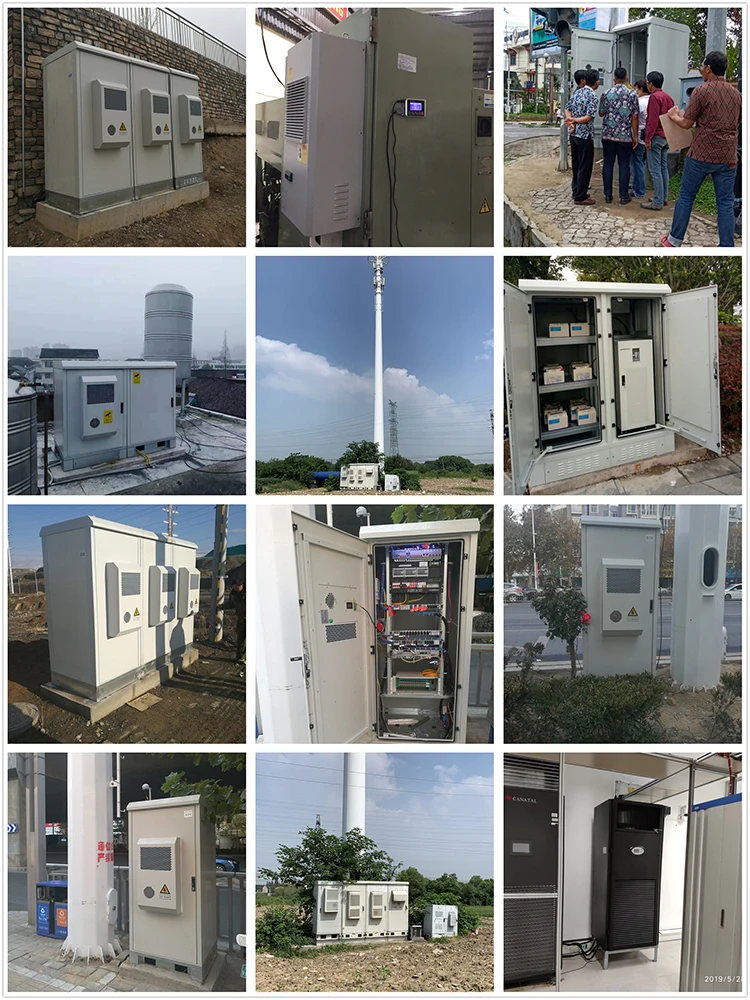

Outdoor Telecommunication Cabinet is mainly used for wireless communication base station, including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission, etc.
Suzhou Langji a professional manufacturer outdoor telecom cabinet, cabinet air conditioner, plate heat exchanger over 13 years' experience. The products are certified by CE and CCC. Our products are sold in many countries and regions, including South-east Asia, the Russia, Europe, South America, the USA. Our excellent quality makes us enjoy a high reputation at home and abroad.
Our Exhibition
Packing & Delivery
Contact us
Email | mina.zhu@szlangji.com |
Phone Number | +86-15039286028 |
Wechat/Whatsapp/Skype | +86-15039286028 |
Tel | +86-512-66892668 |
Fax | +86-512-66592789 |
Manufacturer | Suzhou Langji Technology Co., Ltd. |
Add | No. 58, Tongxin Road, Tongan Town, High-Tech Zone, Suzhou, Jiangsu province, China |
FAQ
Q1.Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q4: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q5: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q6: How do you ship the goods and how long it will take?
A: We normally make shipment by EMS,UPS, Fedex, TNT, DHL or AIR for small order,which usually takes about 5-12 days. And by SEA for bulk order, which usually takes about 1-2 months depend on the destination.
Q7: What are the payment terms?
A: T/T, L/C, Trade Assurance, Western Union or others.
Q8: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
Q9: Can I visit your company and factory in China?
A: Pls call sales representative, we pick you up .or you can visit us anytime at factory address show in website.
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q4: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q5: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q6: How do you ship the goods and how long it will take?
A: We normally make shipment by EMS,UPS, Fedex, TNT, DHL or AIR for small order,which usually takes about 5-12 days. And by SEA for bulk order, which usually takes about 1-2 months depend on the destination.
Q7: What are the payment terms?
A: T/T, L/C, Trade Assurance, Western Union or others.
Q8: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
Q9: Can I visit your company and factory in China?
A: Pls call sales representative, we pick you up .or you can visit us anytime at factory address show in website.
