60 600 gsm Shaftless Slitter Rewinder Machine 2021
- Category: >>>
- Supplier: Wenzhou Chuangfneg Machinery Co. Ltd.
Share on (11000000910304):
Product Overview
Description

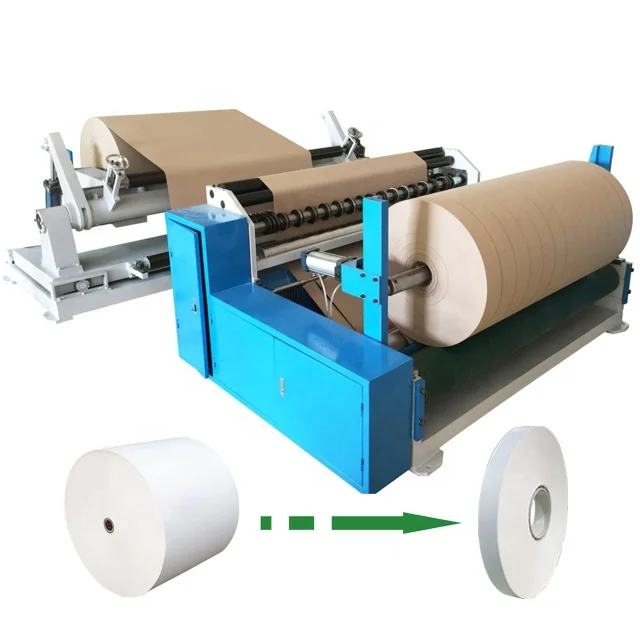

CFFQ-200 SPlit Paper Slitter Rewinder
CFFQ-200 Jumbo Paper Slitting Rewinding Machine is suitable for Kraft paper; Tea paperboard; Bobbin paper; Art paper etc.
Features
1. Double blades (upper blades and down blades) slitting. Cutting edges are more smooth and neat.

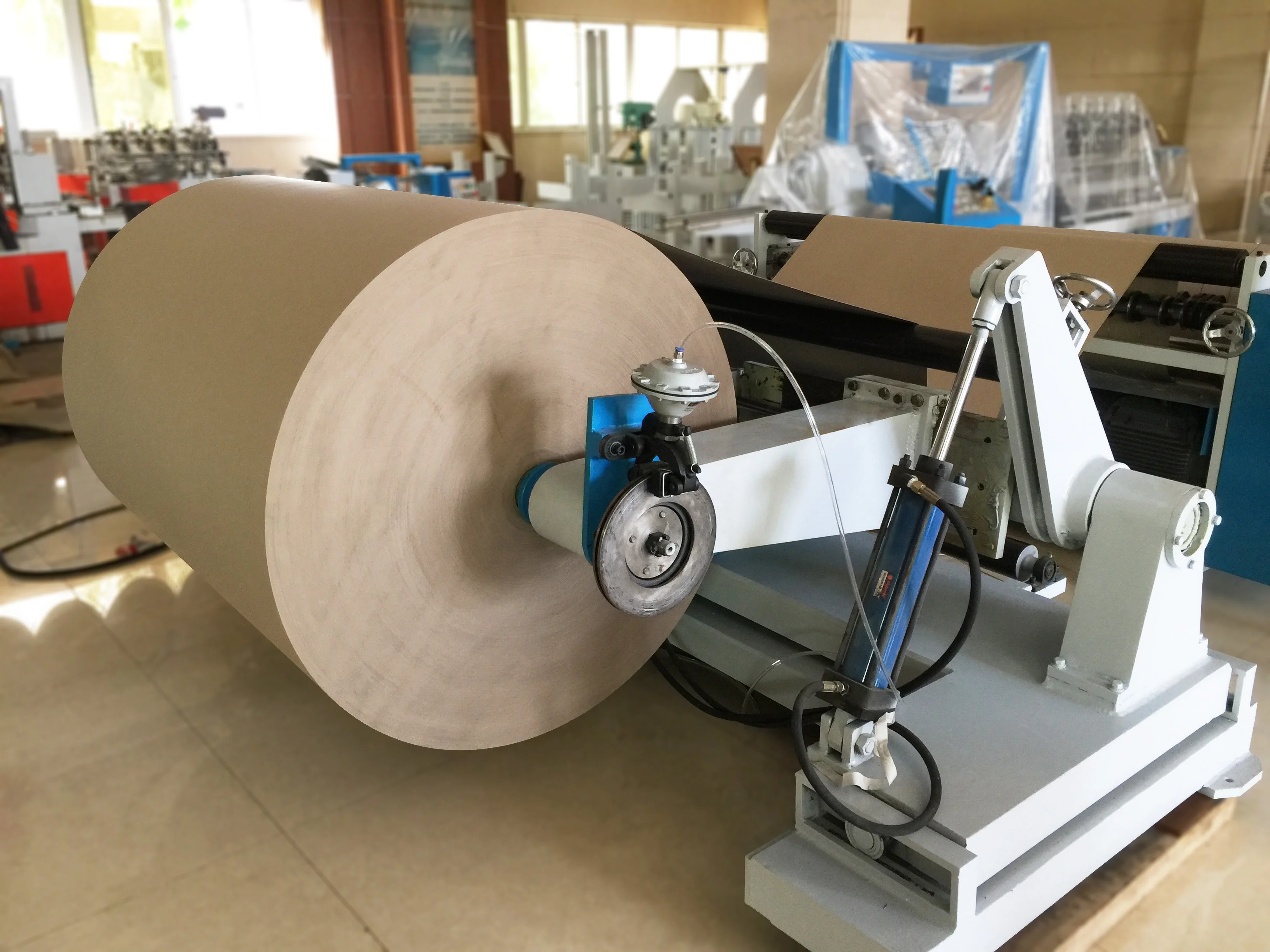

2. Adopt shaftless material loading device which can bear 2000kgs weight.
3. Pneumatic loading and unloading system; material paper roll loading and finished rolls unloading to be automatically.
2. Adopt shaftless material loading device which can bear 2000kgs weight.
3. Pneumatic loading and unloading system; material paper roll loading and finished rolls unloading to be automatically.
PRODUCT CONFIGURATION
Detail

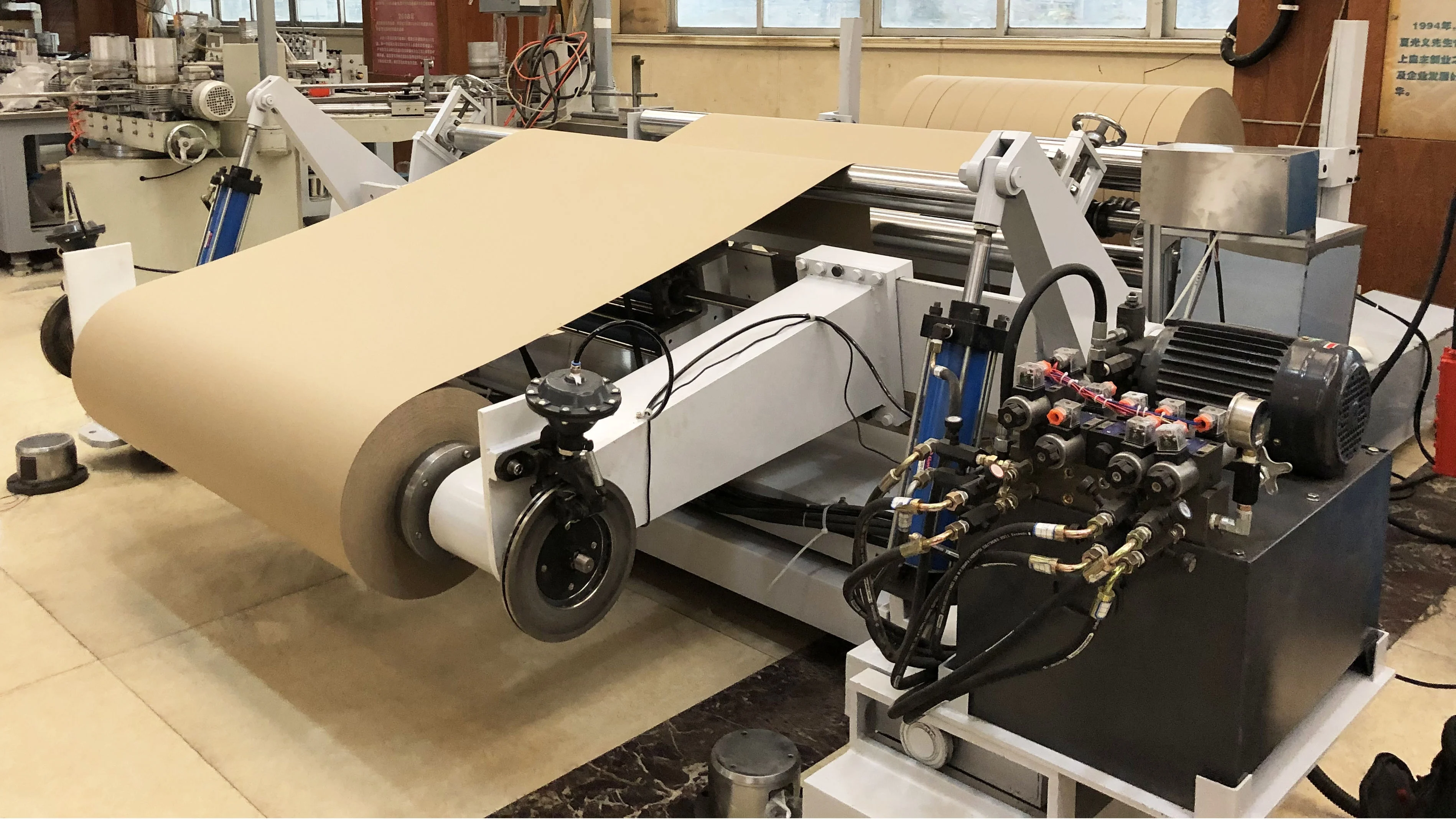

* Shaftless Unloading System; Hydraulic Lifting System.

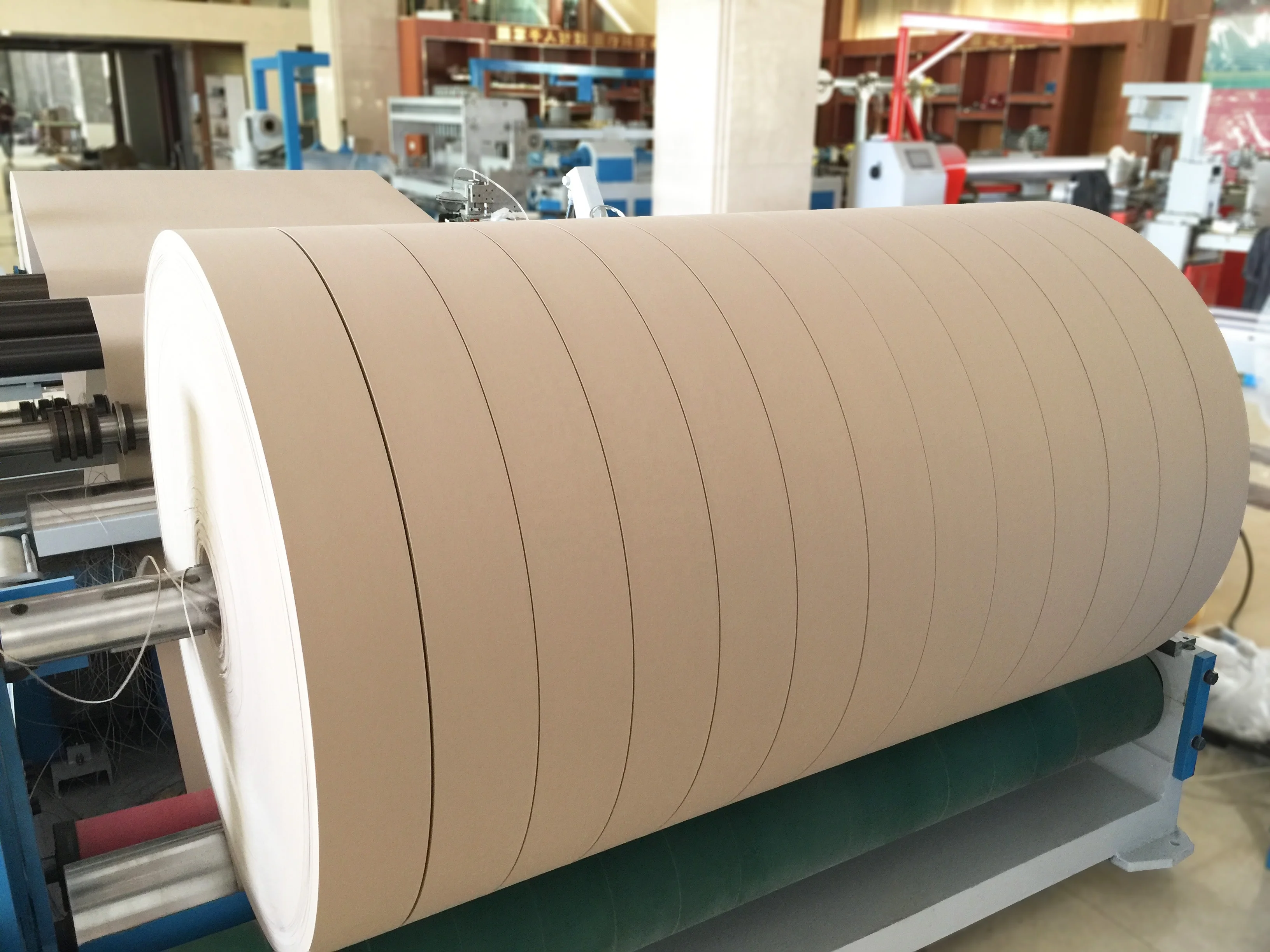

Slitting& Rewinding Side

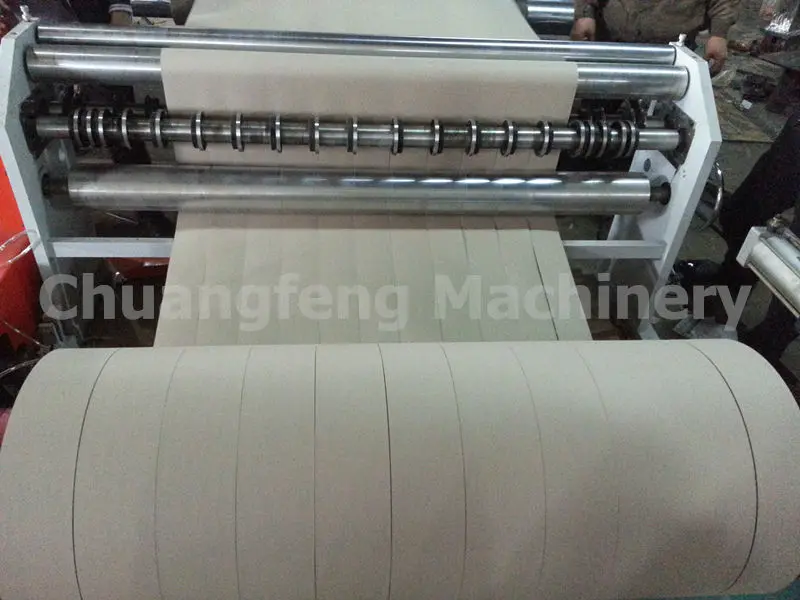

*Multi Blades Slitting -- minimum slitting length is 35mm.
*Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier.
*Rewinding part adopted with air inflatable shaft; finished rolls can be removed more easier.
Detail
* Rewinding side has curved roller and finished rolls can be seperated automatically.
Detail

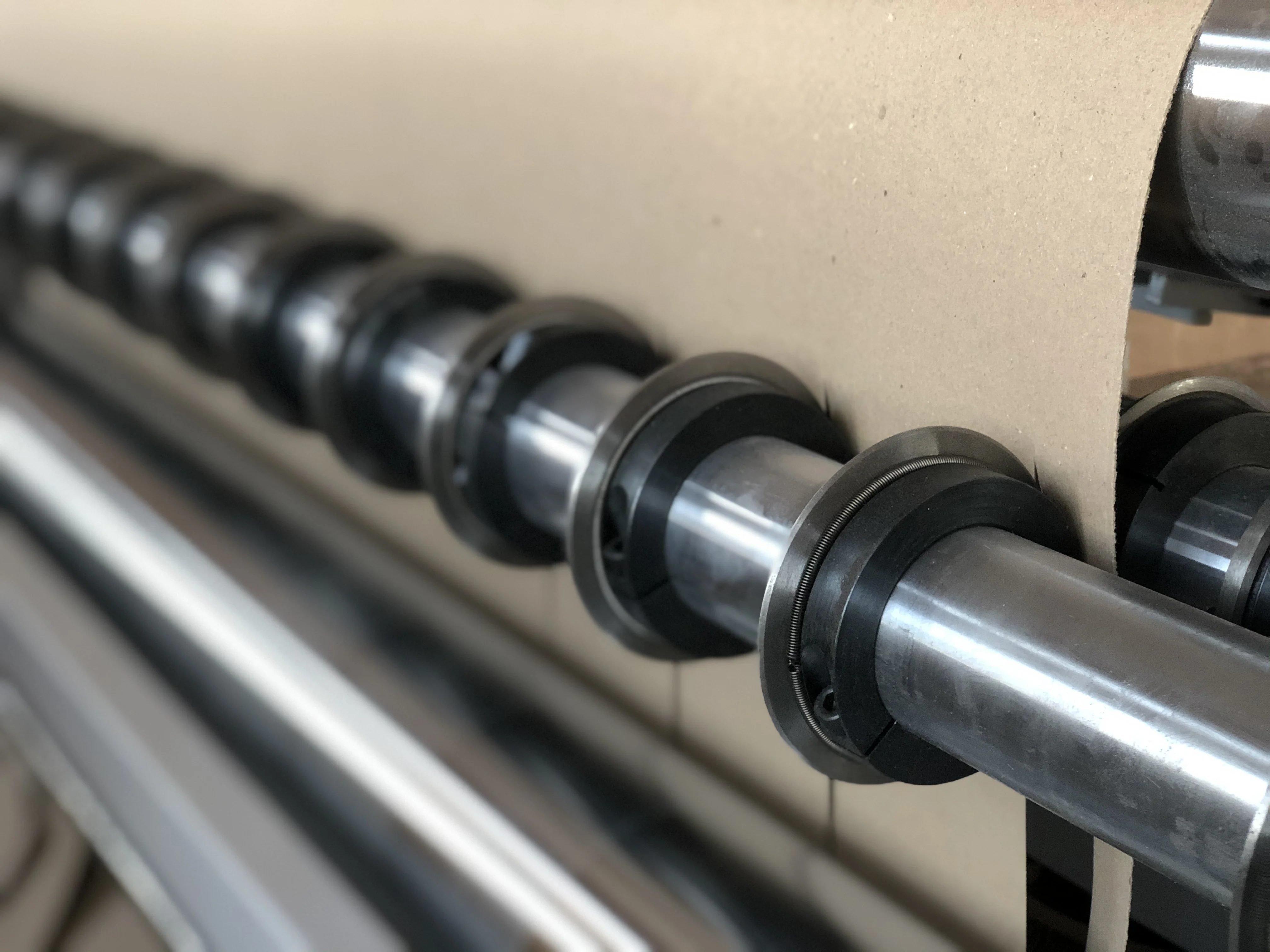

* Top and bottom slitting knives working together makes it more efficient.
PRODUCT SPECIFICATIONS
Model No. | CFFQ-200 | ||||||
Material paper | 60-600 gsm | ||||||
Unwind width | 600-1600 mm | ||||||
Unwind diameter | 1300 mm | ||||||
Rewind diameter | 1300 mm | ||||||
Minimum slitting width | 35 mm | ||||||
Working speed | 0-200 m/min | ||||||
Speed regulation | By inverter | ||||||
Material paper loading device | Shaftless | ||||||
Loading | Automaticlly by Hydraulic | ||||||
Unloading | Automaticlly by pneumatic | ||||||
Power supply | 380 V/50 Hz /3 phase | ||||||
Rewinder device | Air expanding shaft | ||||||
Jumbo paper loading device | 1 pair ( 76mmID ) | ||||||
Hydraulic lifting device | 1 set | ||||||
Discharging air cylinder | 1 piece | ||||||
Braking device | 2 pieces (air brake) | ||||||
Blades | 20 sets (top & botton) | ||||||
Operating box | 1 set | ||||||
Tool | 1 set | ||||||
Curved roller | Have | ||||||
Measurement | 3300*1200*1200 mm (unwind side) | ||||||
3300*1700*1100 mm (rewind side) | |||||||
Weight | 3000 kgs | ||||||

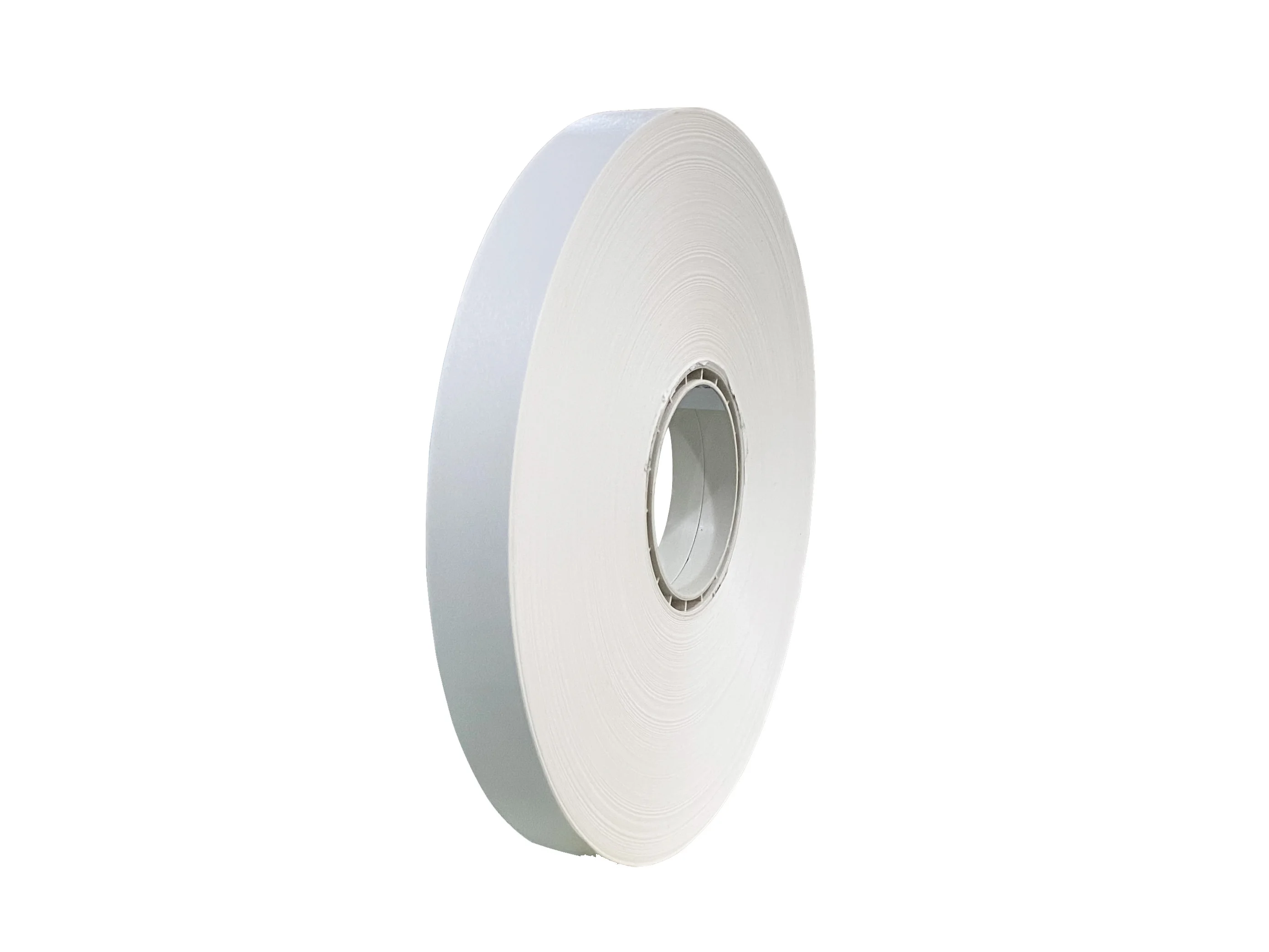

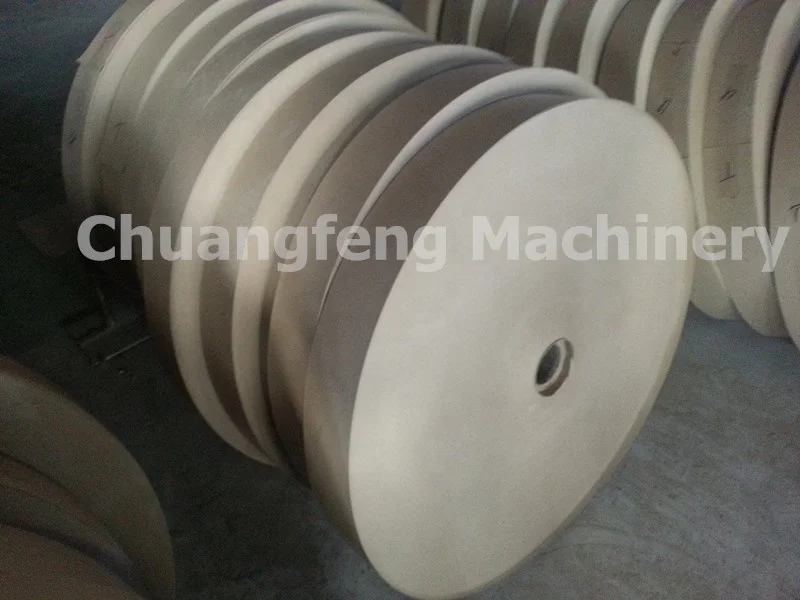

FINISHED PRODUCTS
PACKAGING & DELIVERY

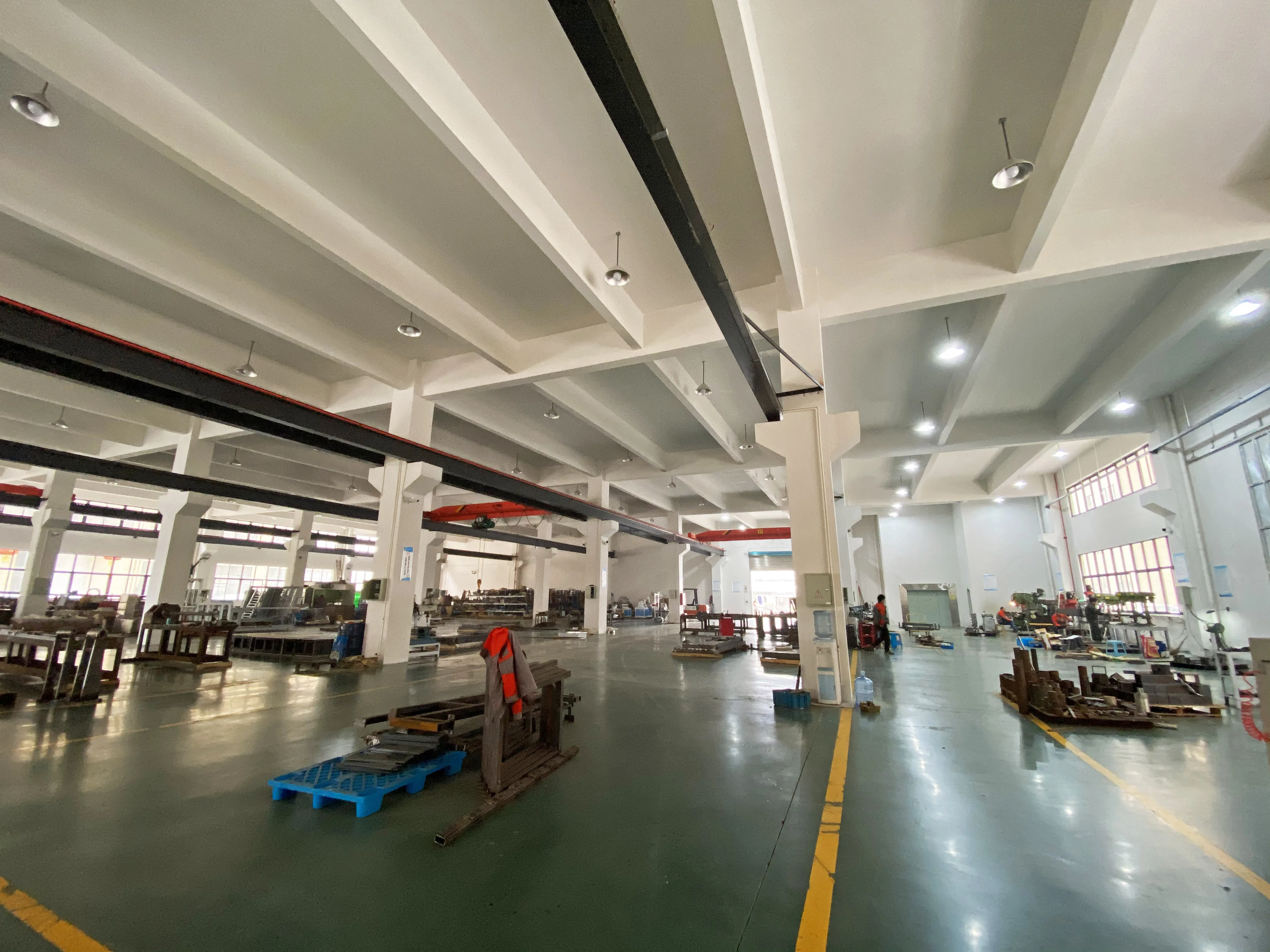

COMPANY PROFILE
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has more than 15 years’ experience on paper tube & core machine manufacturing.
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan,Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan, USA, etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide
customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan,Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan, USA, etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide
customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
