Technical Parameters of 4-colour offset printing machine/web offset press/multi color offset printing machine for sale
Model | AL-ST4660 | AL-ST4740 |
Speed | 12000s.p.h | 12000s.p.h |
Max sheet size | 540*660mm | 540* 740mm |
Min sheet size | 273*393mm | 273*393mm |
Sheet thickness | 0.06-0.6mm | 0.06-0.6mm |
Maximum image area | 528*650mm | 528*730mm |
Plate size | 677*755*0.3mm | 677*755*0.3mm |
Blanket size | 740*680*1.9mm | 740*760*1.9mm |
Maximum feeder pile height | 940mm | 940mm |
Maximum delivery pile height | 780mm | 780mm |
Machine overall dimensions | 7380*2470*1950mm | 7380*2550*1950mm |
Total power of motors | 23kw | 23kw |
Gross weight | 18700kg | 19700kg |

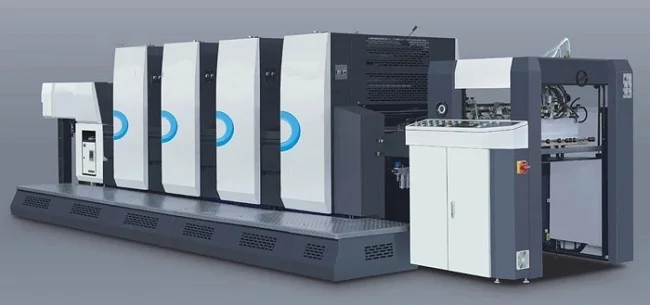

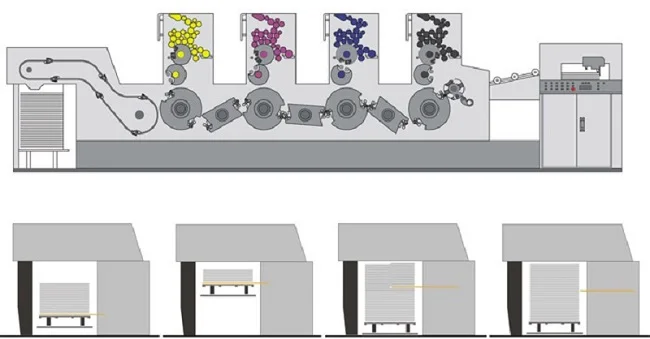

Main Picture of 4-colour offset printing machine/web offset press/multi color offset printing machine for sale

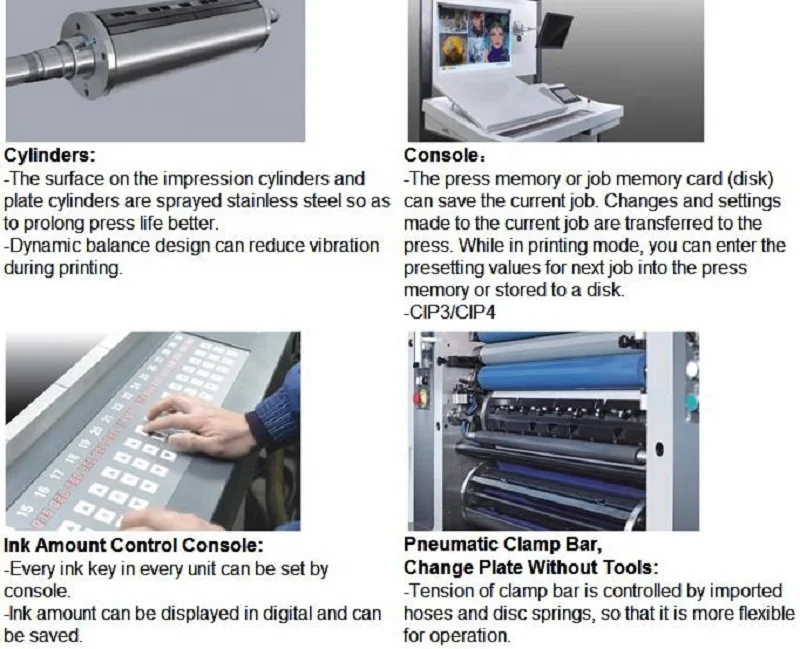

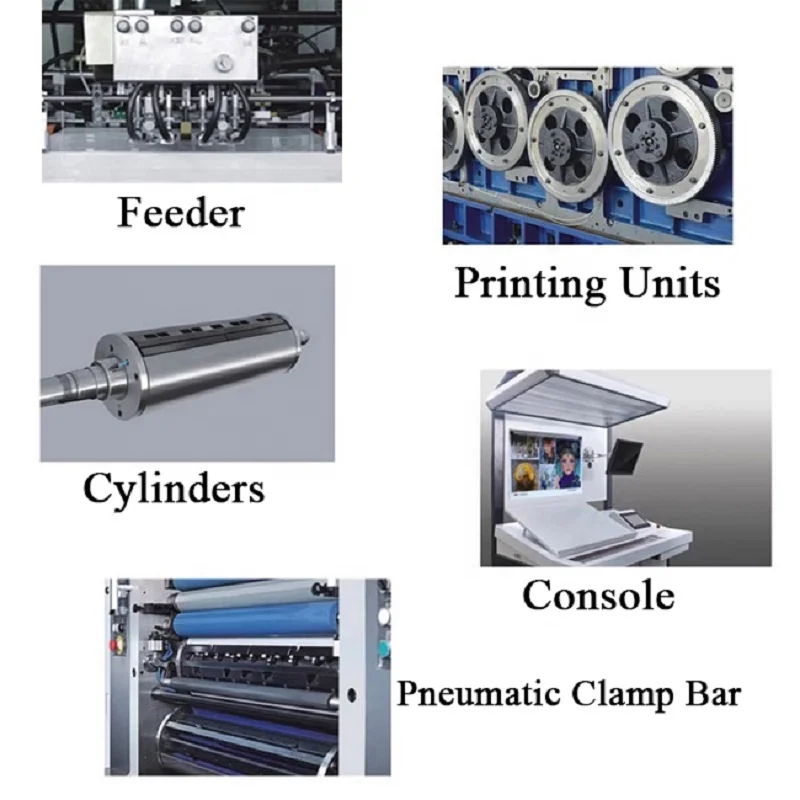

Features of 4-colour offset printing machine/web offset press/multi color offset printing machine for sale
1. The semi APC (Automatic Plate Changer) shortens the make-ready time.
2. To preset paper thickness when printing different kinds of paper. To adjust printing pressure in every unit automatically, quickly and synchronously.
3.With non-stop feeder, piles are changed at production speed. It saves a great deal of time when running thick paper and long version work offline.
4.It is equipped with CC-LINK technological bus module from Mitsubishi.
5.Double-diameter impression cylinder and transfer drum can reduce the times of sheet take-over between print units.
6.The plate cylinder can be adjusted in the circumferential direction, lateral direction and diagonal direction.
7.There are five rollers on the plate cylinder. There is an intermediate roller in alcoholic damping system, achieve
the quick ink-water balance and reduce paper consumption.
8. There are 23 zones in split (staggered) ductor.
Package detail | Wooden Case |
Delivery detail | within 10 working days after receiving your prepayments |
Shipment detail | Express,sea,truck,airplane etc. |
Payment terms | T/T, L/C, Paypal, Western union,Alibaba trade assurance etc. |
MOQ | 1 set |
1) Your inquiry will be replied within 12 hours.
2) Fast delivery time and good after-sale service.
3) Freight forwarder: faster, safer and convenient.
4) Good factory price.
5) Provided test videos and packing pictures before shipping
6) Welcome to visit our factory at any time!
Zhengzhou Allraise Company Ltd has been designing, developing, manufacturing
& marketing Machines for more than 10 years.
We mainly sever china mainland customers in the begining, while in order to adapt to world market development, now we run the exporting business as well.
After years of development, now we have a professional teams with skillful talent, exquisite technique, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
We hope to build a long time cooperation with you and your company.
