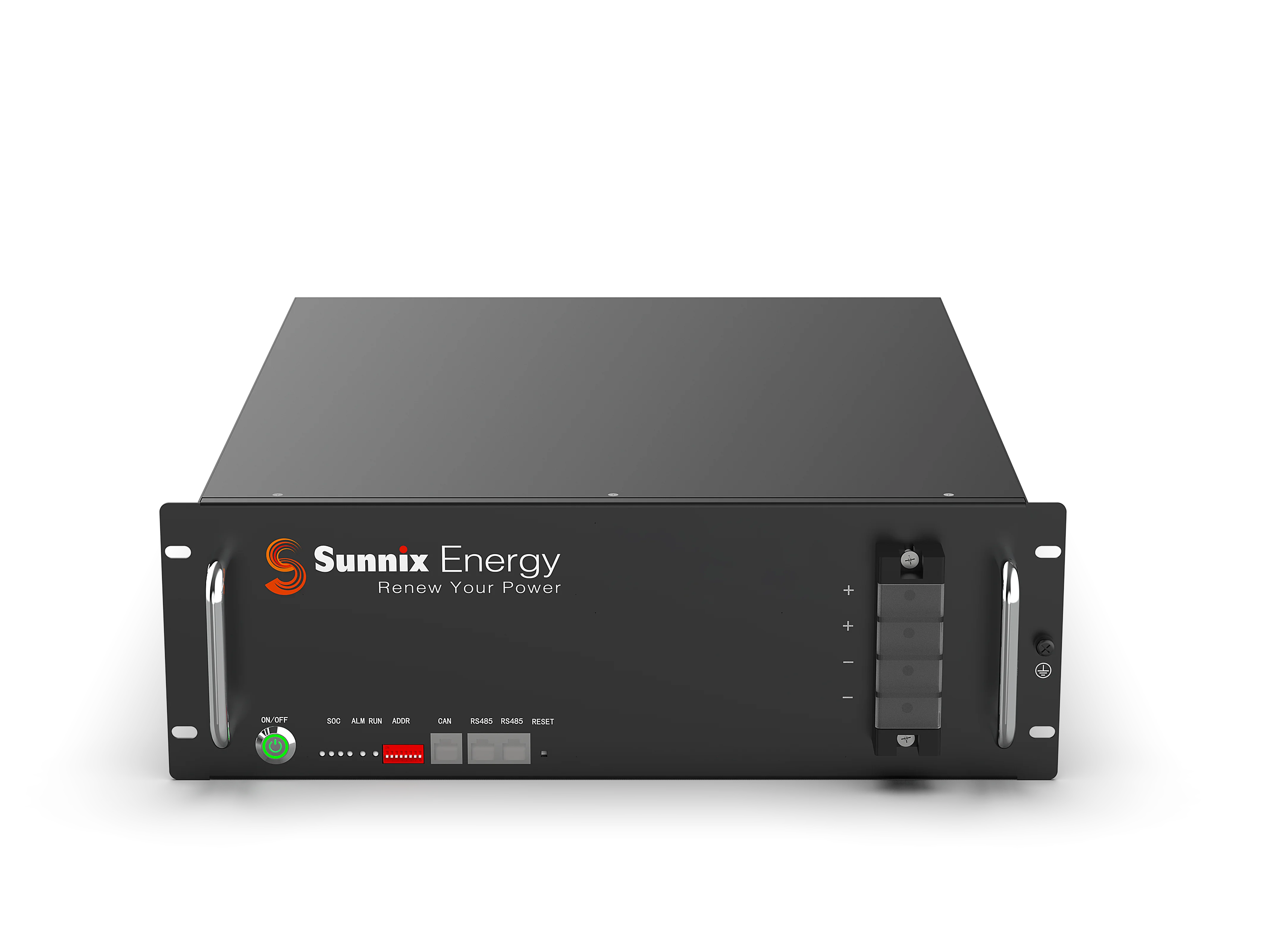

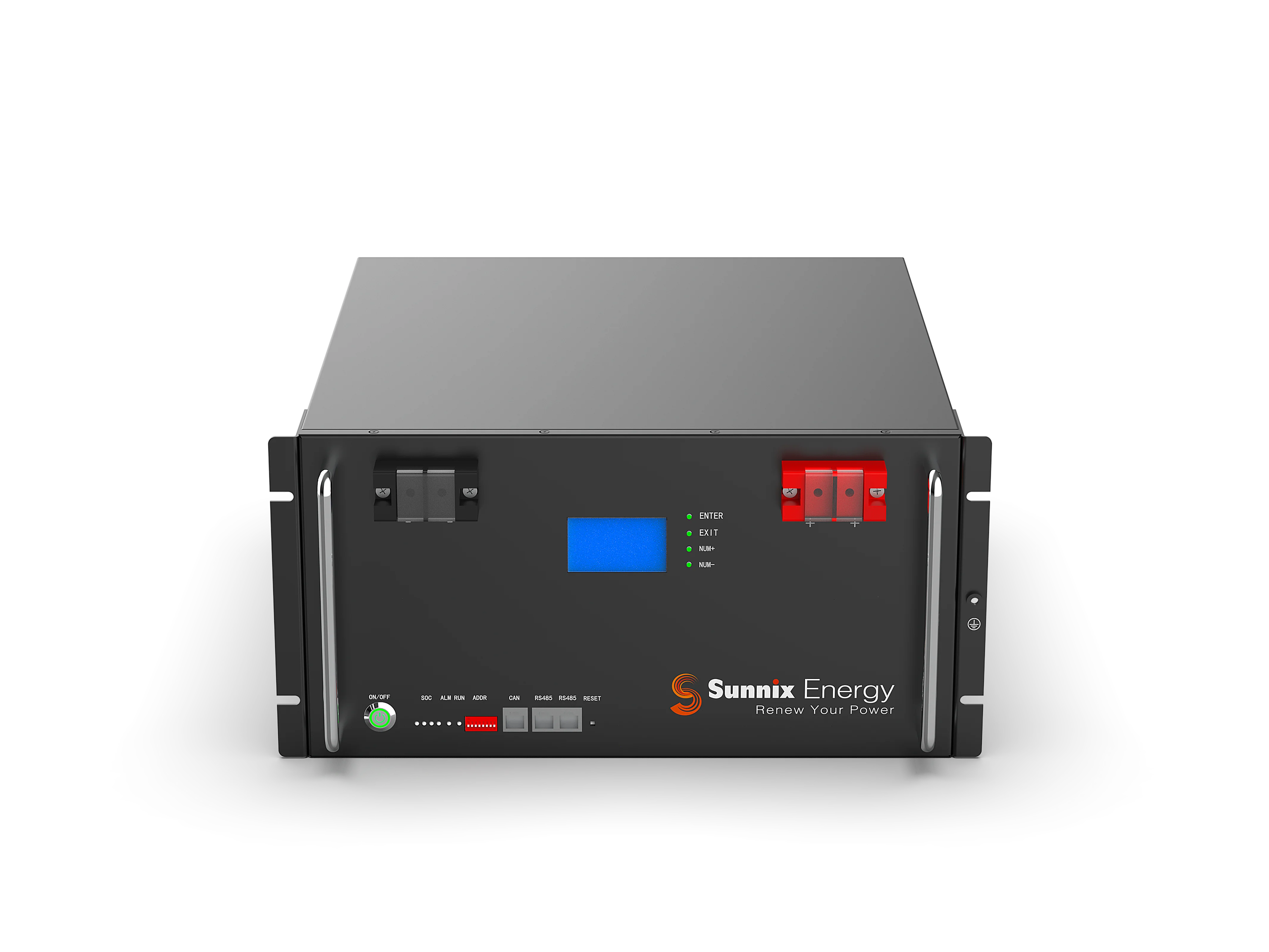

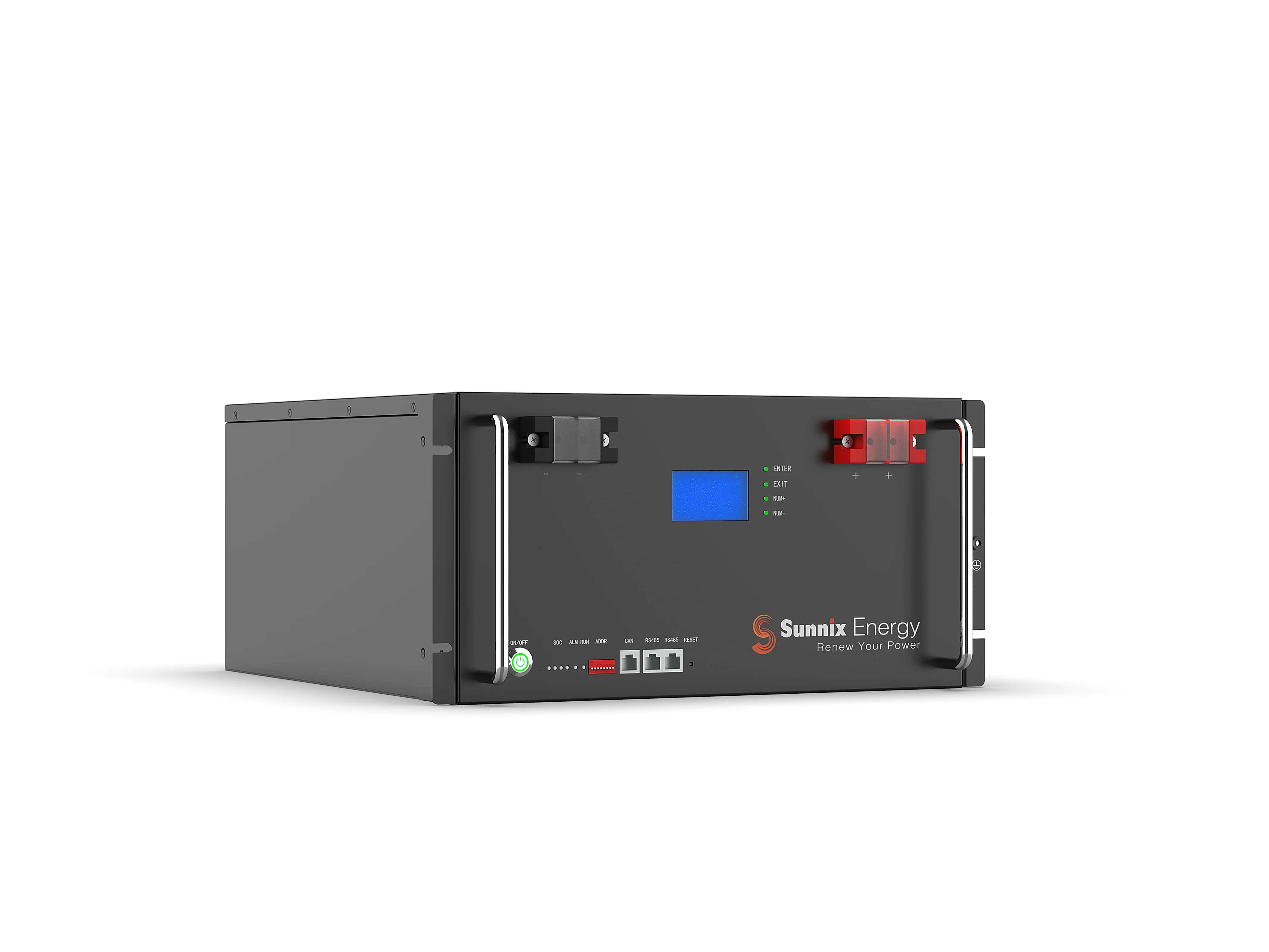

Sunnix 48v 200ah 10KWH Lithium Battery Pack solar for Home Energy Storage
- Category: >>>
- Supplier: Nanjing Alb New Energy Technology Co. Ltd.
Share on (11000000947415):
Product Overview
Description
Products Description
Configuration Details&Specification
Deep cycle Rechargeable 48V 200Ah LiFePO4 Battery with BMS | ||||||
Electric Characteristics | ||||||
Nominal Voltage: | 51.2V | Energy: | 10240Wh | |||
Rated Capacity: | 200Ah | Specifi Energy: | 120.5Wh/kg | |||
Internal Resistance: | ≤20mΩ | Cycle Life: | 2000+ | |||
Charging and Discharging Parameters | ||||||
Charge cut-off volt: | 58.4V | Discharge cut-off volt: | 40V | |||
Maximum Charge current: | 100A | Maximum Discharge current: | 200A | |||
Peak Discharge current: | 300A | Suggested charge Volt: | 58.4V | |||
Operation Temperature Parameters | Storage Temperature Parameters | |||||
Charge: | 0~45℃ | Less than a year: | 0~25℃ | |||
Discharge: | -20~60℃ | Less than three months: | -10~35℃ | |||
Recommended: | 18~28℃ | |||||
Mechanical Properties | ||||||
Dimension Length: | 680mm(26.77 inch) | Housing materials: | Matel | |||
Dimension Width: | 280mm(11.02inch) | Terminal size: | M8 | |||
Dimension Heigth: | 250mm(9.84 inch) | Cell model: | 3.2v 100ah | |||
Weight: | 85kg(187.3 lbs) | Configuration: | 16S2P | |||
BMS function: | ||||||
Protect battery from Overcharge, Overdischarge, Overcurrent, Short circuit | ||||||
Advantage: | ||||||
High safety(no fire,no explosion) | Light weight | High energy density | Long lifespan | |||
Environmentally friendly | Waterproof | No memory effect | Easy maintenance | |||
Why choose us: | ||||||
High qualified : ISO9001, CE,BIS,MSDS, UL,UN38.3 | ||||||
Strict inspection: Every step from incoming to shipping | ||||||
Fast lead time: 10-12 days will reach customers for samples | ||||||
Quality assurance: 2 years warranty | ||||||

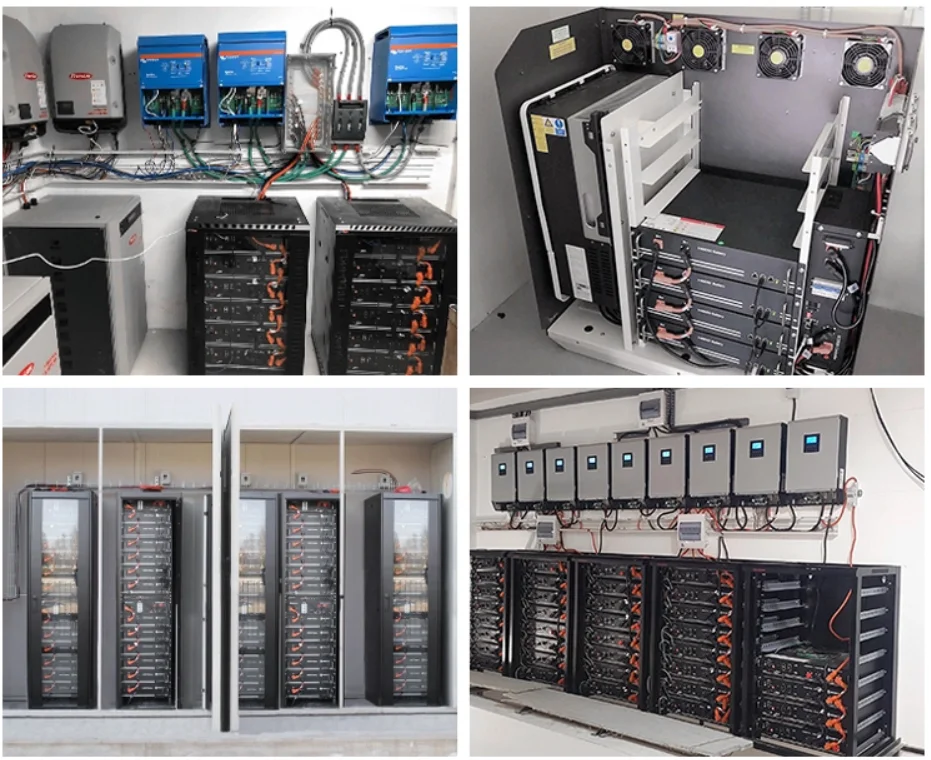

Application
Related Products

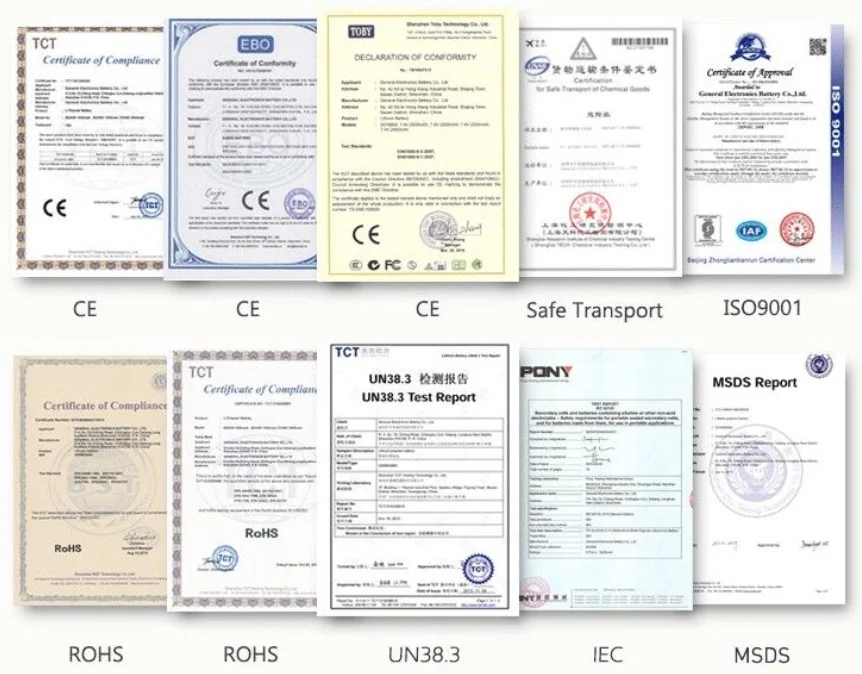

Certifications

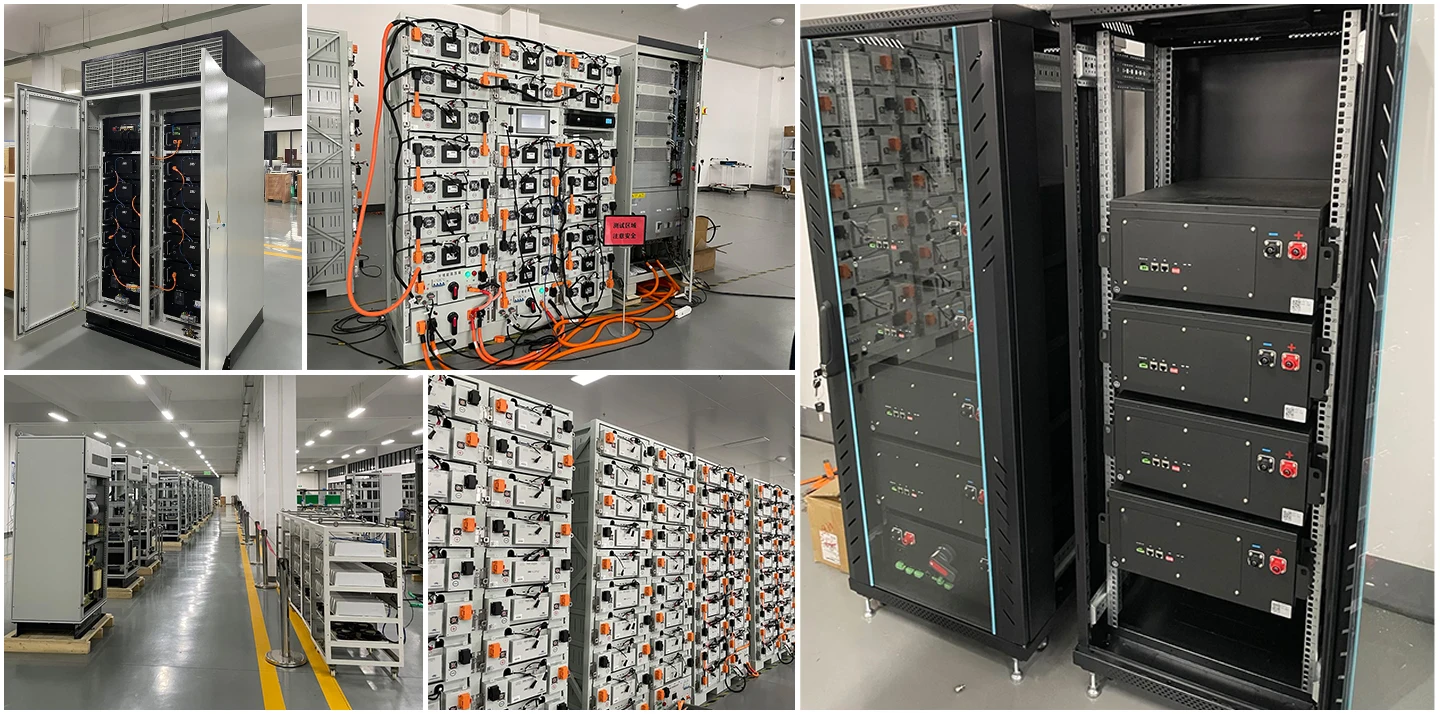

Our Factory
Packing&Shipping

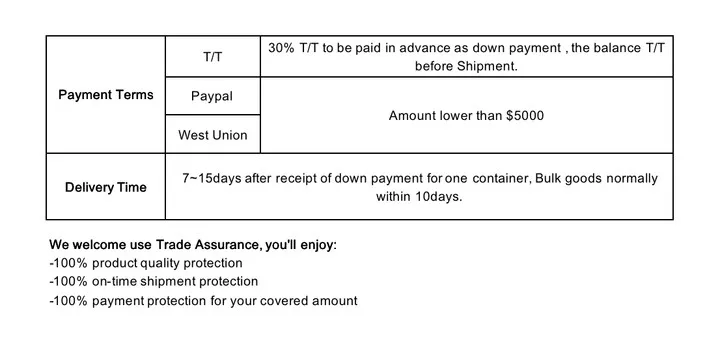

Payment Terms
