NeoDen 3V desktop smt pick and place mini machine with two smd components mounting head two HD CCD cameras
- Category: >>>
- Supplier: Zhejiang Neoden Technology Co. Ltd.
Share on (11000000981584):
Product Overview
Description
NeoDen 3V desktop smt pick and place mini machine with two smd components mounting head two HD CCD cameras
Product Description
NeoDen3V is an upgraded version of TM245P series.
pick and place smt machine pick n place machine pcb pick and place machine smt placement machine
pick and place smt machine pick n place machine pcb pick and place machine smt placement machine
It features with dual head, 44(advanced)/24(standard) feeder slots, vision system and flexible positioning system,which is suitable for prototyping, small-medium batch production with stable performance and affordable price.
cheap pick and place machine low cost smt pick and place machine smt pick and place equipment
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
cheap pick and place machine low cost smt pick and place machine smt pick and place equipment
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
used smt pick and place machine pick and place robot pnp machine small smt pick and place machine smd mounting machine smt placement equipment table top pick and place machine smt assembly equipment smd assembly machine
Specification
Model | NeoDen3V(Standard) | NeoDen3V(Advanced) | ||||
Number Of Heads | 2 | 2 | ||||
Alignment | Vision | Vision | ||||
Rotation | ±180° | ±180° | ||||
Placement Rate | 5000CPH(without vision)； 3500CPH(with vision) | 5000CPH(without vision); 3500CPH(with vision) | ||||
Feeder Capacity | Tape feeder:24(all 8mm) | Tape feeder:44(all 8mm) | ||||
Vibration feeder: 0~5 | Vibration feeder: 0~5 | |||||
Tray feeder: 5~10 (Customization supported) | Tray feeder: 5~10 (Customization supported) | |||||
Board Dimension | Maximum:320*420mm | Maximum:320*390mm | ||||
Component Range | Smallest components:0402 | Smallest components:0402 | ||||
Largest components:TQFP144 | Largest components:TQFP144 | |||||
Max height:5mm | Max height:5mm | |||||
Numbers Of Pumps | 3 | 3 | ||||
Placement Accuracy | ±0.02mm | ±0.02mm | ||||
Operate System | WindowsXP-NOVA | WindowsXP-NOVA | ||||
Power | 160~200W | 160~200W | ||||
Electricity Supply | 110V/220V | 110V/220V | ||||
Machine Size | 820(L)*650(W)*410(H)mm | 820(L)*680(W)*410(H)mm | ||||
Packing Size | 101(L)*79(W)*58(H)cm | 101(L)*96(W)*58(H)cm | ||||
Net Weight | 55kg | 60kg | ||||
Gross Weight | 80Kg | 85kg | ||||
1)Pick and Place Machine NeoDen3V: 1
2)PCB support bar: 4units
3)PCB support pin: 8units
4)Electromagnet: 1pack
5)Needle: 2sets
6)Allen wren set: 1
7)Tool box: 1unit
8)Cleaning needle: 3units
9)Power cord: 1unit
10)Double side adhesive tape: 1set
11) Silicon tube: 0.5m
12)Fuse(1A): 2units
13)8G flash drive: 1unit
14)Reel holder stand:1set
15)Nozzle rubber 0.3mm: 5units
16)Nozzle rubber 1.0mm: 5units
17)Vibration feeder: 1unit
Nozzle Information
Placement Effect
Related Products
Manual Solder Printer FP2636
SMT Pick and Place Machine
NeoDen4
SMT Pick and Place Machine
NeoDen9
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.
Our Show

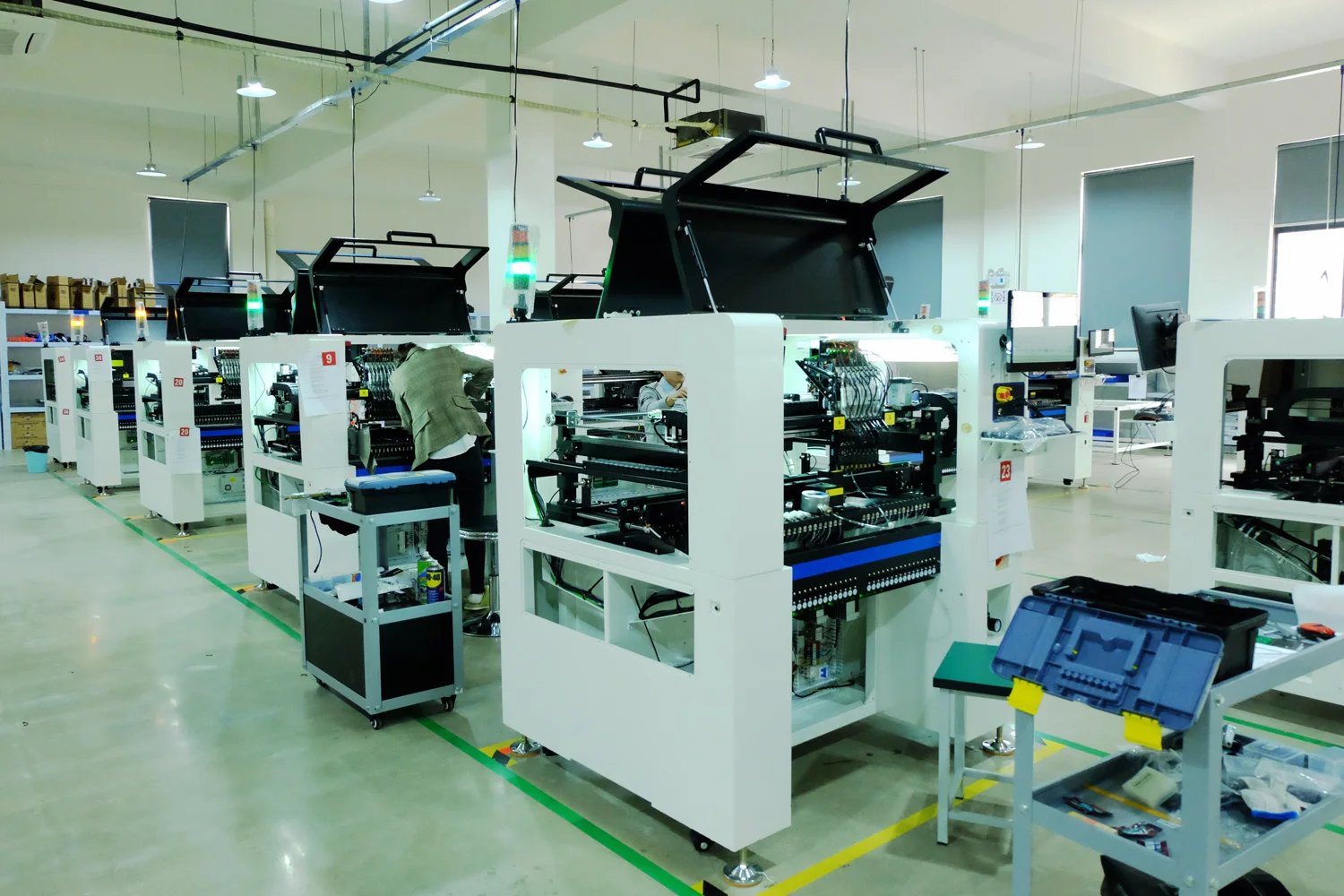

Workshop
Exhibition
Certification

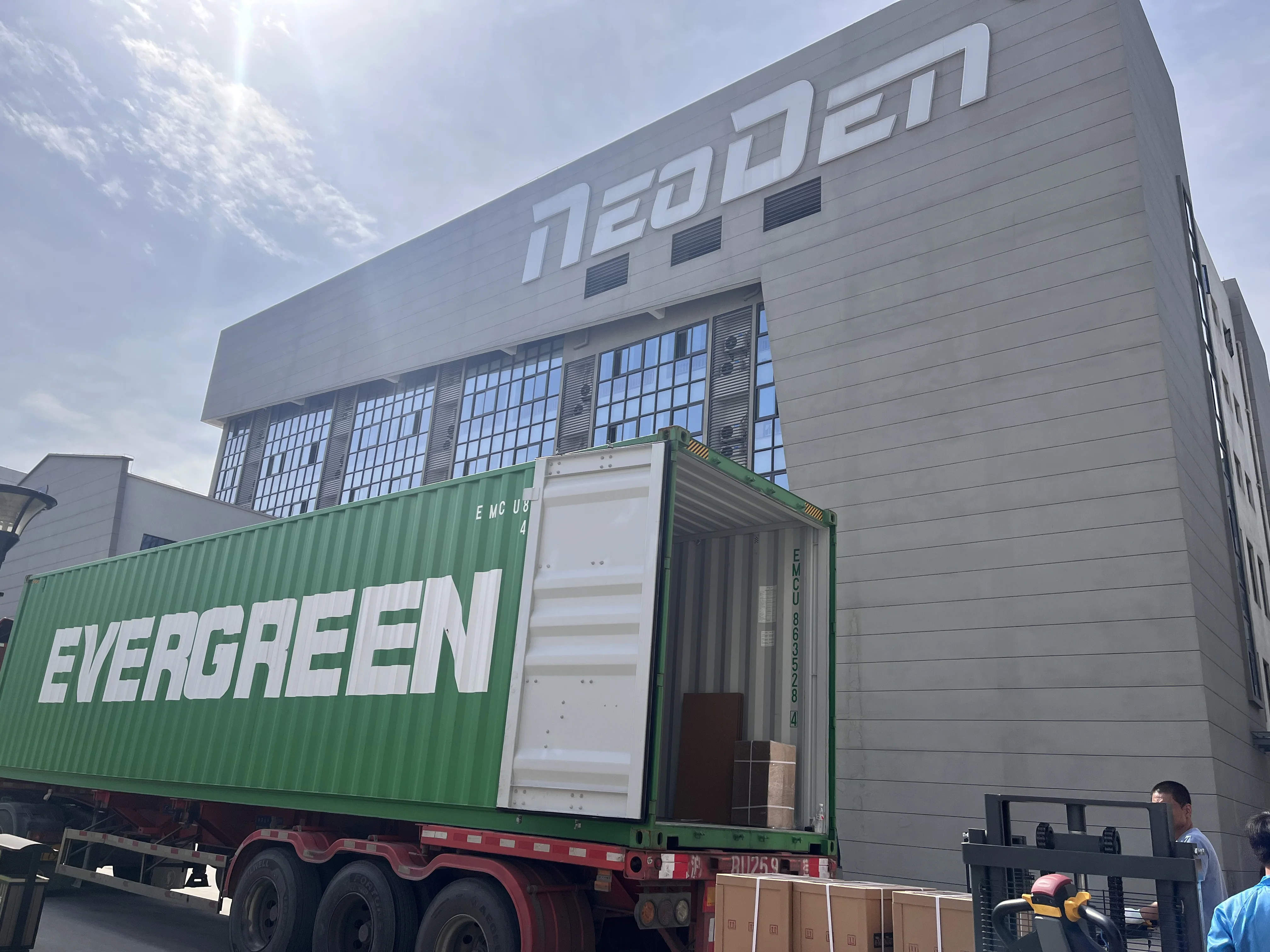

Payment & Shipping
FAQ
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
You want to know more? I am always here.
