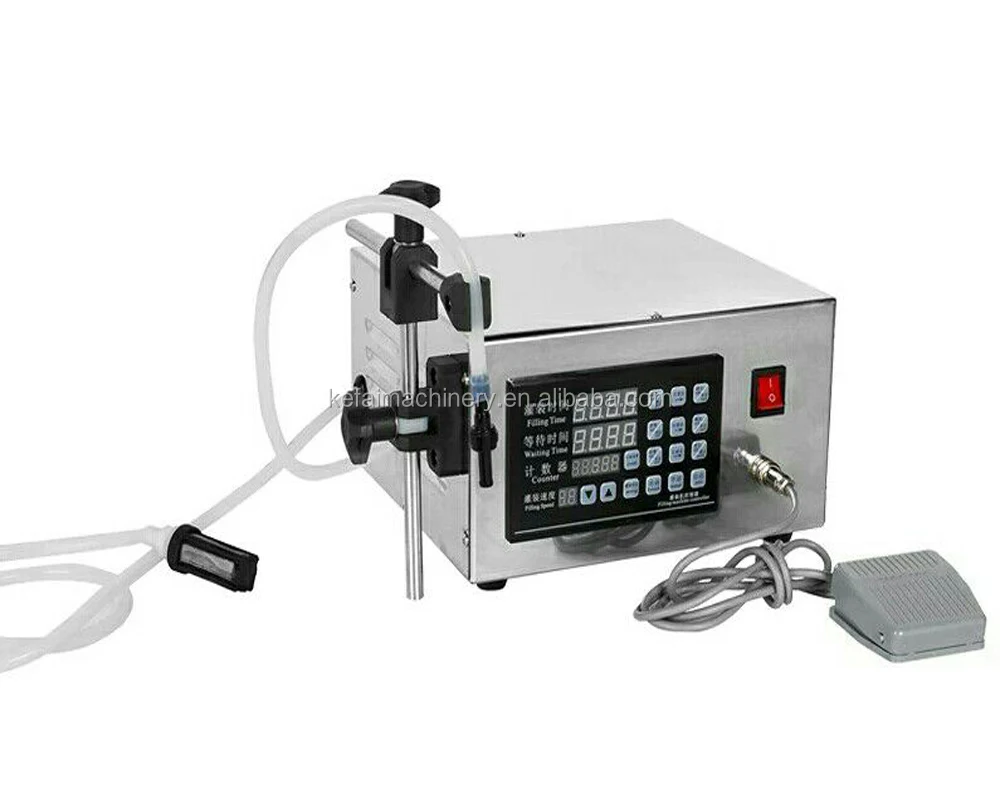

KEFAI Semi automatic Mini Water Bottle Filling Machine Eye Drop Filling Machine Magnetic Pump
- Category: >>>
- Supplier: Wuhan Kefai Innovation Machinery Co. Ltd.
Share on (11000001001024):
Product Overview
Description
Product Description
Technical parameters
Model | KF01-L YL-1 | KF01-L YL-2 | KF01-L YL-4 |
Rated voltage | AC 220V /±5% | AC 220V /±5% | AC 220V /±5% |
Maximum power | 40W | (40×2)W | (40×4)W |
Weight | 14kg | 18kg | 28kg |
Accuracy | ±1.5% | ±1.5% | ±1.5% |
Maximum flow | >1.44L/min | >1.44L/min | >1.44L/min |
Host size | 410×330×270(mm) | 510×330×270(mm) | 720×330×270(mm) |
Package size | 600×470×365(mm) | 600×470×365(mm) | 810×470×365(mm) |
Application
1, The use of the world brand frequency governor, with imported high-precision multi-turn potentiometer and lockable dial, so that the flow regulation is stable and accurate, the error is less than 0.5% negative deviation, positive is less than 1.5%.
2, Imported 316 stainless steel magnetic gear pump, reliable quality long life;stainless steel chassis, durable;small size, easy to operate;
3,Clean and easy to clean;full function, automatic manual can be equipped with a line on the work;

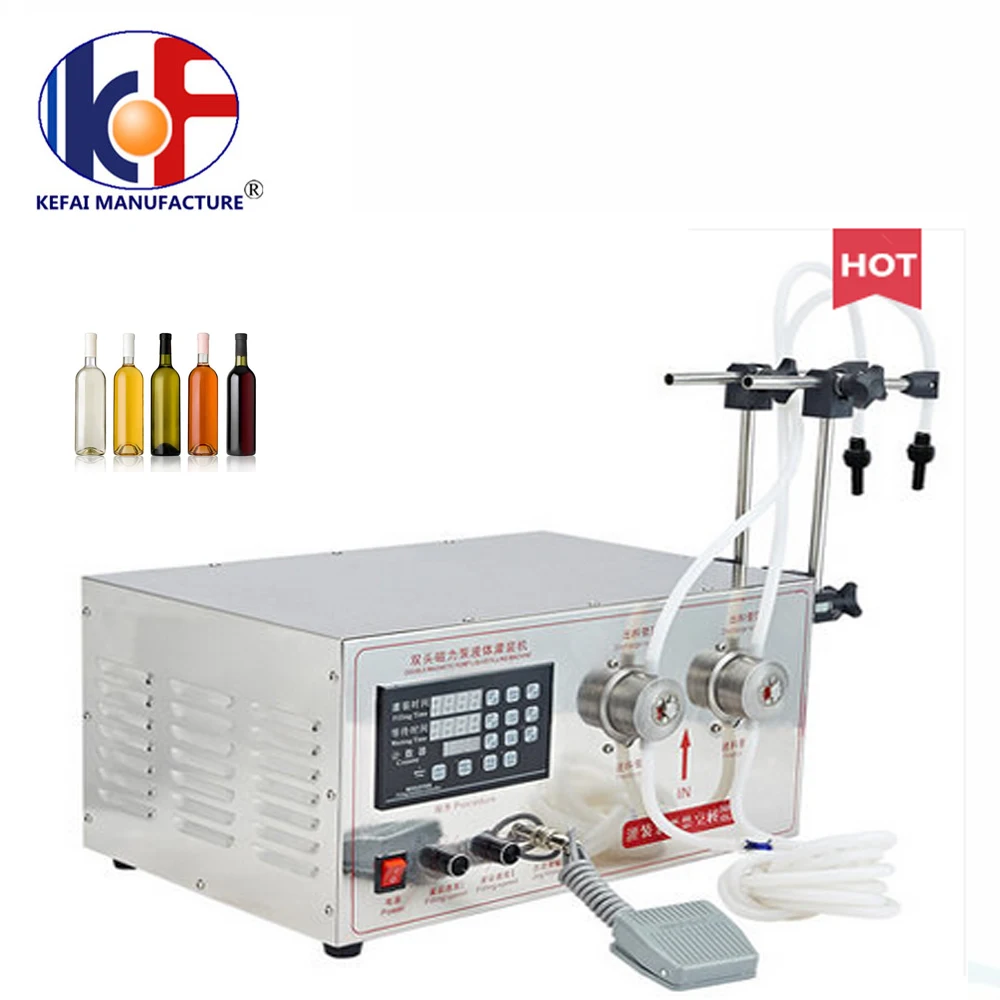

4, Can be equipped with multiple filling head, commonly used models are single head machine, double head machine and four head machine;filling from 1ml to 1000ml adjustable, easy to adjust.
Features
1. T he pressure on the block can be separated from the pump head, easy to install card hose, according to user needs, can be connected in series a number of pump head, beautiful appearance, elegant, compact structure, wide flow.
2, To facilitate the application of OEM way. With the timing function, can achieve semi-automatic distribution, filling with
semi-current lock function.
3. The filling machine is not in contact with the material. Particularly suitable for biological agents, eye drops, oral liquid,
sulfuric acid,hydrochloric acid, 84 disinfectant and other strong corrosive products

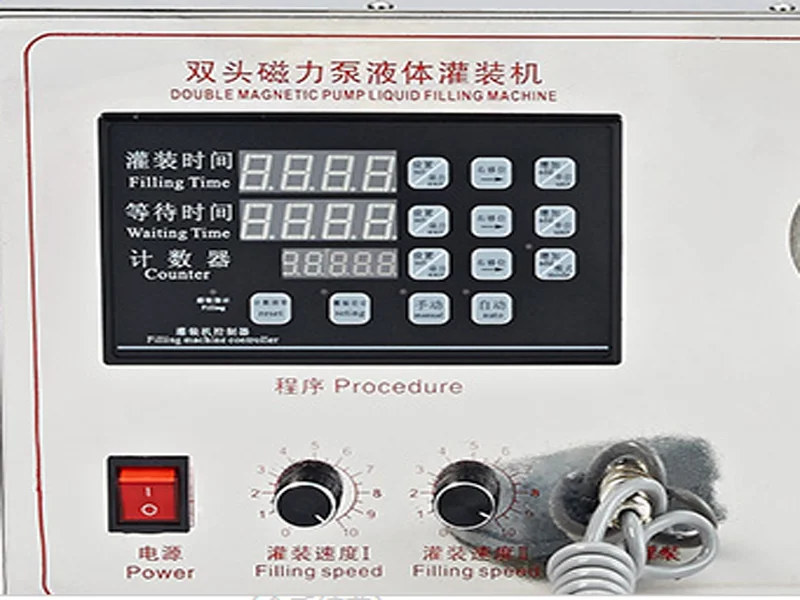

4. LCD LCD display ,touch panel operation more convenient and simple .Discharge nozzle drip design ,high filling accuracy
,accurate measurement .
2, Imported 316 stainless steel magnetic gear pump, reliable quality long life;stainless steel chassis, durable;small size, easy to operate;
3,Clean and easy to clean;full function, automatic manual can be equipped with a line on the work;
4, Can be equipped with multiple filling head, commonly used models are single head machine, double head machine and four head machine;filling from 1ml to 1000ml adjustable, easy to adjust.
Features
1. T he pressure on the block can be separated from the pump head, easy to install card hose, according to user needs, can be connected in series a number of pump head, beautiful appearance, elegant, compact structure, wide flow.
2, To facilitate the application of OEM way. With the timing function, can achieve semi-automatic distribution, filling with
semi-current lock function.
3. The filling machine is not in contact with the material. Particularly suitable for biological agents, eye drops, oral liquid,
sulfuric acid,hydrochloric acid, 84 disinfectant and other strong corrosive products
4. LCD LCD display ,touch panel operation more convenient and simple .Discharge nozzle drip design ,high filling accuracy
,accurate measurement .
