26 Ports 400W Gigabit PoE Switch 24*10/100/1000M PoE Ports 2*10/100/1000Mbps SFP Ports for IP Camera CCTV
26 Ports 400W Gigabit PoE Switch 24*10/100/1000M PoE Ports + 2*10/100/1000Mbps SFP Ports for IP Camera CCTV
26 Ports 400W Gigabit PoE Switch 24*10/100/1000M PoE Ports + 2*10/100/1000Mbps SFP Ports for IP Camera CCTV
26 Ports 400W Gigabit PoE Switch 24*10/100/1000M PoE Ports + 2*10/100/1000Mbps SFP Ports for IP Camera CCTV
26 Ports 400W Gigabit PoE Switch 24*10/100/1000M PoE Ports + 2*10/100/1000Mbps SFP Ports for IP Camera CCTV
26 Ports 400W Gigabit PoE Switch 24*10/100/1000M PoE Ports + 2*10/100/1000Mbps SFP Ports for IP Camera CCTV
26 Ports 400W Gigabit PoE Switch 24*10/100/1000M PoE Ports + 2*10/100/1000Mbps SFP Ports for IP Camera CCTV

26 Ports 400W Gigabit PoE Switch 24*10/100/1000M PoE Ports 2*10/100/1000Mbps SFP Ports for IP Camera CCTV

Share on (11000002042146):


Price:$117.50 - $122.50

Quantity:


Product Overview

Description



Product Description




Product Paramenters


I/O Interface
Power
Input: AC 100-240V, 50/60Hz
Ethernet
24*10/100/1000M PoE Port
2*Gigabit SFP Port
Performance
Switching Capacity
52Gbps
Throughput
38.7Mpps
Packet Buffer
4M
MAC Address
8K
Jumbo Frame
9Kbytes
Transfer Mode
Store and forward
MTBF
100000 hour
Standard
Network protocol
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3z (1000Base-FX)
IEEE802.3x (Flow control)
PoE Protocol
IEEE802.3af （15.4W）
IEEE802.3at （30W）
Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium
10Base-T : Cat3,4,5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or aboveUTP(≤100m)
Optical Media
Multimode fiber : 50/125、62.5/125、100/140um
Single mode fiber : 8/125、8.7/125、9/125、10/125um
Protection
Security Certificae
CE、FCC、RoHS
Environment
Working Environment
Working Temperature：-20~50°C
Storage Temperature：-40~85°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height：Maximum10,000 feet
Storage heigh：Maximum 10,000 feet

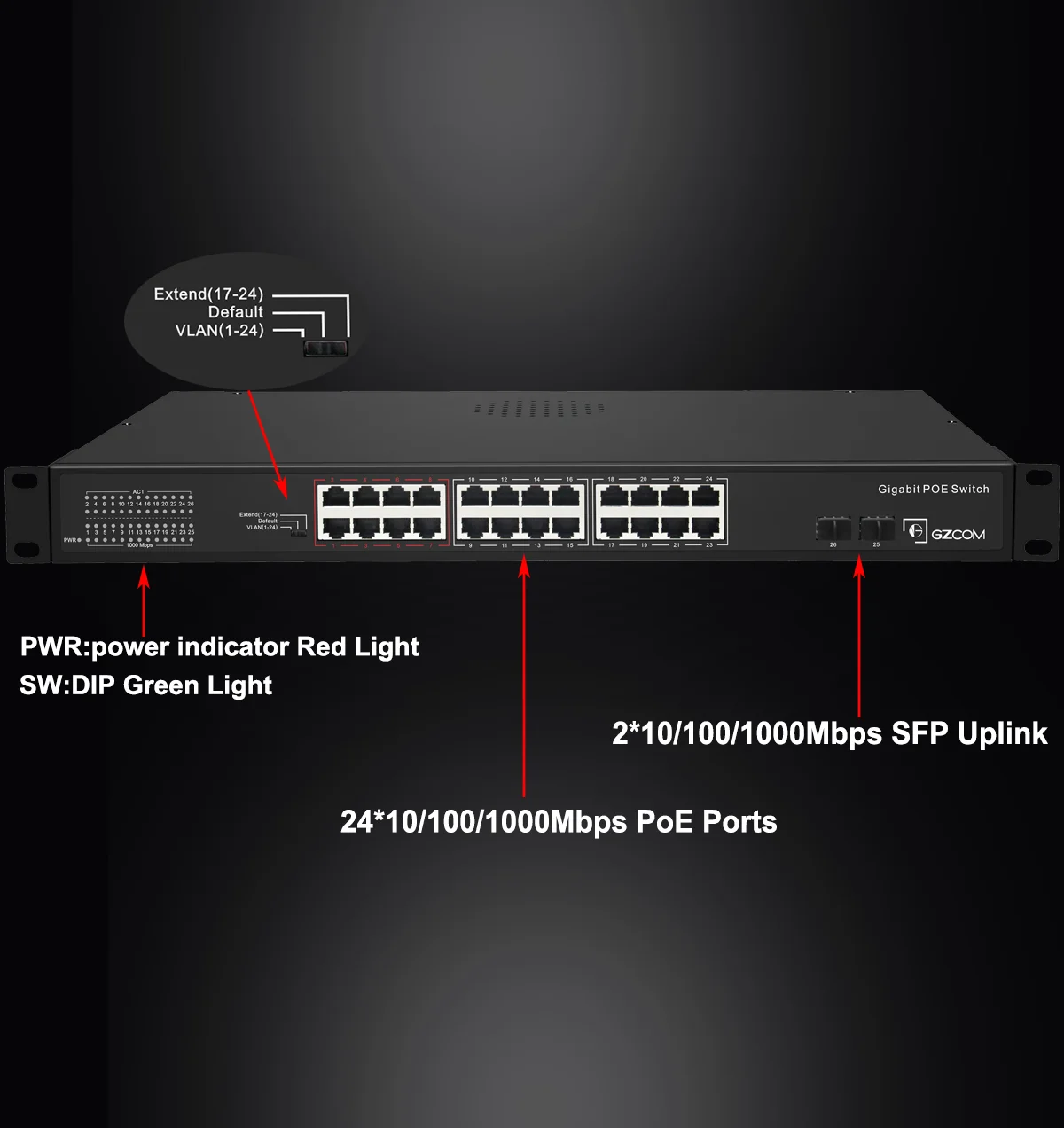

Indication
LED Indicators
PWR（power supply），ACT（Link&Data），1000Mbps（1000M Link）
DIP Switch
VLAN: 1-24 port is isolated each other, but all can communicate with uplink port 25/26
Default :All ports communicate freely

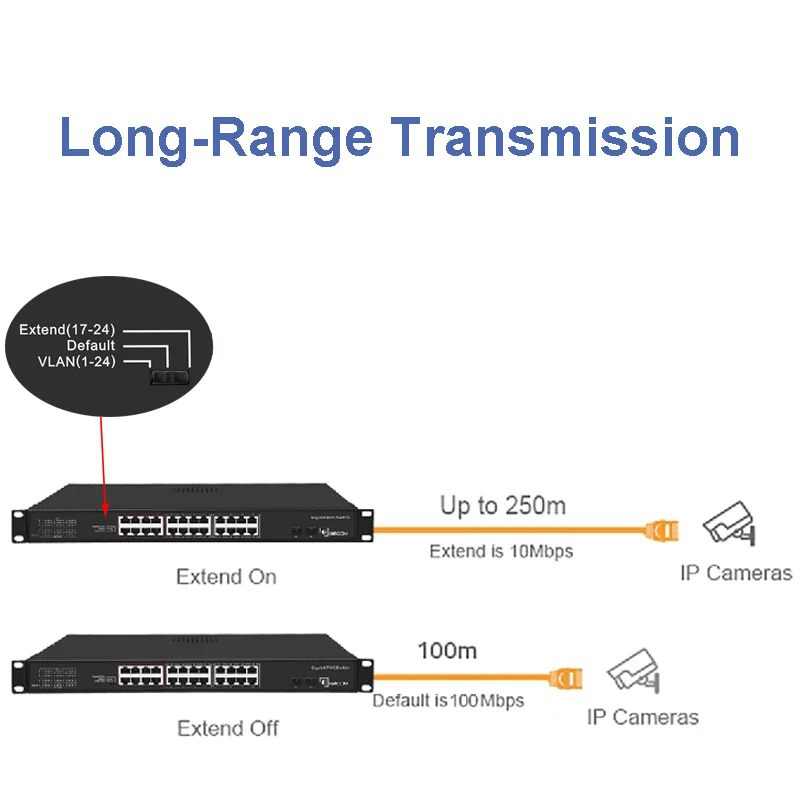

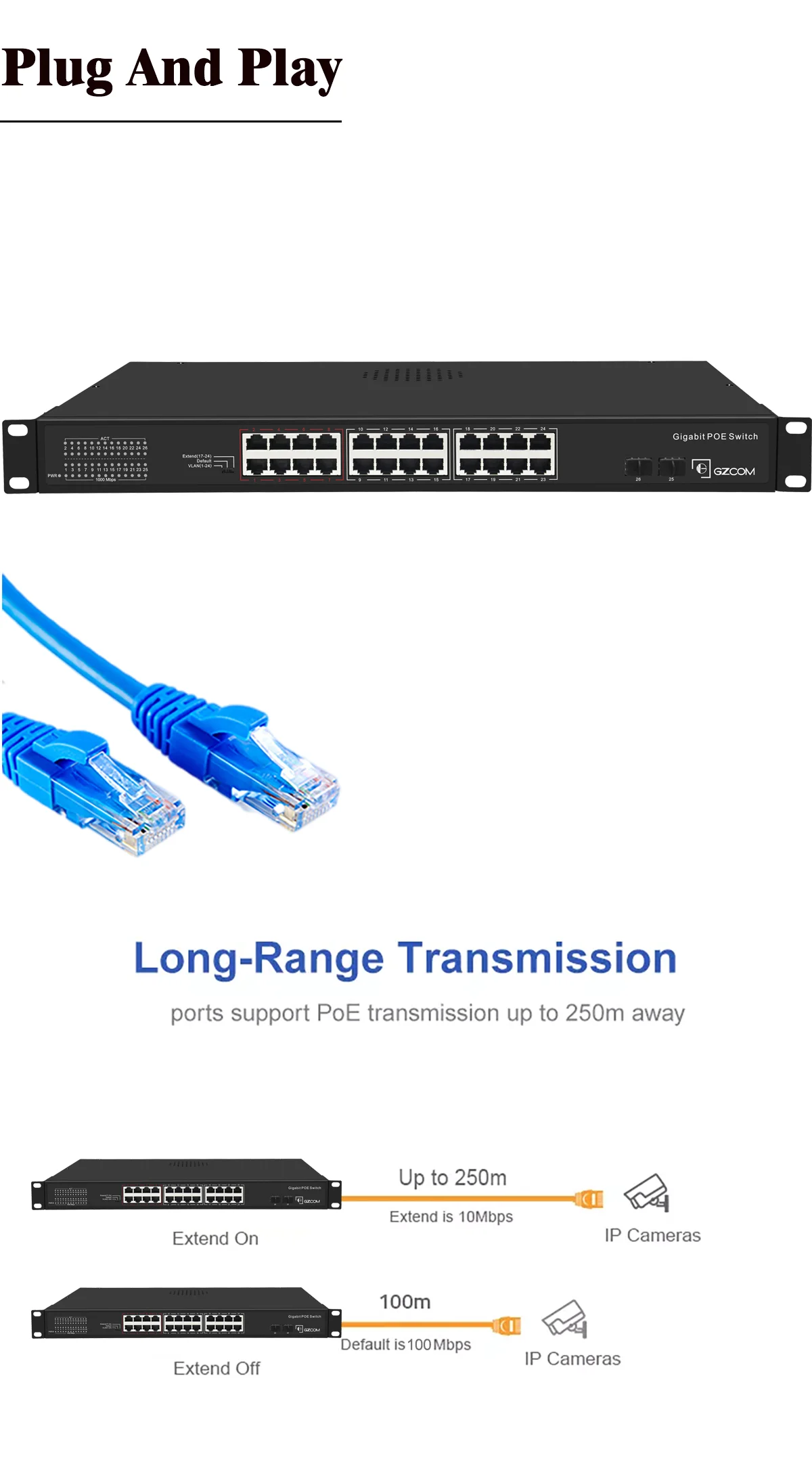

Extend:17-24 Port support 250 meters transmission on 10Mbps/s
Mechanical
Structure Size
Product Dimension (L*W*H): 445mm*285mm*45mm
Package Dimension (L*W*H): 500mm*350mm*90mm
N.W：3.2kg
G.W：3.8 kg
Packing Info
Carton MEAS：600*495*435mm
Packing Qty：6 units
Packing Weight：24.2KG
Power Voltage
Input Voltage ： AC 100-240V, 50/60Hz
Power supply：52V7.69A
Package List
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair
Ordering Info
GZM-1000-2F24P-400
26-port 10/100/1000M PoE Switch
