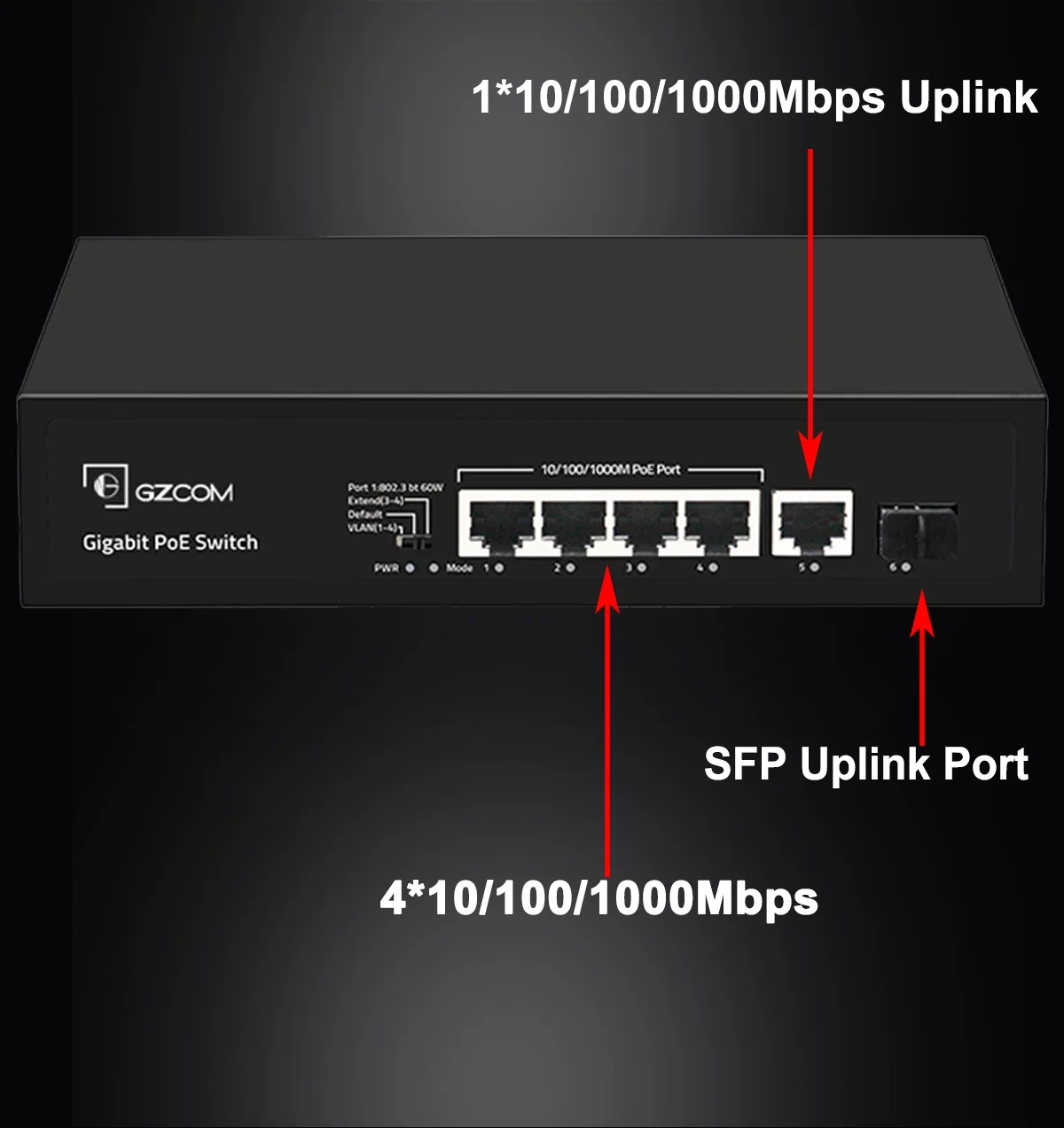

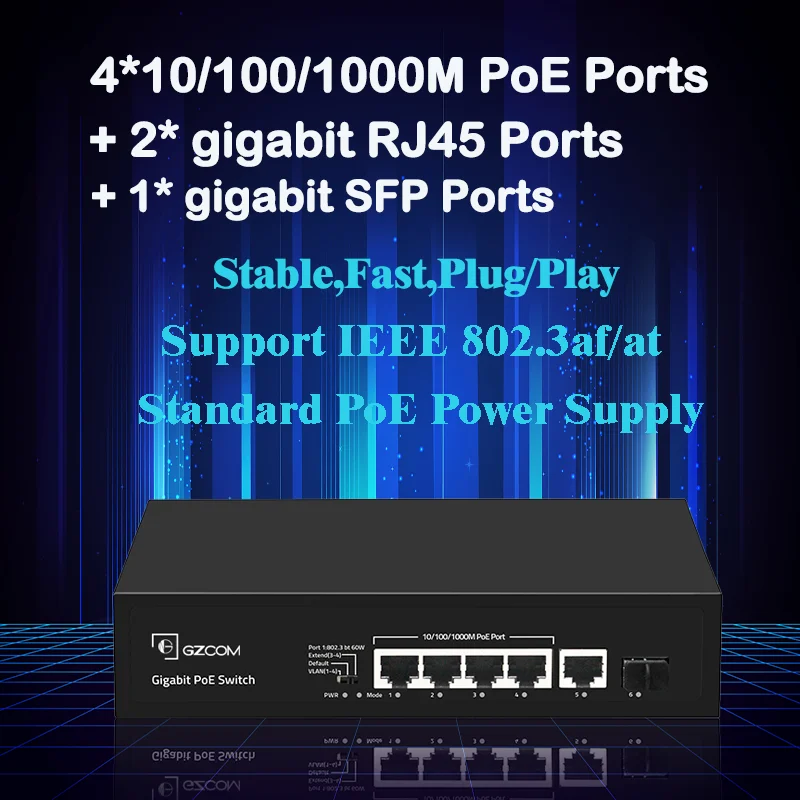

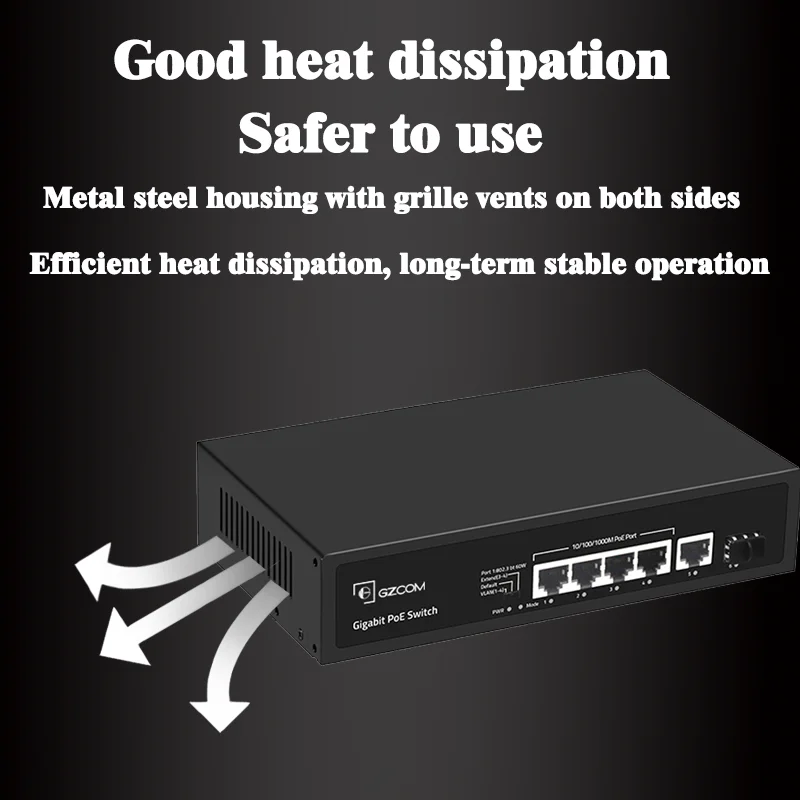

6 Ports 65W Gigabit PoE Switch 4*10/100/1000M PoE Ports 1*10/100/1000Mbps Ethernet Uplink Port 1*SFP for IP Camera CCTV

Power

Input: AC 100-240V, 50/60Hz

Ethernet

4*10/100/1000M PoE Port
1*1000M RJ45 Port
1* Gigabit SFP Uplink Port

Switching Capacity

12Gbps

Throughput

8.928Mpps

Packet Buffer

1Mb

MAC Address

2K

Jumbo Frame

9216bytes

Transfer Mode

Store and forward

MTBF

100000 hour

Network protocol

IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab(1000Base-TX)
IEEE802.3z(1000Base-FX)
IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af （15.4W）
IEEE802.3at （30W）

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT),EN61000-4-5 (Surge)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Network Medium

10Base-T : Cat3、4、5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)

Optical Media

Multimode fiber : 50/125, 62.5/125, 100/140μm
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Security Certificae

CE、FCC、RoHS

Environment

Working Environment

Working Temperature：-20~50°C
Storage Temperature：-40~85°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height：Maximum10,000 feet
Storage heigh：Maximum 10,000 feet

PWR（power supply）

Lighting：Powered
Un-Light：No Power

Mode（DIP）

Lighting：VLAN
Un-Light：Default
Flashing：Extend

1-6 Gree（Link&Data）

Lighting：Connecting
Flashing：Data Transmit
Un-Light：Disconnect

DIP Switch

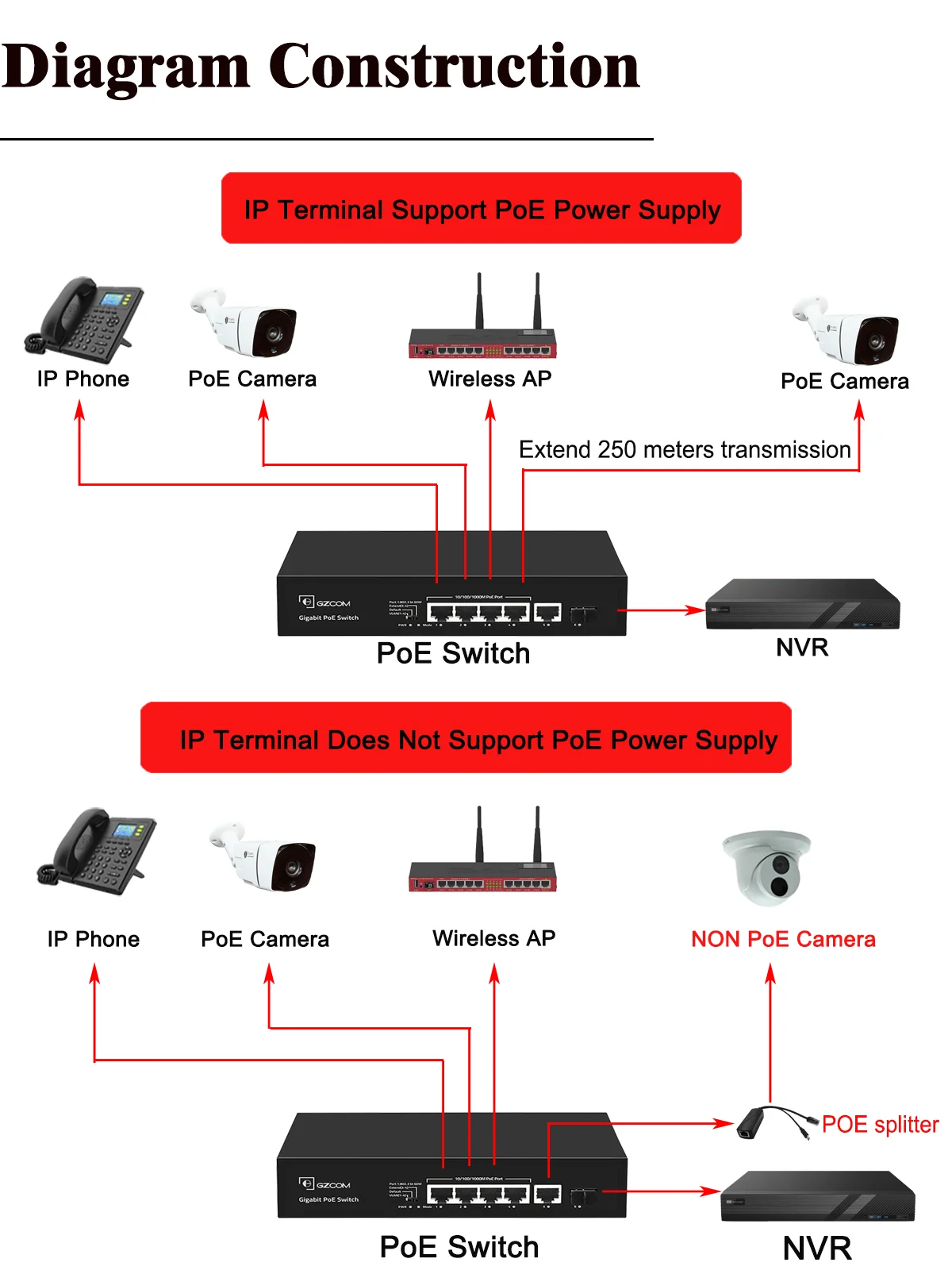

VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only
communicate with the UP-link port.
Default : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters

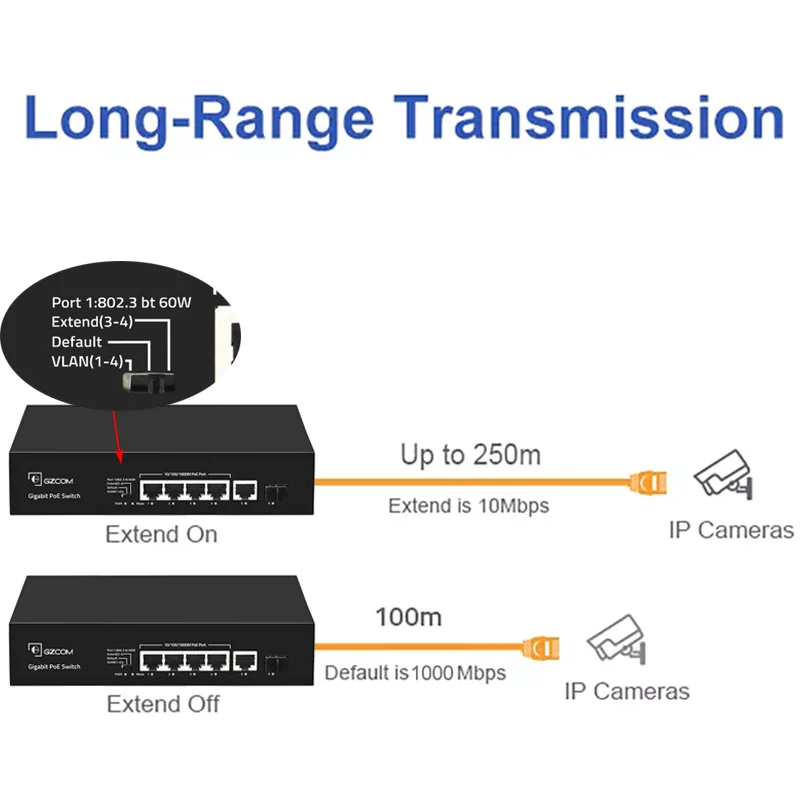

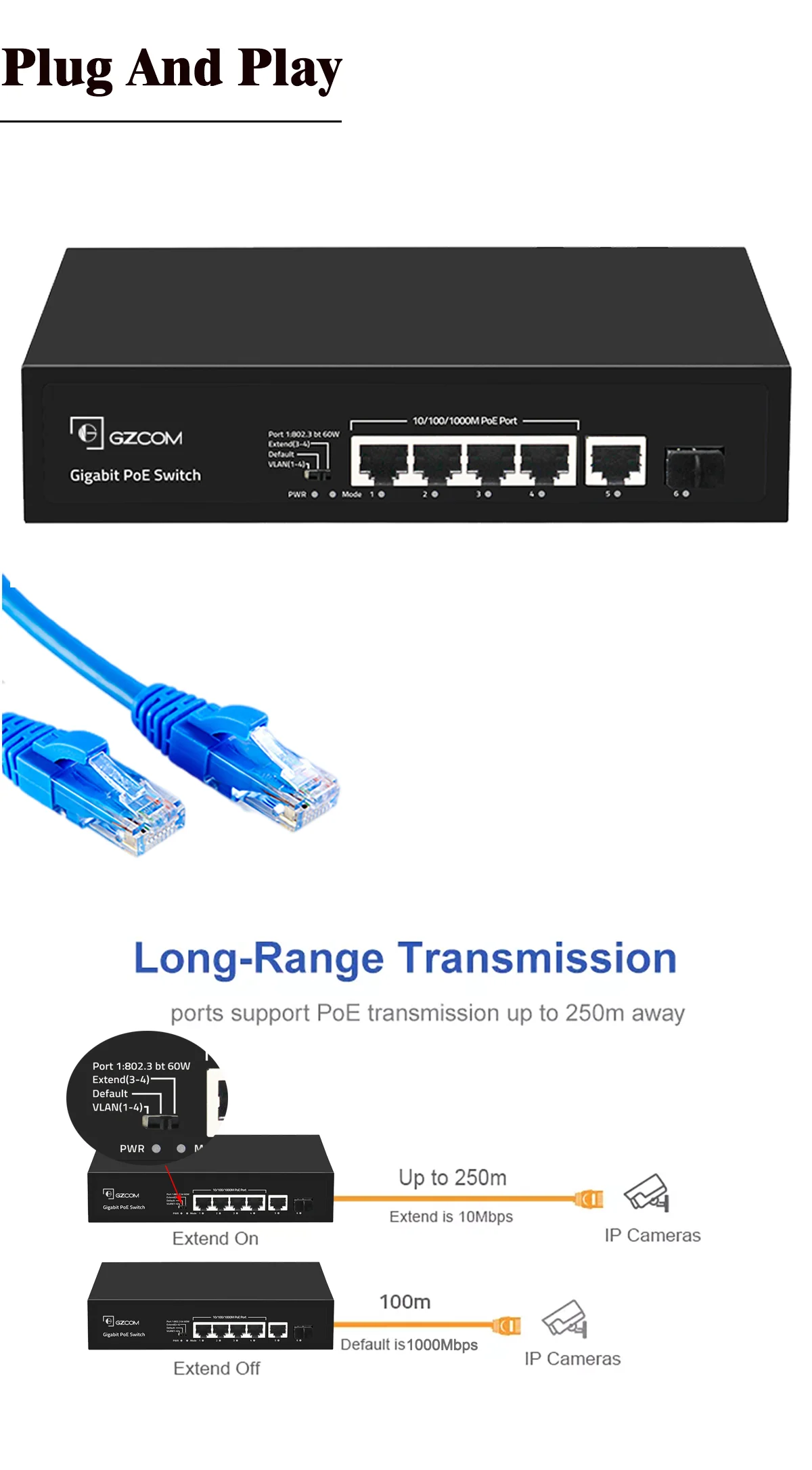

Extend：Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the
transmission rate becomes 10M

Structure Size

Product Dimension (L*W*H): 200*118*44mm
Package Dimension (L*W*H): 245*190*60mm
N.W：0.6kg
G.W：0.9kg

Packing Info

Carton MEAS：505*320*402mm
Packing Qty：20units
Packing Weight：19KG

Power Voltage

Input Voltage ：AC 100-240 V
Power supply：52V2.3A

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,

GZM-1000-1F4P1U-65

6 Port Gigabit PoE Switch ,52V2.3A, 65W
