16 Ports Gigabit unmanaged PoE Switch 16*10/100M PoE 2*Gigabit Ethernet Uplink Ports 1*Gigabit SFP for CCTV Network
16 Ports Gigabit unmanaged PoE Switch 16*10/100M PoE + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP for CCTV Network
16 Ports Gigabit unmanaged PoE Switch 16*10/100M PoE + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP for CCTV Network
16 Ports Gigabit unmanaged PoE Switch 16*10/100M PoE + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP for CCTV Network
16 Ports Gigabit unmanaged PoE Switch 16*10/100M PoE + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP for CCTV Network
16 Ports Gigabit unmanaged PoE Switch 16*10/100M PoE + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP for CCTV Network
16 Ports Gigabit unmanaged PoE Switch 16*10/100M PoE + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP for CCTV Network

16 Ports Gigabit unmanaged PoE Switch 16*10/100M PoE 2*Gigabit Ethernet Uplink Ports 1*Gigabit SFP for CCTV Network

Share on (11000002073474):


Price:$48.00 - $49.50

Quantity:


Product Overview

Description



Product Description

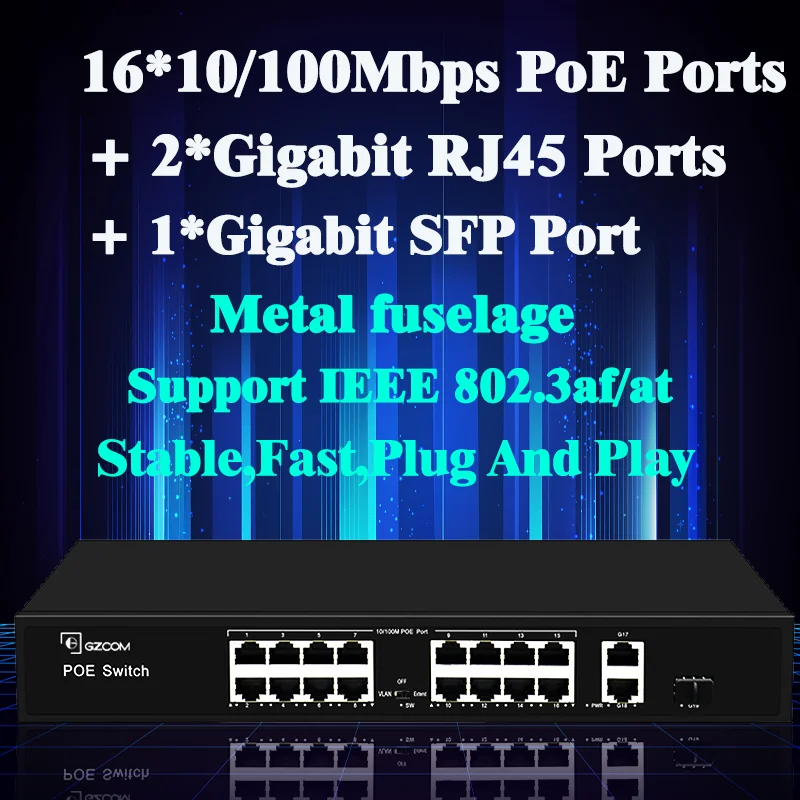

Intelligent PoE switch with 16*10/100M PoE Ports + 2*Gigabit Ethernet Uplink Ports +1*Gigabit SFP Port, complies with IEEE802.3af/at standard, bandwidth is 9.2Gbps, total power is up to 200W, supports port isolation and 250m transmission, suitable for -10℃~+50℃ wide temperature environment.




Product Paramenters

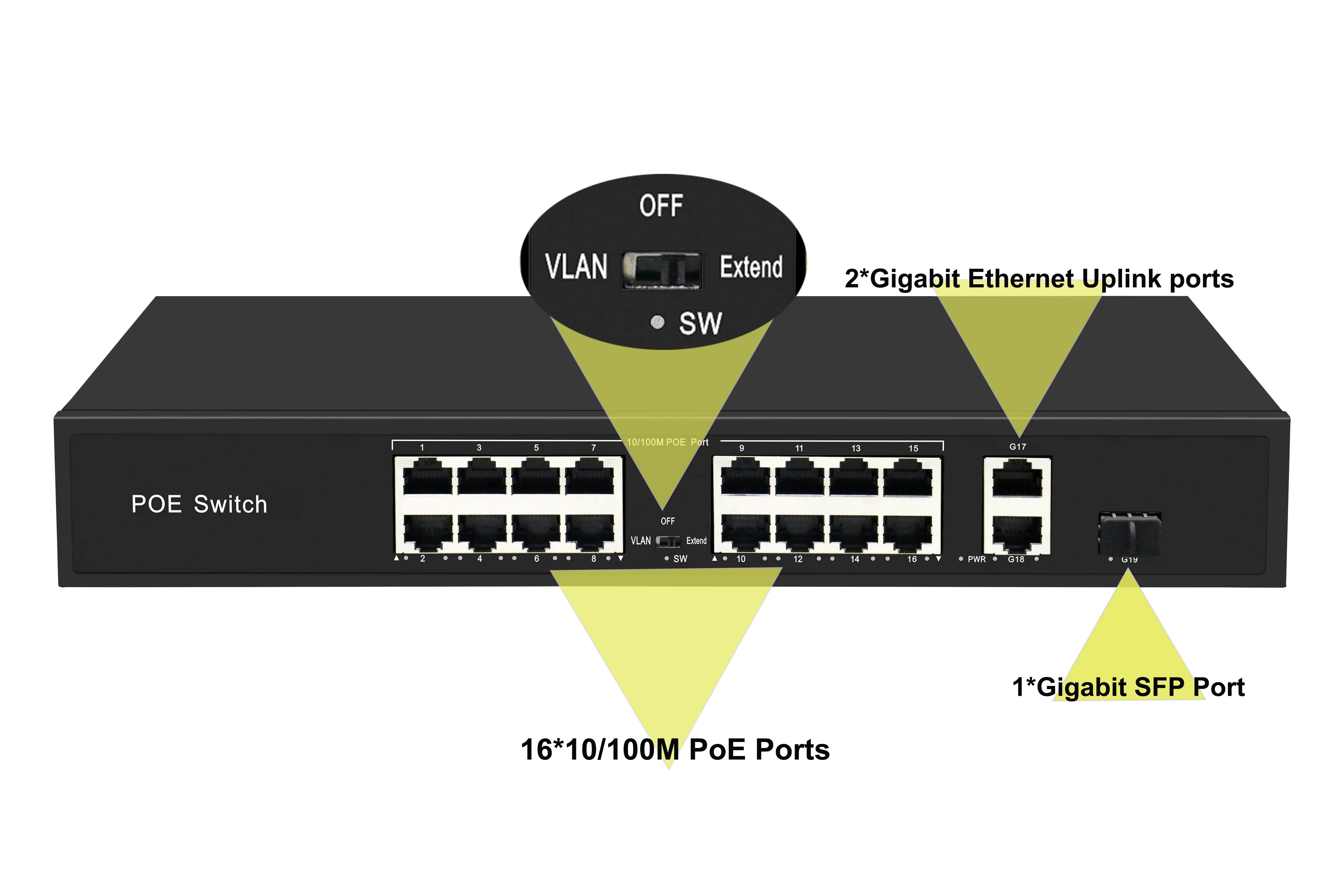

I/O Interface
Power
Input: AC 100-240V, 50/60Hz
Ethernet
16 *10/100M PoE Port
2* 10/100/1000M Ethernet Uplink ports
1* Gigabit SFP Uplink Port
Performance
Switching Capacity
9.2Gbps
Throughput
6.844Mpps
Packet Buffer
1.5Mb
MAC Address
2K
Jumbo Frame
9216bytes
Transfer Mode
Store and forward
MTBF
100000 hour
Standard
Network protocol
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab(1000Base-TX)
IEEE802.3z(1000Base-FX)
IEEE802.3x (Flow control)

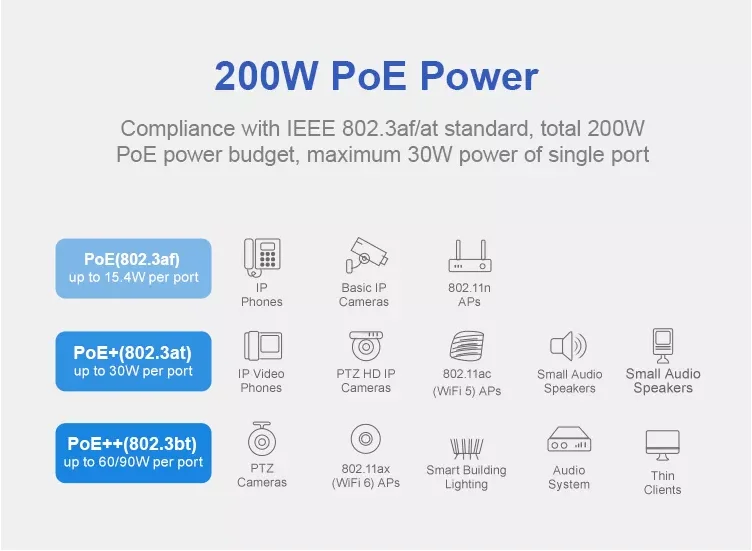

PoE Protocol
IEEE802.3af （15.4W）
IEEE802.3at （30W）
Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Network Medium
10Base-T : Cat3、4、5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
Optical Media
Multimode fiber : 50/125, 62.5/125, 100/140μm
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Protection
Security Certificae
CE、FCC、RoHS
Environment

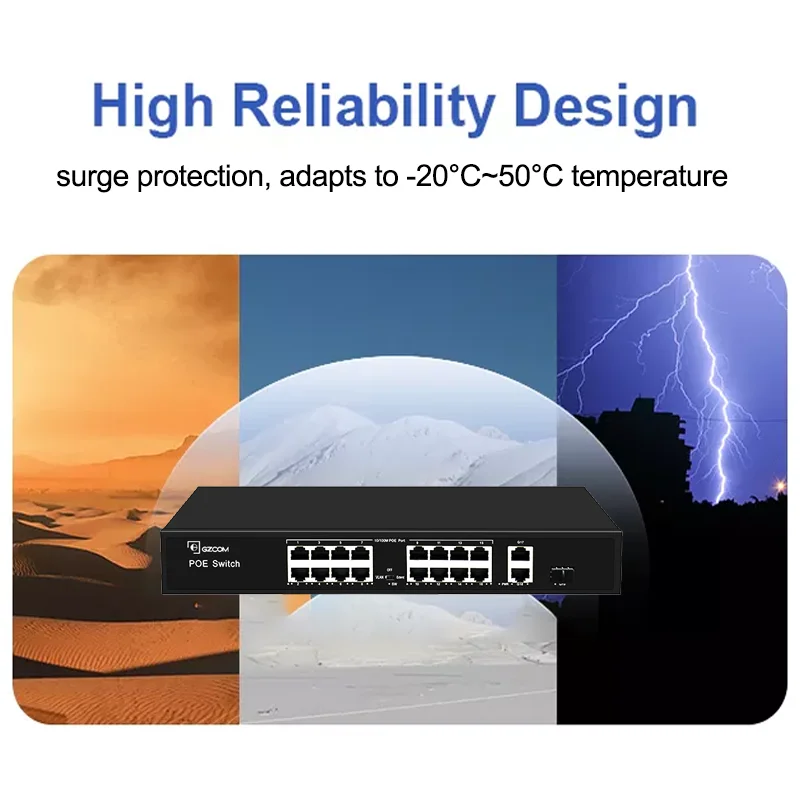

Working Environment
Working Temperature：-20~50°C
Storage Temperature：-40~85°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height：Maximum10,000 feet
Storage heigh：Maximum 10,000 feet
Indication
LED Indicators
PWR（power supply）,SW（DIP）,1-19 Green（Link&Data）
PWR
Lighting：Powered
Un-Light：No Power
SW
Lighting：VLAN
Un-Light：OFF
Flashing：Extend
1-19 Green
Lighting：Connecting
Flashing：Data Transmit
Un-Light：Disconnect
DIP Switch
VLAN ,OFF ,Extend

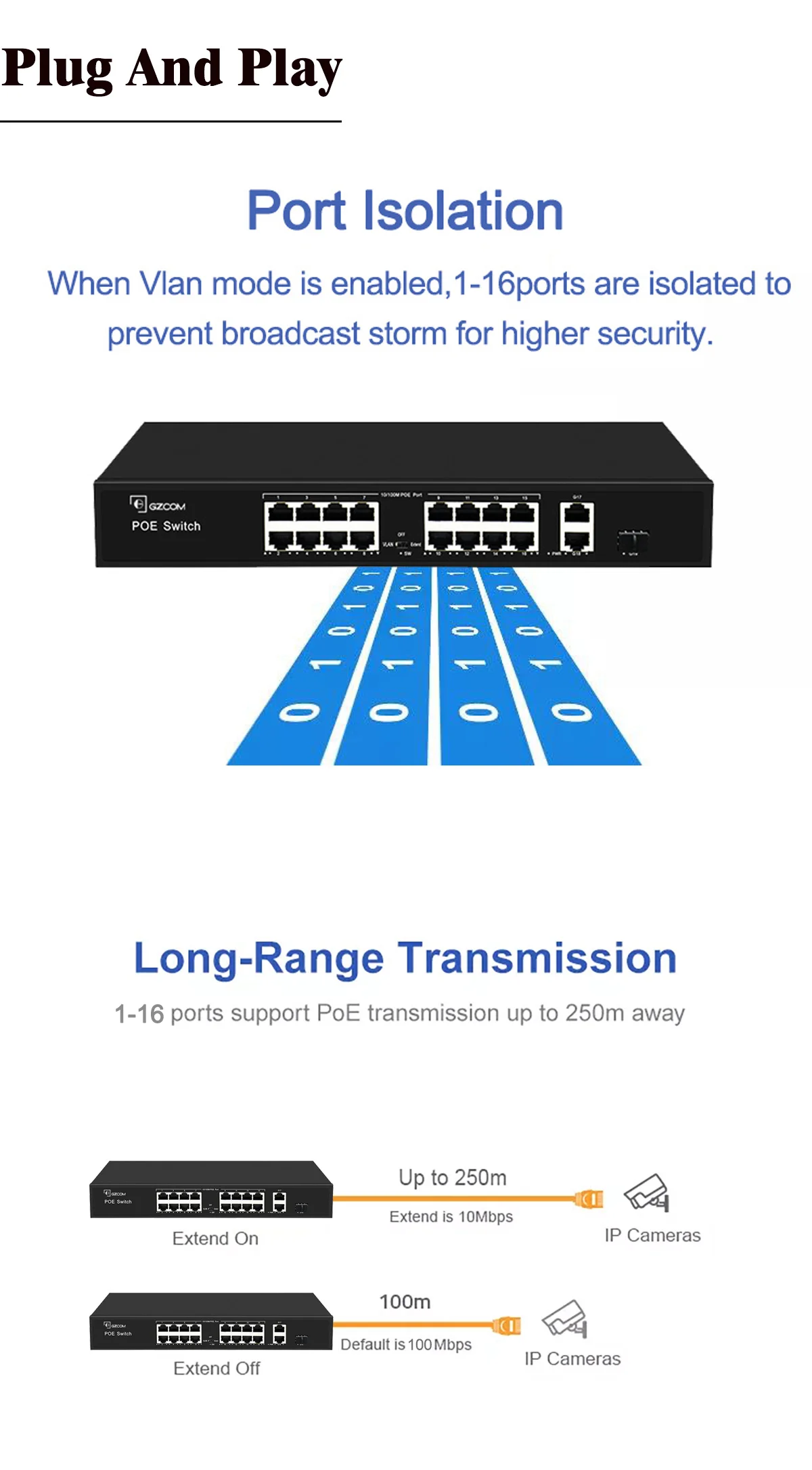

VLAN
Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate
with the UP-link port.
OFF
Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is
10M / 100M adaptive

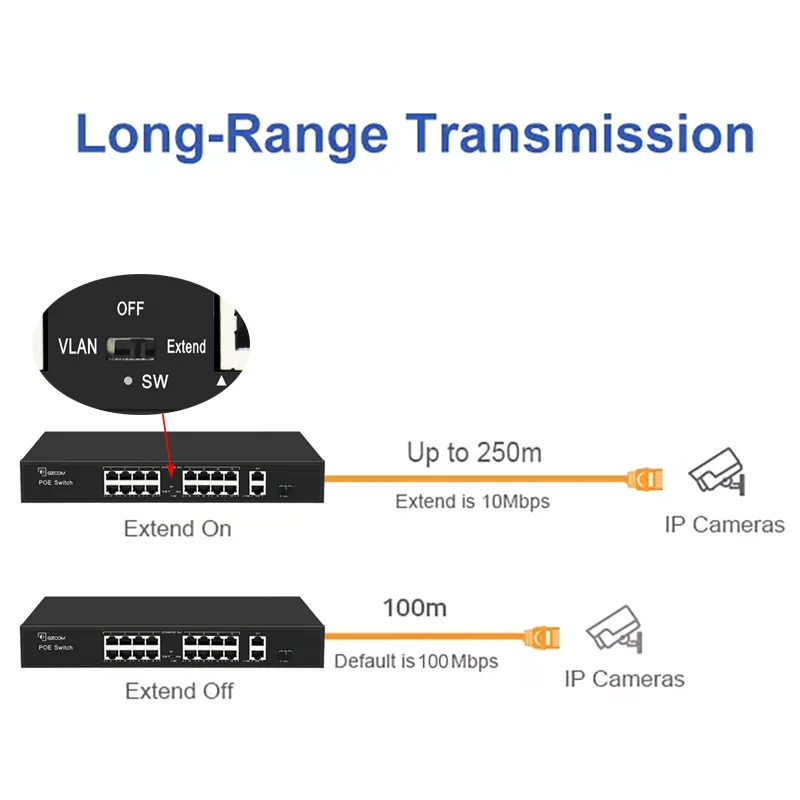

Extend
Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission
rate becomes 10M
Mechanical
Structure Size
Product Dimension (L*W*H): 319*207*45mm
Package Dimension (L*W*H): 370*270*85mm
N.W：1.8kg
G.W：2.3kg
Packing Info
Carton MEAS：440*285*390mm
Packing Qty：5 units
Packing Weight：12.5KG
Power Voltage
Input Voltage ：AC 100-240 V
Power supply：52V5.76A/52V3.8A
Package List
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair
Ordering Info
GZM-1100-1F16P2U-200
19 Port Gigabit Uplink 100M PoE Switch(200w)
GZM-1100-1F16P2U-300
19 Port Gigabit Uplink 100M PoE Switch(300w)
