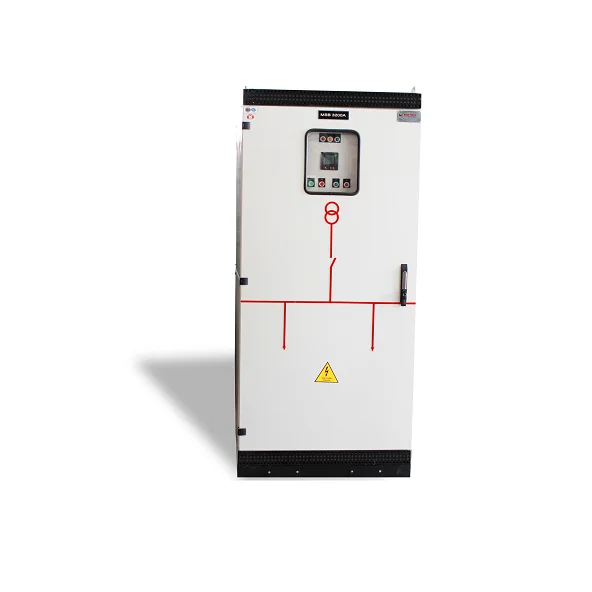

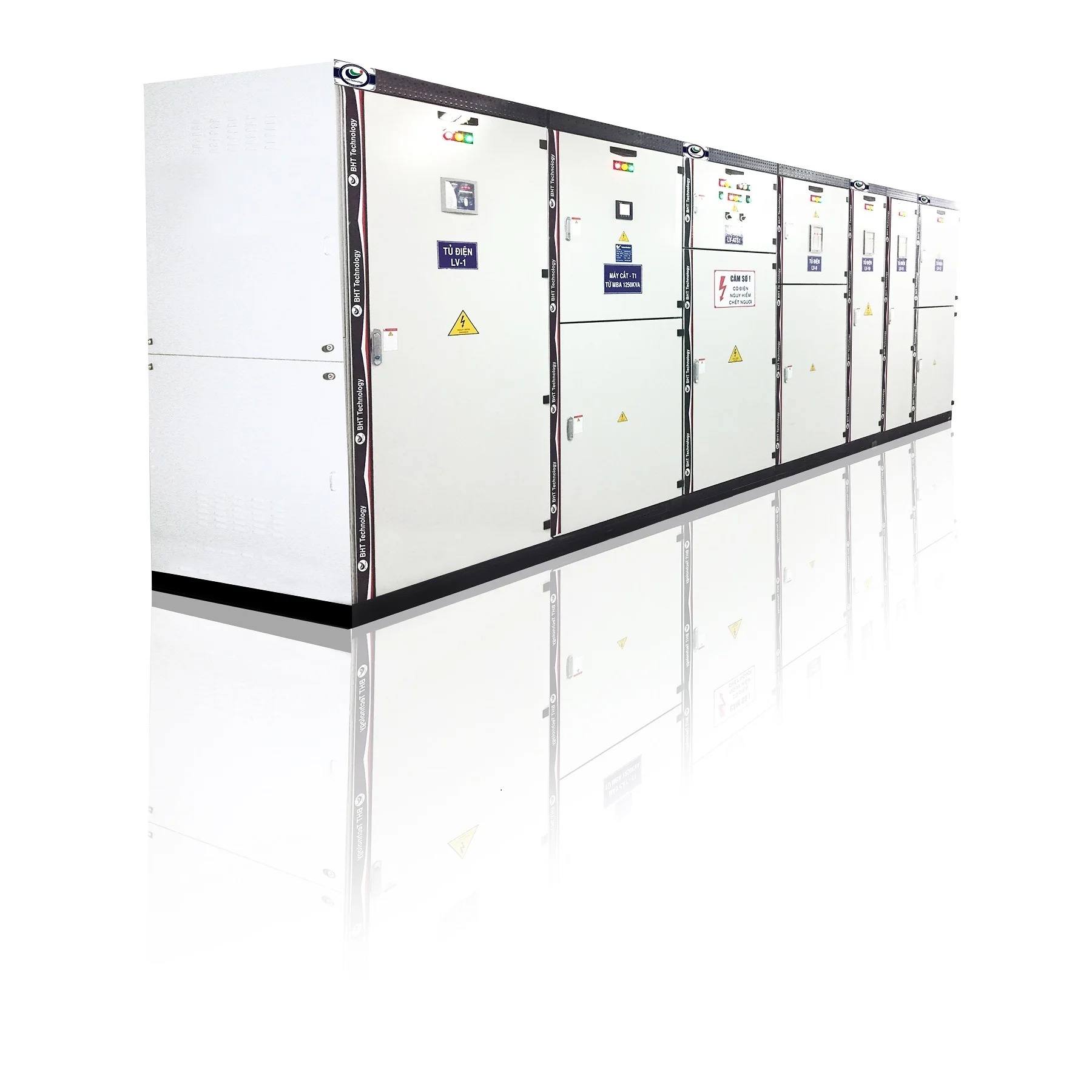

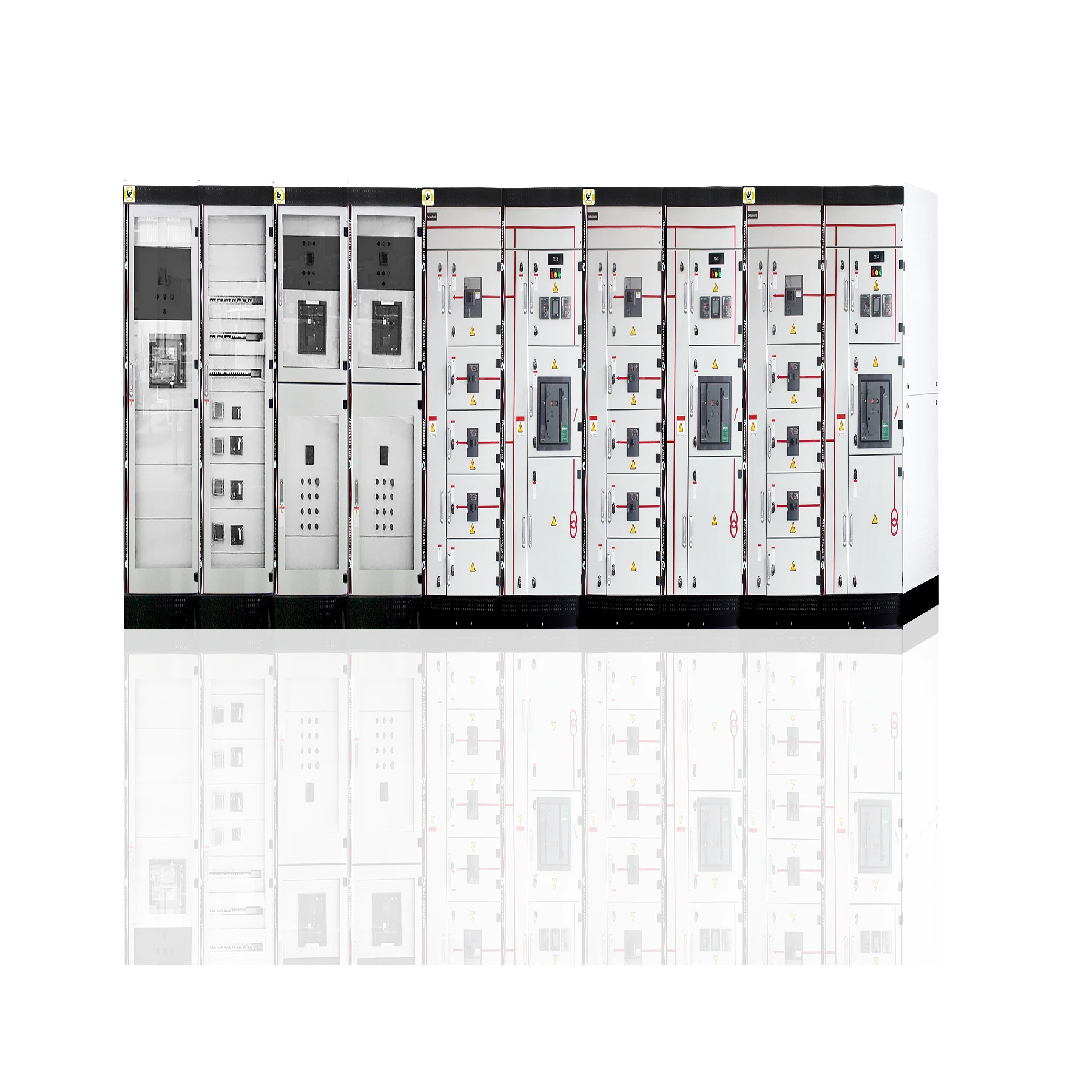

Premium Grade Main Switchboard indoor low voltage electric metal type ACB 3/4Phase 630A 6300A manufactured standard to IEC

Product Name

BHT Technology-Main Switchboard indoor low voltage electric metal type ACB 3,4Phase 630A-6300A manufactured standard to IEC
61431-1.2

Product Description

The control panels are in fixed design and can be used at all levels of power up to 8000A, with integral form according to IEC
61439 - 1,2,
Reliable, flexible and economic solution

Surface Treatment

Hot dip galvanized
Powder coated

Warranty

12 months

Standard

IEC 62271-200, IEC 61439-1,2 form 1a-4b, IEC 60529, DIN 40050.

Certificate

ASTA, Intertek

Application

Electric power industry, Civil electricity

Material

Mild steel
Pre galvanize steel

Size

Height* Wight* Depth
1600*600*600
1600*700*700
1600*800*800
1600*900*900
1800*600*600
1800*700*700
1800*800*800
1800*900*900
2000*600*600
2000*700*700
2000*800*800
2000*900*900
2200*600*600
2200*700*700
2200*800*800
2200*900*900
2200*1000*1100
2200*1000*1200
