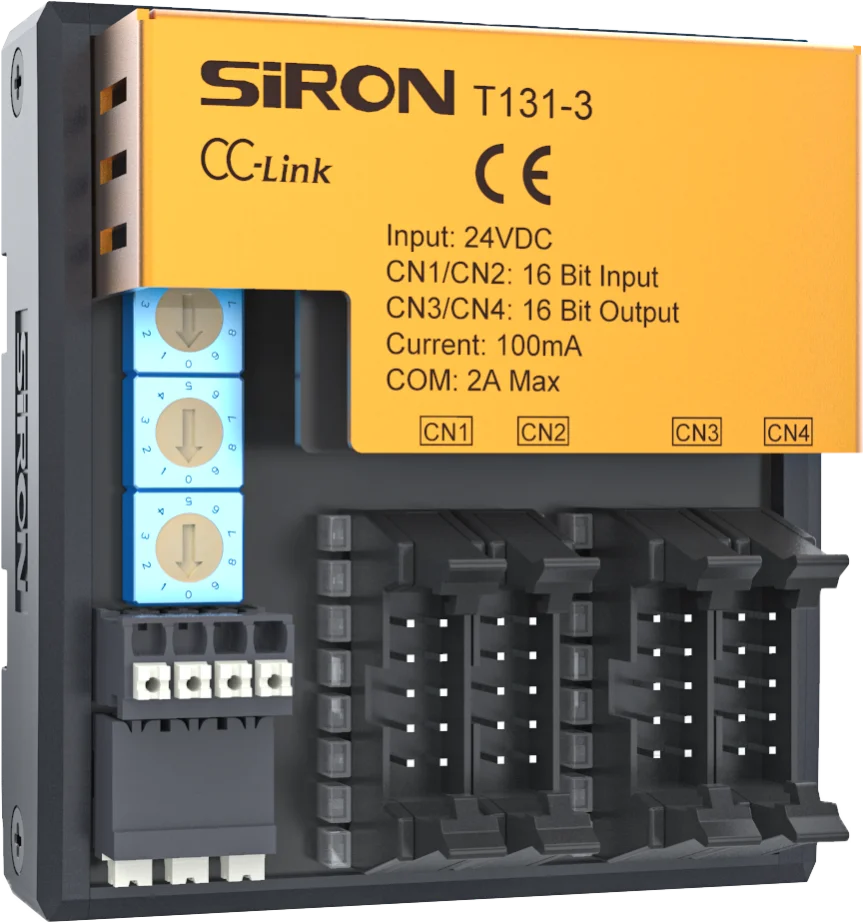

Сиронову T130 3 ~ T131 5 новый оригинальный модуль Встроенный I/O, cc связь автобус, подходит для FX и другие серии PLC мастер станции
- Category: >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (11000002115294):
Product Overview
Description
Our company's product categories are very rich

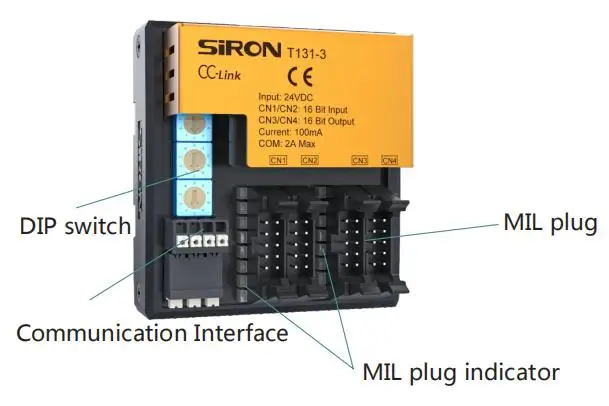

Features
1. Protection grade Ip20；
2. Integrated I/O, CC-Link bus, small size 80*75*38mm;
3. Small footprint, fast speed, fast wiring, pluggable wiring terminals;
4. Simple configuration, suitable for Mitsubishi Q , FX and other series PLC master stations.
5. DIN35mm standard rail installation
6. Using spring terminal blocks and MIL plug, wiring is convenient and concise
Note: When the input common terminal is connected to 24V high level, the effective level of the channel input is NPN; When theinput common terminal is connected to GND, the effective level of the channel input is PNP.
2. Integrated I/O, CC-Link bus, small size 80*75*38mm;
3. Small footprint, fast speed, fast wiring, pluggable wiring terminals;
4. Simple configuration, suitable for Mitsubishi Q , FX and other series PLC master stations.
5. DIN35mm standard rail installation
6. Using spring terminal blocks and MIL plug, wiring is convenient and concise
Note: When the input common terminal is connected to 24V high level, the effective level of the channel input is NPN; When theinput common terminal is connected to GND, the effective level of the channel input is PNP.
Specification
Rated voltage | 24V DC(12～30V) |
Current consumption | 60mA |
Size | 80×75×38mm |
Protection grade | IP20 |
Working temperature | -20～60℃ |
Storage temperature | -20～75℃ |
Relative humidity | 95%, no condensation |
Weight | 130g |

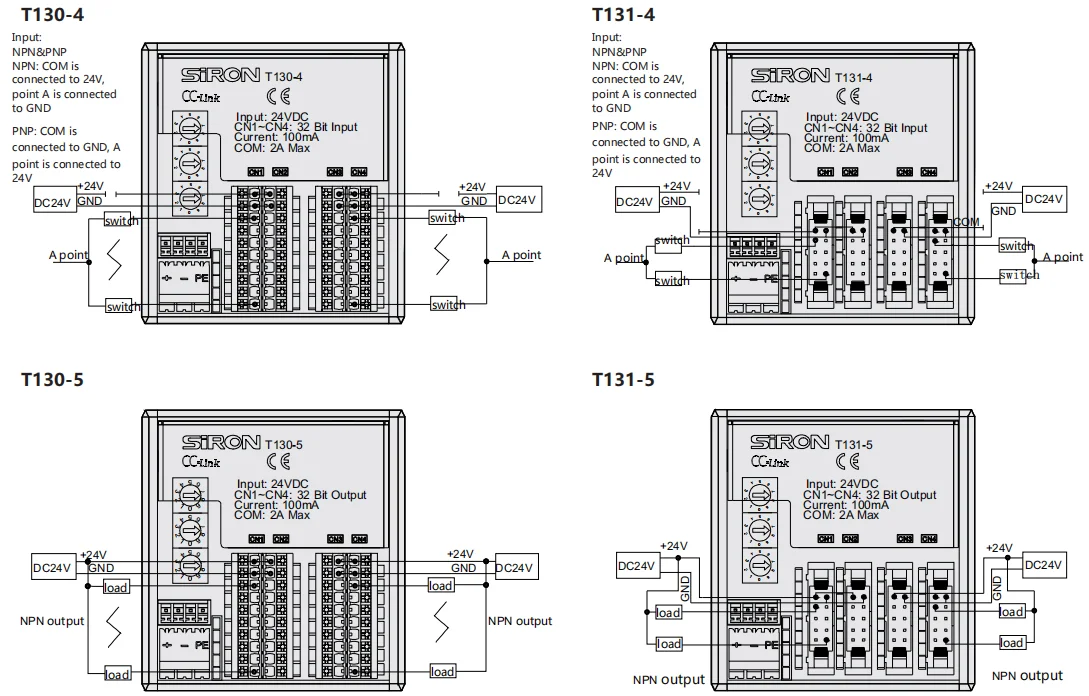

Digital input and output module | ||
Model | Specification Description | |

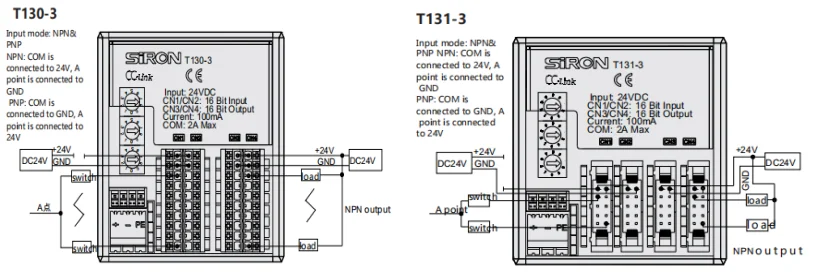

T130-3/T131-3 | 16 inputs (NPN&PNP compatible) and 16 outputs (NPN) | |
T130-4/T131-4 | 32 inputs (NPN&PNP compatible) and 0 outputs | |
T130-5/T131-5 | 0 inputs and 32 outputs (NPN) | |
