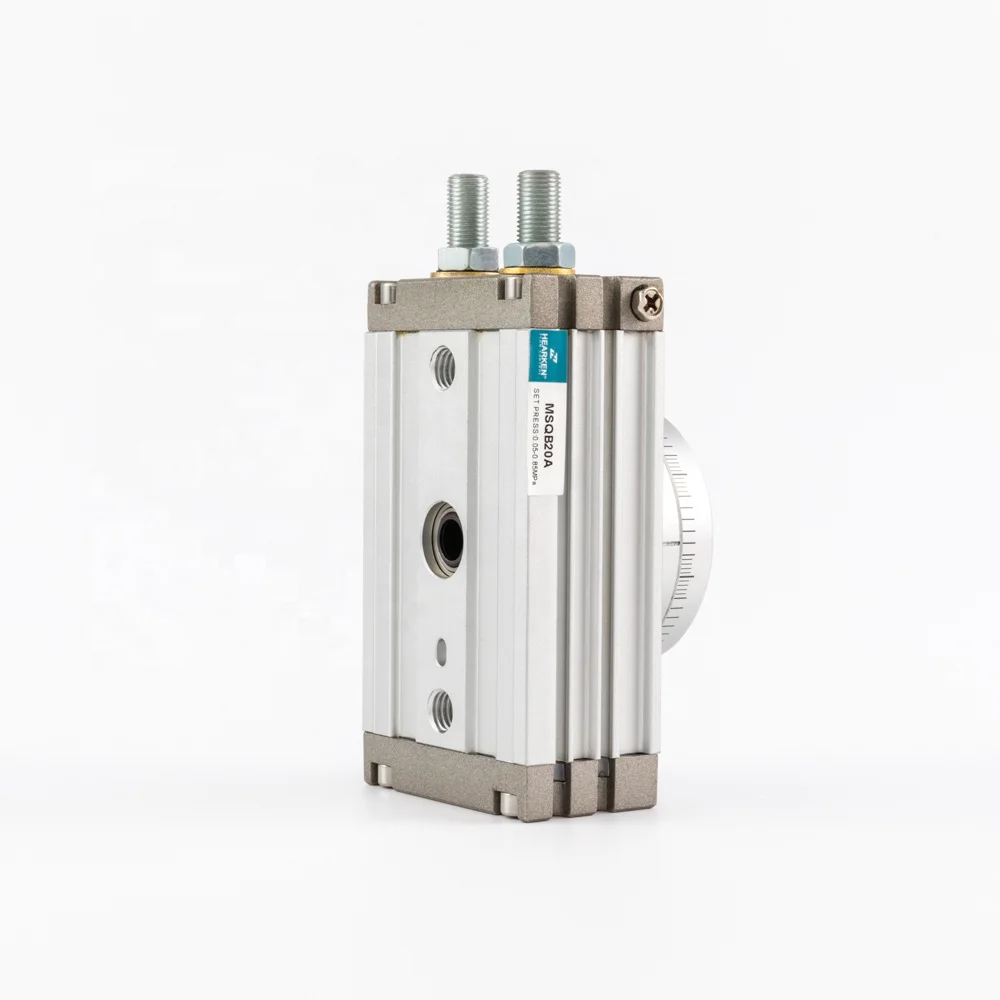

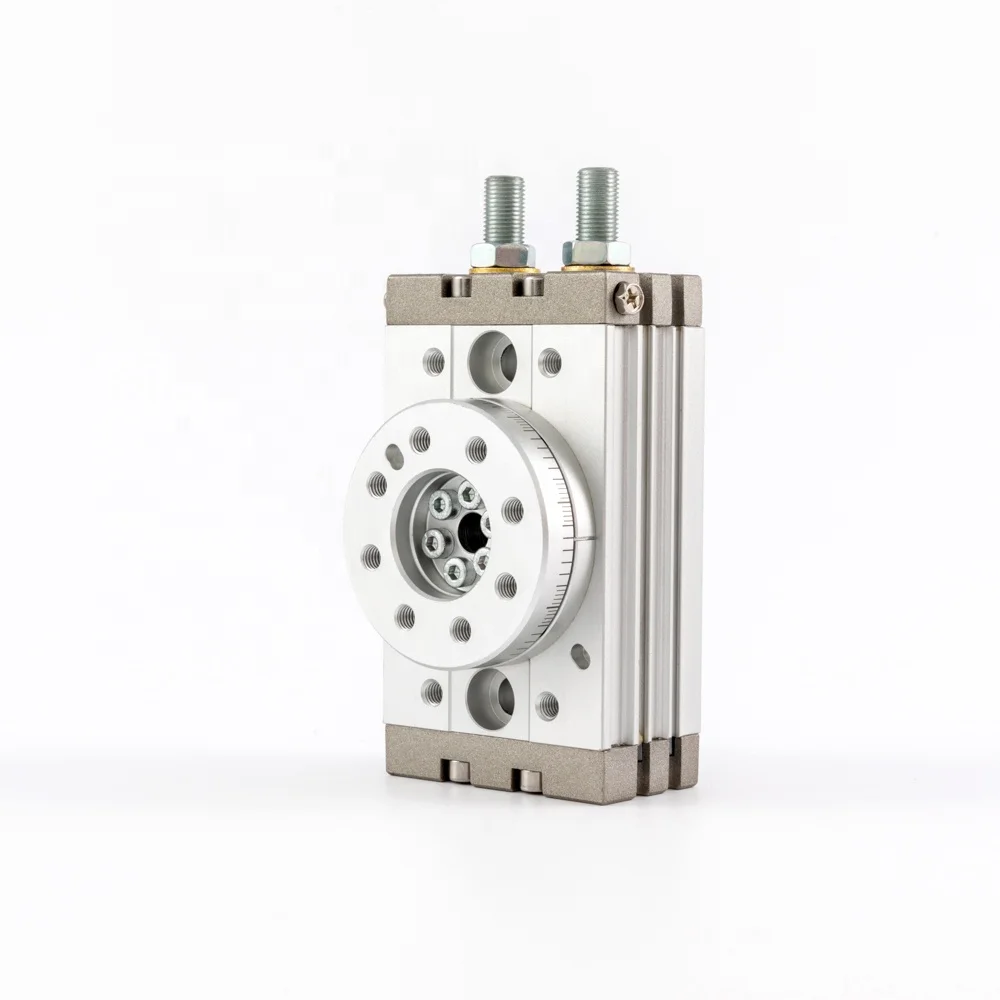

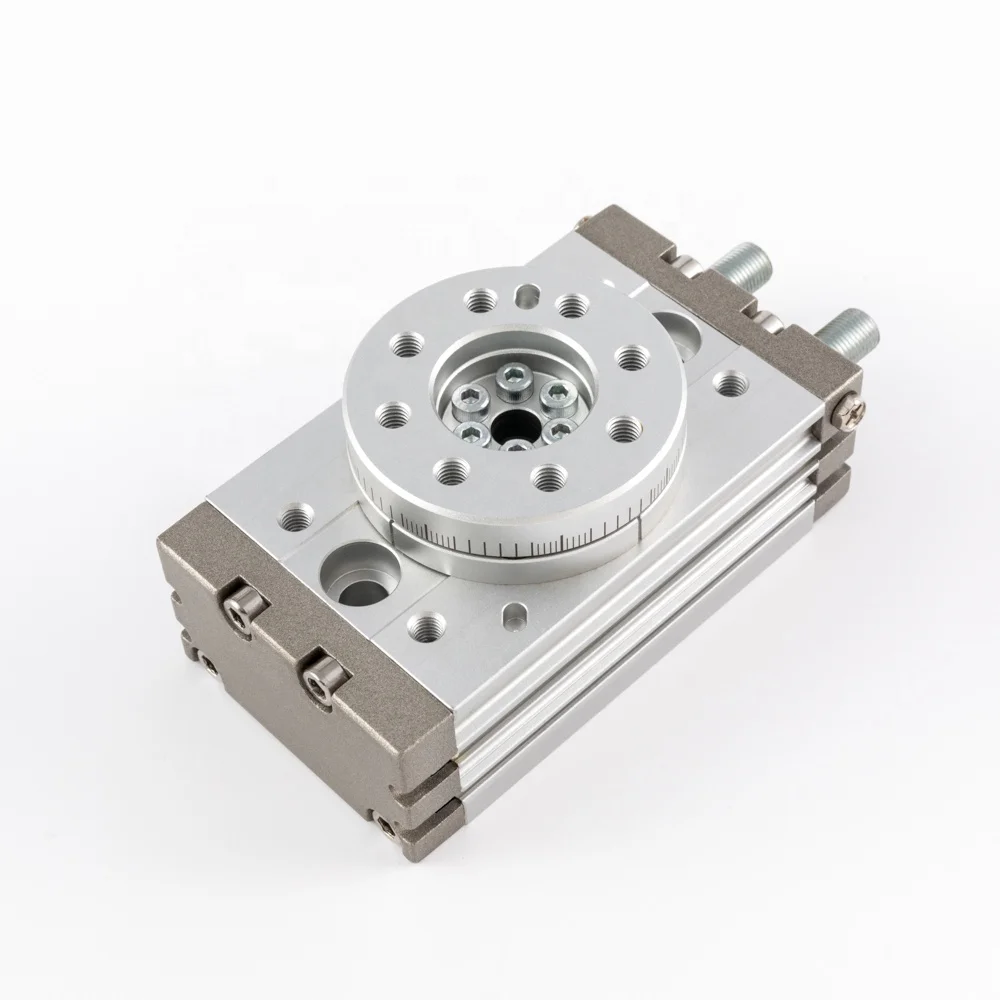

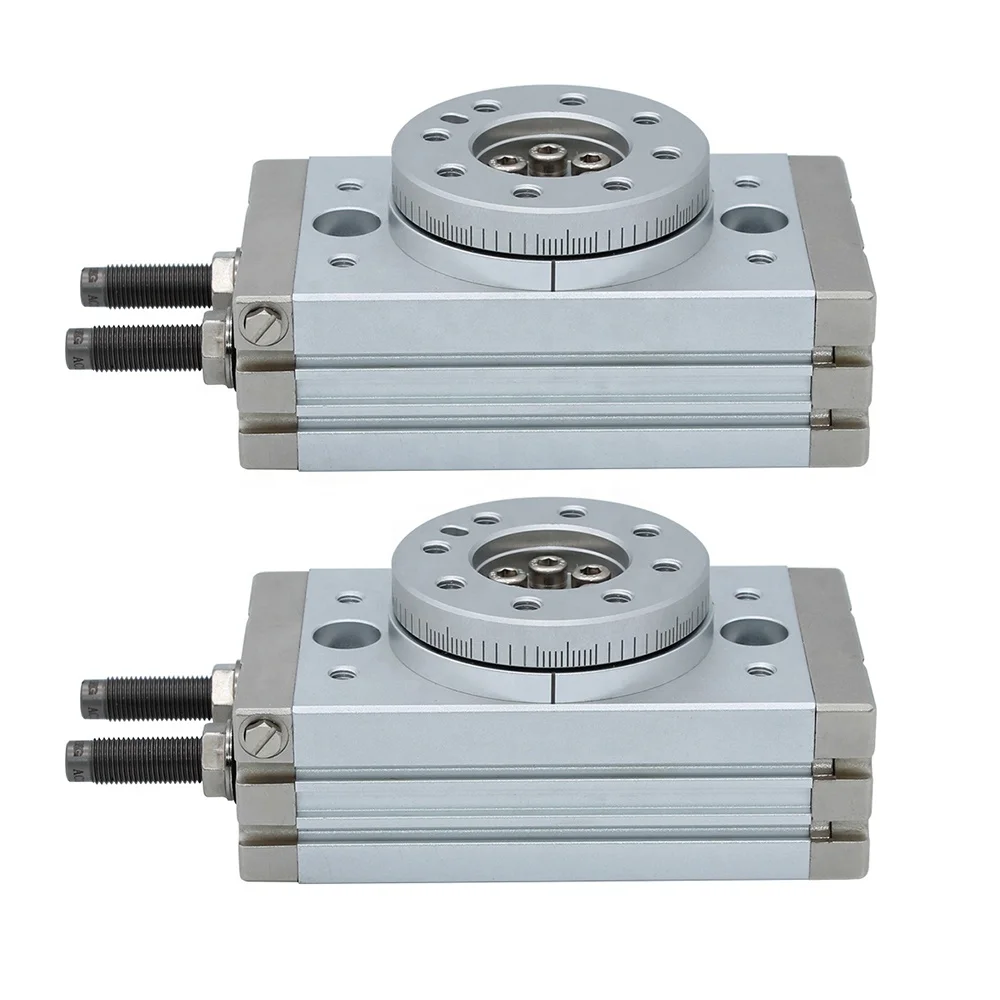

MSQB Series Swing Solid Rotating Air Cylinder ,Rotary Table Pneumatic Cylinder
- Category: >>>
- Supplier: Zhejiang Hearken Flow Equipment Co. Ltd.
Share on (11000002192187):
Product Overview
Description
Products Description | ||||||||||||||||||
Size | 10 | 20 | 30 | 50 | 70 | 100 | 200 | |||||||||||
Fluid | Air(non-lube) | |||||||||||||||||
Maximum operating pressure | With adjustment bolt | 1MPa | ||||||||||||||||
Wth interal shock absorber | 0.6MPa （Note 1） | |||||||||||||||||
Minimum operating pressure | Basic type | 0.1MPa | ||||||||||||||||
High precision type | 0.2MPa | 0.1MPa | ||||||||||||||||
Ambient and fluid temperature | 0 to 60℃(with no freezing) | |||||||||||||||||
Cushion | With adjustment bolt | Rubber bumper | ||||||||||||||||
Within tem al shock absorber | Shock absorber | |||||||||||||||||
Shock absorber model | RBA 0805 -X692 | RBA 1006-X 692 | RBA 1411 -X692 | RBA 2015-X 821 | RBA 2725 -X821 | |||||||||||||
Angle adjustment range | 0 to 190 Note 2) | |||||||||||||||||
Maximum rotation | 190° | |||||||||||||||||
Cylinder bore size | φ15 | φ18 | φ21 | φ25 | φ28 | φ32 | φ40 | |||||||||||
Port size | End ports | M5x0.8 | Rc 1/8， G 1/8， NPT 1/ 8 | |||||||||||||||
Side ports | M5x0.8 | |||||||||||||||||
Q: What is your main products?
A: Our main products are Pneumatic Actuators, Electric Actuators And Valve Accessories.
Q: Are you a trader or manufacturer? Do you have factory ?
A: We are the actuator manufacturer,we have ability to do the customization products with experienced team, And we have own factory and production line.
Q: How do your make the quality guarantee?
A: We have our own quality control ,every product will be under controlled and tested before delivery ,and we also provide 18 months guarantee.
Q: When can I receive the Price ?
A: We will give the Quotation Within 24 hours after we get your inquiry .Or Your can call us if its quite urgently.
Q: How to order our valve actuators ?
A: Please send us your inquiry by Email, Whatsapp,WeChat etc. we need to know the following information before giving the formal Quotation.
1) Product information in details, Quantity, Other requirements .
2) Delivery time required .
Q: How can I get a sample to check your quality ?
A: Contact with our sales expert to arrange the sample delivery. Please send us the details of the sample before placing the order.
Q：Shall we pay the sample cost and transportation cost ?
A: We will provide the sample by free of charge. Your will bear the freight cost.
Q: How long to prepare the sample ?
A: Most of our products are under regular production and some of them we keep in stocks.
Q: How to delivery the sample to our place?
A: Your can provide your forwarders contact if any, or we will arrange it.
Q: What about the delivery date if we place the formal order ?
A: Usually it takes 15~20 days on the production .We know that on-time delivery is very crucial to our customers to meet dead-lines.
We monitor and expedite our supply chain to ensure that we delivery our products to our customers on-time . All the time.
