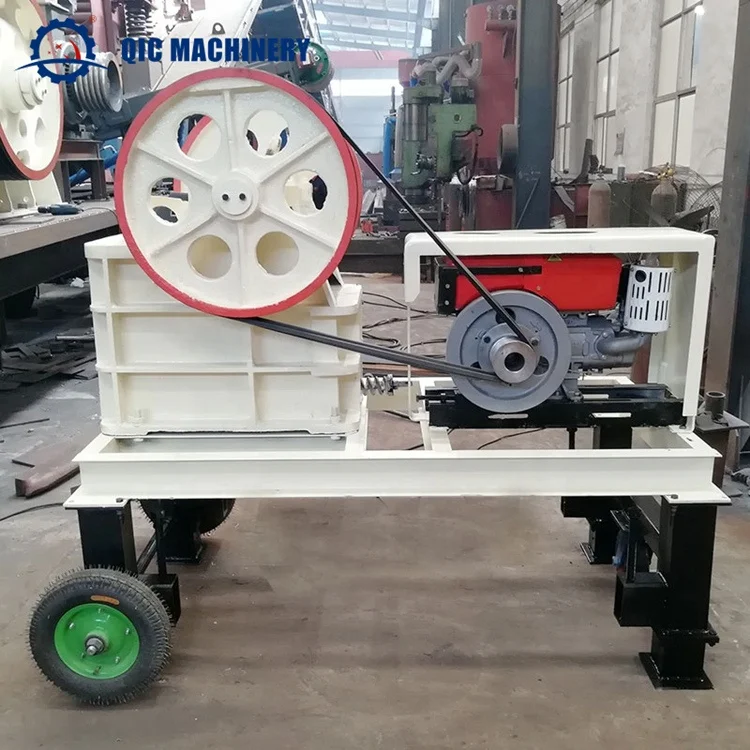

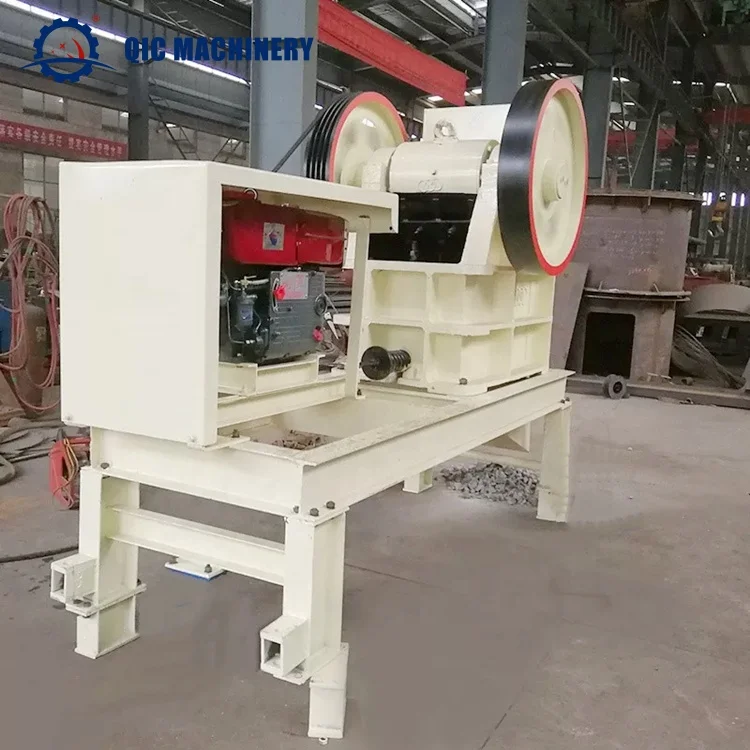

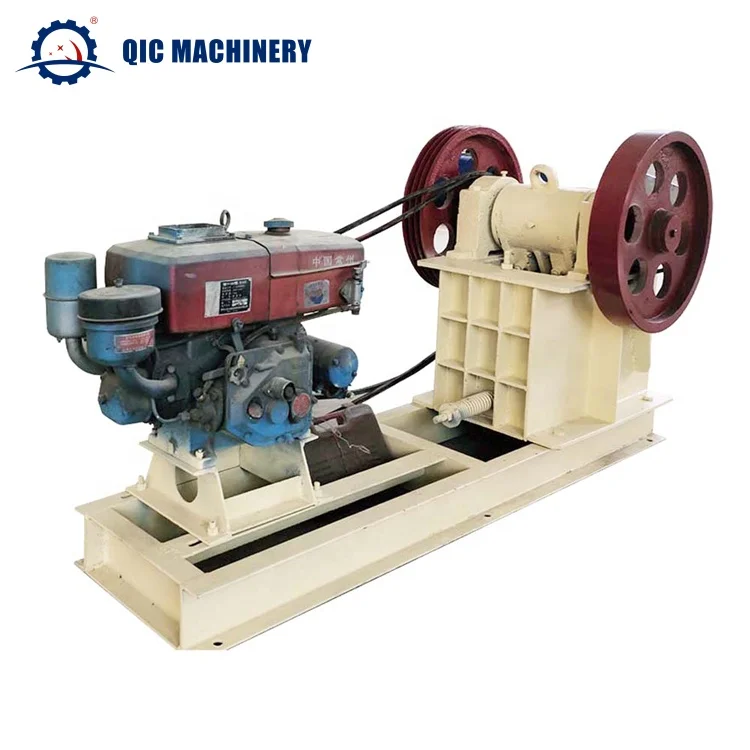

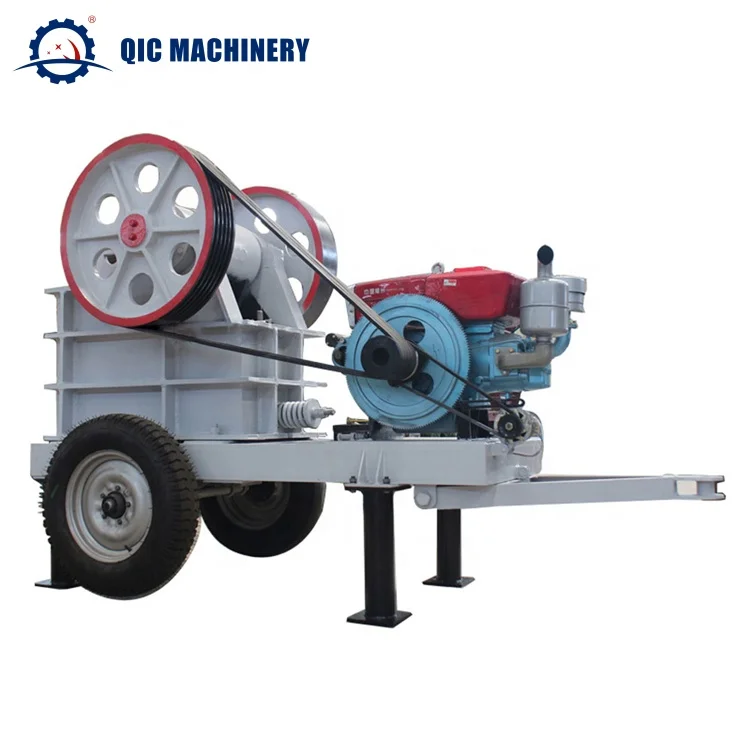

Mineral Used Mini Stone Crusher/Mobile Portable Jaw Crusher
- Category: >>>
- Supplier: Henan Qichen Machinery Import And Export Co. Ltd.
Share on (11000002201006):
Product Overview
Description
Products Description
Mineral Mobile Portable Jaw Crusher
Jaw crusher is also called the tiger's mouth. A movable jaw and a fixed jaw compose of the crushing chamber, it completes the material crushing operation just like the movement of the jaw of animals. Jaw crusher is widely used in the crushing of various ores and large materials in mining smelting, building materials, roads, railways, water conservancy and chemical industries and so on. The maximum compressive strength of the crushed material is 320Mpa.

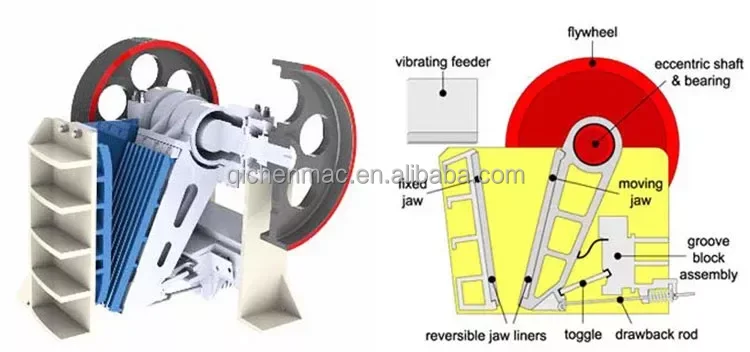

This series mini mobile jaw crusher adopts electric motor as the power, and the eccentric shaft is revolved by an electric motor through v-belts. It causes the swing jaw to follow the pre concerted path and crush the in-fed materials, and then the materials will be crushed in the crushing chamber which is composed of the stationary jaw plate, swing jaw plate and the liner plate. Finally the finished materials are discharged from the lower part of machine.
Please carefully examine the fasteners, especially the lubrication components and bolts before starting the machine. Enough oil is needed on each lubrication component. Fasten the loose bolts, clean the crushing cavity, and then start the machine. Insufficient load or over load is not allowed. Moving jaw plate, fixed jaw plate, side guard plate and roof plate are wearing parts, and much attention.
Please carefully examine the fasteners, especially the lubrication components and bolts before starting the machine. Enough oil is needed on each lubrication component. Fasten the loose bolts, clean the crushing cavity, and then start the machine. Insufficient load or over load is not allowed. Moving jaw plate, fixed jaw plate, side guard plate and roof plate are wearing parts, and much attention.
Product Paramenters
Model | Input size | Output size | Capacity | Power |
PE150*250 | 125mm | 10-40mm | 1-4t/h | 5.5kw |
PE250*400 | 210mm | 20-60mm | 5-15t/h | 15kw |
PE400*600 | 340mm | 40-110mm | 10-40t/h | 30kw |
PE500*750 | 425mm | 50-120mm | 40-90t/h | 55kw |
PE600*900 | 500mm | 65-200mm | 50-180t/h | 75kw |

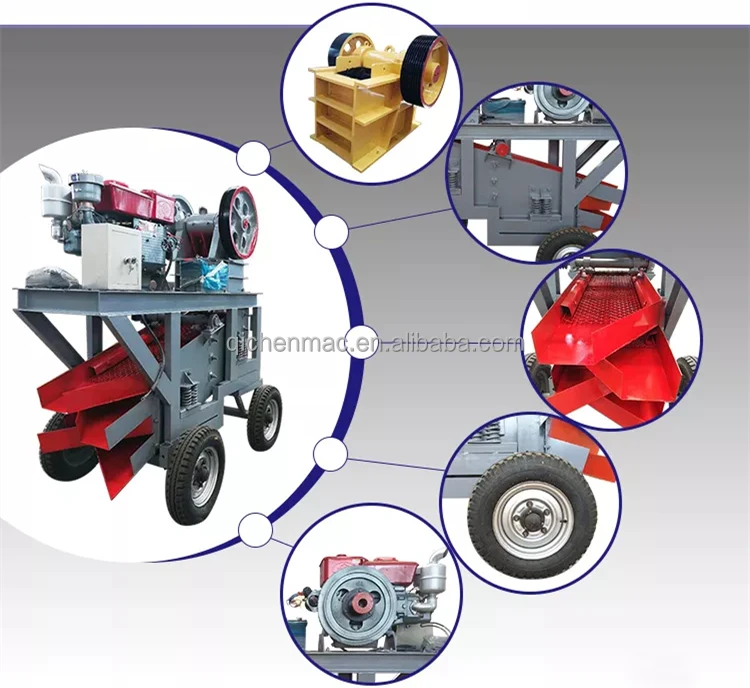

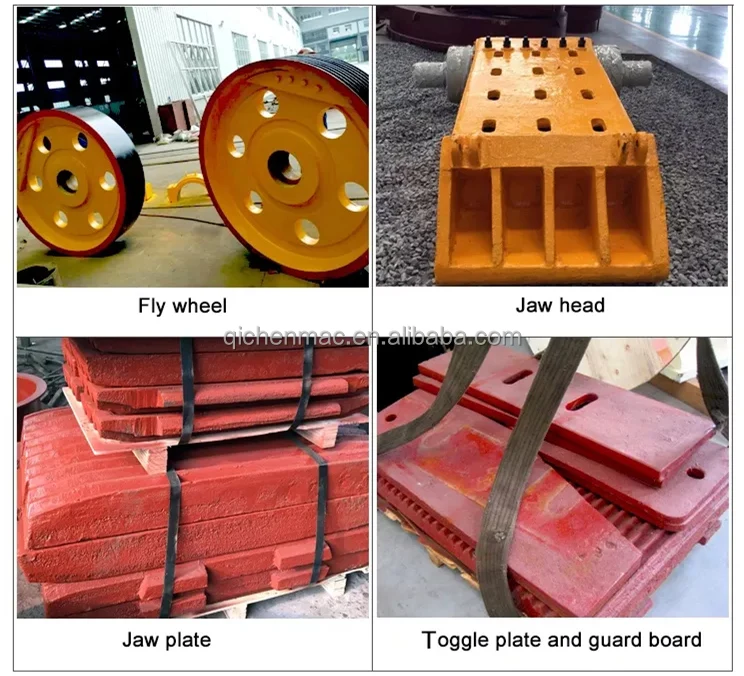

Details Images
Features:
1.High crushing strength, The movable crusher jaw plate and the fixed jaw plate with convex and concave interaction arrangement crush and bend the material at the same time, which makes materials easily broken.
2. The weight of the counterweight and the structure of the Jaw crusher are adjusted, the vibration of the whole machine is greatly improved and the performance is also well improved.
3. Utilize a new bolt system, operators can replace the toggle easily.
4. Wide application range, low requirement of the working environment.
1.High crushing strength, The movable crusher jaw plate and the fixed jaw plate with convex and concave interaction arrangement crush and bend the material at the same time, which makes materials easily broken.
2. The weight of the counterweight and the structure of the Jaw crusher are adjusted, the vibration of the whole machine is greatly improved and the performance is also well improved.
3. Utilize a new bolt system, operators can replace the toggle easily.
4. Wide application range, low requirement of the working environment.

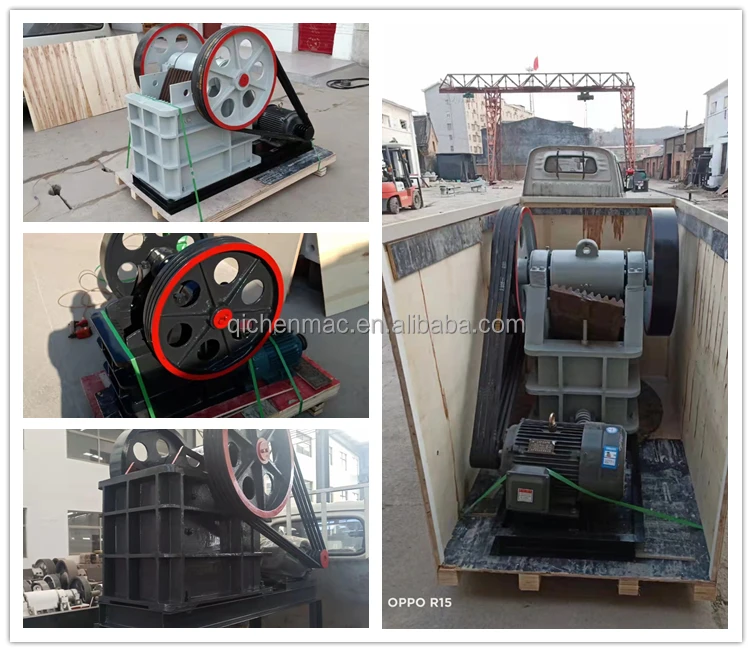

Product packaging
Company Profile
FAQ
