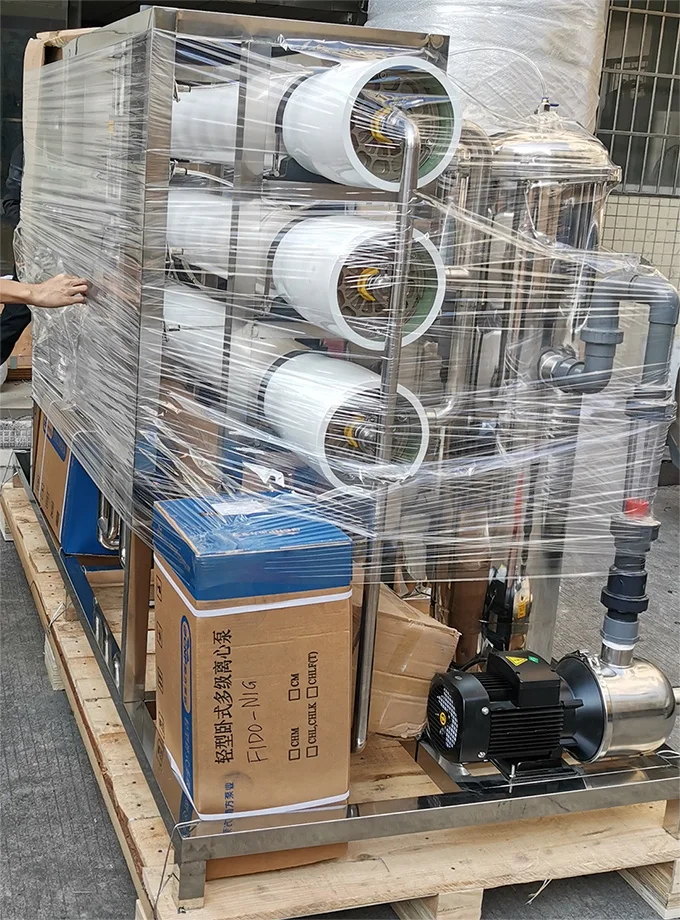

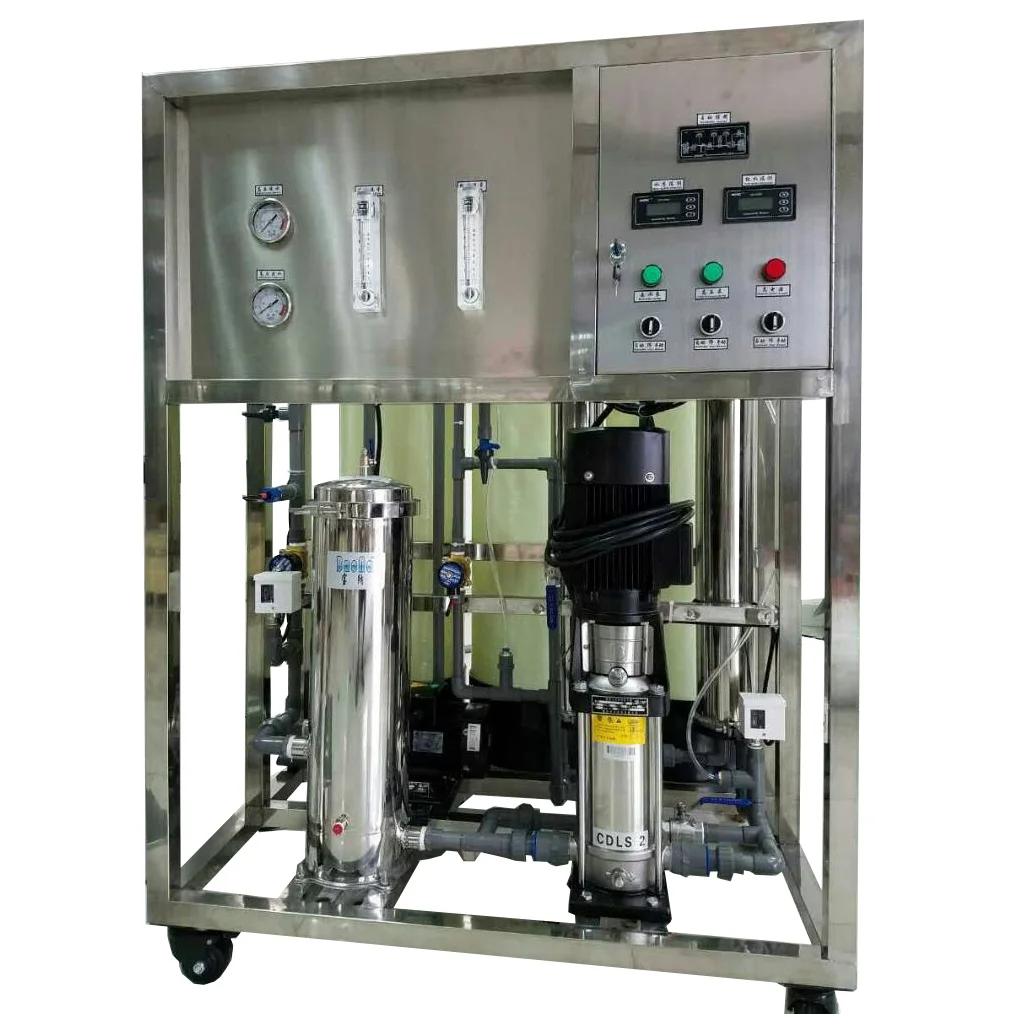

High standard reverse osmosis water filter system for africa
- Category: >>>
- Supplier: Jiangmen Yicheng Technology Co. Ltd.
Share on (11000002222708):
Product Overview
Description
Product Overview

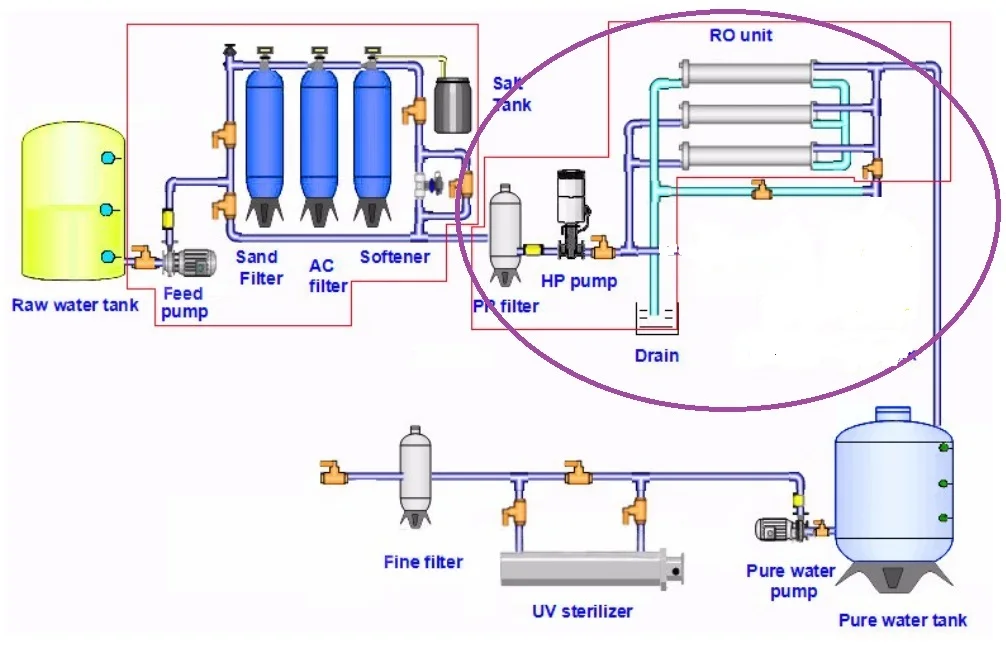

1 、Function for every process：

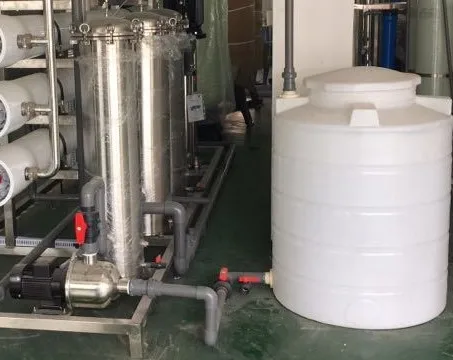

Raw water tank: To storage raw water, deposit dirt or granule in raw water, meanwhile, the raw water tank can avoid water
treatment been shock caused by unstable water pressure, if raw water is pure (If your water is pure and water supply is enough,
you can omit it)
Raw water booster pump: To offer constant water pressure to ensure stable water flow.
Carbon filter: Our water treatment adopts activated carbon, which can absorb ion electrolyte and exchange the absorption,
afterwards, the oxygen consumption of potassium permanganate will reduce from 15mg/ L (02) to 2-7mg/L. (02). The carbon filtering
process will remove pigment, smell, chlorine etc. in water.

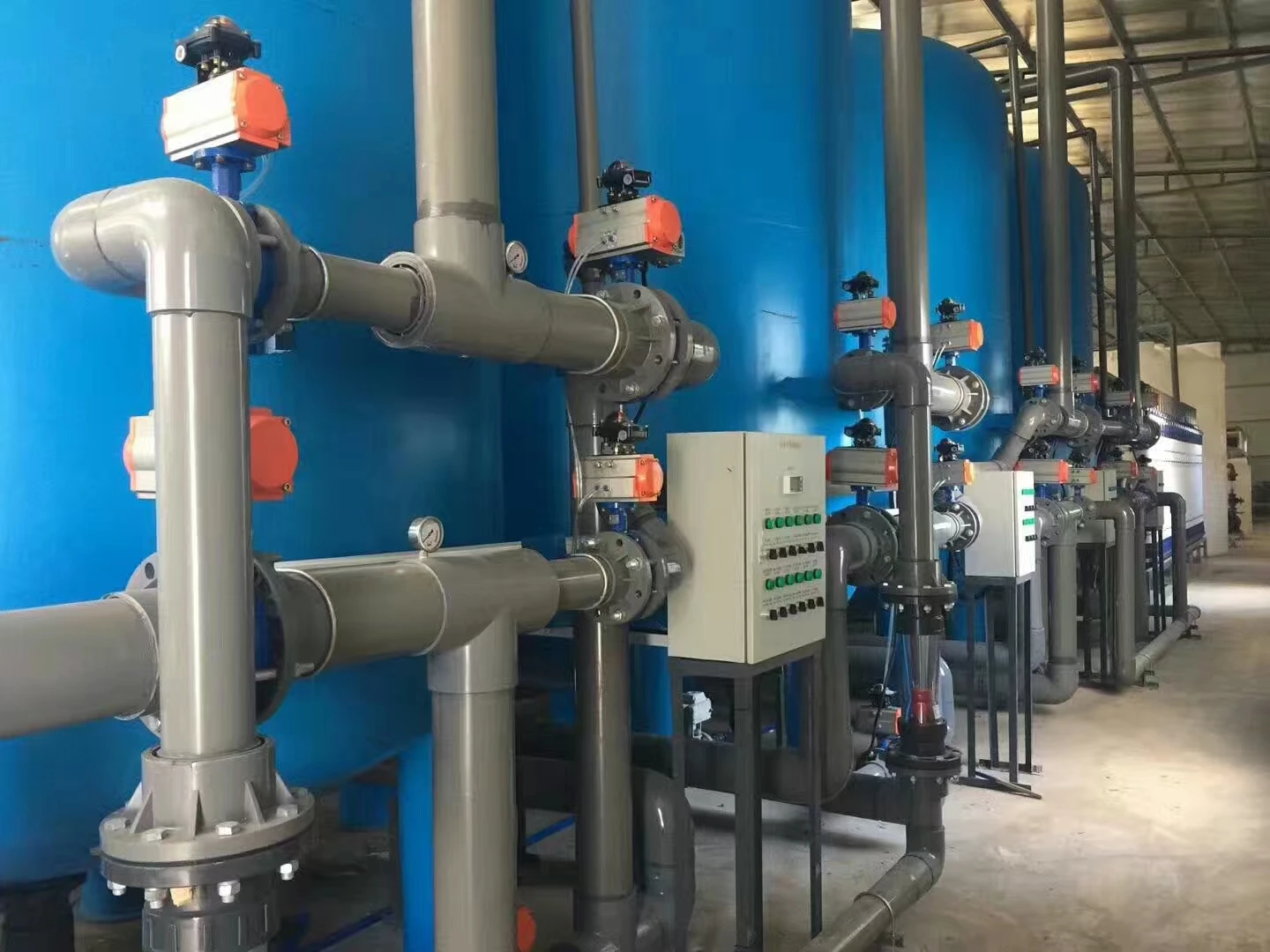

Quartz Sand filter: Refined particles of different sizes of quartz sand, from top to bottom, from small to big in order of
priority. Mechanical removal of particles larger than 20μm impurities, after coagulation of small organic molecules and some
colloid, the effluent turbidity is less than 0.5NTU, CODMn less than 1.5mg / L, SDI ≤ 5.

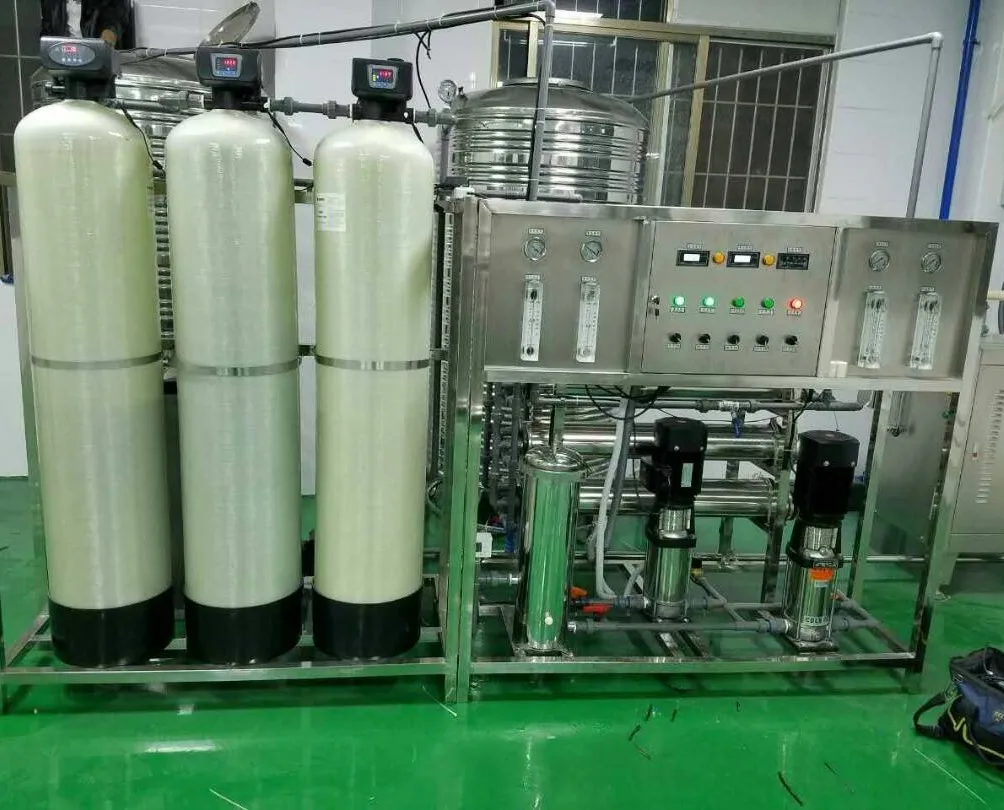

Softener filter: Water softener is most common device for removing water hardness rely on ion-exchange polymers. It can wipe off
calcium-ions and magnesium-ions in water. Conventional water-softening depend on an ion-exchange resin in which "hardness ions" -
mainly Ca2+ and Mg2+ - are exchanged for sodium ions. As described by NSF/ANSI Standard 44, ion exchange devices reduce the
hardness by replacing magnesium and calcium (Mg2+ and Ca2+) with sodium or potassium ions (Na+ and K+)."
Security filter: To remove suspended solids, granule, colloidal substance in water, which to ensure safe and reliable in the
following process by preventing impurity comes into membrane, which will breakdown de-salt rate of membrane.

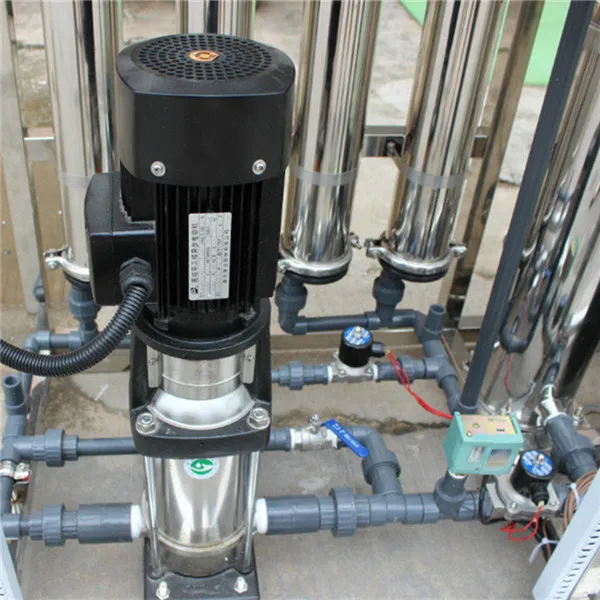

High pressure pump: Provide enough pressure to the Reverse membrane.
Raw water tank: To storage raw water, deposit dirt or granule in raw water, meanwhile, the raw water tank can avoid water
treatment been shock caused by unstable water pressure, if raw water is pure (If your water is pure and water supply is enough,
you can omit it)
Raw water booster pump: To offer constant water pressure to ensure stable water flow.
Carbon filter: Our water treatment adopts activated carbon, which can absorb ion electrolyte and exchange the absorption,
afterwards, the oxygen consumption of potassium permanganate will reduce from 15mg/ L (02) to 2-7mg/L. (02). The carbon filtering
process will remove pigment, smell, chlorine etc. in water.
Quartz Sand filter: Refined particles of different sizes of quartz sand, from top to bottom, from small to big in order of
priority. Mechanical removal of particles larger than 20μm impurities, after coagulation of small organic molecules and some
colloid, the effluent turbidity is less than 0.5NTU, CODMn less than 1.5mg / L, SDI ≤ 5.
Softener filter: Water softener is most common device for removing water hardness rely on ion-exchange polymers. It can wipe off
calcium-ions and magnesium-ions in water. Conventional water-softening depend on an ion-exchange resin in which "hardness ions" -
mainly Ca2+ and Mg2+ - are exchanged for sodium ions. As described by NSF/ANSI Standard 44, ion exchange devices reduce the
hardness by replacing magnesium and calcium (Mg2+ and Ca2+) with sodium or potassium ions (Na+ and K+)."
Security filter: To remove suspended solids, granule, colloidal substance in water, which to ensure safe and reliable in the
following process by preventing impurity comes into membrane, which will breakdown de-salt rate of membrane.
High pressure pump: Provide enough pressure to the Reverse membrane.
FEATURES AT A GLANCE

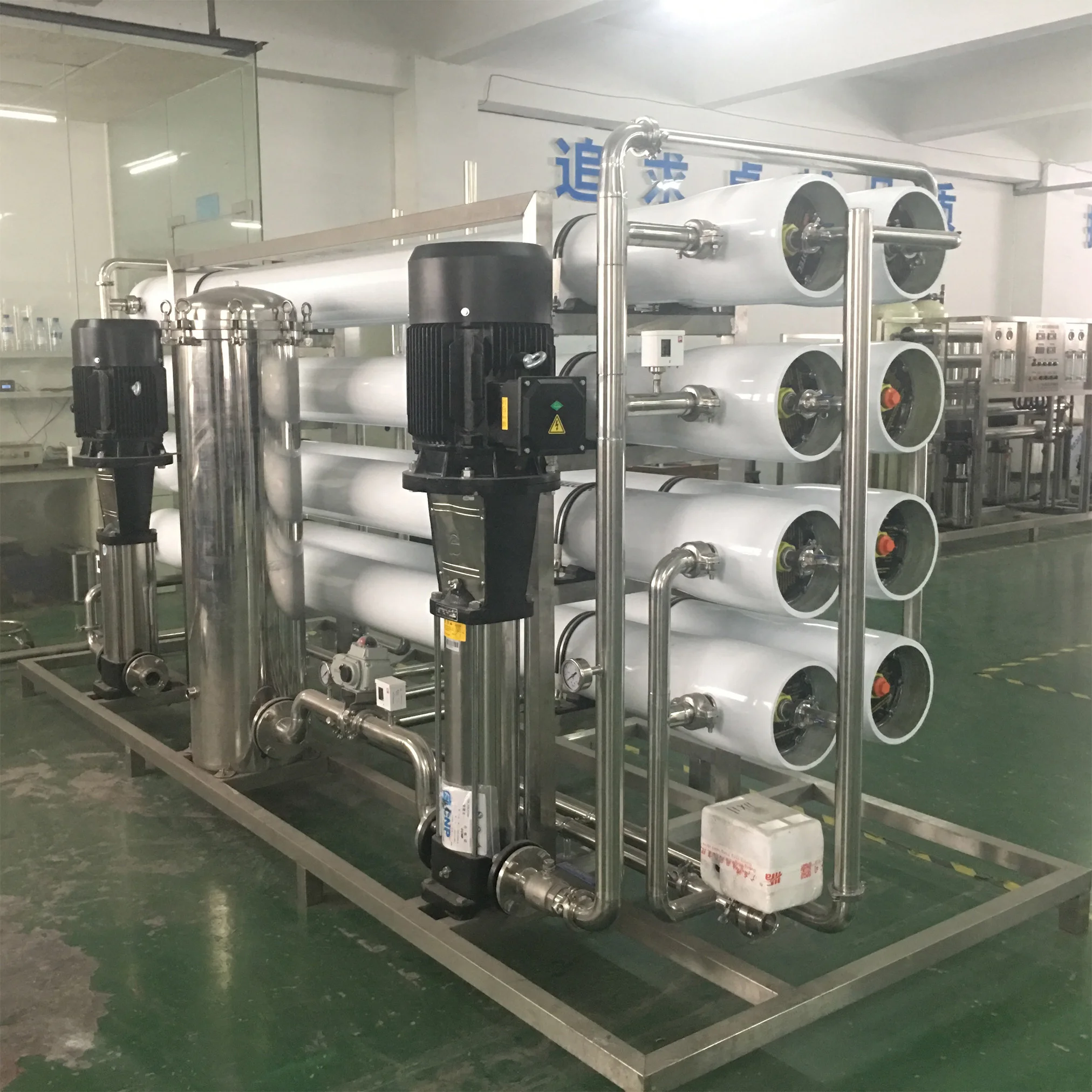

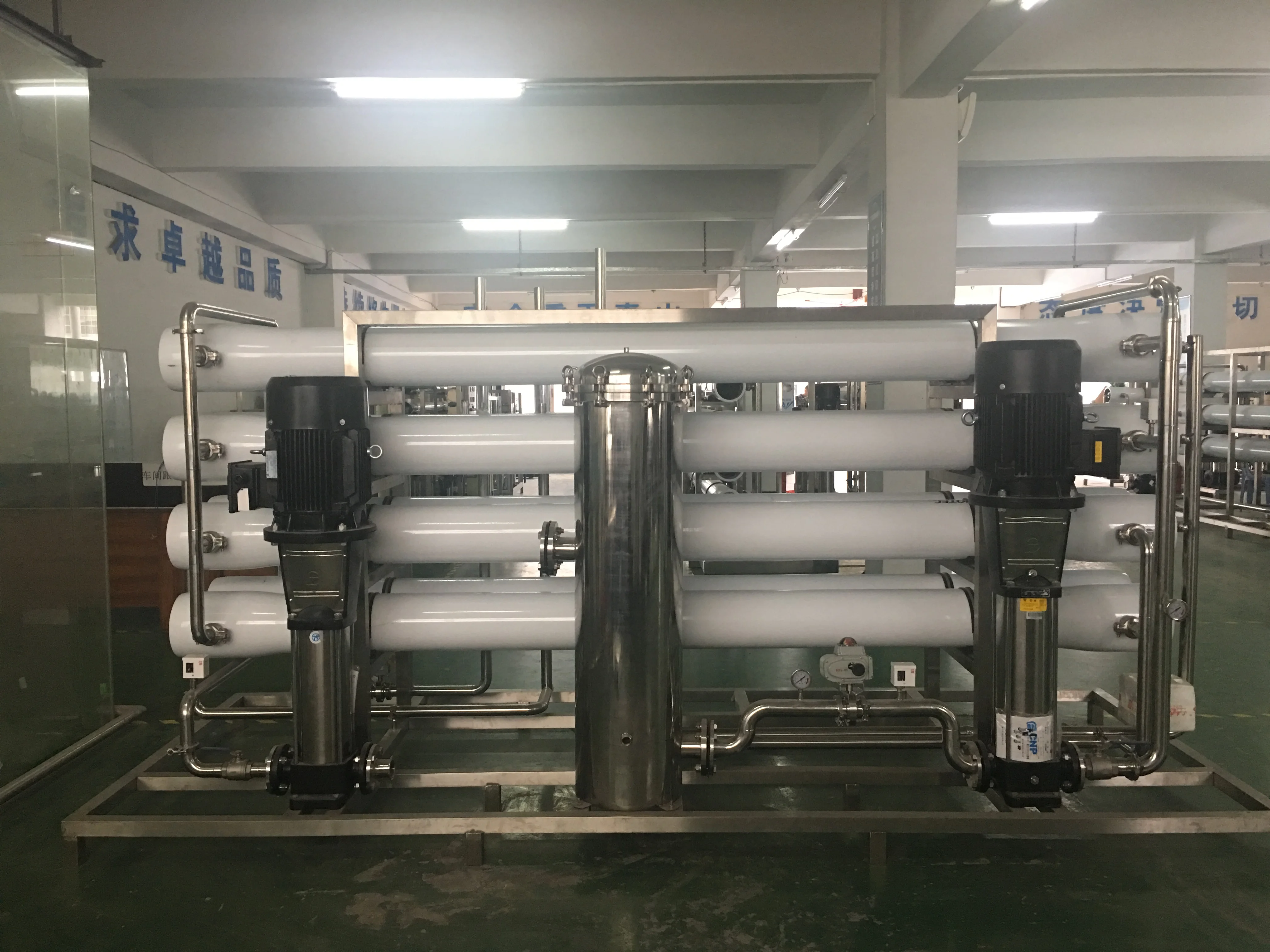

RO system: press water to membrane and isolate, as the process is running in opposite direction with nature osmosis, thus call it
revise osmosis. The process can achieve high de-salt rate with high recovery, meanwhile, revise osmosis process can remove great
amount of residual material in water.
revise osmosis. The process can achieve high de-salt rate with high recovery, meanwhile, revise osmosis process can remove great
amount of residual material in water.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
