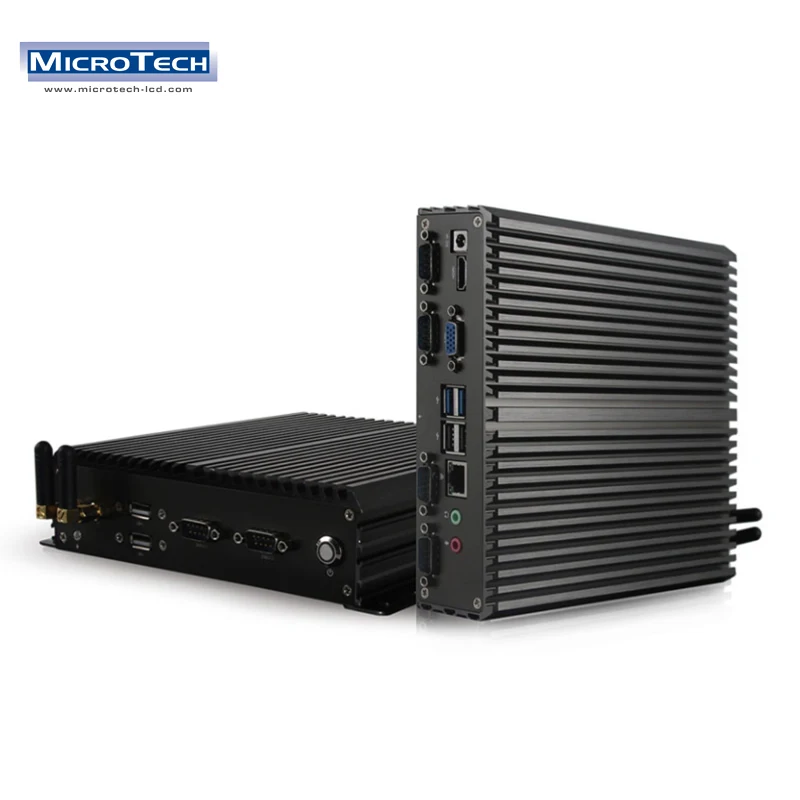

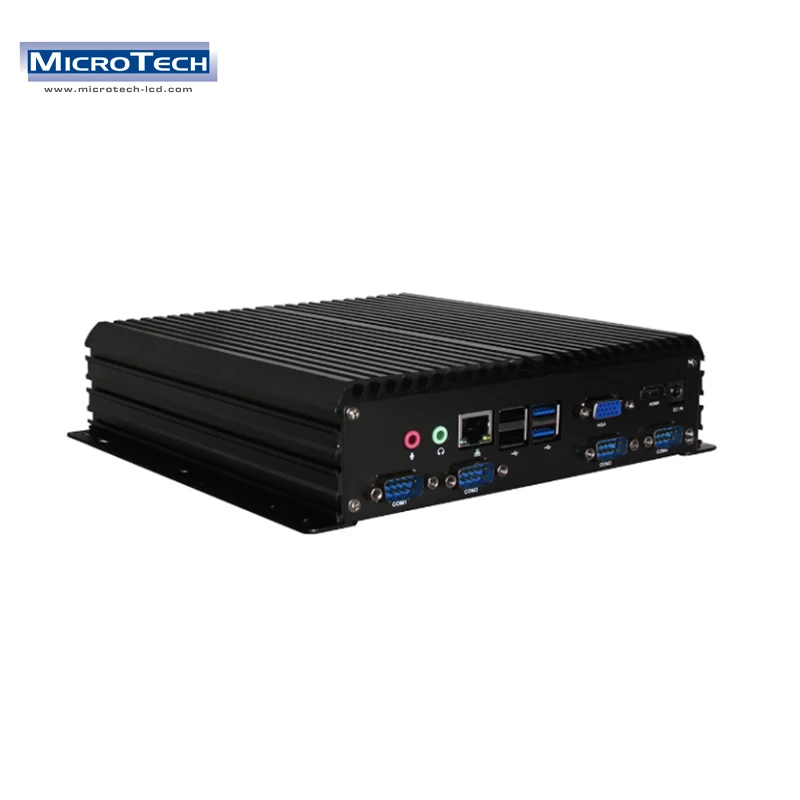

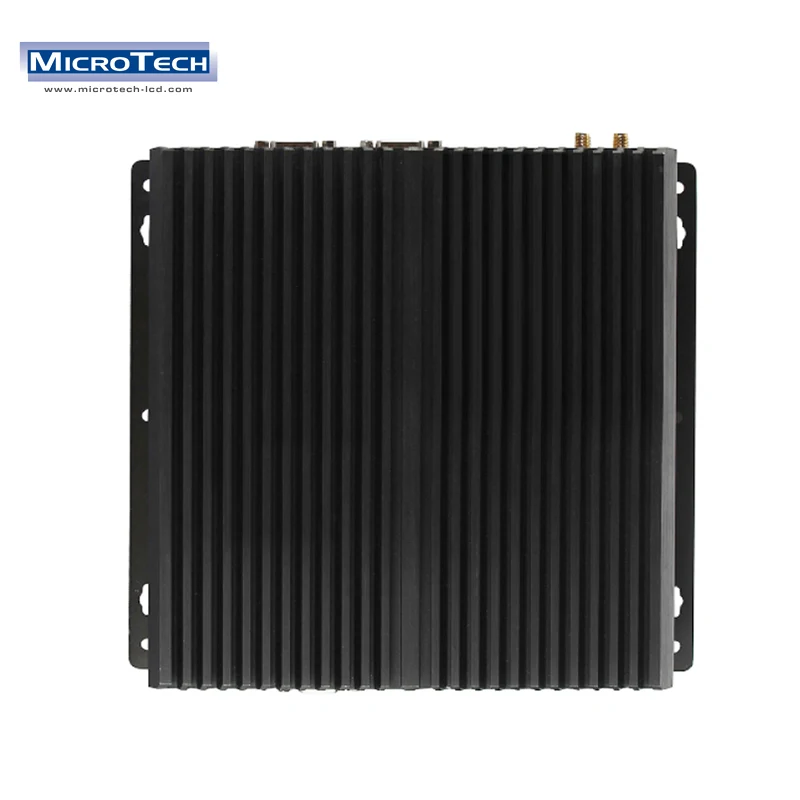

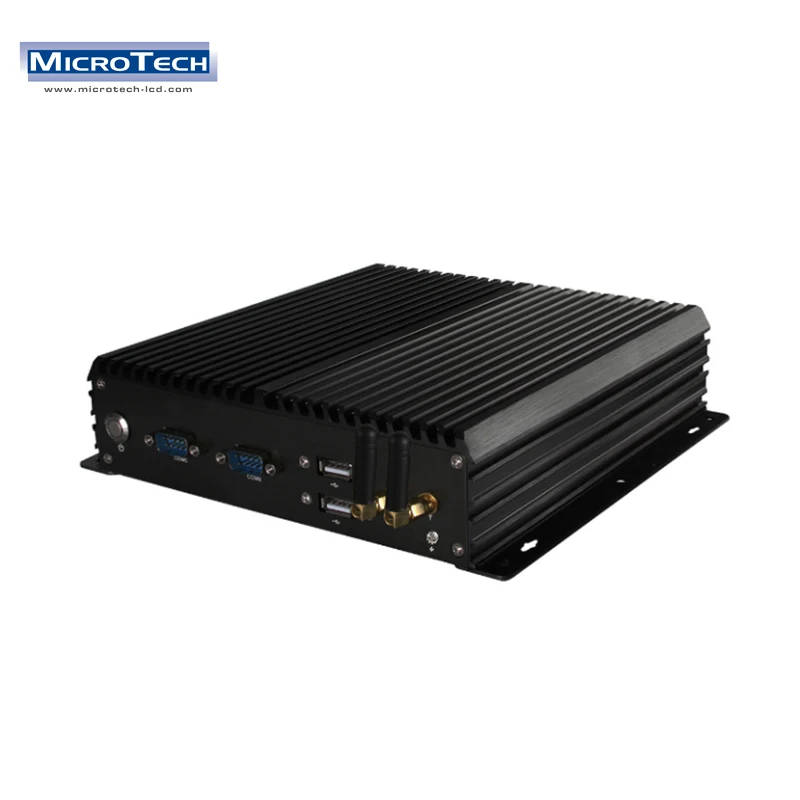

i3/i5/i7 CPU industrial Mini desktop pc Intel Celeron J1900 quad core computer 8G Ram 256G SSD WIFI PC low power host
- Category: >>>
- Supplier: MICROTECH TECHNOLOGY COMPANY LIMITED
Share on (11000002230812):
Product Overview
Description
i3/i5/i7 CPU industrial Mini desktop pc Intel Celeron J1900 quad core computer 8G Ram 256G SSD WIFI PC low power host
Features
Intel industrial computer
Good scalability and strong visualization
Fully enclosed dust-proof design
Anti-interference/low power consumption/low heat generation
Stable performance, support all day operation
Aluminum alloy die-casting body
Intel industrial computer
Good scalability and strong visualization
Fully enclosed dust-proof design
Anti-interference/low power consumption/low heat generation
Stable performance, support all day operation
Aluminum alloy die-casting body
The industrial computer is a computer specially designed for industrial sites. The whole machine is made of aluminum alloy to ensure long-term stable operation in harsh environments. The industrial-grade standard J1900 motherboard is equipped with 2G DDR3 memory and 32G SSD solid state drive. Low-power host, compatible with win7/win10/linux operating system, can meet 365*24h unattended high-load work.
Specification
Specifications\t\t
Be
Hardware configuration CPU Celeron J1800/J1900/i3/i5/i7
Hard disk 32G SSD solid state drive (standard)/64G/128G/256G
Memory 2G DDR3, support 8G
Display chip Mali400MP2 dual core
Operating system Support Windows, Linux platform
Graphics Intel HD Graphics
3G module supports China Mobile, China Unicom, Telecom (optional)
4G module supports mobile, China Unicom, telecommunications (optional)
wifi supports 2.4, optional 5G
bluet ooth optional
GPS optional
MIC optional
RTC real-time clock support
Wake on LAN support
Power on support (can be set in BIOS)
Speaker 8 ohm 2W left and right channels
Be

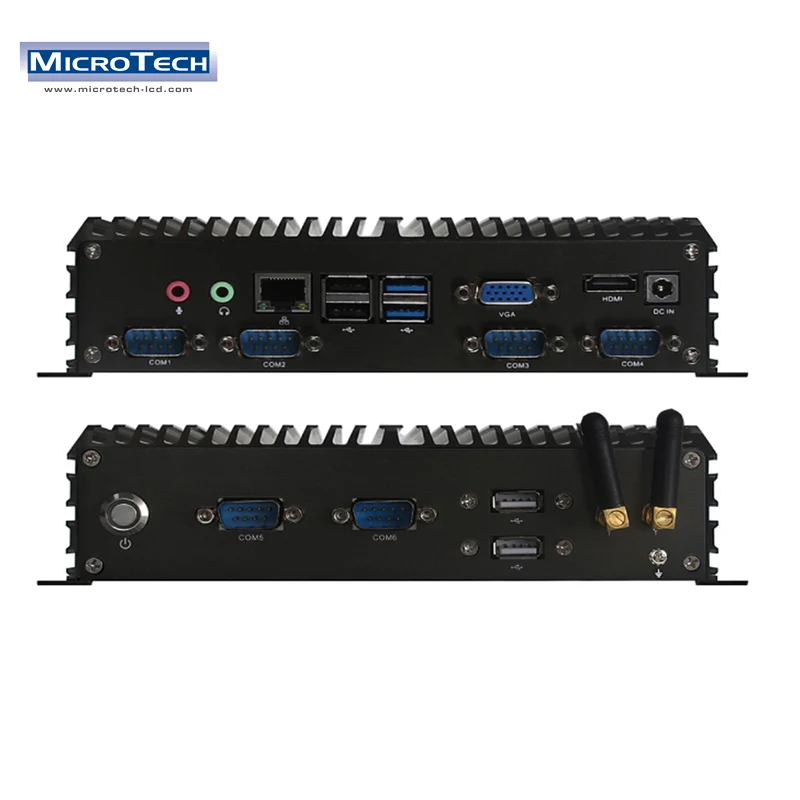

Interface parameters USB interface USB2.0*5+USB3.0*1
Serial interface 8"-10.4": USB2.0*2, other sizes: USB2.0*3+USB3.0*1
WIFI connector WIFI antenna*1
Power interface DC 12V*1
High-definition interface HDMI*1
Extended display VGA*1, supports simultaneous dual display and different display functions
Network card interface RJ-45*1
Support expansion, a variety of industry interfaces support customization
Be
Be
Other parameters HD support 1080P
Anti-interference EMI/EMC interference detection standard
Image format Support BMP, JPEG, PNG, GIF
Resolution support above 800*600
Anti-vibration 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g amplitude
Shock resistance 10g acceleration 11ms cycle
Chassis structure Aluminum alloy on the chassis surface is pressed into one piece
With or without fan Without fan
Product color Standard gun color (optional black, silver)
Installation method Embedded, desktop, wall-mounted, etc.
Be
Product reliability Operating temperature -20 °C ~ 65 °C
Storage temperature -40 °C ~ 80 °C
Relative humidity 20%-95% (relative humidity non-condensing)
Mean time between failures (MTBF) 7*24H
Be
Power adapter Power consumption Low power consumption 30-40W
Power input AC 100-240V 50/60Hz through CCC certification, CE certification
Power output DC12V / 5A
Be
Be
Packaging specifications Product gross weight 1.9KG
Body size 200*189*59(mm)
Packing list Industrial computer, power adapter, edge strip, screw, antenna, warranty card, manual
Be
Hardware configuration CPU Celeron J1800/J1900/i3/i5/i7
Hard disk 32G SSD solid state drive (standard)/64G/128G/256G
Memory 2G DDR3, support 8G
Display chip Mali400MP2 dual core
Operating system Support Windows, Linux platform
Graphics Intel HD Graphics
3G module supports China Mobile, China Unicom, Telecom (optional)
4G module supports mobile, China Unicom, telecommunications (optional)
wifi supports 2.4, optional 5G
bluet ooth optional
GPS optional
MIC optional
RTC real-time clock support
Wake on LAN support
Power on support (can be set in BIOS)
Speaker 8 ohm 2W left and right channels
Be
Interface parameters USB interface USB2.0*5+USB3.0*1
Serial interface 8"-10.4": USB2.0*2, other sizes: USB2.0*3+USB3.0*1
WIFI connector WIFI antenna*1
Power interface DC 12V*1
High-definition interface HDMI*1
Extended display VGA*1, supports simultaneous dual display and different display functions
Network card interface RJ-45*1
Support expansion, a variety of industry interfaces support customization
Be
Be
Other parameters HD support 1080P
Anti-interference EMI/EMC interference detection standard
Image format Support BMP, JPEG, PNG, GIF
Resolution support above 800*600
Anti-vibration 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g amplitude
Shock resistance 10g acceleration 11ms cycle
Chassis structure Aluminum alloy on the chassis surface is pressed into one piece
With or without fan Without fan
Product color Standard gun color (optional black, silver)
Installation method Embedded, desktop, wall-mounted, etc.
Be
Product reliability Operating temperature -20 °C ~ 65 °C
Storage temperature -40 °C ~ 80 °C
Relative humidity 20%-95% (relative humidity non-condensing)
Mean time between failures (MTBF) 7*24H
Be
Power adapter Power consumption Low power consumption 30-40W
Power input AC 100-240V 50/60Hz through CCC certification, CE certification
Power output DC12V / 5A
Be
Be
Packaging specifications Product gross weight 1.9KG
Body size 200*189*59(mm)
Packing list Industrial computer, power adapter, edge strip, screw, antenna, warranty card, manual
