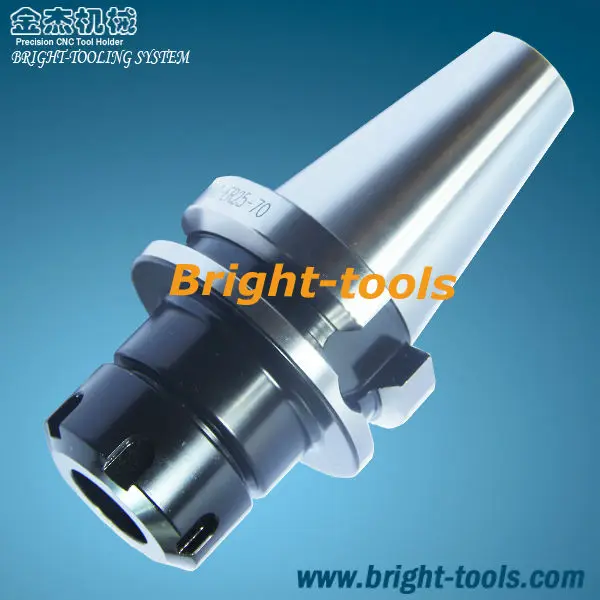

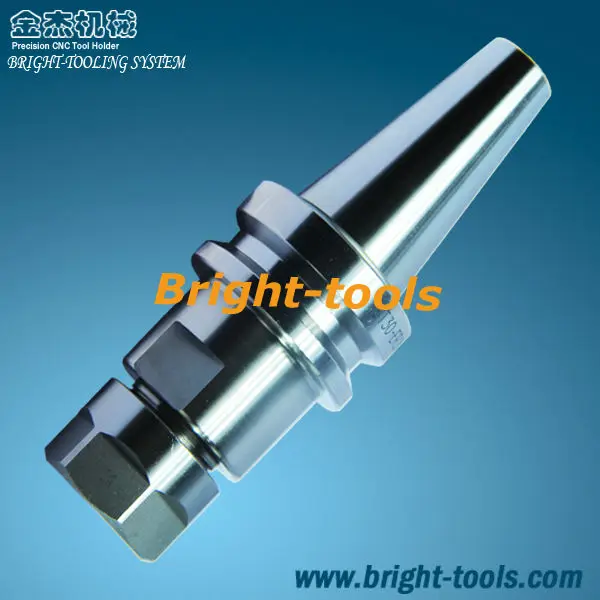

Цанговый патрон типа ER BT30, BT40, BT50

Product Overview

Description

Цанговый патрон типа ER BT30, BT40, BT50







номер модели	D	D1	L1	Диапазон зажима	Wt (kg)
BT30xER20-70	35	31.75	70	0.5-13	0.55
BT30xER25-70	42	31.75	70	0.5-16	0.58
BT30xER32-70	50	31.75	70	1-20	0.85
BT30xER40-80	63	31.75	80	2-26	1.10
BT40xER16-70	32	44.45	70	0.5-10	1.14
BT40xER20-70	35	44.45	70	0.5-13	1.16
BT40xER20-100	35	44.45	100	0.5-13	1.38
BT40xER20-130	35	44.45	130	0.5-13	1.76
BT40xER25-70	42	44.45	70	0.5-16	1.22
BT40xER25-100	42	44.45	100	0.5-16	1.52
BT40xER25-130	42	44.45	130	0.5-16	1.90
BT40xER25-160	42	44.45	160	0.5-16	2.10
BT40xER32-70	50	44.45	70	1-20	1.30
BT40xER32-100	50	44.45	100	1-20	1.72
BT40xER32-130	50	44.45	130	1-20	2.05
BT40xER32-160	50	44.45	160	1-20	2.58
BT40xER40-80	63	44.45	80	2-26	1.45
BT40xER40-100	63	44.45	100	2-26	2.01
BT40xER40-160	63	44.45	160	2-26	3.29
BT50xER16-70	28	69.85	70	0.5-10	3.64
BT50xER20-70	35	69.85	70	0.5-13	3.67
BT50xER20-100	35	69.85	100	0.5-13	3.84
BT50xER25-70	42	69.85	70	0.5-16	3.70
BT50xER25-100	42	69.85	100	0.5-16	4.54
BT50xER32-70	50	69.85	70	1-20	3.73
BT50xER32-100	50	69.85	100	1-20	5.20
BT50xER32-160	50	69.85	160	1-20	4.97
BT50xER32-200	50	69.85	200	1-20	5.48
BT50xER40-80	63	69.85	80	2-26	3.76
BT50xER40-100	63	69.85	100	2-26	4.44
BT50xER40-160	63	69.85	160	2-26	5.77
BT50xER40-200	63	69.85	200	2-26	6.66
