High torque 30mm dia 48v brushless dc motor hall sensors
- Category: >>>
- Supplier: Shanghai Mindong Mechanism Electron Co. Ltd.
Share on (11000002276257):
Product Overview
Description
Products Description

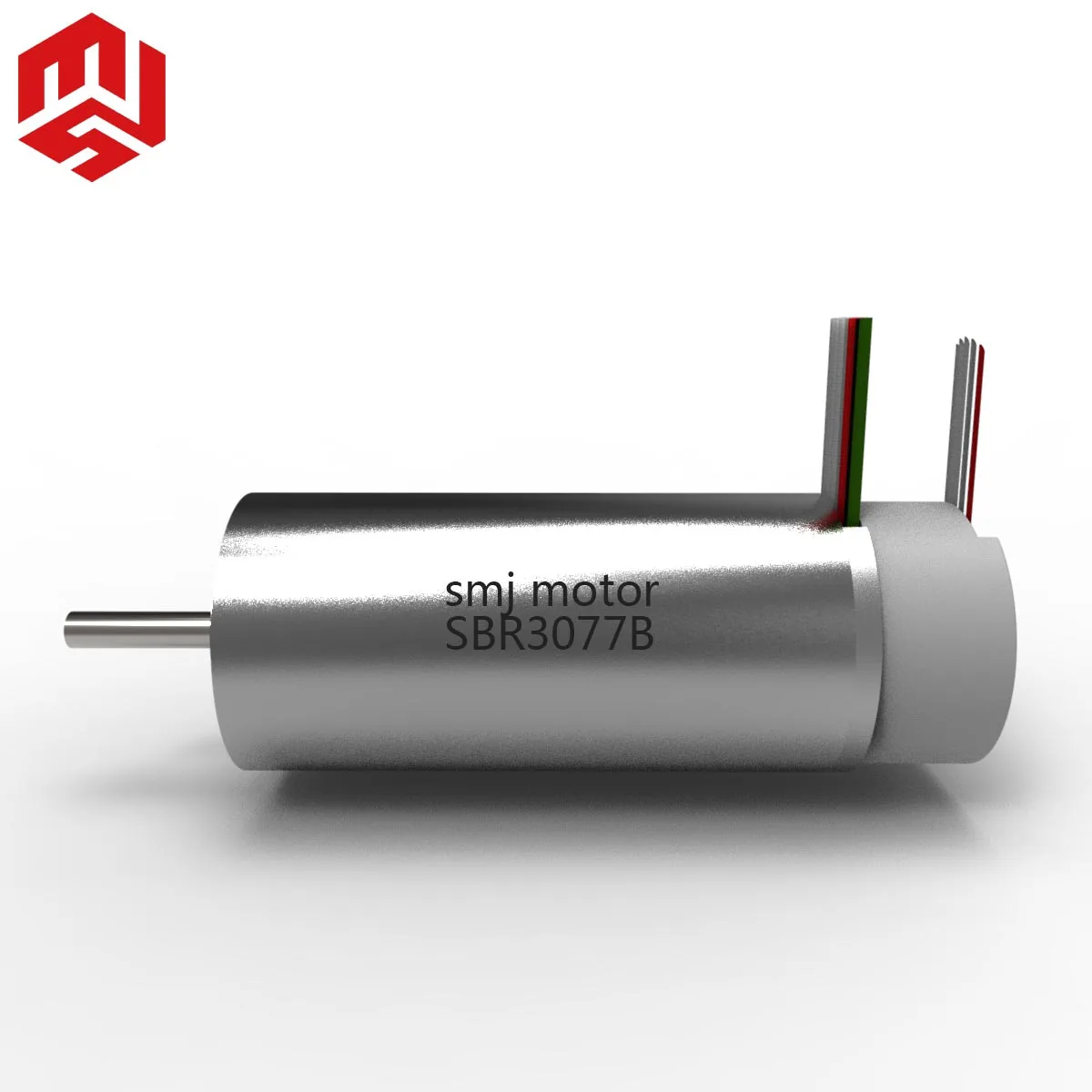

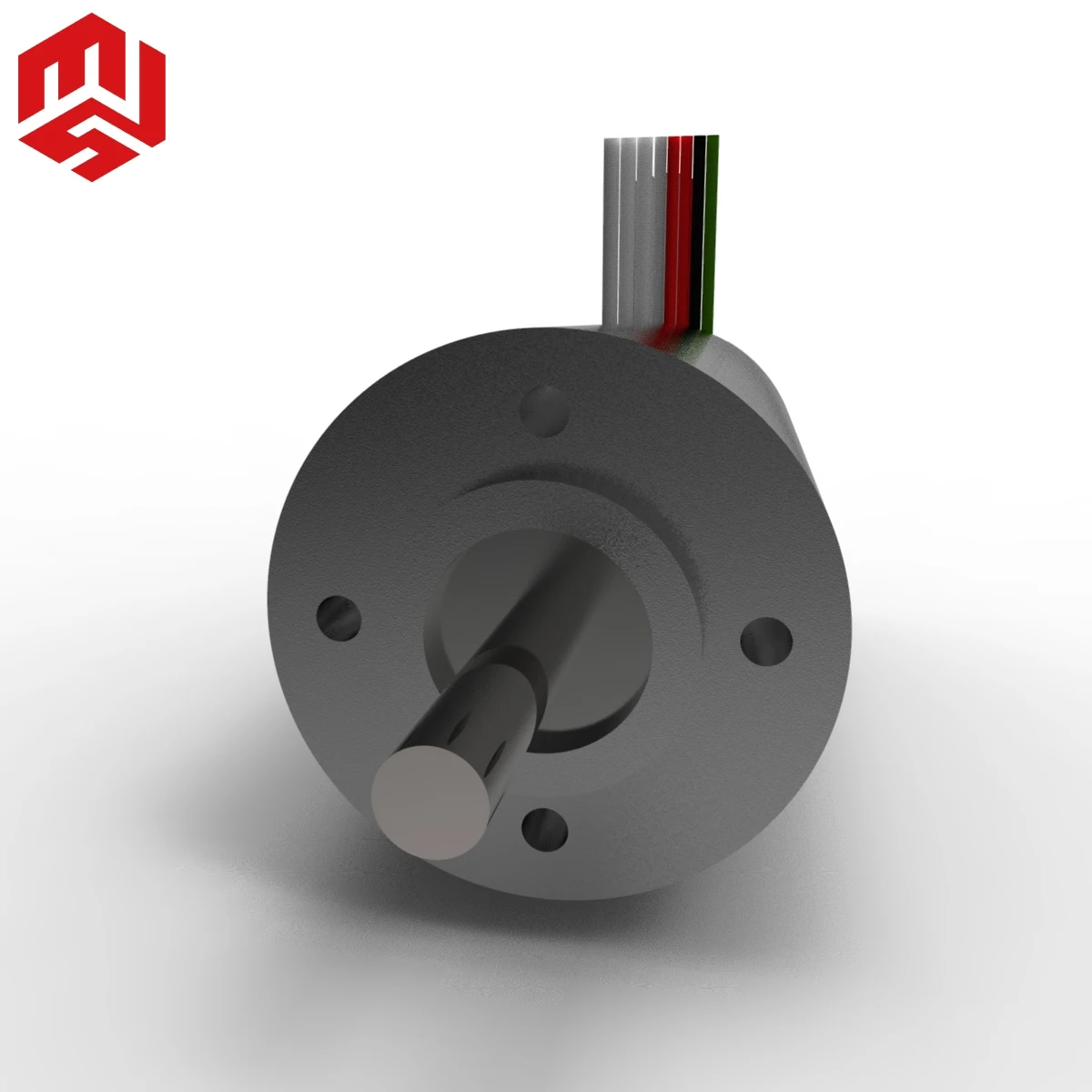

Part number SBR3077B Ø30 mm, brushless Servo motor, 66.6 Watt, with Hall sensors and Encoder
Motor model | SBR307724B | SBR307736B | SBR307748B | ||
Nominal voltage | V | V | 24 | 36 | 48 |
No load speed | rpm | Wnl | 7200 | 8400 | 6900 |
No load current | mA | InI | 〈400 | 〈300 | 〈200 |
Nominal speed | rpm | Wc | 6380 | 7500 | 6130 |
Nominal torque | mNm | Tc | 94.1 | 84.7 | 97.5 |
Nominal current | A | Ic | 2.99 | 2.1 | 1.49 |
Output power | W | Pc | 62.9 | 66.6 | 62.6 |
Stall torque | mNm | Tmax | 754 | 728 | 793 |
Stall current | A | Imax | 24 | 18 | 12.1 |
Max. efficiency | % | ηmax | 87.5 | 88.4 | 87.7 |
Terminal resistance | Ω | Rt | 1 | 2 | 3.97 |
Torque constant | mNm / A | Kt | 31.43 | 40.47 | 65.61 |
Speed constant | rpm / V | Kn | 303.83 | 235.96 | 145.55 |
Speed torque gradient | rpm / mNm | Δn / ΔT | 67.8 | 88.5 | 62.9 |
